Product Overview

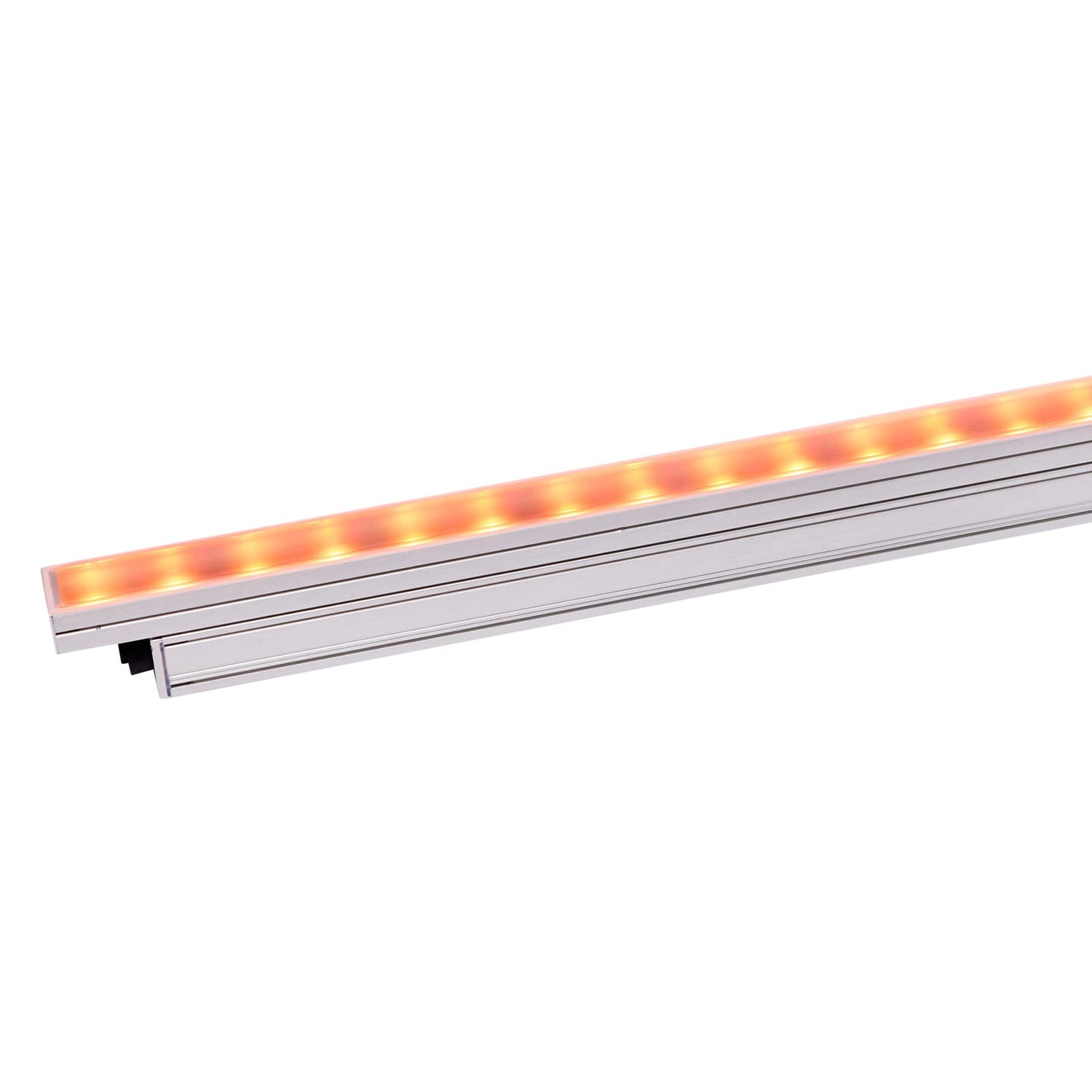

The Martin Exterior Linear Pro-Cove QUAD 4ft is a permanent outdoor architectural linear cove fixture engineered for indirect illumination of coves, soffits, underbridges, and architectural recesses. With a 100° wide beam angle and RGBW QUAD LEDs (8/ft), it delivers broad, uniform indirect wash for applications where wide-angle soft illumination is required. Rated IP66, IK08, and C5 marine corrosion resistance, it operates reliably from -30°C to +45°C and is backed by Martin's 5-year warranty. Its 50 lm/W efficacy and selectable 5W/ft power mode make it a strong candidate for ASHRAE-compliant permanent outdoor cove installations.
Product Description
The Exterior Linear Pro-Cove QUAD shares the same platform as the full Exterior Linear Pro family — compact 40mm wide housing, Full Gamut Color Calibration (1-step MacAdam ellipse), and selectable segment control (1, 4, or 8 segments per 4ft fixture). The dedicated CCT control channel provides tunable white from 1,800K to 12,000K for flexible warm/cool white programming alongside full RGBW color mixing. Three selectable power modes (12W, 10W, or 5W per foot) allow energy management across large cove installations.
The hybrid 8-pin power and data connector enables daisy-chaining of up to 42 fixtures (52m) at 230–277V from a single feed. DMX-512A and RDM control are standard; 20-scene stand-alone programming is available via Martin Companion software. Accessories include glare shields, flange brackets, adjustable brackets, and quick-mount brackets. The 100° beam angle is purpose-built for cove applications where indirect bounce lighting, soffit illumination, and recessed architectural detail are the design intent.
Key Features
- 100° Wide Beam Angle — Purpose-designed for cove and indirect illumination with broad, uniform output.
- RGBW QUAD LEDs, 8/ft — Color-calibrated 1-step MacAdam ellipse for consistent hue across full installation runs.
- Dedicated CCT Channel — Tunable white 1,800K–12,000K via DMX channel, independent of color mixing.
- Selectable Segment Control — 0.5 ft / 1 ft / 4 ft addressing for pixel effects and zone control.
- Three Power Modes — 12W/10W/5W per foot; 5W mode meets ASHRAE facade lighting standards.
- IP66 / IK08 / C5 — Fully weatherized, marine-grade housing for permanent coastal outdoor installation.
- Compact 40mm Width — Minimal-profile design for discrete integration into architectural coves and channels.
- 5-Year Warranty — Martin's full exterior warranty for permanent architectural lighting installations.
Typical Applications
- Architectural cove and soffit indirect lighting
- Bridge underside and overpass illumination
- Outdoor canopy and awning accent lighting
- Recessed linear lighting in permanent exterior installations
- Hotel and hospitality exterior cove features
- Commercial and retail exterior indirect wash
Technical Specifications
| Light Source | 8 × RGBW LEDs per foot (QUAD) |
| LED Lifetime | Min. 50,000 hours (to >70% luminous output) |
| Color Calibration | Full Gamut, 1-step MacAdam ellipse |
| CCT Range | 1,800K – 12,000K (default 4,000K) |
| Luminous Output (4ft @ 48W) | 2,360 lm @ 6000K | 2,160 lm @ 4000K | 1,960 lm @ 2700K |
| Beam Angle | 100° |
| Dimming | 16-bit DMX intensity control |
| Segment Modes | 0.5 ft / 1 ft / 4 ft (full fixture) |
| DMX Channels (4ft) | 6 / 4 / 3 / 12 / 24 (standard/RAW/1seg/4seg/8seg) |
| Control | DMX-512A, RDM (ANSI E1.20), stand-alone (20 scenes) |
| Power Consumption (4ft) | Max: 48W / 40W / 20W (12W/10W/5W mode) |
| AC Input | 100–277V AC, 50/60Hz, auto-ranging |
| Max Daisy-Chain (4ft) | 42 pcs (52m / 169 ft) at 230–277V |
| Ingress Protection | IP66 |
| Impact Resistance | IK08 |
| Corrosion Resistance | C5 (ISO 12944-6) |
| Housing | Aluminum, clear anodized |
| Dimensions | 1,227 × 40 × 68 mm (4.02 ft × 1.57 in. × 2.67 in.) |
| Weight | 2.8 kg (6.2 lbs) |
| Efficacy | 50 lm/W |
| Ambient Temperature | -30°C to +45°C |
| Warranty | 5 years |
| Certifications | UL 1598, CE, CSA C22.2, RCM, CB/IECEE |
FAQs
- What is the difference between the Cove QUAD and Graze QUAD?
- The Cove QUAD uses a 100° beam angle for indirect, wide-spread illumination suited to coves, soffits, and recessed applications. The Graze QUAD uses a 15° narrow beam for direct grazing of textured surfaces and facades. Both share the same RGBW QUAD LED engine and platform.
- What is the IP rating?
- IP66 — fully protected against powerful water jets. Also rated IK08 (impact) and C5 corrosion resistance for marine/coastal permanent installations.
- Can this fixture be used in coves with limited depth?
- Yes. The 40mm width and compact 68mm height make this one of the lowest-profile commercial outdoor linear fixtures available, suitable for tight cove recesses and architectural extrusion mounting.
- What segment control modes are available?
- The 4ft fixture supports full-fixture, 4-segment (1ft each), or 8-segment (0.5ft each) addressing. DMX channel count is 3, 12, or 24 channels respectively.
- Does the fixture meet ASHRAE energy requirements?
- Yes, when set to the 5W/ft power mode. This is selectable via DMX and does not require hardware changes.
- What is the warranty?
- Martin provides a 5-year warranty for all Exterior Linear Pro fixtures in permanent architectural installation.
