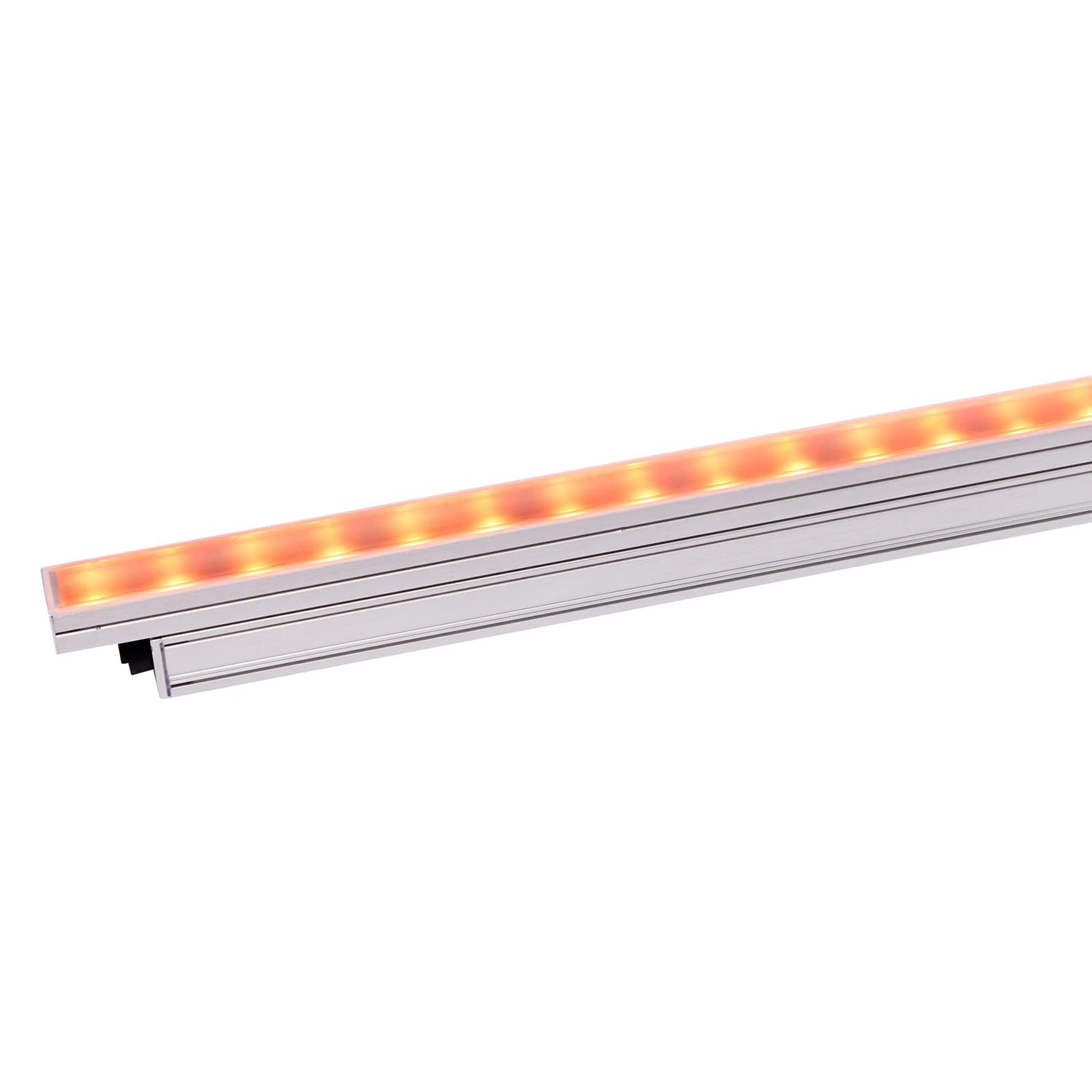

Martin Exterior Linear Pro-Cove QUAD 1ft – IP66 Outdoor Linear Cove Fixture
Martin Exterior Linear Pro-Cove QUAD 1ft – IP66 Outdoor Linear Cove Fixture is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Martin Exterior Linear Pro-Cove QUAD 1ft – IP66 Outdoor Linear Cove...
Product Overview
The Martin Exterior Linear Pro-Cove QUAD 1ft is the compact 1-foot format of the Exterior Linear Pro Cove QUAD family, designed for indirect cove illumination, soffit lighting, and tight architectural recesses where the full 4ft version is impractical. It uses the same RGBW QUAD LED engine (8 LEDs/ft) and 100° wide beam as the 4ft version, with Full Gamut Color Calibration and a dedicated CCT channel (1,800K–12,000K). Rated IP66, IK08, and C5 corrosion resistance, backed by Martin's 5-year warranty.
Product Description
The 1ft Cove QUAD integrates seamlessly into longer EL Pro 4ft runs via the hybrid 8-pin PD connector, filling gaps or adapting to non-standard architectural dimensions. All control features mirror the 4ft variant: DMX-512A, RDM, and 20-scene stand-alone capability. Selectable power modes (12W/10W/5W per foot) support energy management across large cove installations.
Key Features
- 100° Wide Beam, RGBW QUAD — Wide indirect output in 1ft format for coves and tight architectural recesses.
- Dedicated CCT Channel — Tunable white from 1,800K to 12,000K.
- IP66 / IK08 / C5 — Full weatherization for permanent outdoor installation.
- Compact 312mm Length — For tight architectural coves, fill segments, and modular runs.
- 5-Year Warranty — Martin full exterior warranty.
Technical Specifications
| Light Source | 8 × RGBW LEDs per foot (QUAD) |
| LED Lifetime | Min. 50,000 hours |
| CCT Range | 1,800K – 12,000K |
| Luminous Output (1ft @ 12W) | 590 lm @ 6000K | 540 lm @ 4000K | 490 lm @ 2700K |
| Beam Angle | 100° |
| Segment Modes | 1 ft / 0.5 ft (1seg/2seg) |
| DMX Channels (1ft) | 6 / 4 / 3 / 6 (standard/RAW/1seg/2seg) |
| Power Consumption (1ft) | Max: 12W / 10W / 5W |
| AC Input | 100–277V AC, 50/60Hz |
| Ingress Protection | IP66 |
| Impact Resistance | IK08 |
| Corrosion Resistance | C5 (ISO 12944-6) |
| Dimensions | 312 × 40 × 68 mm (1.02 ft × 1.57 in. × 2.67 in.) |
| Weight | 0.85 kg (1.9 lbs) |
| Warranty | 5 years |
