Martin Exterior Dot-1 Pro – IP67 Outdoor RGBW Pixel Dot String, 100pcs 2m Lead
Martin Exterior Dot-1 Pro – IP67 Outdoor RGBW Pixel Dot String, 100pcs 2m Lead is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Martin Exterior Dot-1 Pro – IP67 Outdoor RGBW Pixel Dot String, 100...
Product Overview

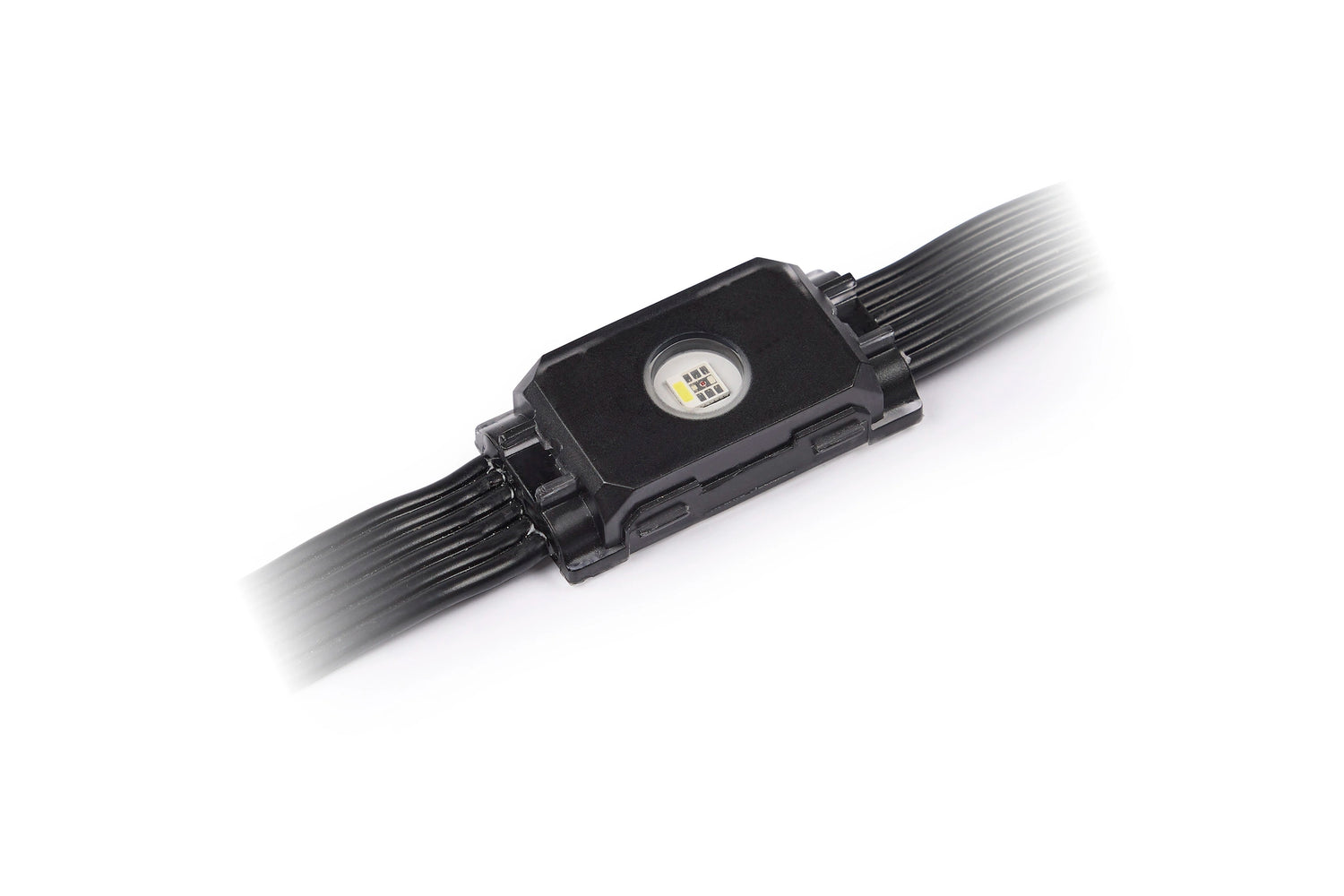

The Martin Exterior Dot-1 Pro is an IP67-rated, individually-controllable RGBW outdoor pixel dot string for permanent architectural installations, building facades, media facades, and large-scale creative LED displays. Each string contains 100 individually addressable dots at 115mm spacing on a 2-meter lead-in cable. The Dot-1 Pro features Full Gamut Pixel Calibration for exceptional color and brightness consistency across thousands of dots in a large installation, and a minimum LED lifetime of 100,000 hours. Compatible with Martin P3, Art-Net (1/2/3/4 with RDM), and sACN (ANSI E1.31), it integrates directly into leading architectural control ecosystems.
Product Description
The Exterior Dot-1 Pro delivers true pixel-level control of each RGBW dot using 16-bit resolution via P3 or 8-bit DMX control. The color boost feature ensures bright, saturated, and mixed colors even in daylight-visible applications. A dedicated color temperature control channel enables warm-to-cool white tuning across the string. Built-in Effect Macros (FX) allow stand-alone operation with up to 20 programmable scenes. The string connects to either the Exterior AC-Feeder (MAR-90580003) or Exterior DC-Feeder (MAR-90580004) via a hot-pluggable IP67-rated custom 8-pin connector operating at 15VDC.
The pixel spacing is configurable from 115mm to 2,000mm with a maximum lead-in cable of 5 meters (extendable to 10m with the Active Lead-In Cable Extender, MAR-90580023). Smart accessories include a diffused dome for 180° viewing angle (vs. 140° clear), a glare shield kit, and mounting brackets in both grey and black. The C5 corrosion rating (ISO 12944-6) and IP67 protection make this string suitable for permanent marine and coastal outdoor installations. Setup, addressing, and real-time status are handled via RDM over Art-Net or Martin P3.
Key Features
- 100 Individually-Controllable RGBW Dots — Per-pixel color and intensity control for creative media facade and architectural LED displays.
- IP67 / IK08 / C5 Rated — Waterproof, impact-resistant, and marine-grade corrosion resistant for permanent outdoor installation.
- P3 / Art-Net / sACN Compatible — Automatic protocol detection for integration into any architectural control system.
- 100,000-Hour LED Lifetime — Lumileds-sourced RGBW LEDs with Full Gamut Pixel Calibration.
- 16-bit Color Control — Via Martin P3 for maximum color fidelity in media applications.
- Color Boost Technology — Extended color gamut for bright, saturated output.
- Built-in Effect Macros — Up to 20 stand-alone scenes without an external controller.
- 5-Year Warranty — Martin full exterior warranty.
Typical Applications
- Building facade media display and pixel mapping
- Architectural outdoor feature lighting with per-pixel control
- Entertainment venue exterior creative LED installations
- Hotel, resort, and hospitality exterior pixel features
- Bridge, infrastructure, and landmark illumination
- Stadium and arena exterior LED display
Technical Specifications
| String Configuration | 100 dots, 115mm spacing, 2m lead-in cable |
| Pixel Dimensions | 45 × 24.8 × 11.2 mm (1.77 × 0.98 × 0.44 in.) |
| Weight | 2.48 kg (5.47 lbs) for 100 dots at 115mm spacing with 2m lead |
| Light Source | 1 RGBW LED per dot (Lumileds) |
| LED Lifetime | Min. 100,000 hours (to >70% luminous output) |
| Luminous Output | 18 lm @ 6500K (clear); 7 lm @ 6500K (diffused dome) |
| Viewing Angle | 140° (clear); 180° (with diffused dome) |
| Color Calibration | Full Gamut Pixel Calibration |
| Control Resolution | 16-bit (P3), 8-bit (DMX) |
| Protocols | Martin P3, Art-Net 1/2/3/4 (with RDM), sACN (ANSI E1.31) |
| DMX Modes | Standard, Extended, Raw, PixelMap (6 pixel modes) |
| Operating Voltage | 15 VDC (from Exterior AC-Feeder or DC-Feeder) |
| Power per Dot | Max: 1.0W (full); 0.5W (half mode); Typical: 0.33W |
| Ingress Protection | IP67 |
| Impact Resistance | IK08 |
| Corrosion Resistance | C5 High (ISO 12944-6) |
| Ambient Temperature | -30°C to +55°C (-22°F to +131°F) |
| Max Pixel Spacing | 2,000 mm (78.7 in.) |
| Max Lead-In Cable | 5 m standard (10 m with Active Lead-In Extender) |
| Warranty | 5 years |
| Certifications | CE, UL 62638-1, CSA C22.2, RCM, UKCA, BIS, CB/IECEE |
FAQs
- What power supply does the Dot-1 Pro require?
- The Dot-1 Pro requires either the Exterior AC-Feeder (MAR-90580003) or Exterior DC-Feeder (MAR-90580004), which convert mains power to the 15VDC operating voltage and provide P3/Art-Net/sACN data injection to the string.
- What is the IP rating?
- IP67 — protected against temporary immersion in water up to 1 meter, plus IK08 impact resistance and C5 marine-grade corrosion resistance. The connector is also IP67-rated for weatherproof daisy-chaining.
- How many dots can be on one string?
- A maximum of 100 dots per string. Pixel pitch is configurable from 115mm to 2,000mm depending on the installation requirement. The 100-dot / 115mm / 2m lead configuration is the standard SKU.
- Can the string length be extended?
- Yes. The standard 5m lead-in cable can be extended to 10m using the Active Lead-In Cable Extender (MAR-90580023).
- What accessories are available?
- Optional accessories include diffused dome kits, glare shield kits (grey and black), mounting brackets (grey and black), mounting profiles (MAR-90580017), splice connectors, ribbon cable (10m), and end termination caps.
- What is the warranty?
- Martin provides a 5-year warranty on all Exterior Dot Pro fixtures in permanent outdoor installation use.
