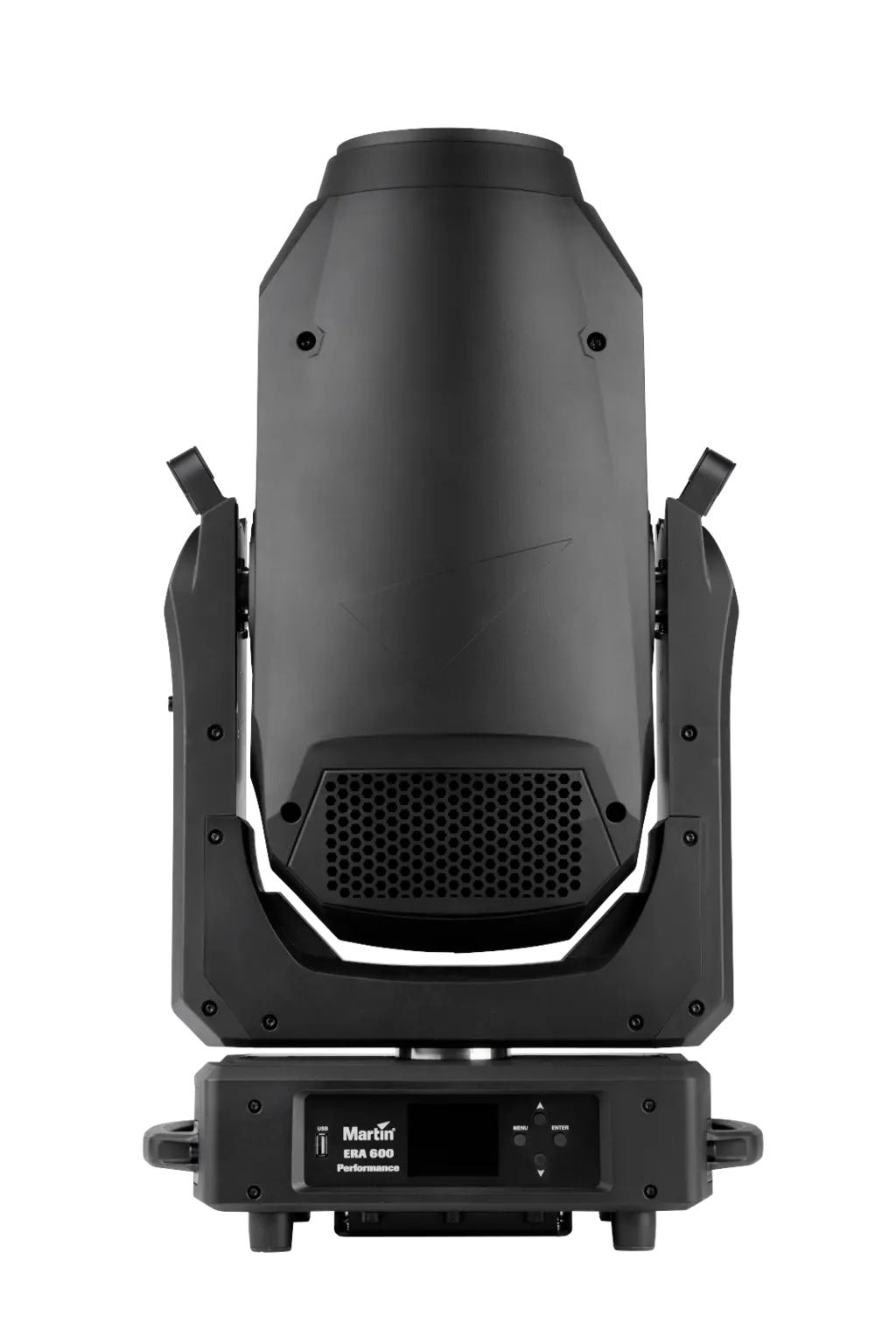

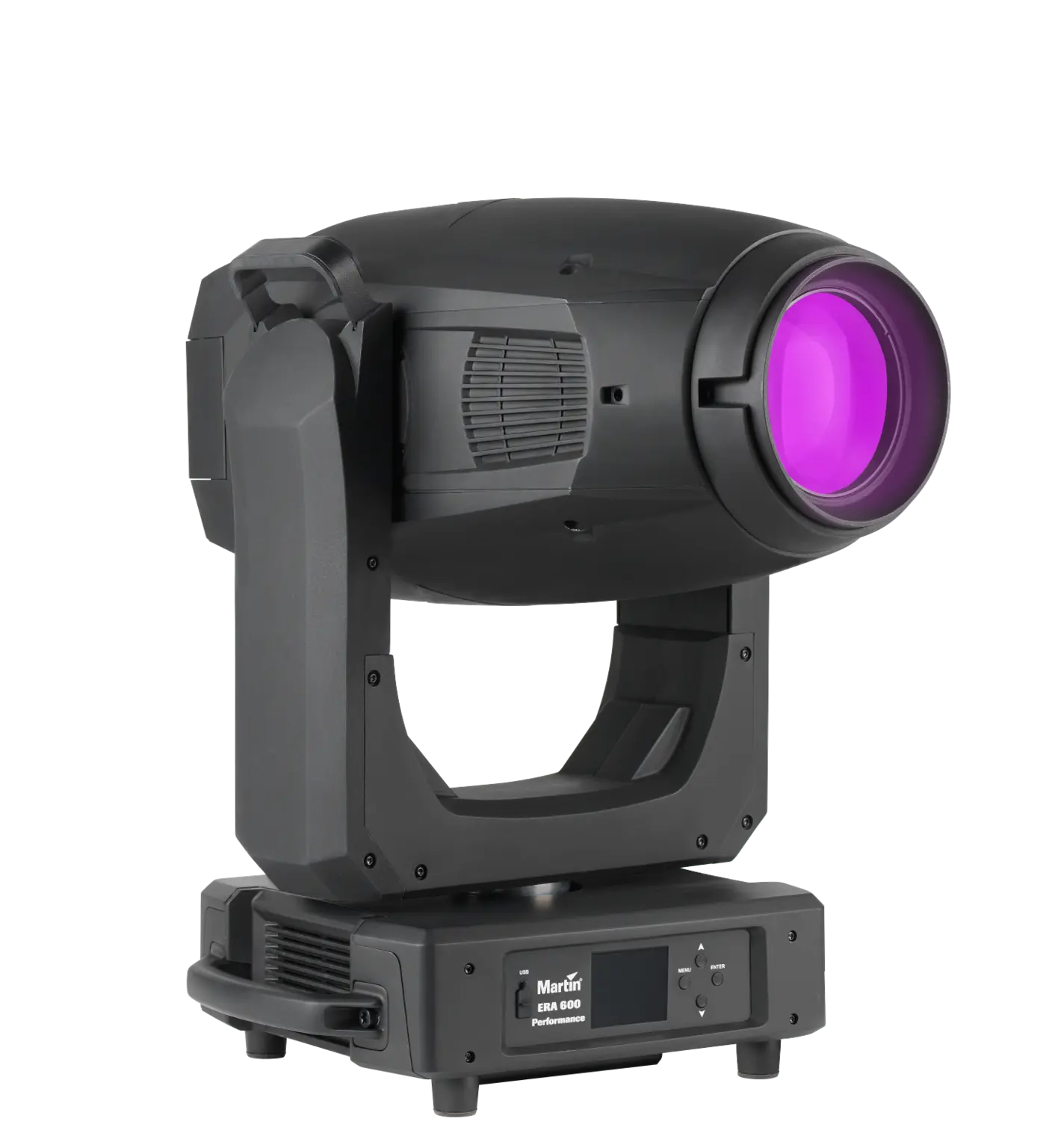

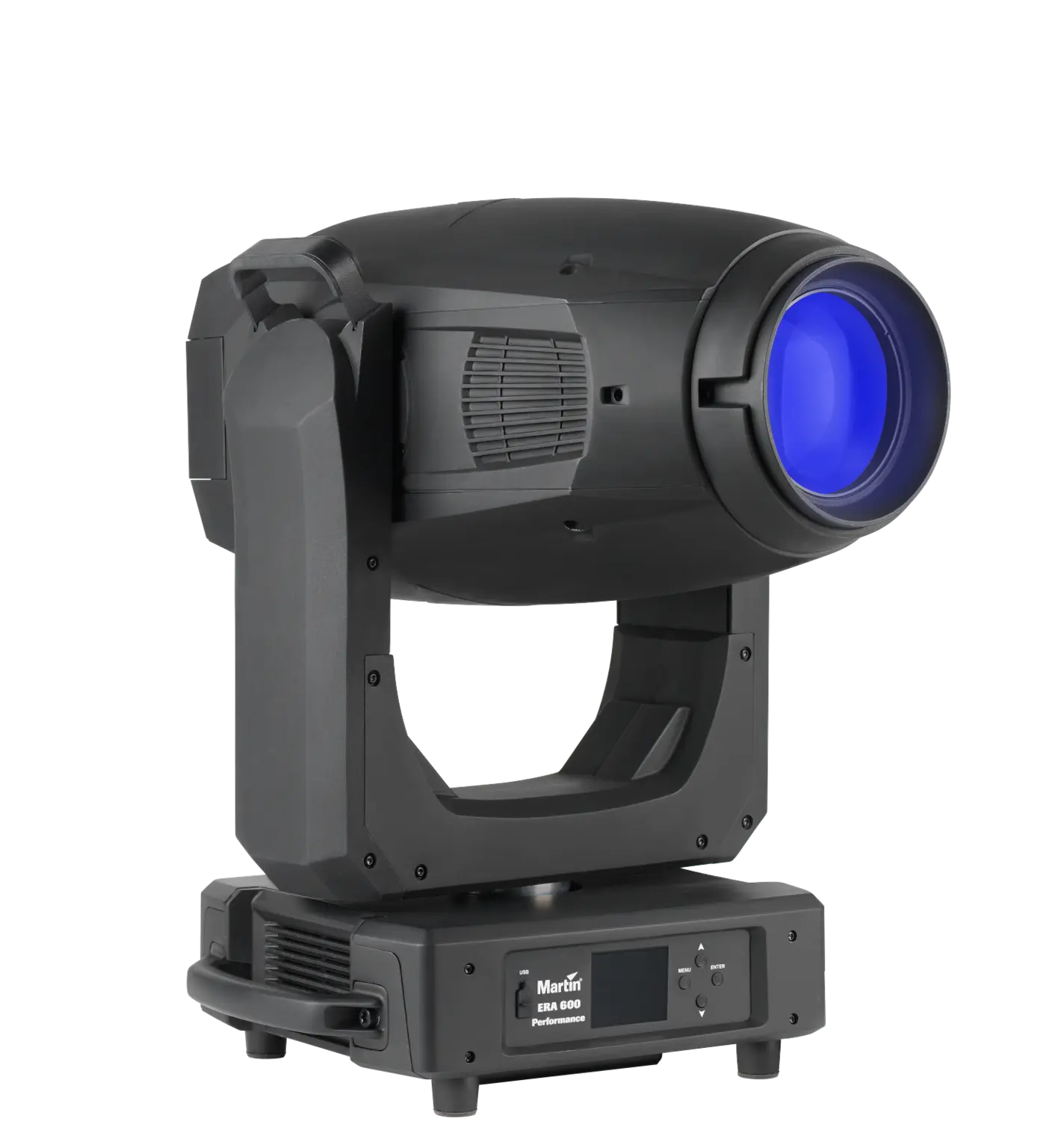

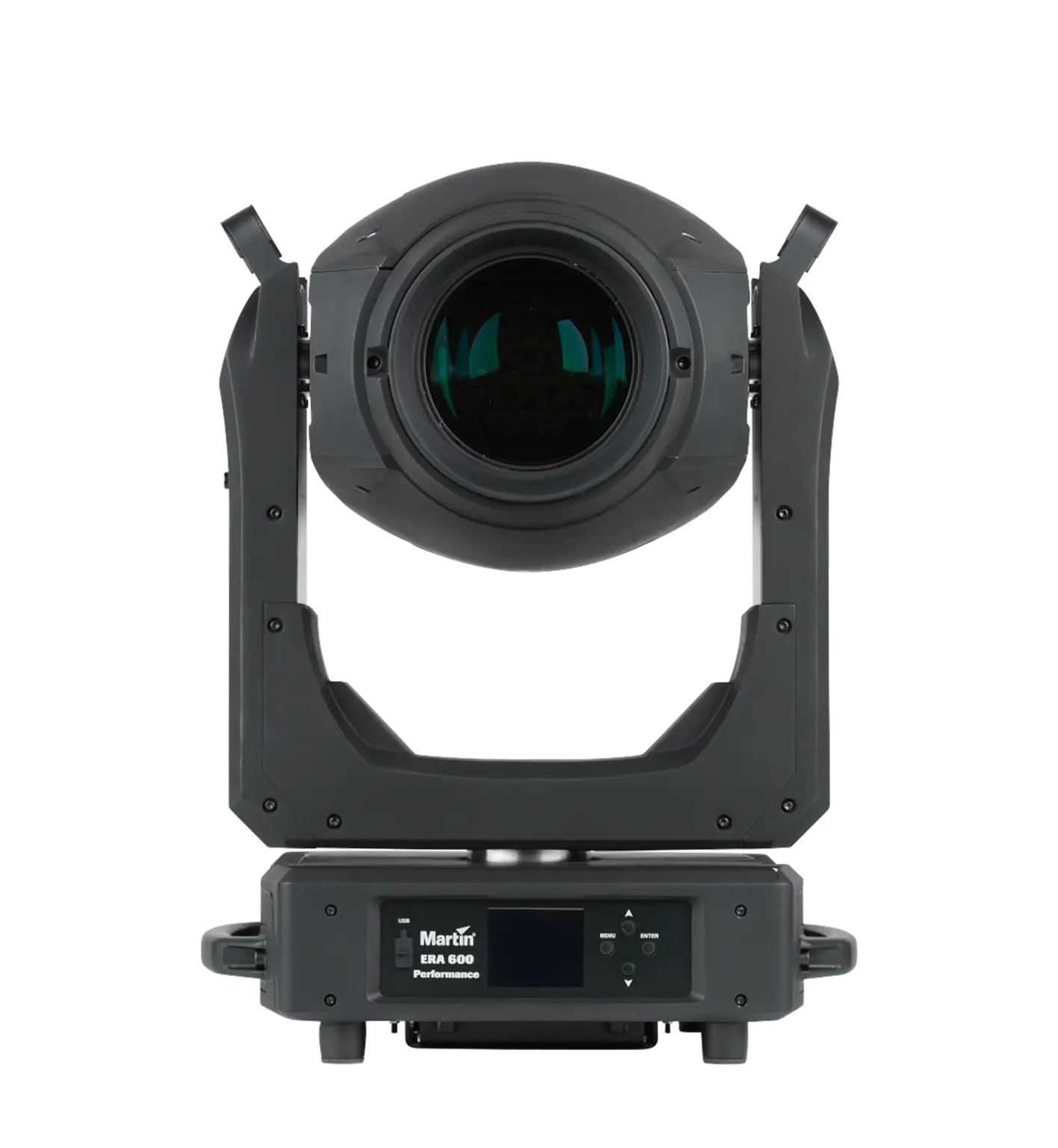

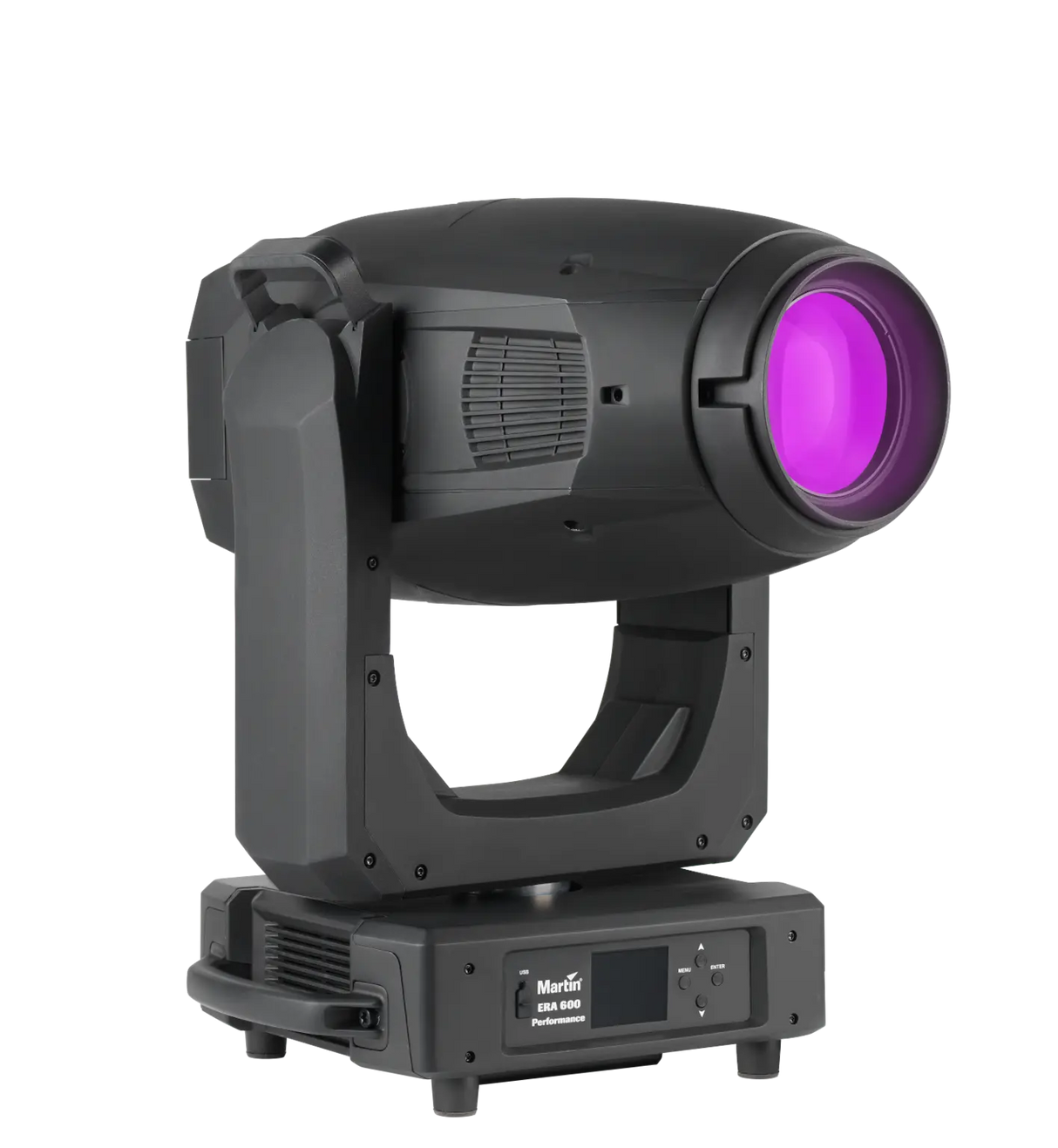

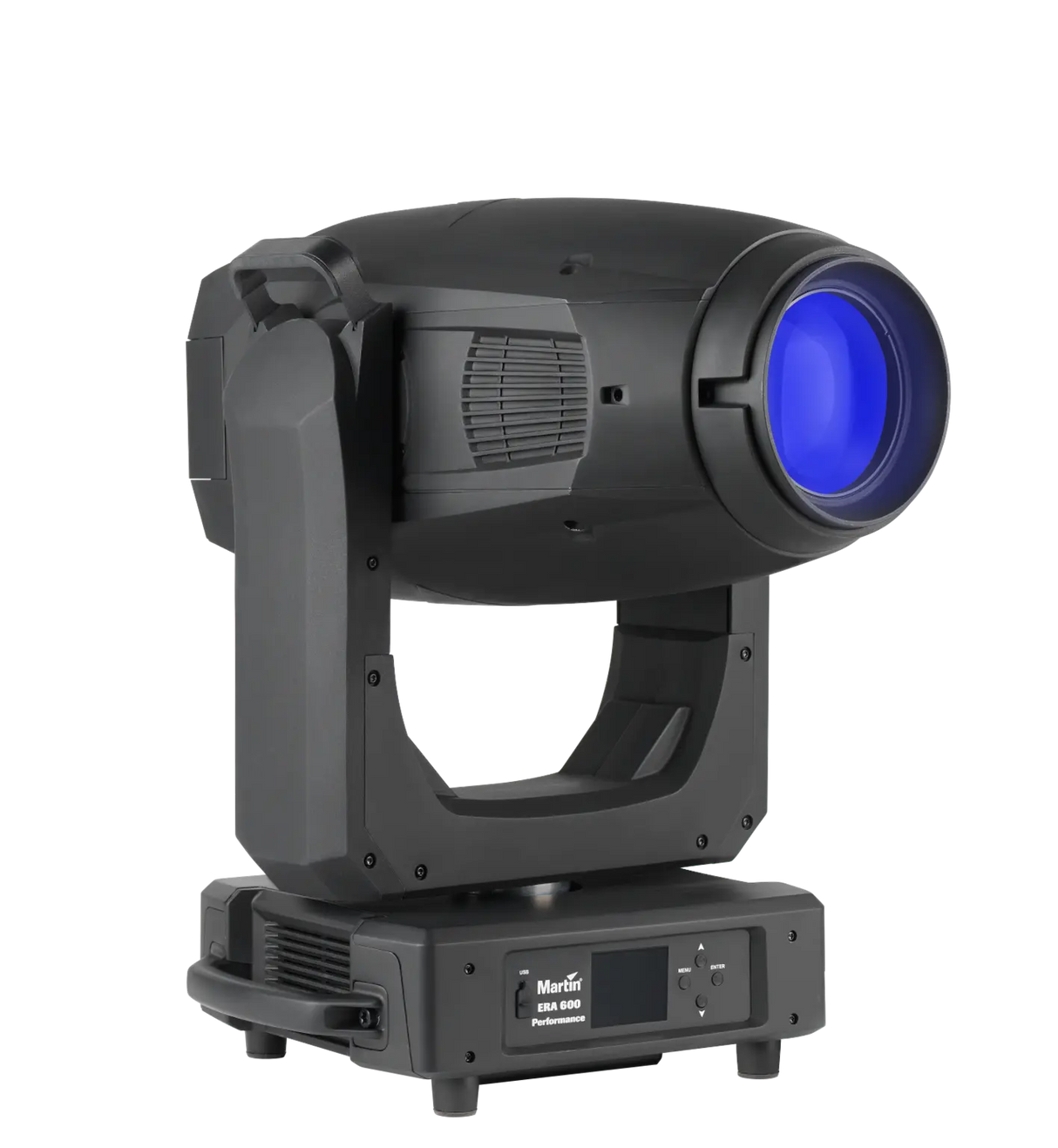

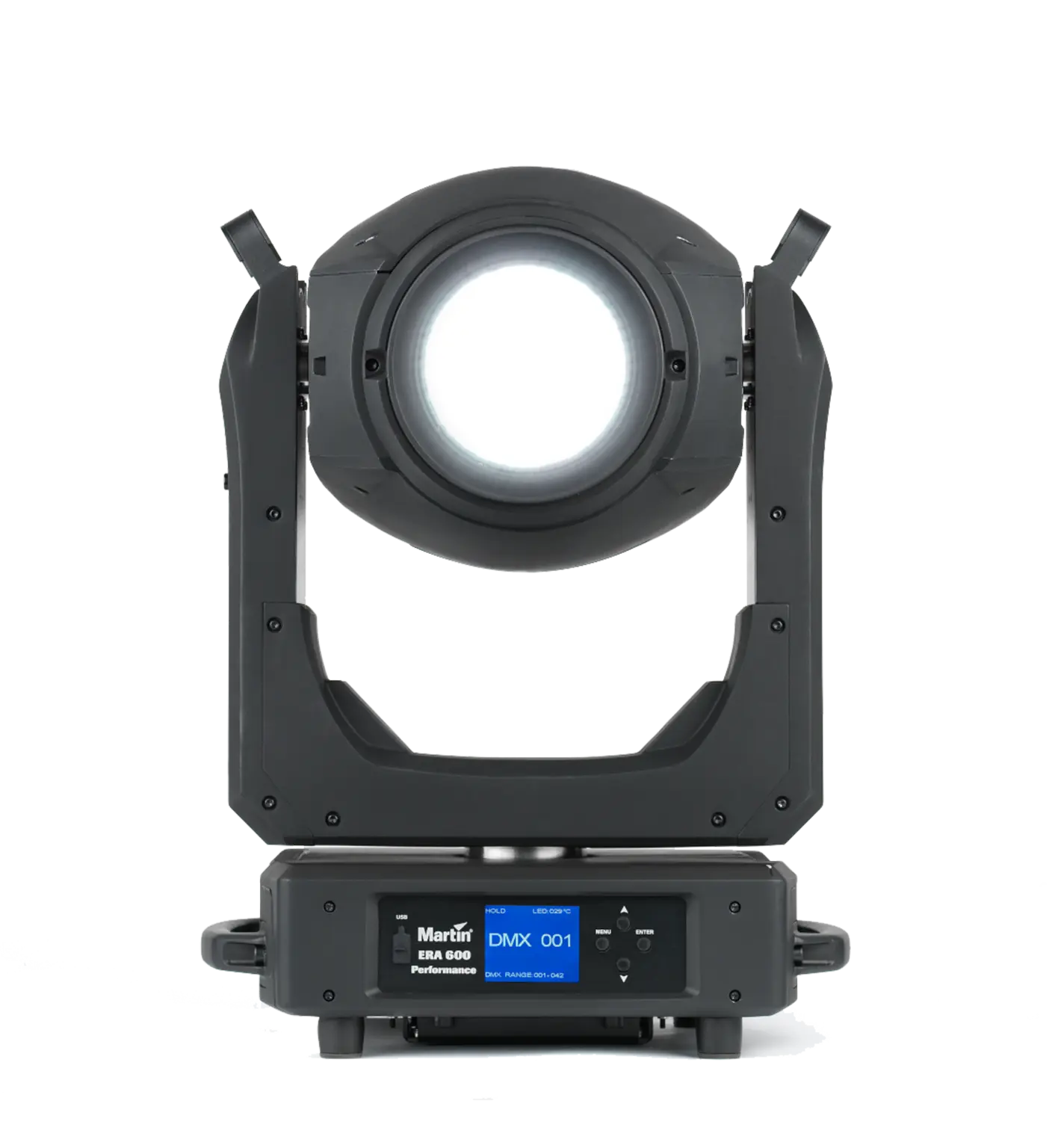

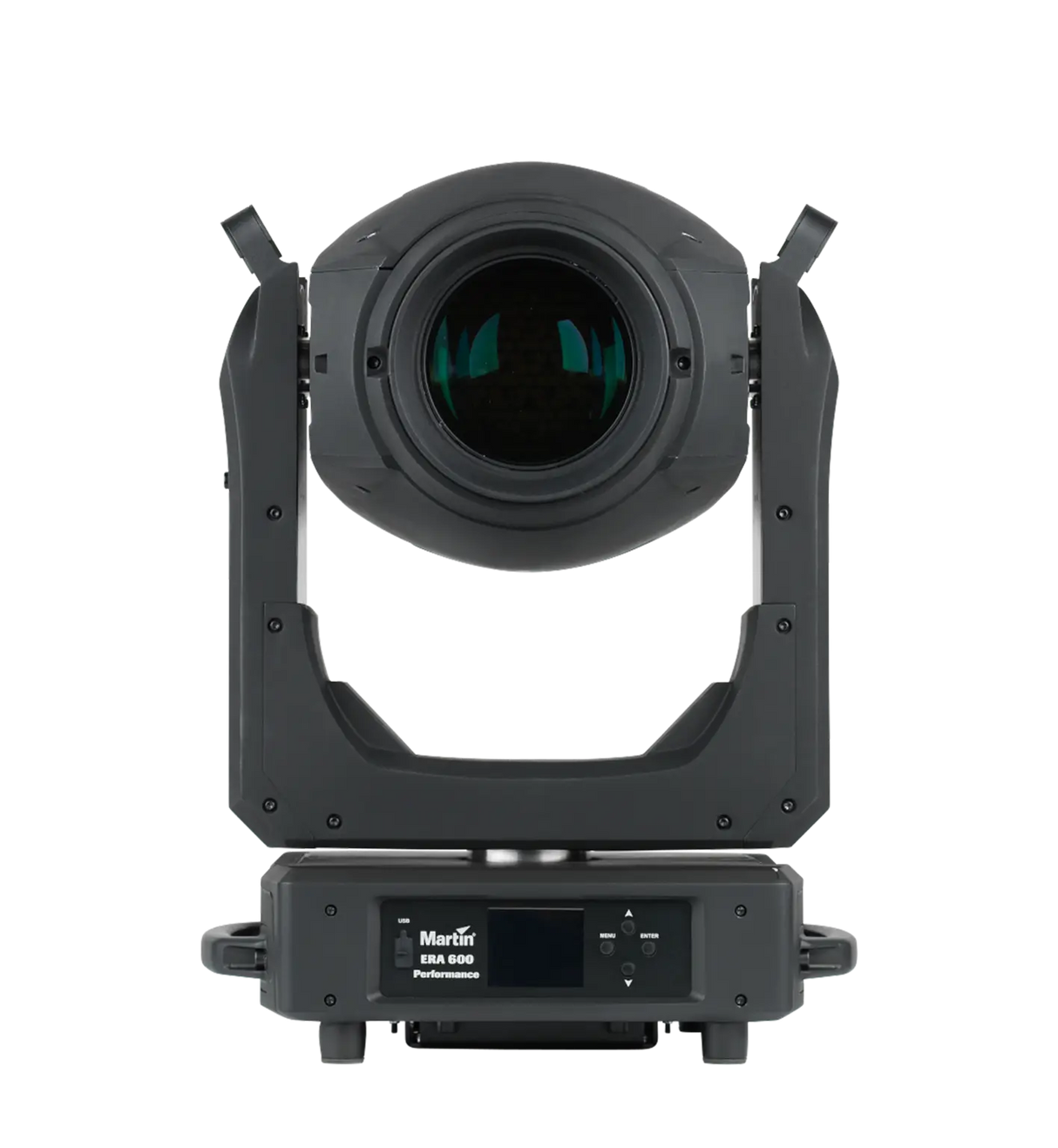

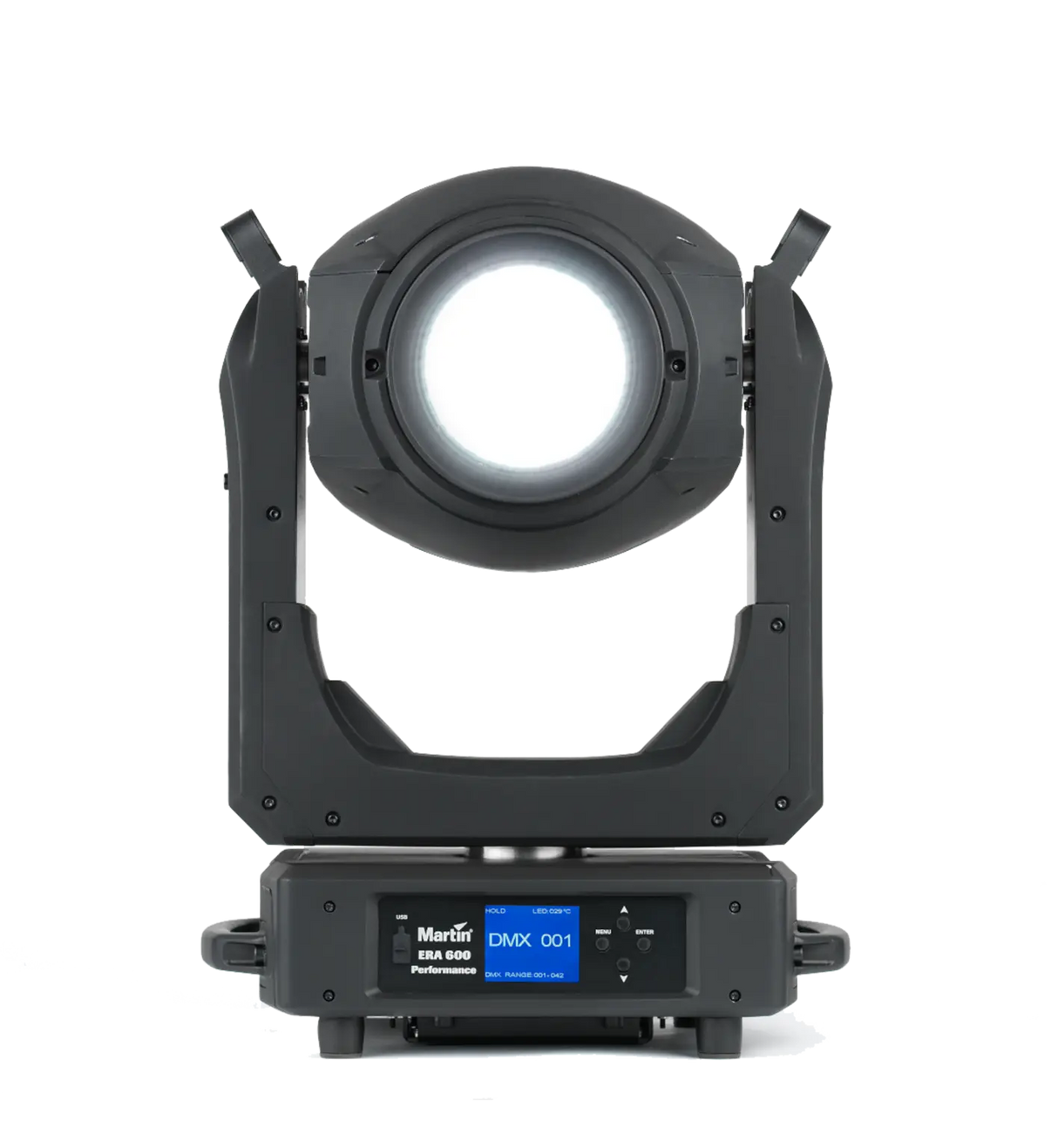

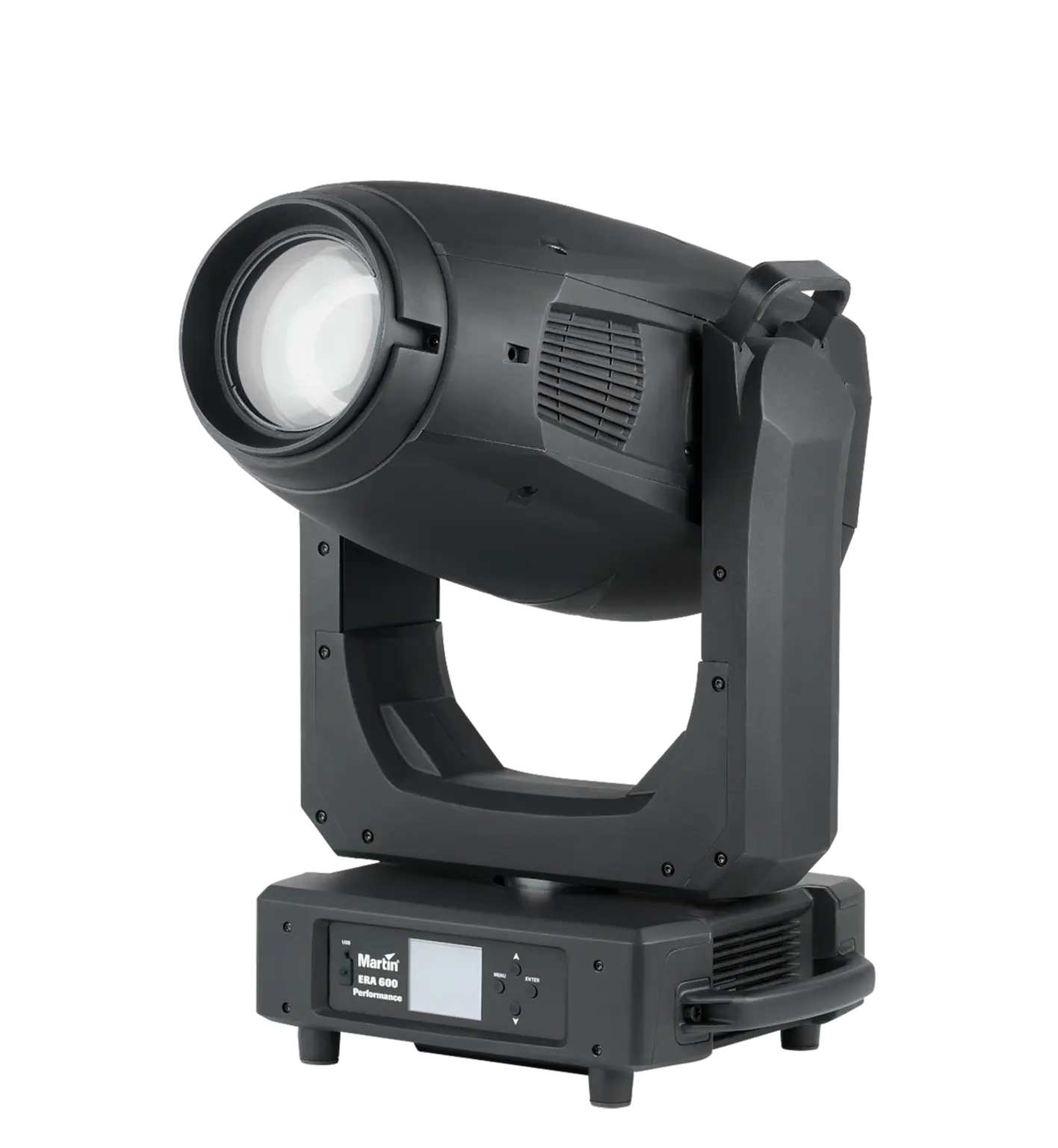

Martin ERA 600 Performance WHITE – High-Output Moving Head LED Wash

Product Overview

The Martin ERA 600 Performance WHITE is the white-finish version of Martin's bright, compact 550 watt LED moving head, built for touring, concert, and rental production. It pairs a 19,000-lumen white LED engine with full CMY color mixing, a full-curtain framing system, and dual rotating gobo wheels in a fixture that blends into light-colored trusses and scenic environments. This high-output moving head fixture delivers feature-loaded performance for AV integrators and rental inventories that prefer a white chassis.

Product Description

The ERA 600 Performance WHITE is functionally identical to the standard ERA 600 Performance, differing only in its white housing finish, and consolidates multiple fixture roles into one rig position. At its core is a 550 watt white LED engine producing a sharp, flat-field image with 19,000 lumens of fixture output. A 1:8 zoom covering 6° to 45° lets the fixture work close-in or on large trim heights. Full CMY color mixing, a seven-position color wheel, and linear CTO deliver pastels through saturated primaries with variable color temperature control from 2,700 K to 6,500 K. A full-curtain framing system places four individually controllable blades on a ±60° rotating module for precise shuttering and shape generation. Seven rotating glass gobos, eight static gobos, two rotating prisms, and a heavy frost provide an extensive effects palette. Fully electronic dimming and shutter give fast strobing, instant blackout, and smooth fades held flat to zero percent. At 32.3 kg with a modular design, effects modules swap in under a minute to minimize service downtime. The fixture speaks USITT DMX512 over 41 channels with ANSI/ESTA E1.20 RDM compliance for straightforward integration, and its white finish is ideal where fixtures should disappear into light-colored ceilings and trusses.

Key Features

• 550W White LED Engine — Delivers 19,000 lumens of fixture output with a crisp, flat field.
• 1:8 Fast Zoom (6°–45°) — Maintains high output across the full range for specials and long throws.
• Full CMY Color Mixing with Linear CTO — Smooth pastels through saturated primaries plus daylight-to-tungsten correction.
• Full-Curtain Framing System — Four independent blades on a ±60° rotating module for precise shuttering.
• Dual Gobo Wheels — Seven rotating Martin glass gobos plus eight static gobos for deep texture options.
• Two Prisms and Heavy Frost — 4-facet and 6-facet prisms plus heavy frost expand beam and wash capability.
• White Housing Finish — White chassis blends into light-colored trusses, ceilings, and scenic environments.

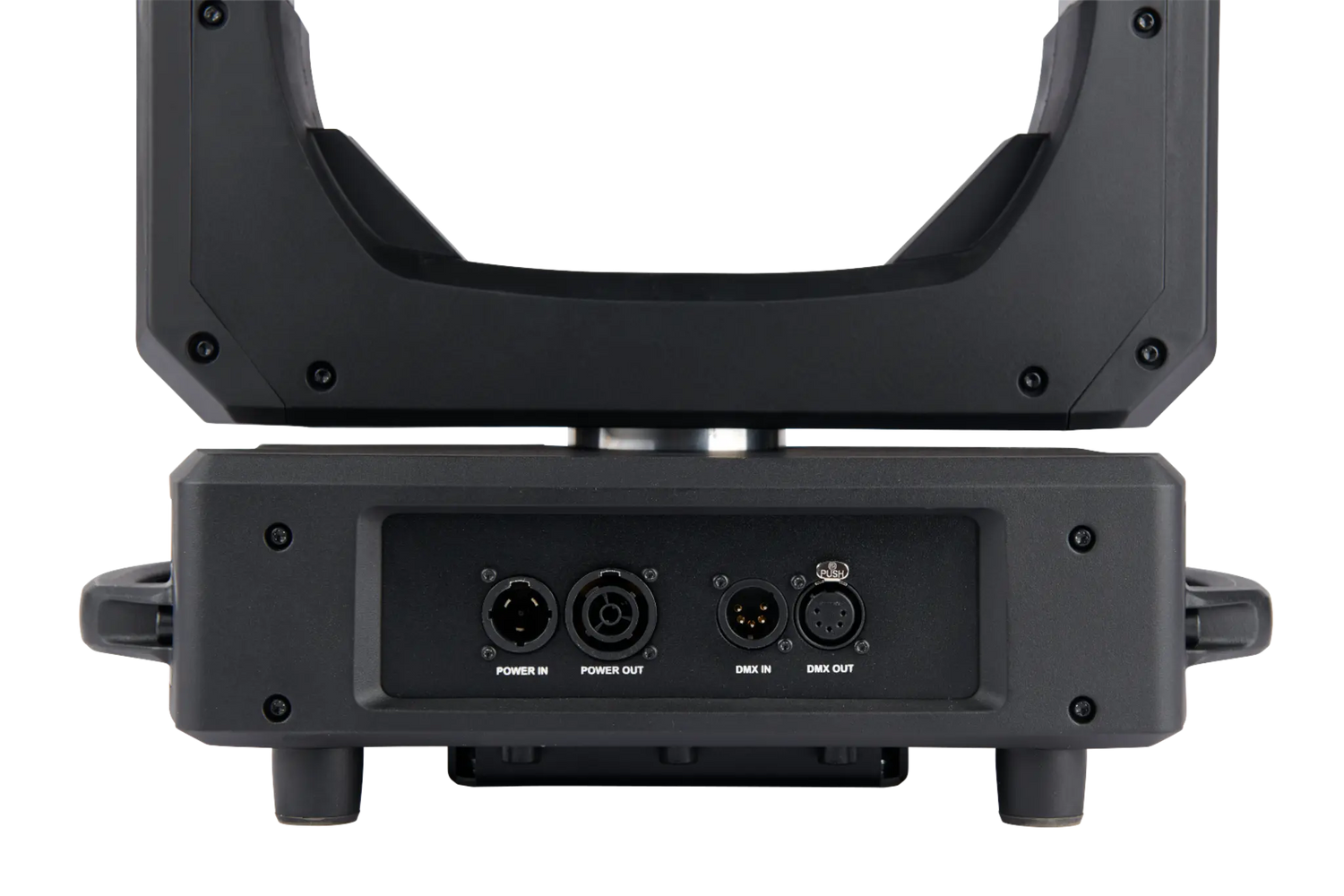

• DMX/RDM Control — 41-channel USITT DMX512 with ANSI/ESTA E1.20 RDM support.

Typical Applications

• Concert and Touring Production — High output and fast effects for front and back light positions.
• Rental and Staging Inventory — Cost-efficient, durable, and quick to service for rental fleets.
• Broadcast Studio — Framing, CTO, and flat-field optics for clean on-camera lighting.
• Theater and Auditorium — Quiet framing and gobo projection for performing-arts venues.
• House of Worship — Wash, beam, and image projection from a single fixture, in a white finish to blend into worship interiors.

Technical Specifications

Specifications sourced from Martin (Harman Professional).

Frequently Asked Questions

How does the WHITE version differ from the standard ERA 600 Performance?
It is functionally identical and shares all specifications; only the housing color differs. The white finish blends into light-colored trusses, ceilings, and scenic elements.

Is the ERA 600 Performance a wash or a profile fixture?
It is a feature-loaded moving head combining profile, beam, and wash capability with framing, dual gobo wheels, prisms, and a heavy frost.

What control protocols does it support?
USITT DMX512/1990 over 41 channels with RDM per ANSI/ESTA E1.20 for remote addressing and configuration.

Can color rendering be improved for broadcast?
Yes. An optional CRI Boost Filter raises CRI to >79 for higher on-camera color quality, trading some output.

How is it rigged and installed?
It mounts via standard omega-style clamp brackets and weighs 32.3 kg; always use a rated safety cable and confirm point loading.

Is it rated for outdoor use?
No. The ERA 600 Performance is an indoor fixture. For IP-rated outdoor applications see the Martin ERA 700 Performance IP and MAC ranges at Creation Networks.
