Martin ERA 600 Performance – High-Output Moving Head LED Wash

Product Overview

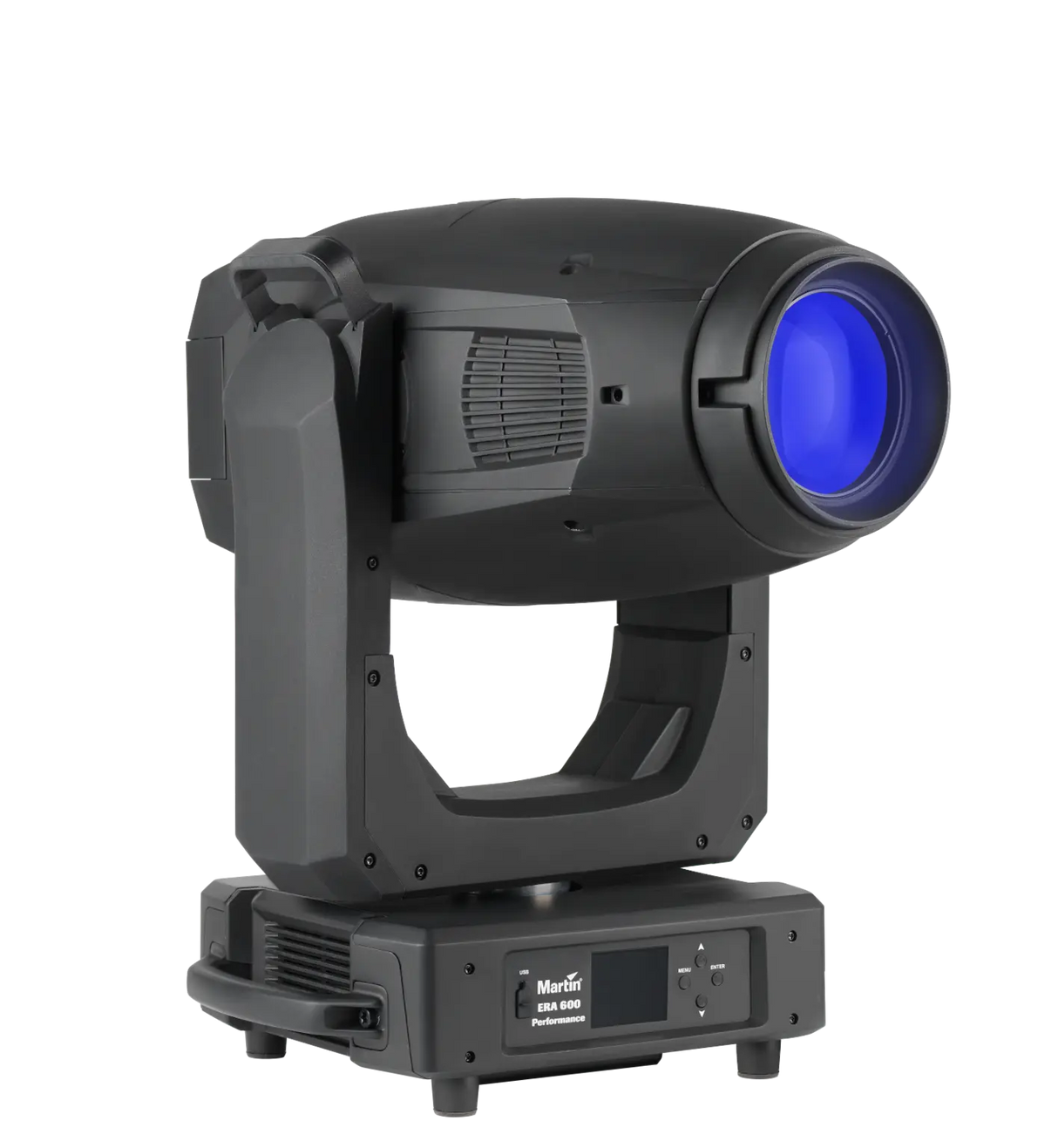

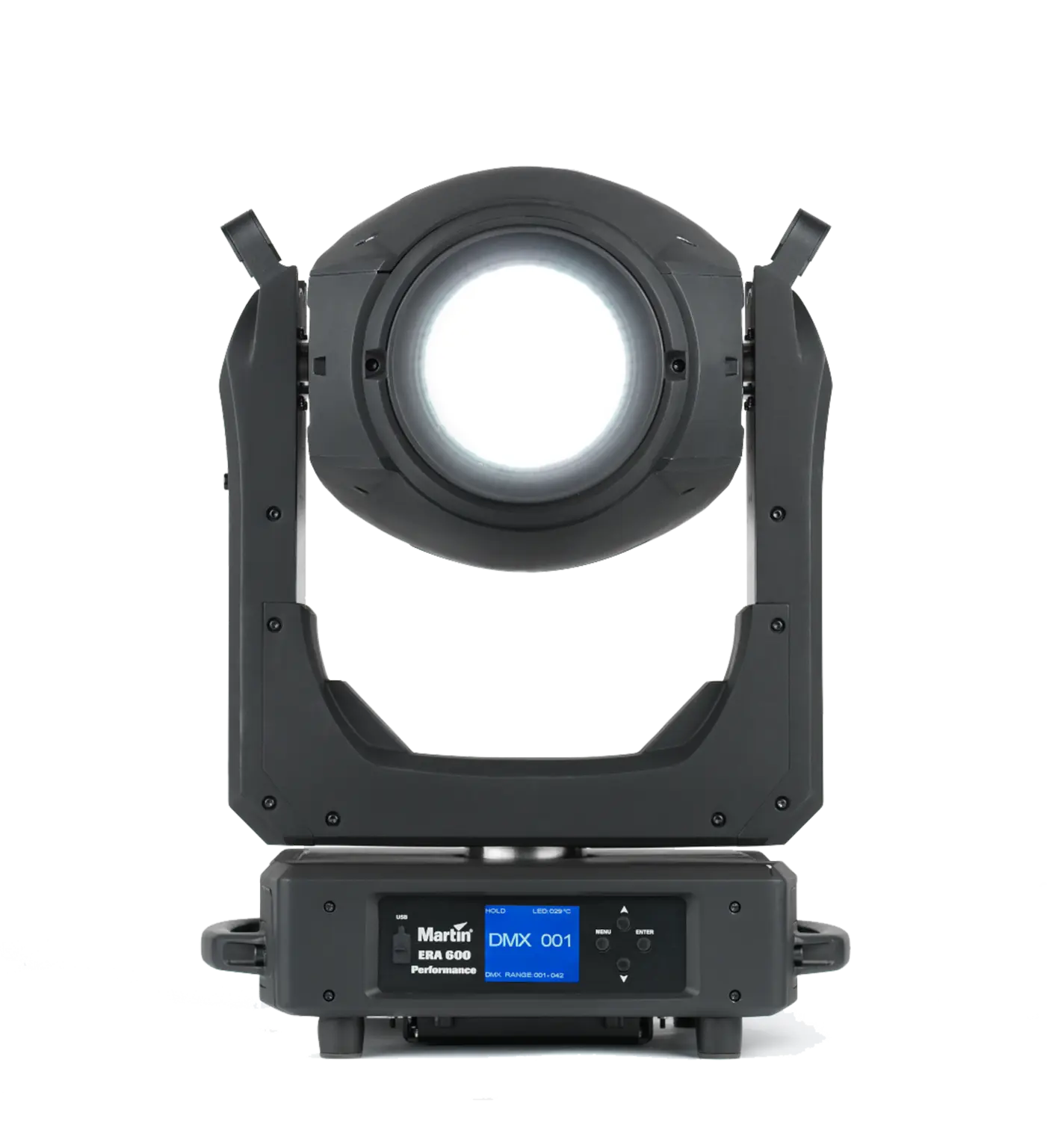

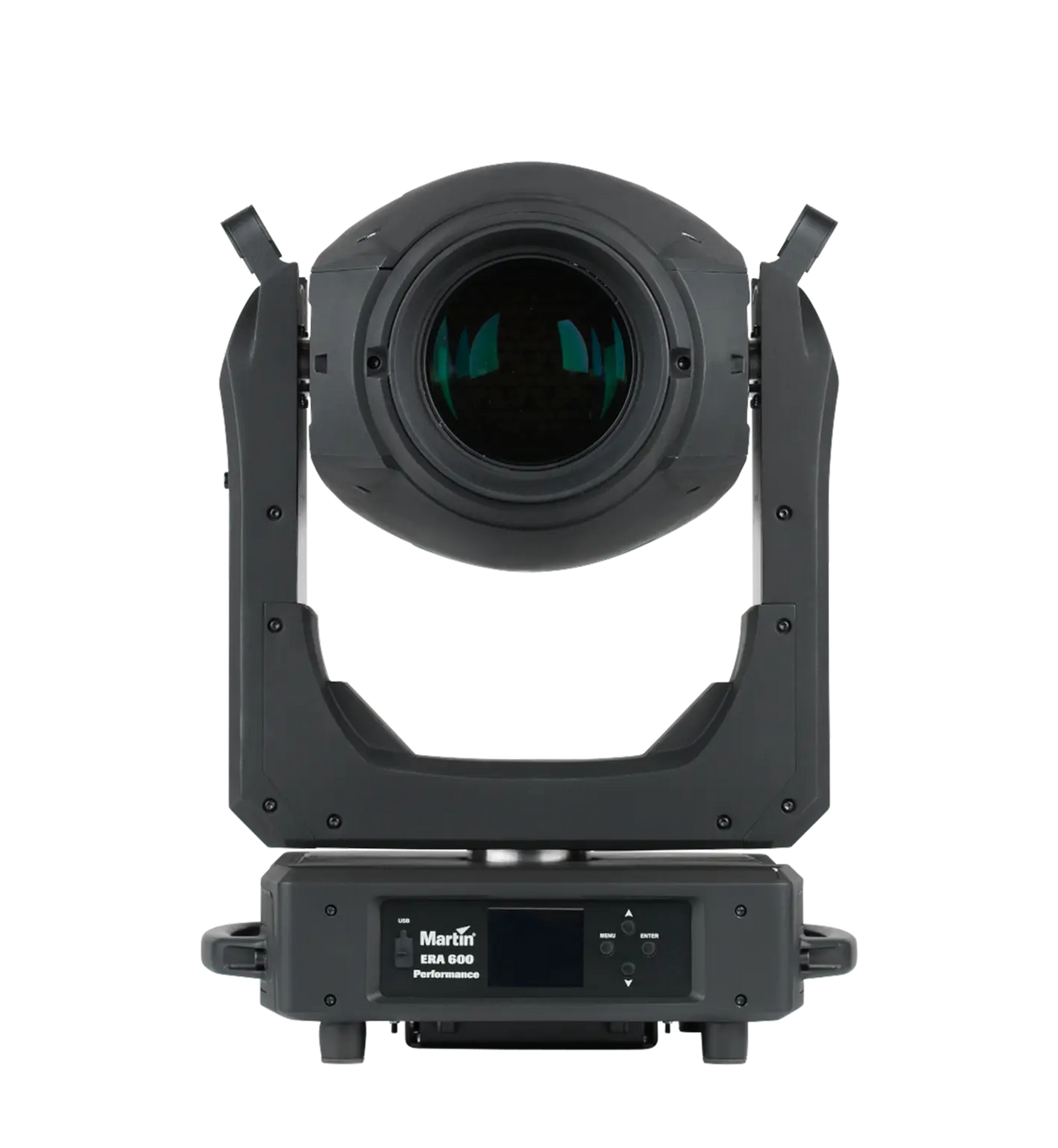

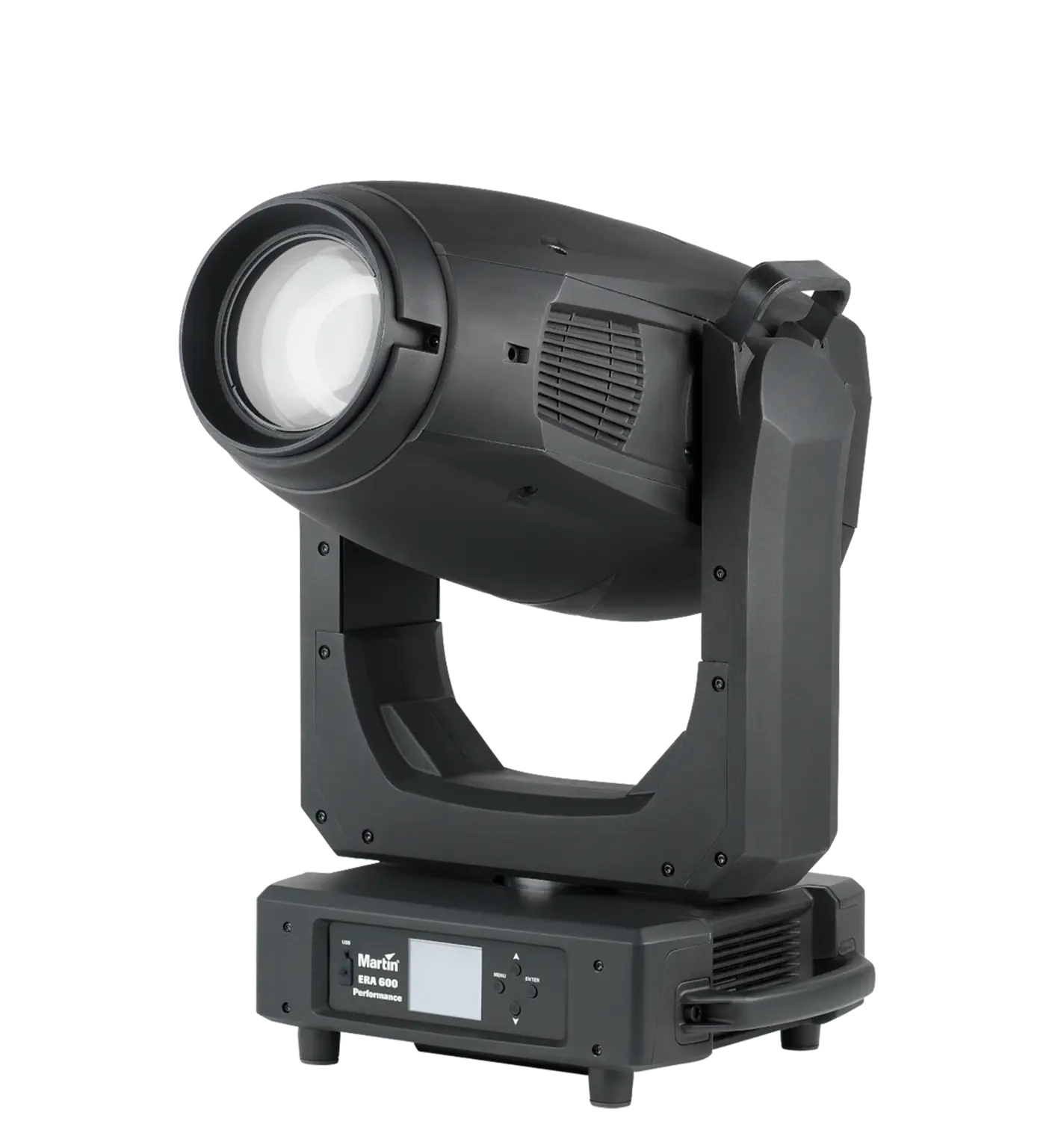

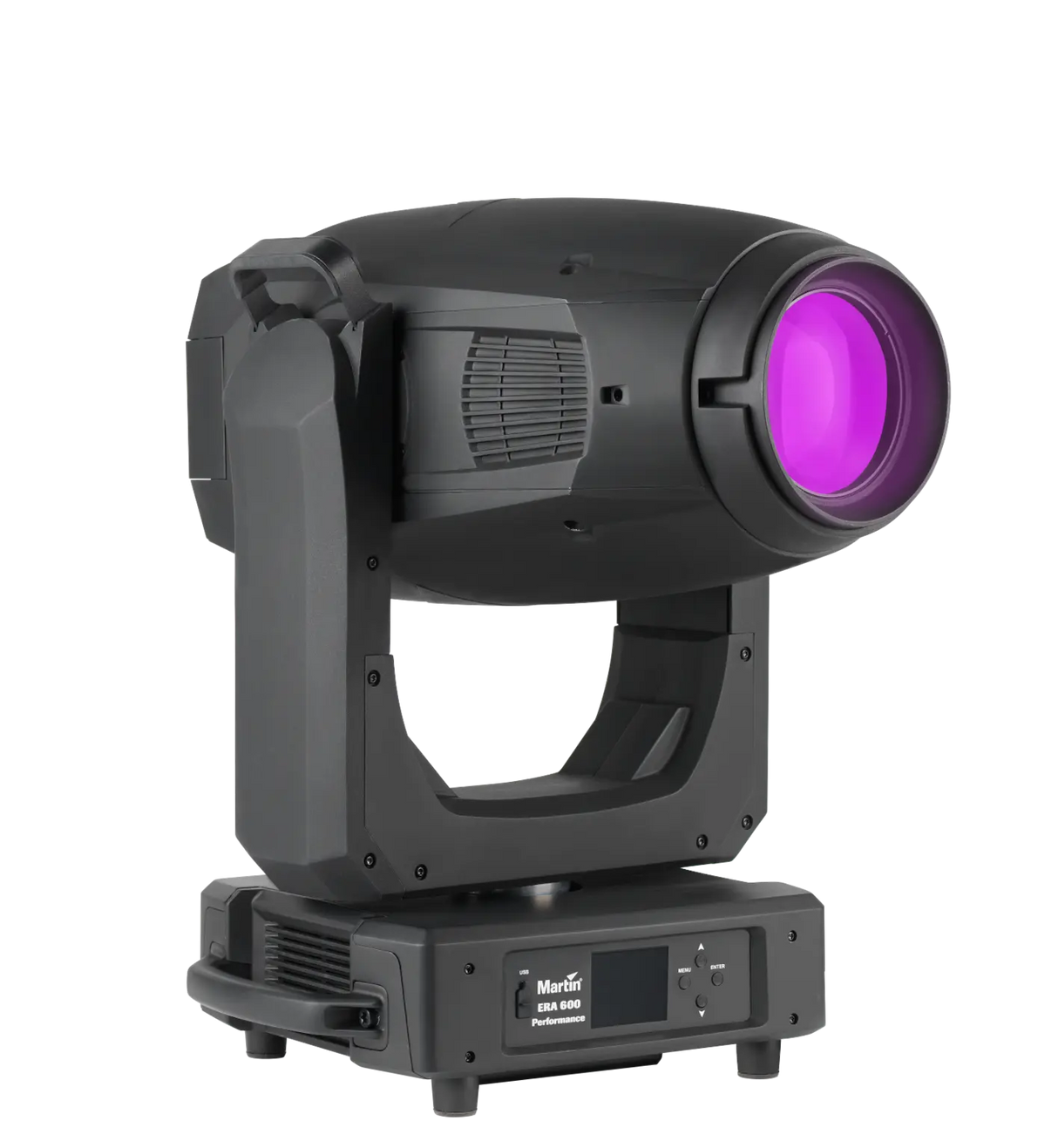

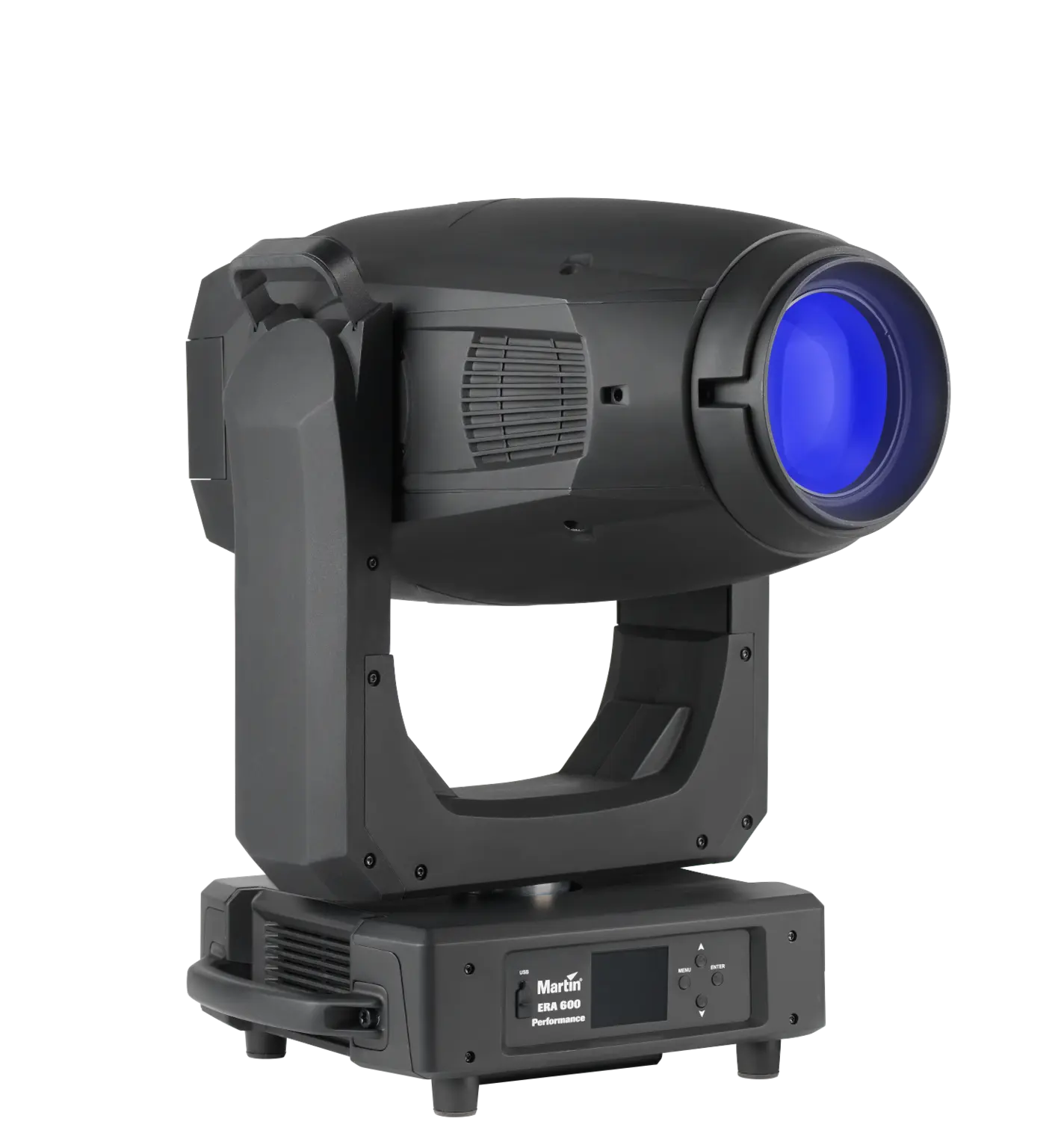

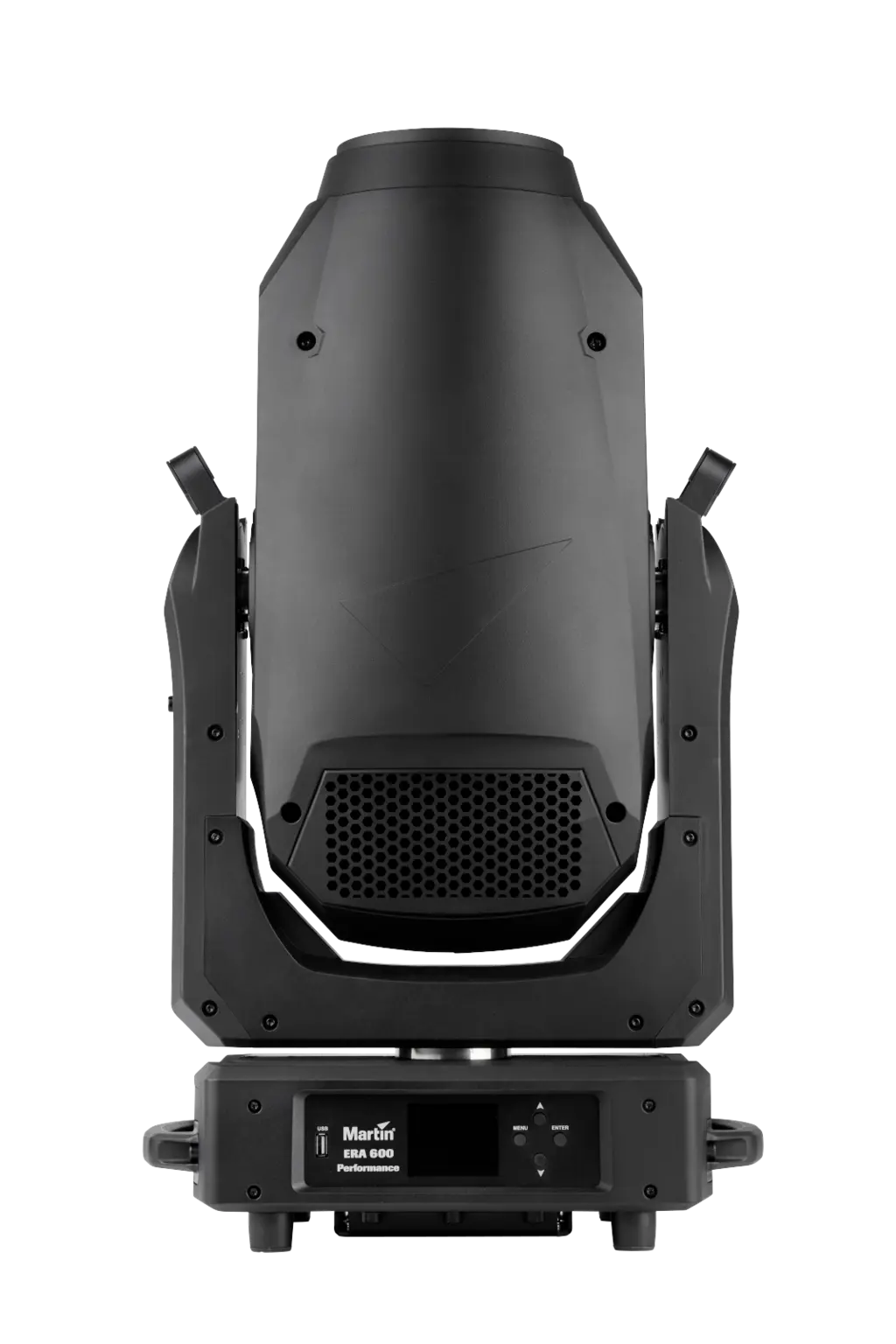

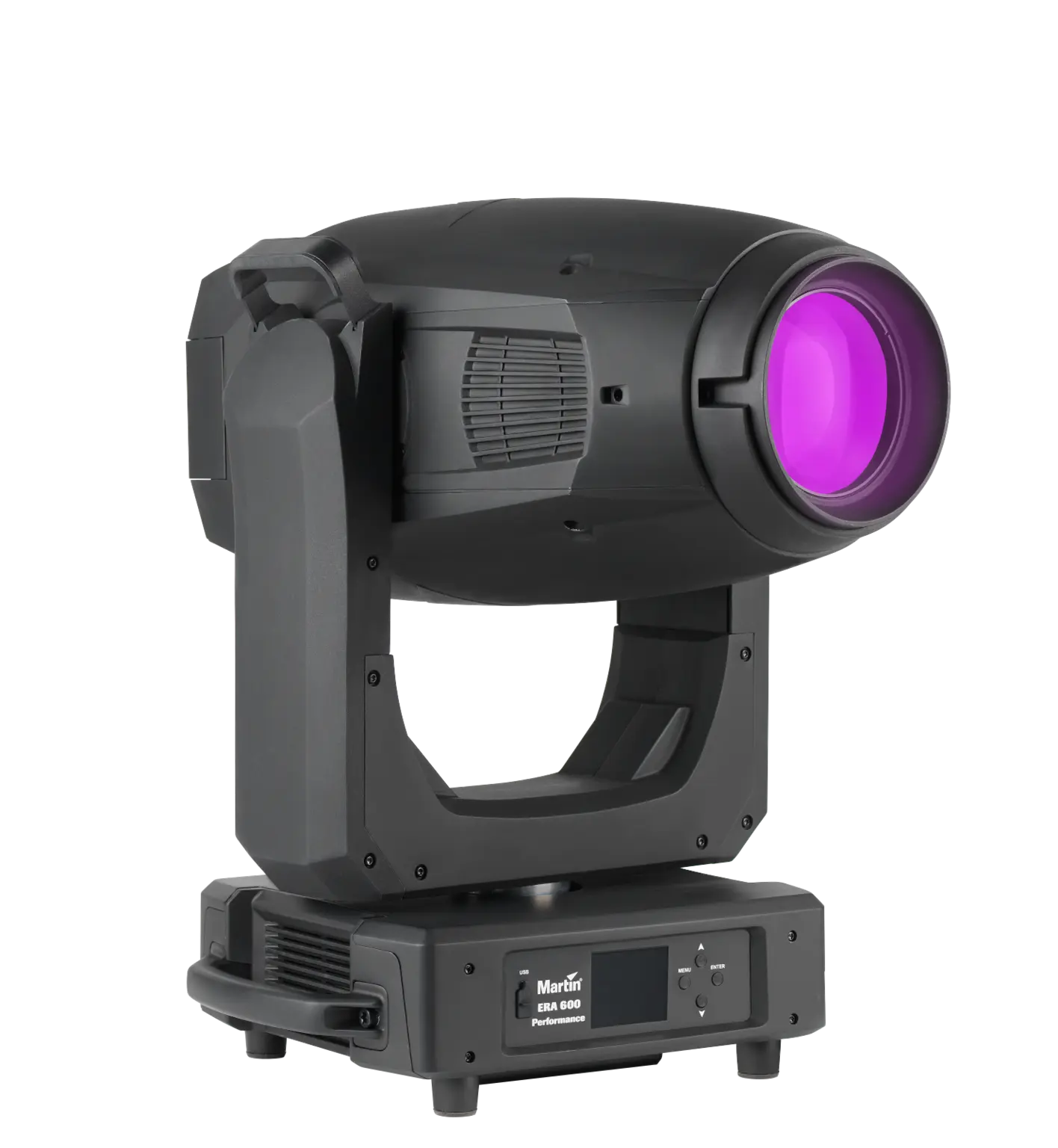

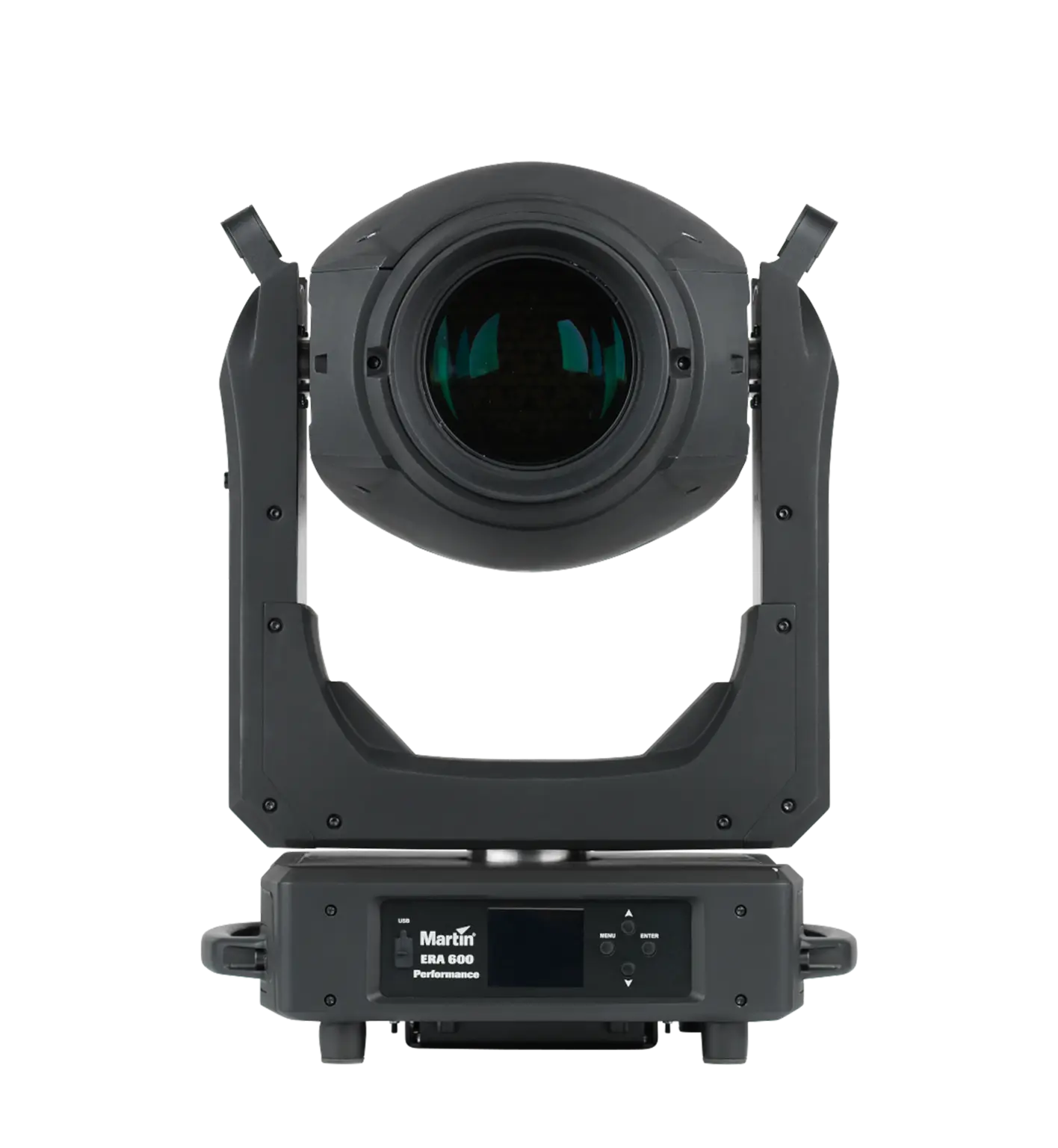

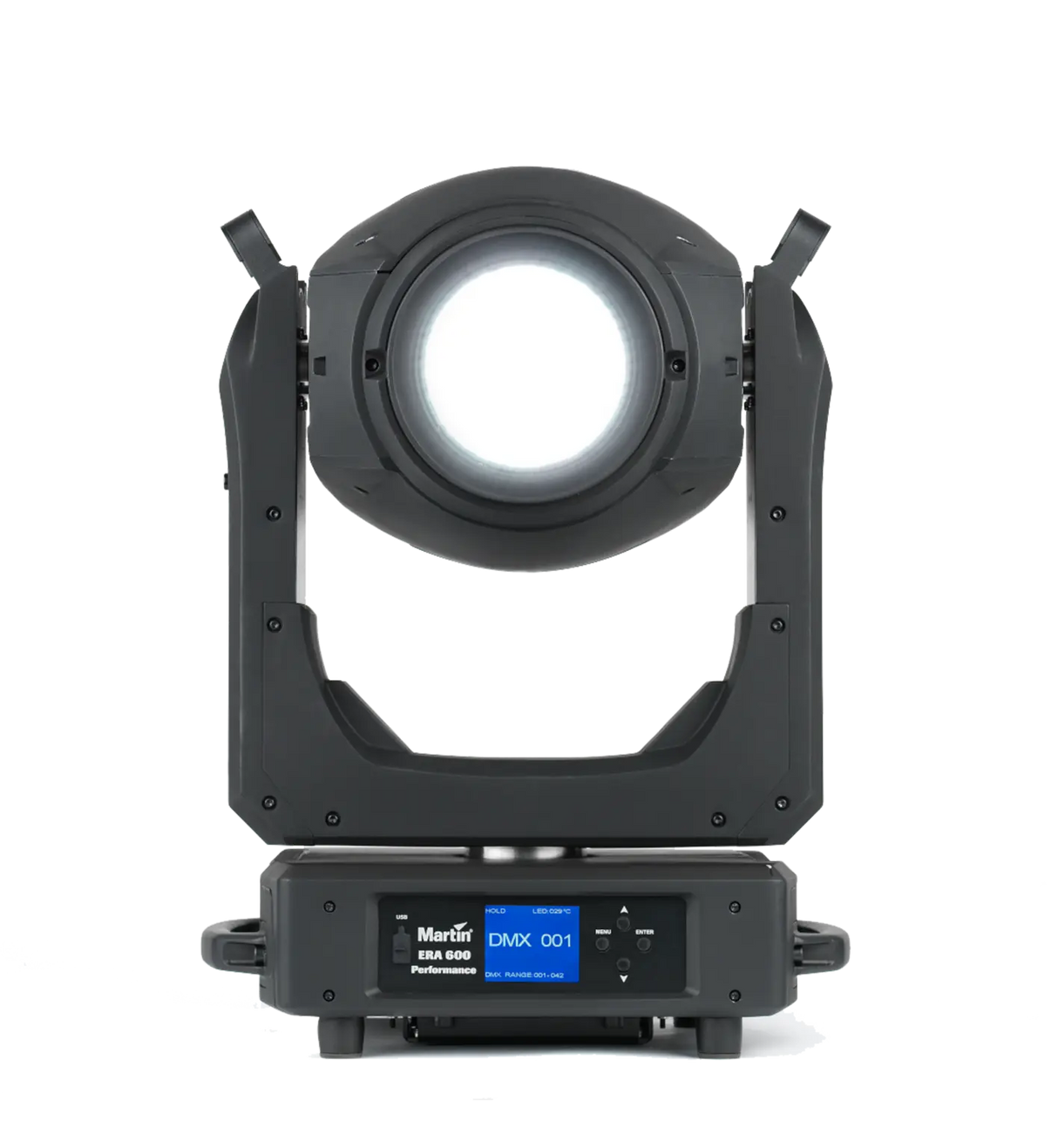

The Martin ERA 600 Performance is a bright, compact 550 watt LED moving head built for touring, concert, and rental production where output, fast effects, and rugged reliability are non-negotiable. This high-output moving head fixture pairs a 19,000-lumen white LED engine with full CMY color mixing, a full-curtain framing system, and dual rotating gobo wheels, giving lighting designers a single instrument that covers wash, beam, and precise image projection. Its low weight and modular construction make the ERA 600 Performance fast to rig, service, and turn around between shows. For commercial AV integrators and rental inventories, it delivers feature-loaded moving head performance at a cost-efficient price point.

Product Description

The ERA 600 Performance is engineered as a tour-worthy moving head that consolidates multiple fixture roles into one rig position. At its core is a 550 watt white LED engine producing a sharp, flat-field image with 19,000 lumens of fixture output and a 37,000-lumen light-engine rating. A 1:8 zoom covering 6° to 45° lets the same fixture work close-in or on large trim heights without sacrificing intensity. Full CMY color mixing, a seven-position color wheel, and linear CTO deliver everything from soft pastels to saturated primaries, with variable color temperature control from 2,700 K to 6,500 K. A full-curtain framing system places four individually controllable blades on a module that rotates ±60°, allowing precise shuttering, blackout, and shape generation for stage and broadcast work. Designers gain further texture from seven rotating glass gobos drawn from the renowned Martin MAC range, eight static gobos, two rotating prisms, and a heavy frost for wash-style looks. Fully electronic dimming and shutter provide fast strobing, instant blackout, and smooth fades held flat down to zero percent. The fixture is notably compact and light at 32.3 kg (71.3 lbs) for its class, and its modular design lets effects modules be swapped in under a minute, reducing maintenance downtime across a touring or rental deployment. The ERA 600 Performance speaks USITT DMX512 over 41 channels with ANSI/ESTA E1.20 RDM compliance for straightforward integration into existing control networks.

Key Features

• 550W White LED Engine — Delivers 19,000 lumens of fixture output with a crisp, flat field, providing more usable brightness than similarly sized moving heads.
• 1:8 Fast Zoom (6°–45°) — Maintains high output across the full range so one fixture covers tight specials and long throws on large trim heights.
• Full CMY Color Mixing with Linear CTO — Produces smooth pastels through saturated primaries and continuous color temperature correction from daylight to tungsten.
• Full-Curtain Framing System — Four independent blades on a ±60° rotating module enable precise shuttering, complete blackout, and flexible shape generation.
• Dual Gobo Wheels — Seven rotating Martin glass gobos plus eight static gobos give designers a deep library of textures and morphing effects.
• Two Rotating Prisms and Heavy Frost — A 4-facet circular prism, a 6-facet linear prism, and a heavy frost expand beam, effect, and wash capabilities from a single fixture.
• Fully Electronic Dimming and Shutter — Four dimming curves, fast strobe, and instant blackout hold a consistent field down to zero percent.
• Compact, Low-Weight, Modular Build — At 32.3 kg the fixture is easy to rig, and effect modules swap in under a minute to minimize service time.

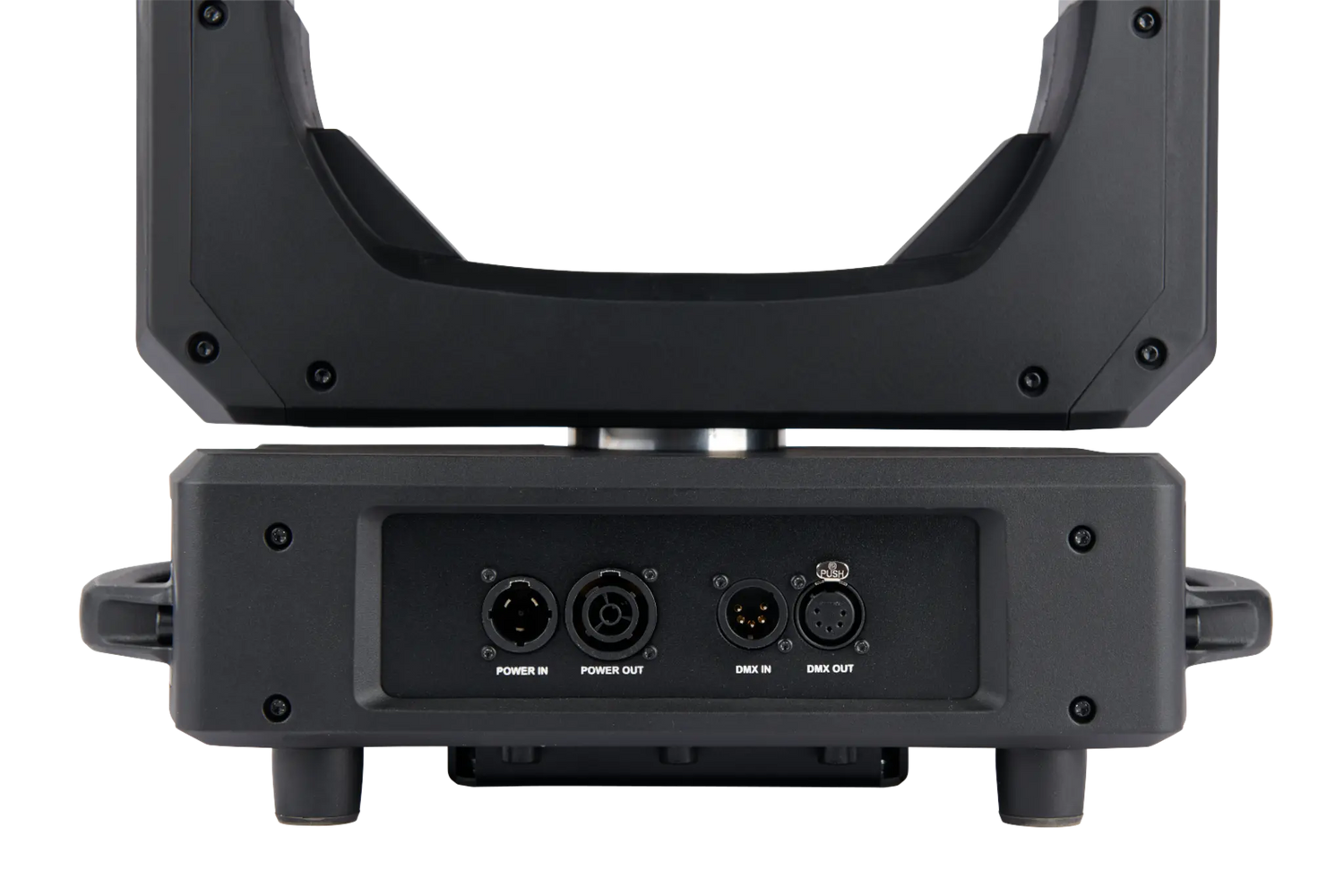

• DMX/RDM Control — 41-channel USITT DMX512 operation with ANSI/ESTA E1.20 RDM support integrates cleanly into standard lighting control networks.

Typical Applications

• Concert and Touring Production — High output and fast effects suit front and back light positions on large stages.
• Rental and Staging Inventory — Cost-efficient, durable, and quick to service for high-turnaround rental fleets.
• Broadcast Studio — Framing, CTO, and flat-field optics support clean key and effect lighting on camera.
• Theater and Auditorium — Quiet framing and gobo projection deliver precise looks in performing-arts venues.
• House of Worship — Wash, beam, and image projection from one fixture simplifies rigs in worship spaces.
• Large Multi-Purpose and All-Hands Rooms — Flexible output covers corporate stages and general-session production.

Technical Specifications

Specifications sourced from Martin (Harman Professional). Photometric data measured in steady state at 25°C ambient.

Frequently Asked Questions

Is the ERA 600 Performance a wash or a profile fixture?
It is a feature-loaded moving head that combines profile, beam, and wash capability in one fixture, with a full-curtain framing system, dual gobo wheels, prisms, and a heavy frost for wash-style looks.

What control protocols does it support for AV system integration?
The fixture operates over USITT DMX512/1990 using 41 DMX channels and supports RDM per ANSI/ESTA E1.20, allowing remote addressing and configuration from compatible consoles and network nodes.

How is it rigged and installed?
The ERA 600 Performance mounts via standard omega-style clamp brackets on the base and is light enough (32.3 kg) for typical truss positions. Always follow Martin's rigging guidance, use a safety cable, and confirm point loading with your rigging plan.

Can the color rendering be improved for broadcast or film?
Yes. An optional CRI Boost Filter raises CRI to >79 and improves TM-30 fidelity, trading some output (approximately 13,000 lumens) for higher color quality on camera.

What maintenance does it require?
The modular design allows effect modules to be swapped in under a minute, simplifying field service. Routine cleaning of optics and verifying firmware via the LCD panel keep the fixture performing consistently.

Is the fixture rated for outdoor use?
No. The ERA 600 Performance is an indoor fixture. For IP-rated outdoor wash applications, consider the IP-rated models in the Martin ERA and MAC ranges available at Creation Networks.

What warranty and support are available?
Martin fixtures are covered by the manufacturer's limited warranty. Creation Networks provides commercial AV sales support and can assist integrators with specification, quantities, and compatible accessories.
