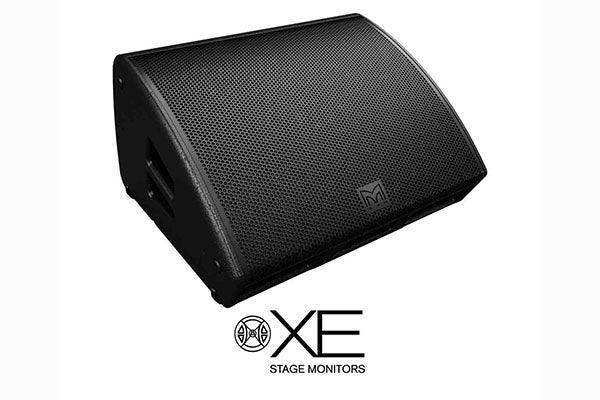

Martin Audio XE500 – 15" Bi-Amp Coaxial Stage Monitor

Product Overview

The Martin Audio XE500 is the flagship 15" stage monitor in the XE Series, engineered for the most demanding live sound environments where maximum SPL output and consistent coverage are non-negotiable. Built around Martin Audio's Coaxial Differential Dispersion (CDD) technology, the XE500 delivers true point-source performance with a defined, near-rectangular coverage plane at artist head-height. Neodymium magnet structures in both the LF and HF drivers reduce enclosure weight without sacrificing output capability, making it practical for touring applications. The XE500 operates as part of a complete system with the Martin Audio iKON IK42 amplifier, which carries factory-loaded DSP presets for this enclosure.

Product Description

The XE500's Coaxial Differential Dispersion drive unit is built around a 15" (380mm) LF driver with a 3.5" (89mm) voice coil, delivering the cone area and excursion necessary for extended low-frequency output at very high SPL. The HF section employs a 1.4" (35mm) exit compression driver with a 3" (75mm) pure titanium diaphragm, sharing the acoustic axis with the LF driver to produce phase-coherent point-source radiation throughout the crossover region. Both drivers feature neodymium magnet structures, reducing the overall enclosure weight while maintaining the high flux densities required for maximum sensitivity and headroom.

Martin Audio's Differential Dispersion technology is implemented in the waveguide geometry of the coaxial driver, shaping the HF coverage into a near-rectangular plane that matches the acoustic energy to the artist listening arc rather than radiating broadly off-axis. This controlled directivity reduces monitor-to-microphone coupling, lowering feedback risk in live vocal applications. The low-profile plywood enclosure incorporates built-in risers for adjustable monitor angle, M8 rigging inserts for secured installation, and side panel rubber feet for protection during storage and transport. When operated in bi-amp mode with the iK42, the amplifier applies active crossover filtering, FIR correction, and VX limiting to protect the transducers and optimise transient response at high drive levels.

Key Features

• 15" Neodymium LF Driver — 3.5" voice coil and neodymium magnet structure deliver very high SPL output with reduced enclosure weight.
• Coaxial CDD Technology — LF and HF drivers share a single acoustic axis for point-source coherence and phase accuracy through the crossover region.
• Differential Dispersion Coverage — Near-rectangular coverage plane at head-height ensures uniform monitoring across the full artist listening arc.
• Bi-Amp / Passive Operation — Supports both active bi-amplified and passive single-amplifier configurations for deployment flexibility.
• iKON IK42 System Integration — Factory DSP presets in the IK42 deliver optimised crossover, EQ, and transducer protection for the XE500.
• 3" Pure Titanium HF Diaphragm — High-stiffness titanium construction extends frequency response and maintains low distortion at high drive levels.
• Integrated Risers — Adjustable monitor angle without supplementary wedges or hardware.
• M8 Rigging Inserts — Secure mechanical attachment for touring or fixed installation deployment.

Typical Applications

• Houses of worship with high-SPL live music programs
• Large auditoriums and performing arts centres with demanding stage monitoring requirements
• Broadcast studio floor monitoring where SPL and coverage consistency are critical
• Multi-purpose event venues and civic spaces supporting large-format live production
• Government and institutional venues with professional live event infrastructure

Technical Specifications

Frequently Asked Questions

How does the XE500 compare to the XE300?

The XE500 uses a 15" LF driver versus the XE300's 12", providing greater low-frequency output and maximum SPL. Both share the same Coaxial CDD technology and iK42 system integration.

Is neodymium magnet construction important for touring?

Yes. Neodymium magnets provide equivalent or superior flux density compared to ferrite at significantly lower mass, reducing per-enclosure weight for easier transport and rigging.

Can the XE500 be used passively?

Yes. The XE500 supports passive operation, though bi-amp mode with the iK42 amplifier is recommended for full performance and transducer protection via VX limiting.

What role does Differential Dispersion play in reducing feedback?

By confining HF energy to a near-rectangular plane at head-height, Differential Dispersion minimises off-axis radiation toward overhead microphones, reducing monitor-to-microphone coupling and feedback risk.

Is the XE500 available in configurations other than black?

Contact Creation Networks for current finish and configuration options available for the XE Series.

Where can I see other Martin Audio products compatible with the XE500?

Visit creationnetworks.net/collections/martin-audio to browse compatible iKON amplifiers, DSP processors, and accessories.
