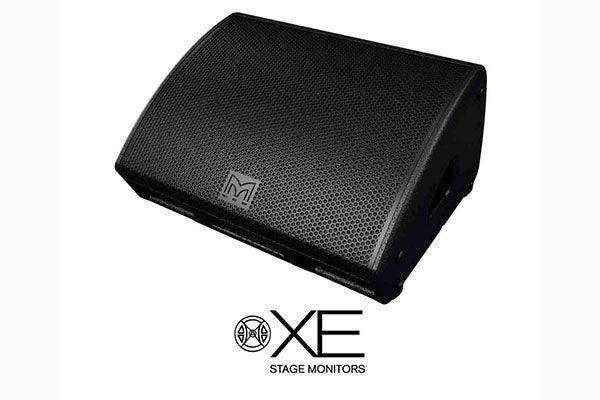

Martin Audio XE300 – 12" Bi-Amp Coaxial Stage Monitor

Product Overview

The Martin Audio XE300 is a high-performance 12" two-way stage monitor designed for professional live sound applications where consistent coverage and high SPL output are critical. It employs Martin Audio's Coaxial Differential Dispersion (CDD) technology, placing both the LF and HF drivers on the same acoustic axis to produce true point-source performance. The XE300 operates in both bi-amp and passive modes, providing system designers flexibility when pairing with iKON amplification. Its low-profile plywood enclosure and integrated risers make it equally suited to floor monitoring on stage or deployed as a fill loudspeaker in fixed installations.

Product Description

At the core of the XE300 is a 12" (300mm) LF driver with a 3" (75mm) voice coil and an aluminium demodulating ring that actively suppresses intermodulation distortion across the operating band. The HF section uses a 1.4" (35mm) exit compression driver loaded with a 3" (75mm) pure titanium diaphragm, delivering extended high-frequency response with low distortion at high drive levels. Martin Audio's Differential Dispersion technology shapes the coverage pattern into a near-rectangular plane at artist head-height, ensuring uniform energy distribution along the listening arc without the hot spots typical of conventional horn-loaded designs.

The XE300 is designed to work as a complete system with the Martin Audio iKON IK42 amplifier, which carries factory-loaded DSP presets optimised for this enclosure. When deployed in bi-amp mode, active crossover filtering and FIR correction in the iK42 maximise transient accuracy and power handling. M8 rigging inserts are integrated into the enclosure for secure deployment, and side panel rubber feet provide protection when the cabinet is stored on its side. Built-in risers allow the monitor angle to be adjusted without additional hardware, accommodating a range of stage geometries. Dual input connectors support flexible cabling configurations, and the enclosure finish is suited to demanding touring and install environments alike.

Key Features

• Coaxial CDD Driver — 12" LF and 1.4" exit HF on a shared acoustic axis for true point-source coherence.
• Differential Dispersion Technology — Produces a defined, near-rectangular coverage plane at head-height for consistent monitoring across the stage width.
• Bi-Amp / Passive Operation — Supports both active bi-amplified and passive single-amplifier configurations for maximum system flexibility.
• iKON iK42 System Integration — Factory DSP presets in the IK42 amplifier deliver optimised crossover, EQ, and loudspeaker protection.
• 3" Titanium HF Diaphragm — Pure titanium construction extends high-frequency response while maintaining low distortion under high-SPL conditions.
• Aluminium Demodulating Ring — Reduces LF driver intermodulation distortion for cleaner, more accurate low-frequency reproduction.
• Integrated Risers — Allow steeper monitor angles without supplementary hardware, adapting to varied stage configurations.
• M8 Rigging Inserts — Enable secure mechanical attachment for fixed installation or touring fly deployments.

Typical Applications

• Houses of worship with live music programs requiring consistent stage monitoring
• Performing arts centres and auditoriums with professional stage production
• Broadcast studios needing high-SPL, low-distortion floor monitoring
• Multi-purpose rooms and conference centres with live event capability
• Government and civic venues supporting theatrical or musical performance

Technical Specifications

Frequently Asked Questions

Can the XE300 be used passively without the iK42 amplifier?

Yes. The XE300 supports passive single-amplifier operation, though bi-amp mode with the iK42 is recommended for maximum performance and loudspeaker protection.

What makes CDD technology different from a conventional coaxial driver?

Martin Audio's Differential Dispersion shaping defines a near-rectangular coverage plane at head-height, providing more uniform energy distribution across the artist listening arc than standard axisymmetric coaxial designs.

Does the iK42 carry factory presets for the XE300?

Yes. Martin Audio loads optimised DSP presets including crossover, EQ, delay, and VX limiting into the iK42 for the XE300, ensuring consistent and protected system performance.

Is the XE300 suitable for fixed installation as well as touring?

Yes. M8 rigging inserts and a low-profile plywood enclosure support both touring floor-monitor deployment and fixed installation applications.

What connector types does the XE300 use?

The XE300 uses multiple connectors to support flexible cabling. Refer to the Martin Audio product datasheet for full connector specifications.
