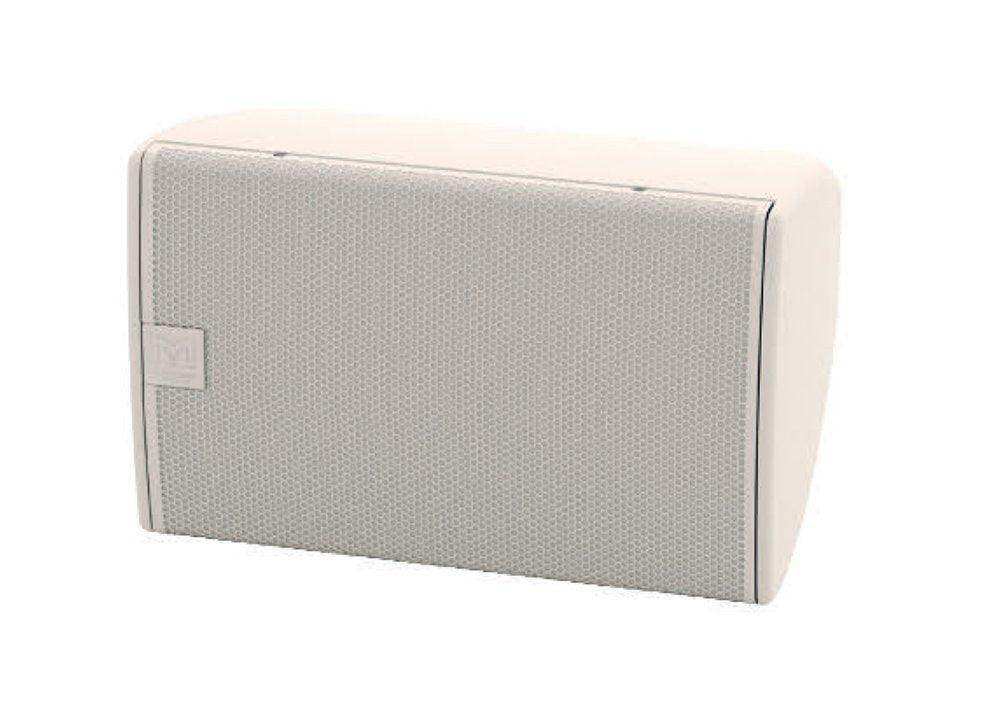

Martin Audio CDD10W – 10" Passive Coaxial On-Wall Speaker (White)

Product Overview

The Martin Audio CDD10W is a compact passive two-way loudspeaker built around a 10" (250mm) LF / 1" (25mm) exit HF Coaxial Differential Dispersion driver, making it a strong choice for foreground sound reinforcement in commercial installations. Its Coaxial Differential Dispersion technology delivers consistent coverage across the listening area, projecting proportionally more output toward the rear of the audience to counteract level drop-off — a key advantage in medium-depth rooms such as bars, restaurants, and multipurpose venues. The CDD10W is available in white (RAL9016) and supports both vertical and horizontal mounting orientations. For extended low-frequency response, it pairs directly with Martin Audio SX118 or CX218 subwoofers to form a complete foreground system. Browse the full Martin Audio loudspeaker range at Creation Networks.

Product Description

The Martin Audio CDD10W passive on-wall loudspeaker is engineered for architectural installations where consistent frequency response and controlled dispersion take priority over raw output levels alone. The coaxial driver configuration places the HF compression driver concentrically within the LF cone, achieving true point-source summation at the crossover — eliminating the off-axis comb-filtering artifacts common in two-way systems with spatially separated drivers. With a rated power handling of 250W AES (1000W peak) and a sensitivity of 96dB, the CDD10W produces up to 120dB continuous SPL from a 28-litre composite enclosure that measures just 323mm x 513mm x 310mm. The user-rotatable coaxial driver allows the installer to switch between 110°–75° horizontal and 60° vertical dispersion patterns without tools, simply by removing the screw-free perforated steel grille. A passive 2kHz crossover network is integrated internally, and the speaker accepts input via low-profile 20A push-lock connectors with link outputs for daisy-chaining. The UPM Formi composite enclosure is finished in a white textured coating, and six M8 inserts on the rear accept standard wall brackets, while ten M8 fly points enable grid or ceiling suspension. When deployed with a Martin Audio DX4.0 system controller or iKON amplifier, DSP and FIR-based presets deliver optimized frequency response and limiter protection. The CDD10W integrates cleanly into distributed systems alongside the CDD8 and CDD12 for infill coverage in larger installations. All Martin Audio CDD Series passive speakers are available at creationnetworks.net.

Key Features

• Coaxial Differential Dispersion Technology — Point-source driver summation eliminates crossover-region off-axis coloration, producing consistent tonal balance throughout the listening area.
• User-Rotatable Coaxial Drive Unit — The driver rotates within the enclosure after grille removal, allowing the installer to switch dispersion orientation to suit room geometry without additional hardware.
• 250W AES Power Handling — Rated to AES standard with 1000W peak capacity, supporting demanding foreground music applications without thermal or mechanical compression under sustained use.
• 96dB Sensitivity / 120dB Max SPL — High efficiency reduces amplifier power requirements while delivering sufficient headroom for commercial environments with elevated ambient noise.
• Screw-Free Perforated Steel Grille — Tool-free grille removal simplifies driver rotation during commissioning and routine service access.
• Flexible Mounting Options — Six rear M8 inserts for wall bracket attachment and ten M8 fly points for ceiling or grid suspension accommodate a wide range of installation scenarios.
• Low-Profile 20A Push-Lock Connectors — Input and link output terminals support daisy-chain wiring, reducing cable runs in distributed multi-speaker systems.
• UPM Formi Composite Enclosure — Rigid, acoustically inert composite construction resists resonance while keeping the enclosure weight to 15.3kg (33.7lbs).
• DX4.0 / iKON Amplifier Compatibility — Optimized DSP and FIR presets available when used with Martin Audio system controllers for maximum fidelity and integrated limiter protection.
• White (RAL9016) Finish — Standard white textured paint blends with light-colored architectural surfaces; black (RAL9005) variant available as CDD10B.

Typical Applications

• House of worship
• Multi-purpose room
• All-hands room
• Auditorium
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

What amplifier power is recommended for the CDD10W?

Martin Audio rates the CDD10W at 250W AES continuous with a 1000W peak. An amplifier delivering 500–750W into 8Ω provides adequate headroom for most commercial installations. For optimized performance, pair with a Martin Audio iKON amplifier and the DX4.0 system controller, which includes factory-tuned DSP presets and integrated limiter settings.

Can the CDD10W be used outdoors?

The standard CDD10W is not rated for outdoor exposure. For weatherized installations, Martin Audio offers the CDD10WTX-WR, which is IP54-rated and includes a 70V/100V line transformer — also available at Creation Networks.

How does Coaxial Differential Dispersion differ from a conventional two-way design?

In conventional two-way systems, the LF and HF drivers are physically separated, causing comb-filtering artifacts at the crossover frequency as you move off-axis. The CDD10W's coaxial design places both drivers on the same acoustic axis, achieving point-source summation. The Differential Dispersion pattern further addresses level variation front-to-back across the listening area.

Can the CDD10W be used with a subwoofer?

Yes. Martin Audio pairs the CDD10 with the SX118 or CX218 subwoofer to extend low-frequency response and enable use as a small foreground music system with significantly higher SPL capacity than the satellite alone provides.

What mounting hardware is included or compatible?

The enclosure includes six rear M8 inserts for optional Martin Audio wall brackets and ten M8 fly points for eyebolt or grid suspension. Mounting accessories are available separately through Creation Networks.

Is a black version of this speaker available?

Yes — the CDD10B is the black (RAL9005) variant of this same model and is stocked at creationnetworks.net.

What warranty does the Martin Audio CDD10W carry?

Martin Audio products are backed by a standard manufacturer warranty. Contact Creation Networks at creationnetworks.net for current warranty terms and registration details.
