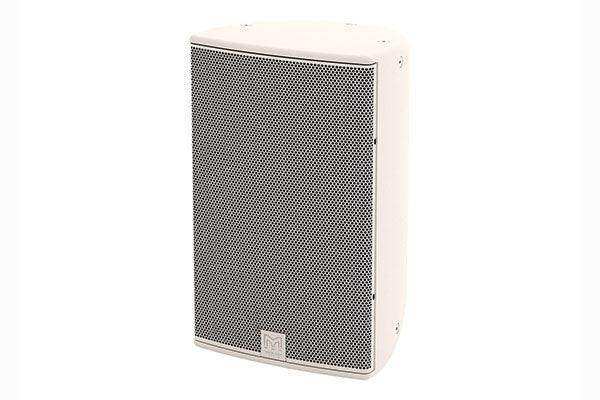

Martin Audio CDD10W-WR – IP54 Outdoor Coaxial On-wall Speaker (White)

Product Overview

The Martin Audio CDD10W-WR is a commercial-grade IP54 outdoor coaxial loudspeaker engineered for on-wall installations in environments exposed to variable weather conditions. Built on Martin Audio's Coaxial Differential Dispersion (CDD) technology, the CDD10W-WR delivers consistent, wide-angle coverage — 110°–75° horizontal and 60° vertical — making it well-suited for outdoor restaurant AV systems, transport hub deployments, and hotel exterior installations. The user-rotatable coaxial driver allows integrators to optimize dispersion orientation without tools, accommodating both vertical and horizontal mounting configurations. Priced at $1,570 in white finish, this is a purpose-built outdoor speaker for commercial AV deployments requiring weather-resistant performance without compromising audio quality.

Product Description

The CDD10W-WR houses a 10" (250mm) LF driver paired with a 1" (25mm) exit HF compression driver in a shared ferrite motor coaxial arrangement — the same CDD driver architecture found across Martin Audio's commercial indoor lineup, now rated for outdoor deployment. The composite UPM Formi enclosure keeps cabinet weight at 15.5 kg (34.2 lbs) while providing dimensional stability across the rated -20°C to +70°C operating temperature range.

IP54 certification means the CDD10W-WR is protected against dust ingress and water spray from any direction — appropriate for covered outdoor zones such as building facades, covered walkways, concourses, and stadium nearfield positions. The screw-free zinc-plated steel grille with powder-coated finish and weatherised backing includes a weatherproof cable gland on the input panel for clean field wiring.

With 250W AES rated power (1,000W peak) and 96 dB sensitivity, the CDD10W-WR reaches 120 dB continuous SPL at 1 metre — output appropriate for high-ambient outdoor environments. The 8Ω nominal impedance and passive 2 kHz crossover simplify system design for integrators running multi-cabinet zones from a central amplifier. Six M8 inserts for wall bracket mounting and ten M8 fly points allow flexible rigging. The black finish variant (CDD10B-WR) is also available at creationnetworks.net.

Key Features

• IP54 Weather Resistance — Tested to IP54, protecting against dust and multi-directional water spray for covered outdoor installations.
• Coaxial Differential Dispersion (CDD) Technology — Coaxial driver arrangement produces consistent, wide-coverage dispersion with a user-rotatable design to suit horizontal or vertical mounting.
• Wide Coverage Pattern — 110°–75° horizontal and 60° vertical (-6dB) dispersion provides broad, controlled coverage across large outdoor zones.
• 250W AES Power Handling — Handles 250W continuous (1,000W peak), achieving 120 dB continuous SPL at 1 metre in outdoor deployments.
• Extended Temperature Range — Rated for -20°C to +70°C, accommodating installations in climates with extreme seasonal variation.
• UPM Formi Composite Enclosure — Lightweight (15.5 kg) and dimensionally stable cabinet for visible architectural installations.
• Flexible Mounting System — Six M8 wall bracket inserts and ten M8 fly points accommodate surface and suspension rigging.
• Weatherproof Input Panel — Low-profile 20A push-lock connectors with weatherproof panel cover and cable gland.
• Screw-free Grille — Tool-free grille removal speeds installation and servicing in the field.
• Link Output for Daisy-Chaining — Input panel includes link connections for chaining multiple cabinets in a zone.

Typical Applications

• Covered outdoor restaurant and bar AV installations
• Hotel courtyard and exterior BGM systems
• Transport hub and concourse public address
• Stadium nearfield loudspeaker systems
• Theme park and entertainment venue zone audio
• House of worship exterior overflow coverage

Technical Specifications

Frequently Asked Questions

What does IP54 mean for the CDD10-WR?
IP54 indicates protection against limited dust ingress and water spray from any direction. The CDD10W-WR is suited for covered outdoor environments — building overhangs, covered walkways, enclosed courtyards — but is not designed for direct rain exposure.

Can the CDD10W-WR be mounted horizontally?
Yes. The coaxial driver is user-rotatable, allowing horizontal or vertical cabinet mounting while maintaining the intended dispersion pattern. Six M8 wall bracket inserts and ten M8 fly points provide flexible installation options.

What amplifier power is recommended?
The CDD10W-WR is rated at 250W AES continuous and 1,000W peak at 8Ω. A 4-channel Class D amplifier delivering 250–500W per channel at 8Ω — such as the Martin Audio VIA series available at creationnetworks.net — is a compatible choice.

Is the CDD10W-WR compatible with 70V/100V distributed audio systems?
No. The CDD10W-WR is an 8Ω passive loudspeaker without an internal transformer. For 70V/100V distributed audio, Martin Audio offers the CDD10WTX (white, with transformer), also available at creationnetworks.net.

Can multiple CDD10W-WR cabinets be daisy-chained?
Yes. The input panel provides link connections (Input+, Input−, Link−, Link+) for daisy-chain wiring. Ensure total impedance load remains within your amplifier's rated minimum impedance when paralleling cabinets.

How does CDD technology benefit commercial outdoor installations?
CDD places the HF driver within the LF cone, creating a coincident acoustic source. This eliminates vertical lobing common in two-way non-coaxial designs and maintains consistent tonal balance as listeners move off-axis — practical for wide outdoor zones where listener position varies.

What warranty does the Martin Audio CDD10W-WR carry?
Martin Audio products are backed by a standard manufacturer warranty. Contact Creation Networks for current warranty terms and commercial project support.
