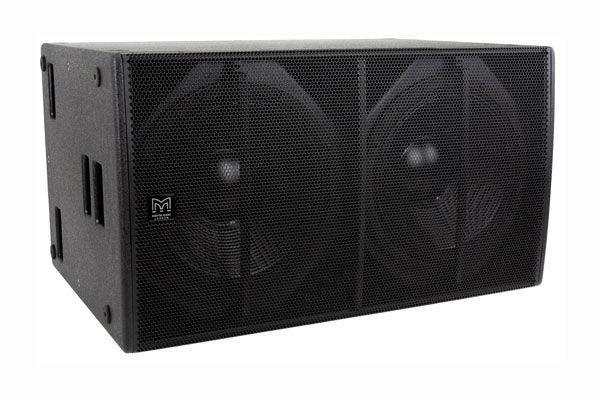

Martin Audio BlacklineX X218 – Dual 18" Passive Subwoofer

Product Overview

The Martin Audio BlacklineX X218 is a dual-driver, high-performance 2x18" passive subwoofer designed for professional live sound reinforcement applications that require maximum low-frequency output from a single enclosure. Featuring two long-excursion 18" drivers with 4" (100mm) voice coils in a reflex enclosure with eight large ports, the X218 produces very high output levels with low distortion across its 42Hz–200Hz operating range. It is optimized for use with BlacklineX Series full-range loudspeakers and is deployable singly or stacked horizontally, making it a high-output subwoofer solution for rental companies, touring productions, and large-venue installations requiring professional sub-bass reinforcement. Eight large reflex ports reduce turbulent air noise at maximum output levels, maintaining clean sub-bass performance under sustained high-level use.

Product Description

The Martin Audio BlacklineX X218 is the flagship subwoofer in the BlacklineX Series, providing the highest low-frequency output capability in the lineup through a dual-driver design. It is purpose-built for professional applications where a single subwoofer enclosure must deliver the SPL and headroom of a stacked pair of single-driver subwoofers.

Each of the two 18" (460mm) drivers features a 4" (100mm) voice coil and a long-excursion design for high displacement capability. The combined driver area and excursion of the dual-18" configuration provides substantially greater acoustic output than any single 18" subwoofer, making the X218 appropriate for medium-to-large live event productions, high-capacity nightclubs, and outdoor festival secondary stages where output density is a priority.

The reflex enclosure uses eight large ports specifically engineered to minimize air turbulence noise at very high output levels. This is a critical performance characteristic for dance music, EDM, and live rock applications where sustained sub-bass output at maximum levels must remain clean and distortion-free. The operating frequency range of 42Hz–200Hz (+3dB) provides the sub-bass foundation for full-range BlacklineX satellite systems.

The X218 can be deployed in a single-enclosure configuration or stacked horizontally using the integrated rebate recesses that ensure stable horizontal stacking. This allows a compact dual-stack X218 array to be assembled for larger productions. Integral ergonomic handles facilitate two-person transport, and M10 flying inserts support aerial deployment where venue rigging infrastructure is available. The powder-coated perforated steel grille and plywood enclosure provide rental-grade durability for high-turnover professional use. Explore the full BlacklineX Series at Creation Networks.

Key Features

• Dual 18" Long-Excursion Drivers — Two 18" (460mm) drivers with 4" (100mm) voice coils deliver maximum low-frequency output from a single enclosure.
• 42Hz–200Hz Operating Range — Wide sub-bass frequency range supports all live music genres requiring deep low-frequency reinforcement.
• Eight Large Reflex Ports — High total port area minimizes turbulent air noise at very high output levels for clean sustained sub-bass performance.
• High Output, Low Distortion — Dual-driver design produces very high SPL with low distortion, reducing the number of subwoofer enclosures required per side.
• M10 Flying Inserts — Integral suspension hardware for aerial deployment in venues with rigging infrastructure.
• Horizontal Stacking Design — Rebate recesses on the enclosure enable stable horizontal stacking of multiple X218 units for larger subwoofer arrays.
• 35mm Pole-Mount Socket — Supports satellite speaker mounting in ground-stack PA configurations.
• Powder-Coated Perforated Steel Grille — Durable driver protection suitable for touring and high-use rental environments.
• Integral Ergonomic Handles — Multiple handles facilitate safe two-person transport of the enclosure.
• Feet for Vertical or Horizontal Operation — Enclosure can be operated in both orientations, increasing deployment flexibility.

Typical Applications

• Live Event Rental — A single X218 provides the output equivalent of a stacked pair of single-18" units, reducing truck pack volume for high-output rental deployments.
• Nightclubs and High-Capacity Dance Venues — Maximum sub-bass output and 42Hz low-frequency extension deliver the acoustic foundation required for high-SPL dance music environments.
• Outdoor Festivals and Secondary Stages — High output from a compact footprint suits outdoor events where sub-bass reinforcement must cover large audience areas.
• Live Rock, Hip-Hop, and EDM Productions — Dual-driver design delivers the low-frequency impact and sustained headroom required for demanding live music genres.
• House of Worship — High-output sub-bass reinforcement for large sanctuaries and contemporary worship productions requiring sub-bass authority.
• Corporate Events and Conferences — High-capacity sub-bass reinforcement for large outdoor or tented corporate events and product launches where full-spectrum audio is required.
• Touring Productions — Dual-driver efficiency reduces enclosure count and truck pack volume while maintaining output targets for touring PA systems.

Technical Specifications

Frequently Asked Questions

How does the X218 compare to using two X118B units?

The X218 houses two 18" drivers in a single purpose-designed enclosure with eight ports optimized for dual-driver loading, which produces higher output efficiency and lower distortion than placing two X118B units side-by-side. The X218 also has a smaller combined footprint than two separate X118B enclosures, providing an output-to-size advantage for rental and touring applications.

Can the X218 be flown?

Yes. The X218 features M10 flying inserts for aerial deployment. All rigging must be performed by qualified personnel using certified hardware in compliance with manufacturer guidelines and applicable load regulations.

What full-range loudspeakers pair with the X218?

The X218 integrates with all BlacklineX Series full-range loudspeakers: X10B (10"), X12B (12"), and X15B (15"). For high-output live event systems, the X15B is the recommended satellite companion. Crossover and EQ management is handled via the Martin Audio DX0.5 or compatible iKON amplifiers. Browse the full range at creationnetworks.net.

Does the X218 require a DSP controller?

A DSP controller is strongly recommended. The Martin Audio DX0.5 system controller or compatible iKON amplifiers handle crossover frequency alignment between the X218 and BlacklineX satellite loudspeakers, plus EQ optimization and driver limiting for both subwoofer and satellite drivers.

Can multiple X218 units be stacked?

Yes. The enclosure features rebate recesses on the top surface for stable horizontal stacking of multiple X218 units, enabling a compact high-output subwoofer array without requiring additional stacking hardware.

What nominal impedance does the X218 present?

Contact Creation Networks or consult the Martin Audio X218 data sheet for nominal impedance specifications, as the dual-driver wiring configuration determines the presented load. Ensure amplifier output is sized correctly for the rated power handling before deployment.

Is the X218 a good investment for a rental company?

Yes. The dual-driver efficiency reduces the number of enclosures required per deployment, lowering truck pack volume and setup time. The durable plywood and powder-coated grille construction is designed for the demands of a professional rental fleet. At $2,000 on sale (compare at $2,500), it provides a cost-effective entry into high-output dual-18" subwoofer performance.
