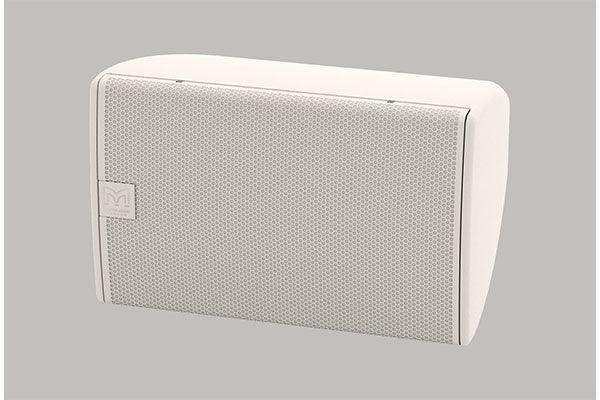

Martin Audio CDD8WTX-WR – IP54 Outdoor 8" 70V Coaxial Speaker White

Product Overview

The Martin Audio CDD8WTX-WR is an IP54-rated outdoor coaxial loudspeaker in white finish, incorporating a 70V/100V line transformer for deployment in large-scale distributed commercial AV systems. This weatherized commercial speaker features an 8" (200mm) Coaxial Differential Dispersion driver, delivering meaningfully higher output than 5" or 6" TX models while remaining compact enough for sheltered outdoor on-wall AV installation across transport hubs, hotel exterior areas, outdoor entertainment venues, and stadium concourses. The 70V/100V transformer enables multiple CDD8WTX-WR cabinets to be daisy-chained from a single amplifier channel, improving amplifier efficiency and reducing cable infrastructure costs. It is the white-finish complement to the CDD8BTX-WR; the 8Ω variant is the CDD8W-WR.

Product Description

Martin Audio's Coaxial Differential Dispersion technology positions the 1" (25mm) exit HF driver at the acoustic centre of the 8" (200mm) LF cone, achieving point-source summation of both frequency bands. This architecture delivers consistent off-axis frequency response and controlled coverage across the horizontal and vertical dispersion pattern. The user-rotatable coaxial drive unit allows the coverage ellipse to be re-oriented for horizontal or vertical cabinet placement without any enclosure modification, providing the installation designer with full flexibility in coverage aiming.

IP54 environmental certification — dust-tight protection and resistance to water splashing from any direction — qualifies the CDD8WTX-WR for sheltered outdoor environments including covered terraces, transport canopies, exterior hotel areas, and outdoor stadia concourse positions. The operating temperature range of −20°C to +70°C accommodates installations across a wide range of climate conditions. The UPM Formi composite enclosure provides the acoustic and mechanical durability required for outdoor deployment subject to thermal cycling and humidity variation.

The integrated 70V/100V transformer connects via a 5-way weatherproof connector, and the built-in dual cable gland allows multiple CDD8WTX-WR cabinets to be daisy-chained directly on the 70V/100V line without external breakout hardware, improving amplifier efficiency across large distributed zones. The screw-free zinc-plated weatherised grille with powder-coated and weatherised backing maintains the IP54 rating while allowing tool-free removal for servicing. Browse the full Martin Audio range at Creation Networks.

Key Features

• IP54 Weatherized Enclosure — Dust-tight and splash-resistant for sheltered outdoor on-wall AV installation, certified per IEC 60529.
• White Architectural Finish — Clean white UPM Formi composite enclosure integrates with light-coloured architectural surfaces and canopy soffits.
• Integrated 70V/100V Transformer — Enables high-efficiency distributed audio system design with multiple cabinets on a single amplifier channel.
• 5-Way Weatherproof Transformer Connector — Secure, weatherproof 5-way connector ensures reliable outdoor distributed system connections.
• Dual Cable Gland Daisy-Chain — Built-in dual cable gland enables direct cabinet-to-cabinet 70V/100V line wiring without breakout boxes.
• Coaxial Differential Dispersion Technology — 8" LF / 1" exit HF coaxial driver delivers point-source coverage with consistent off-axis frequency response.
• User-Rotatable Driver — Coverage pattern re-oriented for horizontal or vertical mounting without tools or enclosure modification.
• UPM Formi Composite Enclosure — Acoustically and mechanically superior to ABS for demanding sheltered outdoor environments.
• Screw-Free Weatherised Grille — Zinc-plated mild steel grille with powder-coat and weatherised backing; tool-free removal for servicing.
• Operating Temperature −20°C to +70°C — Rated for a wide climate range without derating.

Typical Applications

• Transport Hubs — Covered platform areas, station concourses, and airport gate lounges on 70V distributed audio where higher output than a 5" or 6" TX model is required.
• Outdoor Entertainment Venues — Covered outdoor stages, amphitheatre concourses, and festival site fill speaker positions on 70V distribution.
• Hotel Exterior — Pool decks, courtyard areas, sheltered restaurant terraces, and porte cochère installations on 70V distributed systems.
• Stadium Nearfield Fill — Under-tier or concourse fill in outdoor stadia on 70V line distribution.
• House of Worship Exterior — Covered courtyard and outdoor worship space where 70V distributed audio is in use.
• Theme Parks — Queue-line audio, attraction area ambience, and zone-paged outdoor distributed systems requiring higher output levels.
• Convention Centres — Covered exterior walkways, foyer, and pre-function area background music on 70V systems.

Technical Specifications

Full technical specification sheet available — contact Creation Networks for the complete Martin Audio CDD8WTX-WR data sheet.

Frequently Asked Questions

What does IP54 mean for the CDD8WTX-WR?

IP54 per IEC 60529 indicates dust-tight protection (digit 5) and resistance to water splashing from any direction (digit 4). Sheltered outdoor installation is required; the cabinet is not rated for direct rain exposure or submersion.

What mounting options are available?

The CDD8WTX-WR features threaded inserts for standard commercial wall and ceiling bracket systems. The user-rotatable coaxial driver allows horizontal or vertical coverage orientation to match cabinet placement.

What amplifier is required for 70V/100V operation?

A constant-voltage 70V or 100V distributed audio amplifier is required. Select the appropriate transformer tap to match the target SPL per zone. Multiple CDD8WTX-WR cabinets can be daisy-chained via the dual cable gland inputs on a single amplifier channel.

What is the 5-way connector used for?

The 5-way weatherproof connector carries the 70V/100V line signal to the integrated transformer, enabling connection to the distributed audio amplifier. The dual cable glands allow the line to pass through to the next cabinet in the daisy chain.

How does the CDD8WTX-WR differ from the indoor CDD8?

The WR suffix indicates IP54 environmental certification, weatherised grille backing, weatherproof connectors, and weather-resistant mounting hardware not present on the indoor CDD8.

Can multiple CDD8WTX-WR cabinets be daisy-chained?

Yes. The built-in dual cable gland passes the 70V/100V line signal directly to the next cabinet without external junction boxes. Ensure total tap wattage of all chained cabinets does not exceed the amplifier’s rated output.

Is a black version available?

Yes. The CDD8BTX-WR is the black-finish equivalent with identical technical specifications.

Is an 8Ω non-transformer version available?

Yes. The CDD8W-WR (white) and CDD8B-WR (black) are 8Ω passive variants without the 70V/100V transformer for direct amplifier connection.
