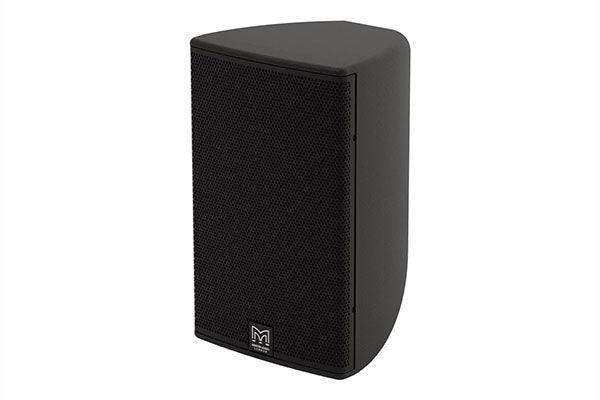

Martin Audio CDD8B-WR – IP54 Outdoor 8" 8Ω Coaxial Speaker Black

Product Overview

The Martin Audio CDD8B-WR is an IP54-rated outdoor coaxial loudspeaker in black finish, engineered for direct 8Ω amplifier connection in commercial AV installations that require higher output than compact 5" or 6" models. This weatherized commercial speaker features an 8" (200mm) Coaxial Differential Dispersion driver and is suitable for sheltered outdoor on-wall AV installation across transport hubs, outdoor entertainment venues, hotel exteriors, and nearfield stadium positions. The CDD8B-WR can operate as a standalone primary zone loudspeaker or as an infill system alongside larger CDD-WR models such as the CDD12-WR and CDD15-WR. It is the 8Ω black-finish variant; for 70V/100V distributed systems see the CDD8BTX-WR, and for white finish see the CDD8W-WR.

Product Description

Martin Audio's Coaxial Differential Dispersion technology places the 1" (25mm) exit HF compression driver at the acoustic centre of the 8" (200mm) LF cone, achieving point-source summation of both frequency bands. This coaxial arrangement delivers consistent off-axis frequency response and controlled coverage across a wide audience area, with the user-rotatable drive unit allowing the integrator to orient coverage to suit horizontal or vertical cabinet placement without any enclosure modification.

IP54 environmental certification — dust-tight protection and resistance to water splashing from any direction — qualifies the CDD8B-WR for sheltered outdoor environments including covered terraces, transport canopies, exterior hotel areas, and stadium concourse positions. The operating temperature range of −20°C to +70°C ensures reliable operation across a broad range of climate conditions. The UPM Formi composite enclosure provides acoustic and mechanical durability appropriate to outdoor deployments where thermal cycling and humidity variation occur.

Connecting via low-profile 8Ω push-lock connectors, the CDD8B-WR is driven directly from a standard stereo or multi-channel power amplifier. Its high output capability from a compact enclosure makes it a practical choice for installations where space constraints preclude a larger cabinet but higher SPL than a 5" or 6" model is required. The screw-free zinc-plated weatherised grille with powder-coated and weatherised backing maintains the IP54 rating while allowing tool-free removal for driver servicing. Where 70V/100V line distribution is required, the CDD8BTX-WR (black) or CDD8WTX-WR (white) provide transformer-equipped equivalents. Browse the full Martin Audio collection at Creation Networks.

Key Features

• IP54 Weatherized Enclosure — Dust-tight and splash-resistant for sheltered outdoor on-wall AV installation, certified per IEC 60529.
• 8Ω Direct-Drive Operation — Connects directly to standard power amplifiers without a distribution transformer; suited to zone amplifier designs.
• Coaxial Differential Dispersion Technology — 8" LF / 1" exit HF coaxial driver delivers point-source coverage with consistent off-axis frequency response.
• User-Rotatable Driver — Coverage pattern re-oriented for horizontal or vertical mounting without tools or enclosure modification.
• UPM Formi Composite Enclosure — Acoustically and mechanically superior to ABS; rated for demanding sheltered outdoor environments.
• Screw-Free Weatherised Grille — Zinc-plated mild steel grille with powder-coat and weatherised backing; tool-free removal for servicing.
• Operating Temperature −20°C to +70°C — Rated for a wide climate range without derating.
• Infill System Compatibility — Designed as a fill loudspeaker in distributed systems alongside larger CDD12-WR and CDD15-WR models.
• Compact High-Output Cabinet — High SPL capability from a compact enclosure for installations where space is constrained.
• Black Architectural Finish — Discreet black finish suits dark-coloured walls, canopy soffits, and exposed architectural steel.

Typical Applications

• Transport Hubs — Covered platform areas, station concourses, and airport gate lounges requiring direct-drive high-output background music and PA.
• Outdoor Entertainment Venues — Covered outdoor stages, amphitheatre concourses, and festival site nearfield fill speaker positions.
• Hotel Exterior — Pool decks, courtyard areas, sheltered restaurant terraces, and porte cochère installations.
• Stadium Nearfield Fill — Under-tier or concourse fill in outdoor stadia requiring high SPL and consistent coverage at moderate throw distances.
• House of Worship Exterior — Covered courtyard, entrance canopy, and outdoor worship space where direct 8Ω amplification is in use.
• Theme Parks — Queue-line audio, attraction area ambience, and outdoor entertainment zones.
• Outdoor Bars and Restaurants — Primary zone speaker for covered outdoor dining areas where 8Ω amplification is preferred over a distributed 70V system.

Technical Specifications

Full technical specification sheet available — contact Creation Networks for the complete Martin Audio CDD8B-WR data sheet.

Frequently Asked Questions

What does IP54 mean for the CDD8B-WR?

IP54 per IEC 60529 indicates dust-tight protection (digit 5) and resistance to water splashing from any direction (digit 4). Sheltered outdoor installation is required; the cabinet is not rated for direct rain exposure or submersion.

What mounting options are available?

The CDD8B-WR features M-thread inserts for compatibility with standard commercial wall and ceiling bracket systems. The coaxial drive unit is user-rotatable to match horizontal or vertical cabinet placement and coverage orientation requirements.

What amplifier is required?

The CDD8B-WR is an 8Ω passive loudspeaker and connects directly to any standard stereo or multi-channel power amplifier. For installations using 70V/100V constant-voltage distribution, refer to the CDD8BTX-WR (black) or CDD8WTX-WR (white) transformer-equipped variants.

How does the CDD8B-WR differ from the indoor CDD8?

The WR suffix indicates IP54 environmental certification, a weatherised grille backing, weatherproof input connectors, and weather-resistant mounting accessories not present on the indoor CDD8.

Can the CDD8B-WR be used as a fill speaker in a larger CDD system?

Yes. Martin Audio specifically positions the CDD8B-WR as a fill loudspeaker in distributed systems that include larger CDD12-WR and CDD15-WR main cabinets, allowing consistent tonal matching across the system.

Is a 70V/100V version of the CDD8B-WR available?

Yes. The CDD8BTX-WR (black) and CDD8WTX-WR (white) are transformer-equipped variants for 70V/100V distributed audio systems.

Is a white version available?

Yes. The CDD8W-WR is the white-finish equivalent of the CDD8B-WR with identical technical specifications.

What warranty applies?

Martin Audio products carry a standard manufacturer warranty. Contact Creation Networks at creationnetworks.net for warranty registration and regional terms.
