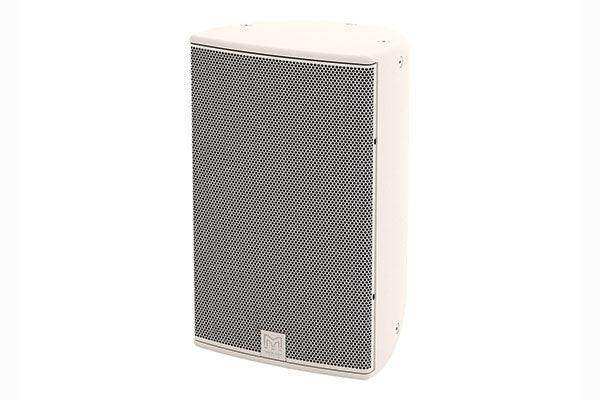

Martin Audio CDD15W-WR – IP54 Outdoor 15" Very High-Output Coaxial Speaker White

Product Overview

The Martin Audio CDD15W-WR is an IP54-rated outdoor coaxial loudspeaker in white finish, representing the highest-output model in the weatherized CDD-WR series. This weatherized commercial speaker is engineered for outdoor installations that demand the ultimate in single-enclosure sonic performance, delivering 126dB continuous maximum SPL at 1m from a 15" (380mm) Coaxial Differential Dispersion driver. The white finish makes the CDD15W-WR the preferred choice for installations on light-coloured architectural surfaces, white-rendered exterior walls, and canopy structures where a black enclosure would be visually prominent. Suited to primary reinforcement in outdoor entertainment venues, large transport hubs, open-air theatre, and hotel exterior event spaces, it operates at 8Ω for direct power amplifier connection and supports suspension via ten M8 fly points. The black-finish complement is the CDD15B-WR.

Product Description

Martin Audio's Coaxial Differential Dispersion technology in the CDD15W-WR projects relatively more energy toward the rear of the audience than conventional constant-directivity designs, while maintaining wide horizontal coverage at close range. This characteristic is particularly valuable in outdoor fan-shaped or wide audience geometries, ensuring consistent coverage without hot spots at the front rows or dead zones at the rear. The CDD driver achieves point-source summation of LF and HF energy, eliminating the off-axis frequency response variations associated with non-coaxial designs. A static waveguide integrated with the unique cone shape maintains consistent dispersion through the high-frequency range, avoiding beaming that affects conventional coaxial systems.

The 15" (380mm) LF driver features a 3" (75mm) voice coil in a long-excursion, shared ferrite motor system alongside a 1.4" (36mm) exit / 3" (75mm) voice coil titanium dome compression HF driver, crossed over passively at 1.6kHz. The frequency response extends from 55Hz to 18kHz (±3dB) — appropriate for full-range music programme reproduction in outdoor entertainment environments. The 100dB sensitivity and 400W AES / 1600W peak power handling deliver 126dB continuous and 132dB peak maximum SPL at 1m, providing headroom for outdoor venues with high ambient noise floors.

IP54 environmental certification — dust-tight and resistant to water splashing from any direction — qualifies the CDD15W-WR for sheltered outdoor deployment including covered outdoor venues, hotel exterior event spaces, stadium exterior positions, and large transport hubs. The operating temperature range of −20°C to +70°C covers a broad climate range. The 68-litre UPM Formi composite enclosure, screw-free zinc-plated weatherised grille, and 20A push-lock weatherproof connectors complete the outdoor installation package. Browse the full Martin Audio range at Creation Networks.

Key Features

• IP54 Weatherized Enclosure — Dust-tight and splash-resistant for sheltered outdoor on-wall AV installation, certified per IEC 60529.
• White Architectural Finish — Clean white 68-litre UPM Formi composite enclosure for architecturally sensitive light-coloured surfaces.
• Very High-Output 15" CDD Driver — 400W AES / 1600W peak; 126dB continuous / 132dB peak maximum SPL at 1m.
• 100dB Sensitivity — Highest sensitivity in the CDD-WR range; minimises amplifier channel count in large outdoor systems.
• Titanium Dome HF Compression Driver — 1.4" exit / 3" voice coil titanium dome; robust high-frequency transduction for outdoor environments.
• Coaxial Differential Dispersion Technology — Point-source 15" LF / 1.4" exit HF summation; 100°–60° horizontal, 60° vertical with relative rear-audience projection for wide audience geometries.
• User-Rotatable Driver — Coverage pattern re-oriented for horizontal or vertical mounting without tools or enclosure modification.
• Integral M8 Fly Points (10×) — Full suspension rigging capability for flyable outdoor installation from trusses and covered structures.
• 68-Litre UPM Formi Composite Enclosure — Extended 55Hz low-frequency response in a mechanically durable outdoor-rated enclosure.
• Low-Profile 20A Push-Lock Weatherproof Connectors — Reliable outdoor field termination with weatherproof input panel and cable gland.

Typical Applications

• Outdoor Entertainment Venues — Primary loudspeaker for covered outdoor stages, open-air amphitheatres, and permanent outdoor concert installations.
• Transport Hubs — High-output zone speaker for large covered concourses, rail stations, and airport zones requiring long throw or high ambient noise performance.
• Hotel Exterior Event Spaces — Outdoor event lawns, poolside concert areas, and large courtyard spaces in white for architectural integration.
• Stadium Exterior and Nearfield — Exterior plaza fill, stadium perimeter announcements, and large nearfield positions in outdoor stadia.
• House of Worship Exterior — Large outdoor congregation areas, stadium-scale outdoor services, and covered amphitheatre worship spaces.
• Theme Parks — Primary show system speaker for outdoor parade routes, large outdoor queues, and attraction show areas requiring high SPL in white finish.
• Convention Centres and Exhibition Plazas — Exterior plaza primary speaker for large outdoor event zones and festival markets.

Technical Specifications

Frequently Asked Questions

What does IP54 mean for the CDD15W-WR?

IP54 per IEC 60529 indicates dust-tight protection (digit 5) and resistance to water splashing from any direction (digit 4). Sheltered outdoor installation is required; the cabinet is not rated for direct rain exposure or submersion.

What mounting options are available?

Ten M8 fly points provide full suspension rigging capability from trusses and structural rigging points. The user-rotatable coaxial driver allows horizontal or vertical coverage orientation to match installation geometry. Consult Creation Networks for wall bracket compatibility with this model.

What amplifier is required?

The CDD15W-WR is an 8Ω passive loudspeaker connecting directly to any standard stereo or multi-channel power amplifier rated for 8Ω loads. With 100dB sensitivity and 400W AES handling, very high SPL is achievable with moderate amplifier power.

How does the CDD15W-WR differ from the indoor CDD15?

The WR suffix indicates IP54 environmental certification, weatherised grille backing, weatherproof input connectors, and weather-resistant mounting hardware not present on the indoor CDD15.

What makes the CDD15W-WR’s coverage pattern suitable for outdoor use?

The Coaxial Differential Dispersion driver projects relatively more energy toward the rear of the audience than conventional constant-directivity designs, while maintaining wide horizontal coverage close-up — well-suited to fan-shaped outdoor audiences and wide outdoor coverage geometries.

Is a 70V/100V version of the CDD15W-WR available?

There is no TX (transformer-equipped) variant of the CDD15-WR. For 70V/100V distributed audio at this output level, consult a Creation Networks AV specialist for system design guidance.

Is a black version available?

Yes. The CDD15B-WR is the black-finish equivalent with identical technical specifications.

What warranty applies?

Martin Audio products carry a standard manufacturer warranty. Contact Creation Networks at creationnetworks.net for warranty registration and regional terms.
