Martin Atomic 3000 LED – High-Output LED Strobe with RGB Aura Backlight

Product Overview

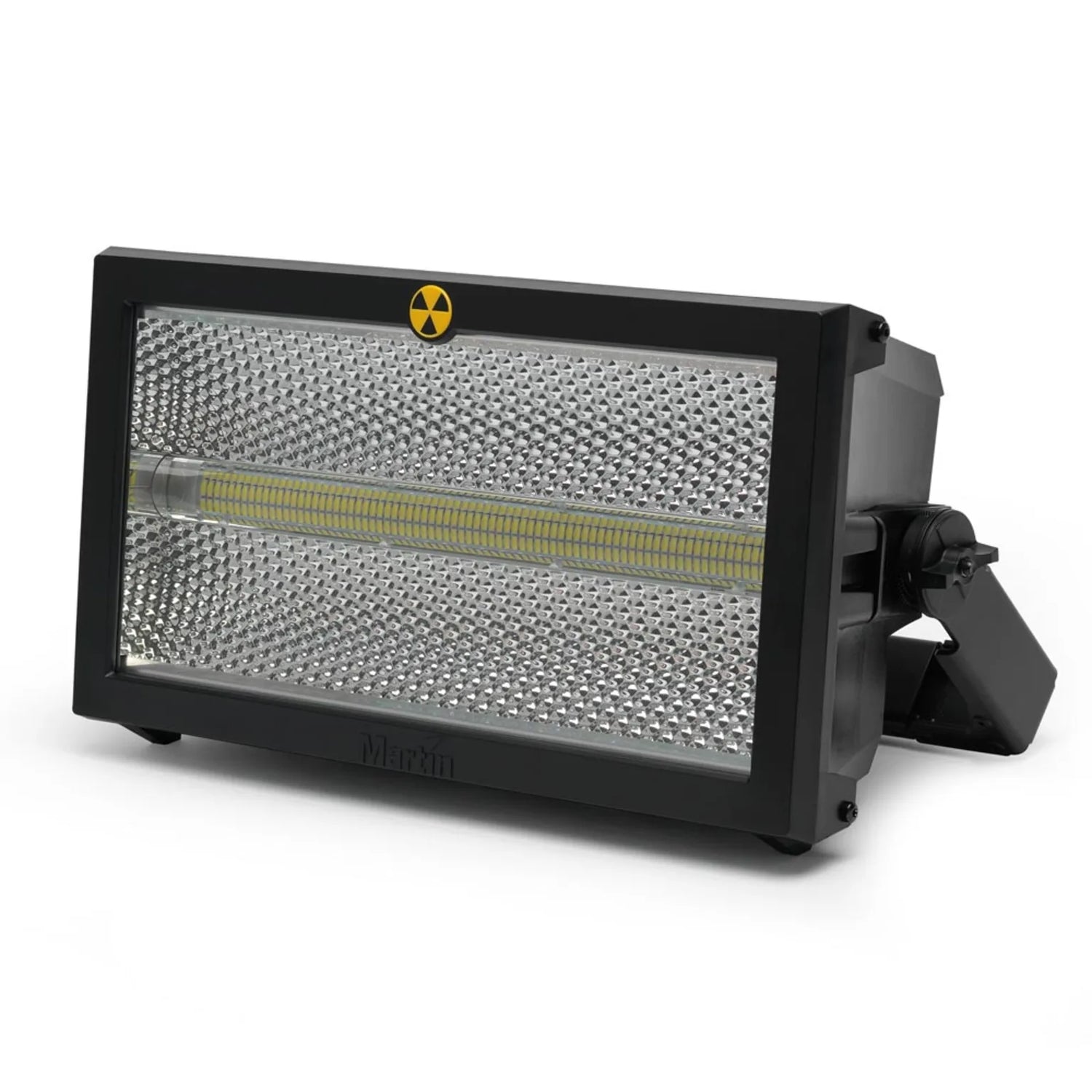

The Martin Atomic 3000 LED is a high-output LED strobe and blinder that doubles as a creative effects fixture for concert, touring, and stage lighting. Beyond conventional strobing, it adds an RGB-controlled Aura backlight that points into the reflector to produce wash-style eye-candy looks similar to Martin's MAC Aura fixtures. With a maximum output of 180,000 lumens, it delivers the high-impact punch designers expect from a professional LED strobe while consolidating strobe, blinder, and color backlight effects into a single luminaire.

Product Description

The strobe array uses 228 Cree XLamp XP-L 10 W white LEDs at a color temperature of 5,700 K, driven with current-controlled dimming above 16.7% intensity and 6,000 Hz PWM below that threshold for clean low-end control. A separate Aura array of 64 Osram RGB LEDs provides full color mixing at 8 bits per color, allowing the fixture to function as both a blinder and a saturated color backlight source. Variable flash rate, intensity, and duration run from 0.289 to 16.667 Hz, and built-in effects include blinder, ramp up/down, random flash, lightning, spikes, and pre-programmed FX macros.

Control is over DMX via 5-pin locking XLR connectors, with a 14-channel extended mode that exposes Aura control and internal FX macros for designers who want fine control from the console. Power connects through a Neutrik PowerCON TRUE1 TOP input, and a 4-pin locking XLR supports the optional Atomic Colors gel scroller. The housing is built from steel and high-impact, flame-retardant thermoplastic (UL 94 5VA) and carries an IP20 rating for indoor use. A USB 2.0 port is provided for firmware uploads. The Atomic 3000 LED is a direct upgrade path from the original tube-based Atomic 3000, retaining the iconic form factor while moving to a maintenance-friendly LED light engine.

Key Features

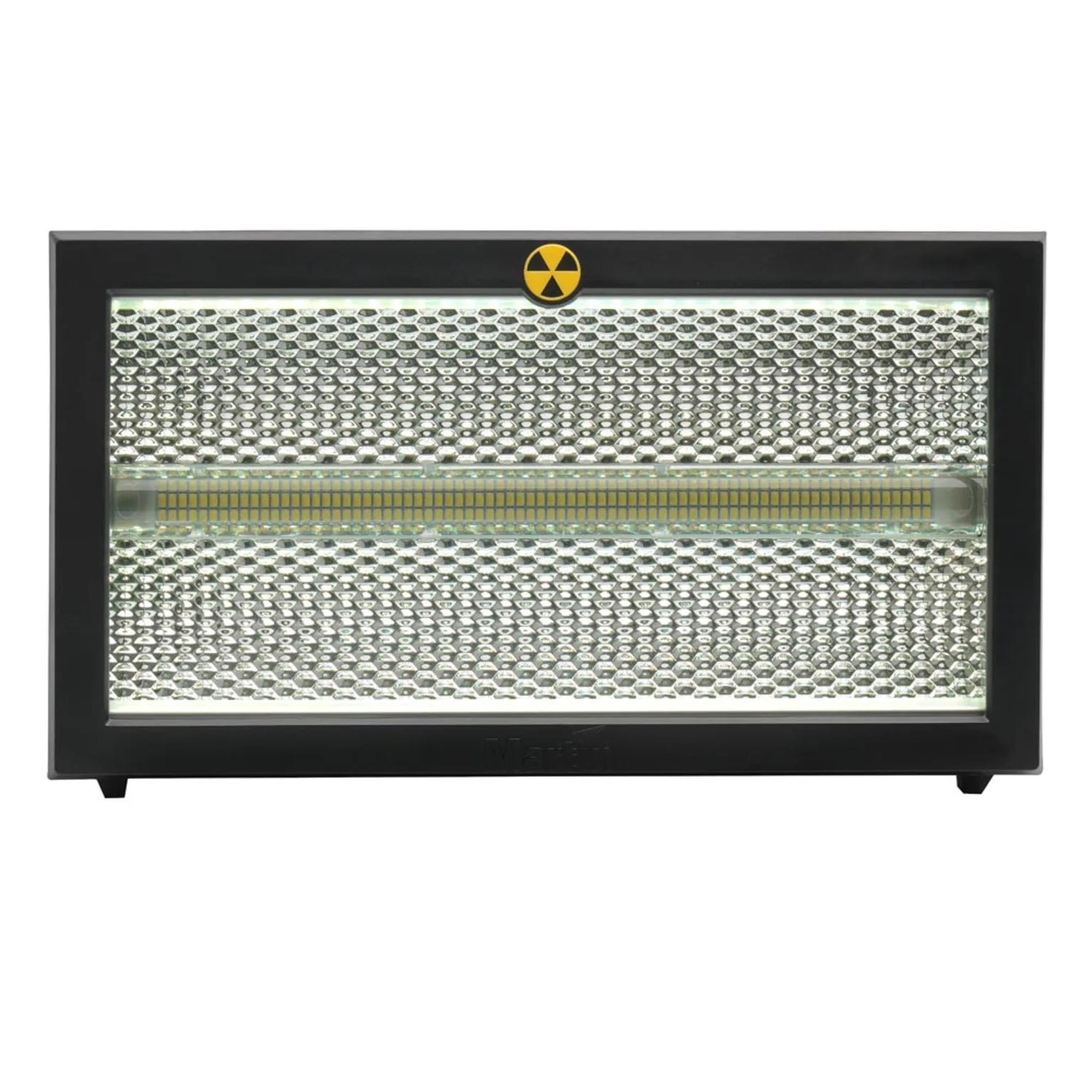

• 180,000-Lumen LED Strobe — 228 x Cree XLamp XP-L 10 W white LEDs (5,700 K) deliver high-impact strobe and blinder output.

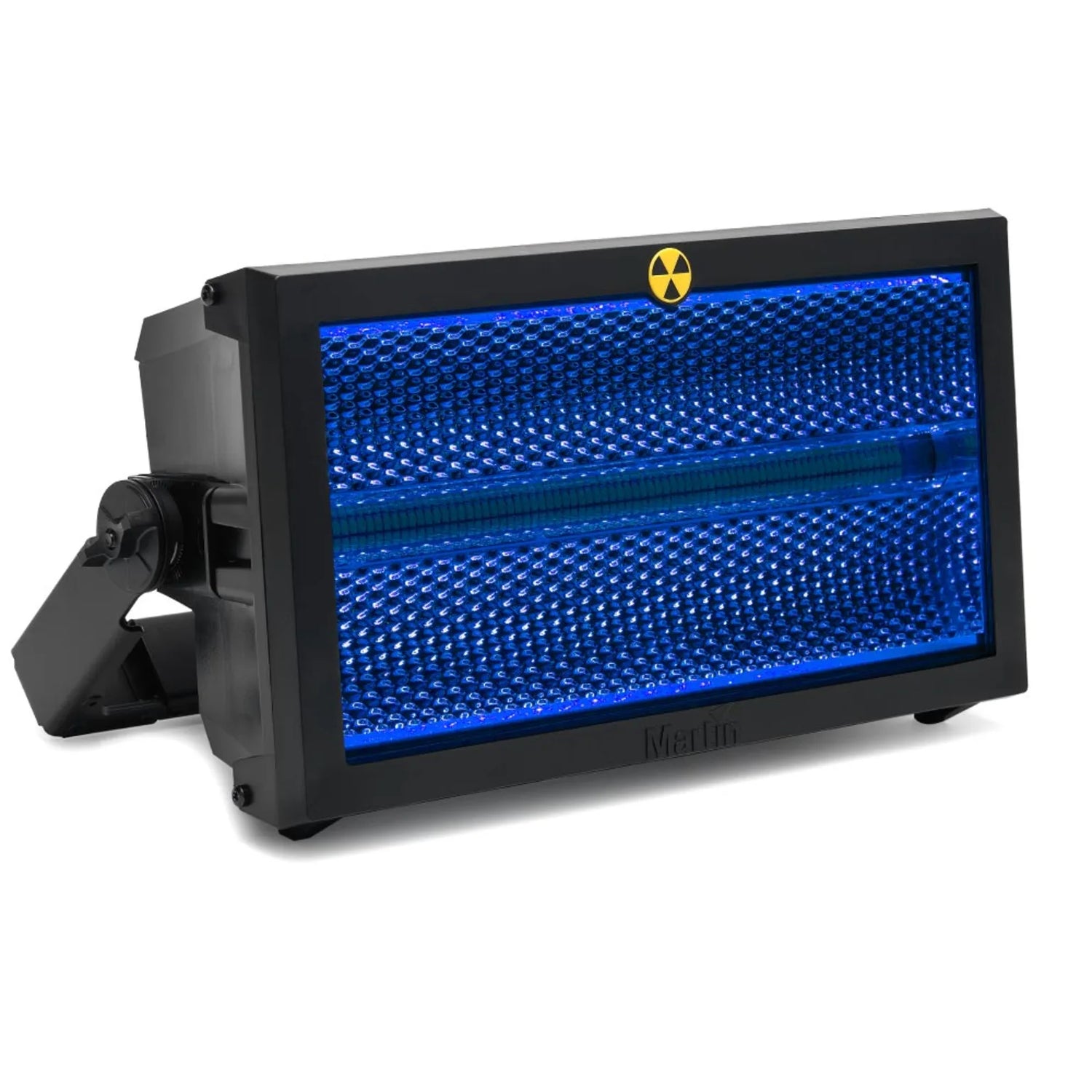

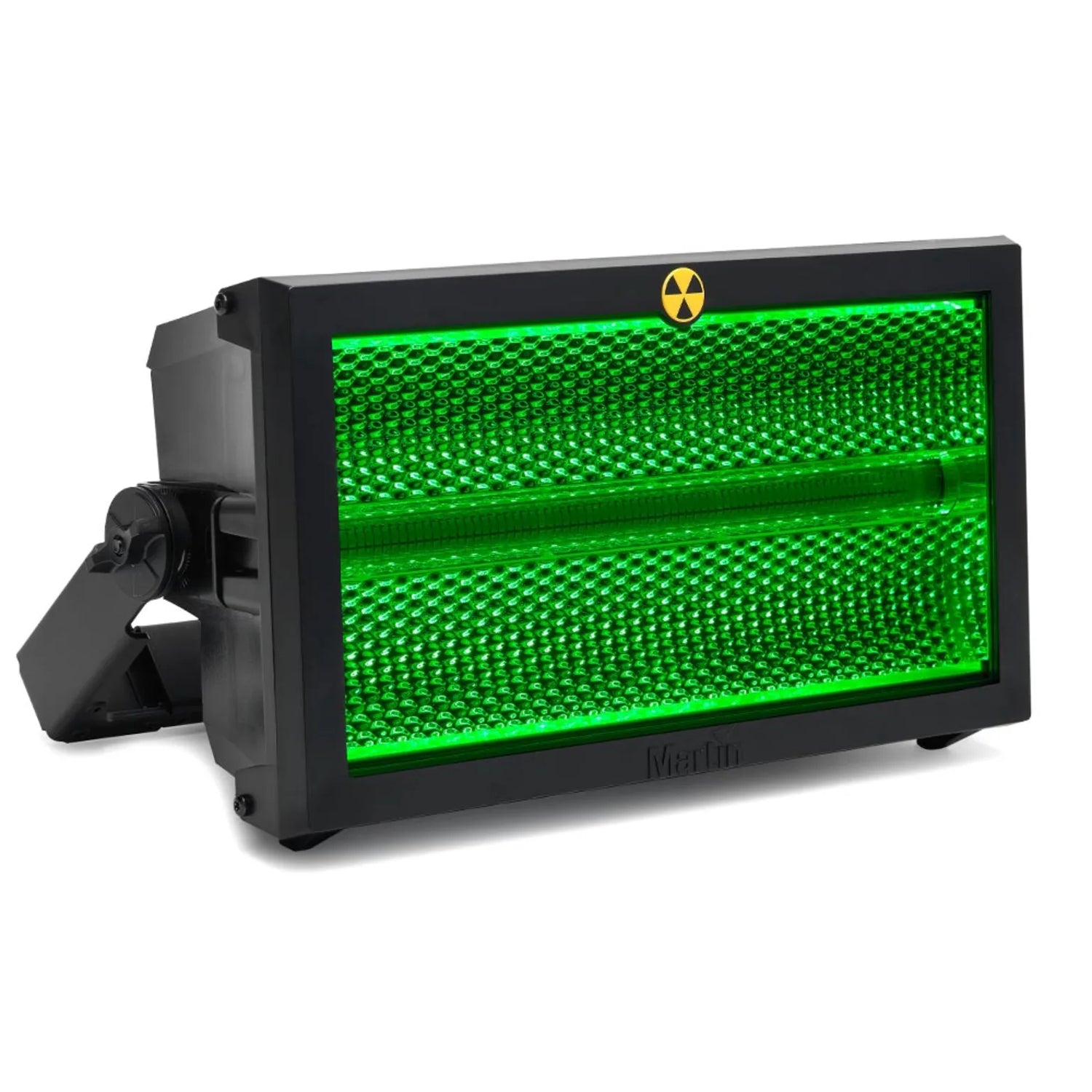

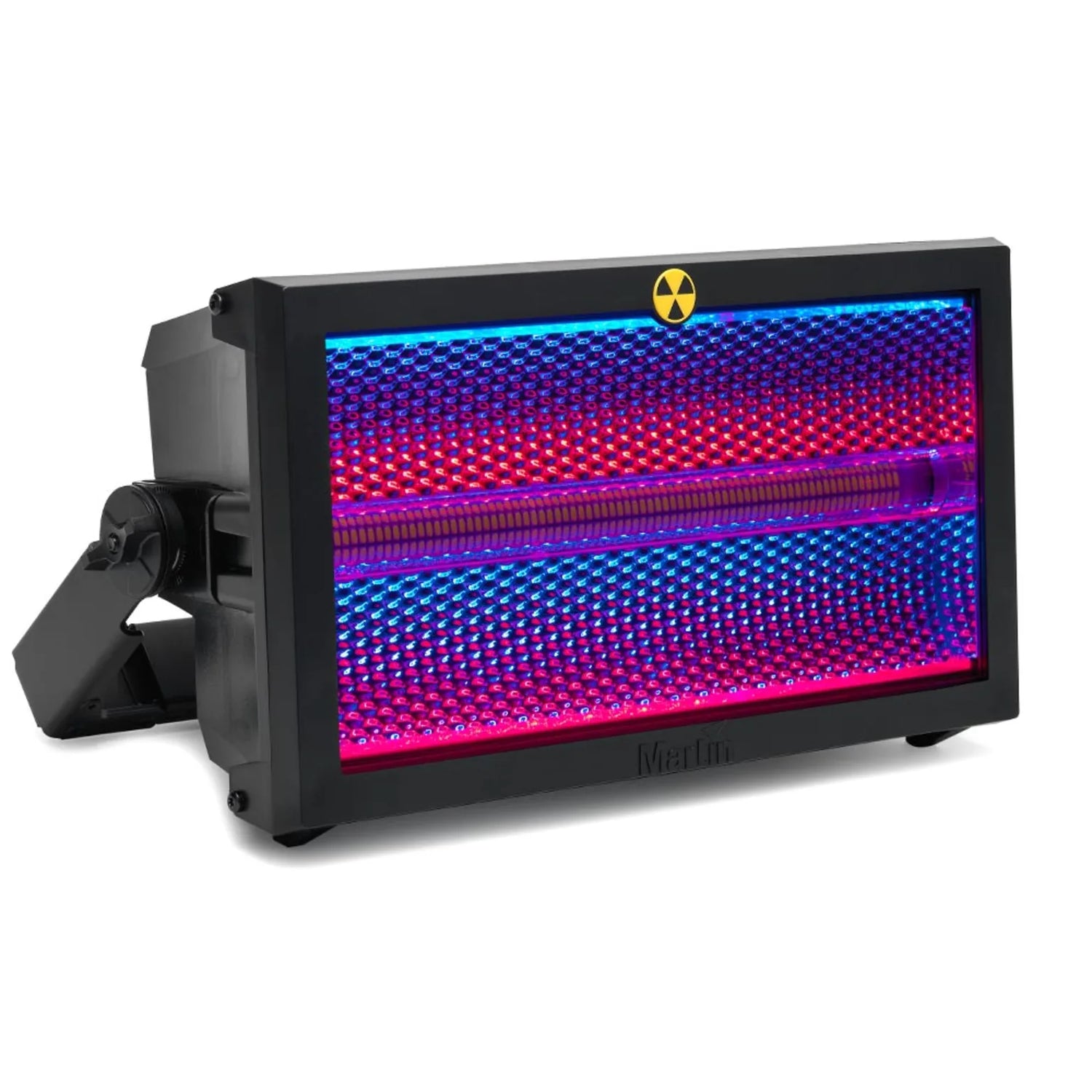

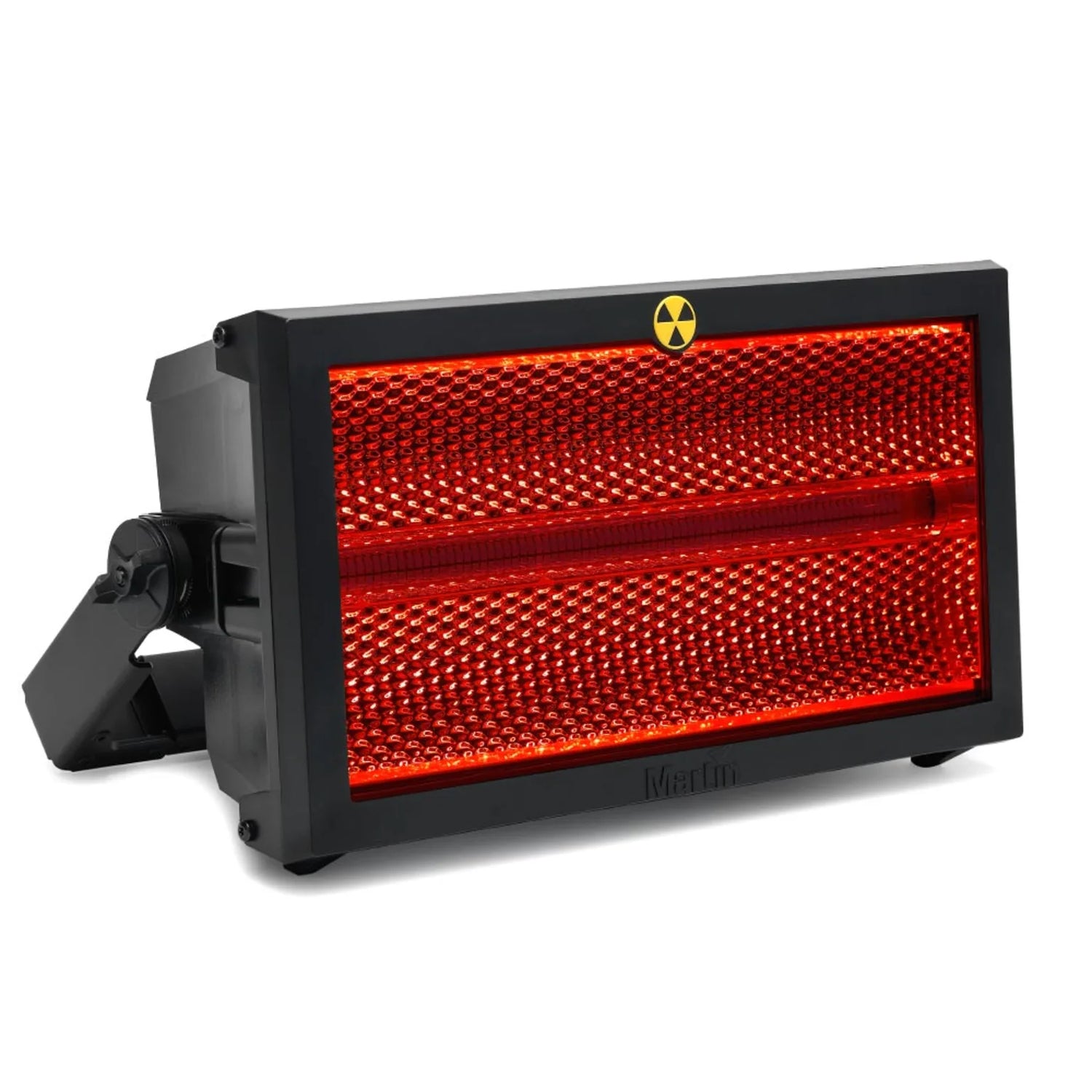

• RGB Aura Backlight — 64 Osram RGB LEDs point into the reflector for MAC Aura-style color eye-candy looks.
• Variable Strobe Engine — Flash rate, intensity, and duration adjustable from 0.289 to 16.667 Hz.
• Built-In Effects — Blinder, ramp up/down, random flash, lightning, spikes, and pre-programmed FX macros.
• 14-Channel Extended DMX — Extended mode adds Aura control and internal FX macros for full console control.
• Professional Connectors — Neutrik PowerCON TRUE1 TOP power input and 5-pin locking XLR DMX in/out.
• Rugged Construction — Steel and UL 94 5VA flame-retardant thermoplastic housing rated IP20 for indoor touring and install use.
• Atomic Colors Compatible — 4-pin locking XLR supports the optional Atomic Colors color gel scroller accessory.

Typical Applications

• Concert and live-event strobe and blinder effects
• Touring production rigs requiring high-output strobe
• Broadcast studio lighting accents
• Auditorium and large performance venues
• House of worship contemporary production lighting
• Multi-purpose rooms and event spaces

Technical Specifications

Frequently Asked Questions

What is the Aura backlight on the Atomic 3000 LED?

The Aura is a secondary array of 64 Osram RGB LEDs that point into the reflector, producing full-color wash-style "eye candy" looks similar to Martin's MAC Aura fixtures, in addition to the main white strobe output.

How bright is the Atomic 3000 LED?

The strobe array produces a maximum of 180,000 lumens using 228 Cree XLamp XP-L 10 W white LEDs at 5,700 K, delivering high-impact strobe and blinder output for large venues.

What DMX modes and channels does it use?

It offers a 14-channel extended DMX mode that includes Aura color control and internal FX macros, controlled over 5-pin locking XLR data connections.

What power connector does the fixture use?

The Atomic 3000 LED uses a Neutrik PowerCON TRUE1 TOP male input and runs on 100–240 V, 50/60 Hz with a rated current of 3.5–6.9 A. The matching TRUE1 cable connector is Martin P/N 91611789.

Can I still use the Atomic Colors gel scroller?

Yes. A 4-pin locking XLR connection supports the optional Atomic Colors color gel scroller accessory for adding scrolled color to the strobe output.

Is the Atomic 3000 LED suitable for permanent installation?

It is rated IP20 for indoor use and is widely used in both touring and permanent install settings such as auditoriums and houses of worship. It should not be exposed to outdoor or wet conditions.

What is the warranty and support?

Martin professional fixtures are covered under Martin's standard warranty. Contact Creation Networks for current warranty terms, firmware, and authorized service details.
