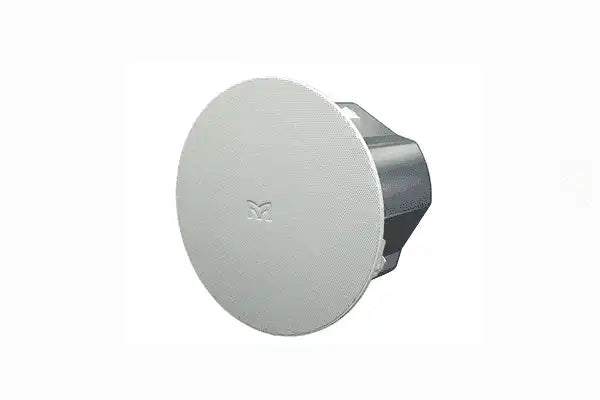

Martin Audio Adorn ACS-40TS-W – 4" Shallow Ceiling Speaker, White Pair

Product Overview

The Martin Audio Adorn ACS-40TS-W is a compact two-way passive ceiling speaker with a shallow backcan, designed for background music and distributed audio systems in commercial spaces with limited ceiling cavity depth. Sold as a pair in white, it features a 180° conical coverage pattern — the widest in the Adorn range — making it particularly effective in low-ceiling environments where maximising coverage from fewer fixtures is a priority. The 70V/100V line transformer and 16-ohm low-impedance operation ensure compatibility with the full range of commercial audio distribution systems.

Product Description

Part of the Martin Audio Adorn commercial loudspeaker series, the ACS-40TS-W addresses installations where ceiling cavity restrictions preclude standard-depth backcans and where low ceiling heights demand the broadest possible coverage angle to maintain even SPL distribution. The 180° conical pattern allows maximum fixture spacing, reducing the total number of speakers required per zone.

The two-way driver complement pairs a 4" (100mm) LF driver with a 0.75" (19mm) silk-dome tweeter, producing 108dB peak SPL at 1 metre with bass extension to 73Hz. The ported enclosure design delivers strong bass performance for a 4" format, suitable for general background music applications in most commercial environments. The white (RAL9016) bezel-less grille coordinates with the Adorn on-wall range. Tile rails and a C-ring for drop-ceiling installation are included. Browse the full Adorn series at Creation Networks – Martin Audio.

Key Features

• 180° Conical Coverage — The widest coverage pattern in the Adorn series, ideal for low-ceiling commercial spaces.
• Shallow Backcan Profile — Enables installation in ceilings with minimum cavity depth where standard backcans do not fit.
• Two-Way Driver Array — 4" LF driver with 0.75" silk-dome HF for background music and speech intelligibility.
• 108dB Peak SPL — Adequate output for most commercial background music environments.
• 73Hz Low-Frequency Extension — Ported design delivers solid bass for a compact 4" format.
• 70V/100V Multi-Tap Transformer — Grille-accessible rotary switch for distributed audio system compatibility.
• 16-Ohm Low-Impedance Mode — Supports parallel multi-speaker wiring from a single amplifier channel.
• Auto-Resetting Thermal Fuses — Independent LF and HF overload protection for long-term reliability.
• UL94V-0 Rated Baffle with Zinc-Plated Steel Backcan — Commercial fire and build quality compliance.
• Tile Rails and C-Ring Included — Drop-ceiling installation hardware included in the box.
• 5-Year Warranty — Martin Audio manufacturer warranty.

Technical Specifications
