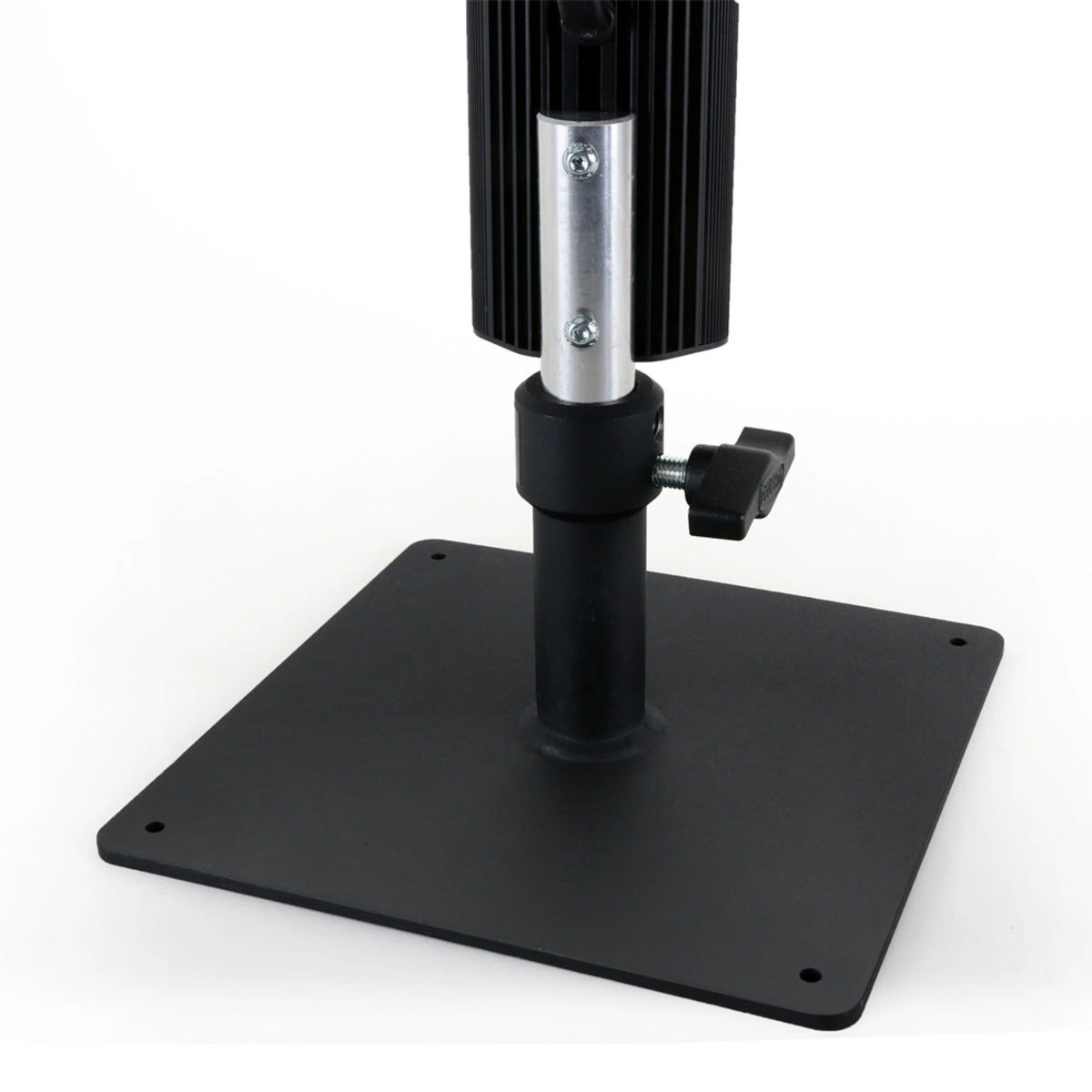

Martin VDO Fatron 20 – 1000mm IP65 LED Video Batten, Boxed
Martin VDO Fatron 20 – 1000mm IP65 LED Video Batten, Boxed is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Martin VDO Fatron 20 – 1000mm IP65 LED Video Batten, Boxed
Product Overview
The Martin VDO Fatron 20 (1000mm) is a 20mm pixel-pitch, IP65-rated RGB LED video batten built for video walls, scenic elements, and creative lighting in demanding environments. As an outdoor-capable LED video batten, it combines high-refresh video performance with an extensive range of field-exchangeable optics. This 1000mm version uses a 4 x 50 LED array and ships in cardboard packaging. Integrators and rental houses specifying pixel battens for video and effect work will find it a flexible building block.
Product Description
The VDO Fatron 20 is a 20mm pixel-pitch LED video batten in an IP65-rated housing, with a 120 by 120 degree viewing angle for wide off-axis visibility. It delivers a luminous output of 1500 lumens per meter and a luminous intensity of 500 candela per meter, with a total output rated at 6250 nits. The LED refresh rate is 1001 Hz in standard mode and 4004 Hz in high-refresh mode, supporting clean capture on camera. The batten can be controlled at 16-bit resolution via the Martin P3 System Controller or at 8-bit via DMX, giving designers a path for both creative-video and conventional lighting workflows. An extensive range of field-exchangeable diffusers and lenses, including Flat, Round, Square, NoBlend, and Lens Array options in regular and smoked finishes, lets crews tune the look on site. The 1000mm model measures 1000mm in length and 80mm in width, with a CCT of 6500 Kelvin. The batten is supplied in cardboard packaging for this configuration.
Key Features
- 20mm pixel pitch — A 4 x 50 LED array on the 1000mm batten supports pixel-mapped video and creative effects.
- IP65 rating — The weatherized housing suits demanding indoor and protected outdoor installations.
- High refresh rate — 1001 Hz standard and 4004 Hz high-refresh modes support clean on-camera capture.
- Wide viewing angle — A 120 by 120 degree viewing angle provides broad off-axis visibility.
- P3 or DMX control — 16-bit control via the Martin P3 System Controller or 8-bit via DMX covers video and lighting workflows.
- Field-exchangeable optics — Flat, Round, Square, NoBlend, and Lens Array diffusers in regular and smoked finishes tailor the look.
Typical Applications
- Broadcast studio video walls and scenic elements
- House of worship video and creative-content displays
- Auditorium and performing arts video scenery
- Multi-purpose room and event pixel-mapped displays
Technical Specifications
| Specification | Detail |
|---|---|
| Type | RGB LED video batten, 20mm pixel pitch |
| LED array (1000mm) | 4 x 50 |
| CCT | 6500 K |
| Luminous output | 1500 lumens per meter |
| Luminous intensity | 500 cd per meter |
| Total output | 6250 nits |
| Refresh rate | 1001 Hz standard / 4004 Hz high-refresh |
| Viewing angle | 120° x 120° |
| Control | Martin P3 (16-bit) or DMX (8-bit) |
| Protection rating | IP65 |
| Length | 1000mm |
| Width | 80mm |
Frequently Asked Questions
How is the VDO Fatron 20 controlled? It supports 16-bit control via the Martin P3 System Controller and 8-bit control via DMX, covering both creative-video and conventional lighting workflows.
Is it suitable for outdoor or wet environments? The batten carries an IP65 rating, suiting demanding indoor and protected outdoor installations; confirm full environmental requirements during system design.
Can the look of the batten be changed? Yes. An extensive range of field-exchangeable diffusers and lenses (Flat, Round, Square, NoBlend, Lens Array, regular and smoked) lets crews tune appearance on site.
What refresh rate does it provide for camera work? The batten offers 1001 Hz in standard mode and 4004 Hz in high-refresh mode for clean on-camera capture.
What is included in this configuration? This is the 1000mm batten with a 4 x 50 LED array, supplied in cardboard packaging.
What warranty and support apply? This fixture is covered by Martin by HARMAN's manufacturer warranty; contact Creation Networks for terms and integration support.
