Martin MAC Aura XB White – Compact LED Wash Moving Head

Product Overview

The Martin MAC Aura XB is an extra-bright compact LED wash moving head that pairs a 19 x 15W RGBW beam with Martin's signature multi-LED Aura backlight effect. Delivering 6,000 lumens of fully premixed RGBW wash plus a wide 9° to 59° zoom, this compact wash moving head suits conference rooms, houses of worship, theaters, and touring rigs. Full-gamut color calibration and variable color temperature give integrators accurate, repeatable color across large fixture counts.

Product Description

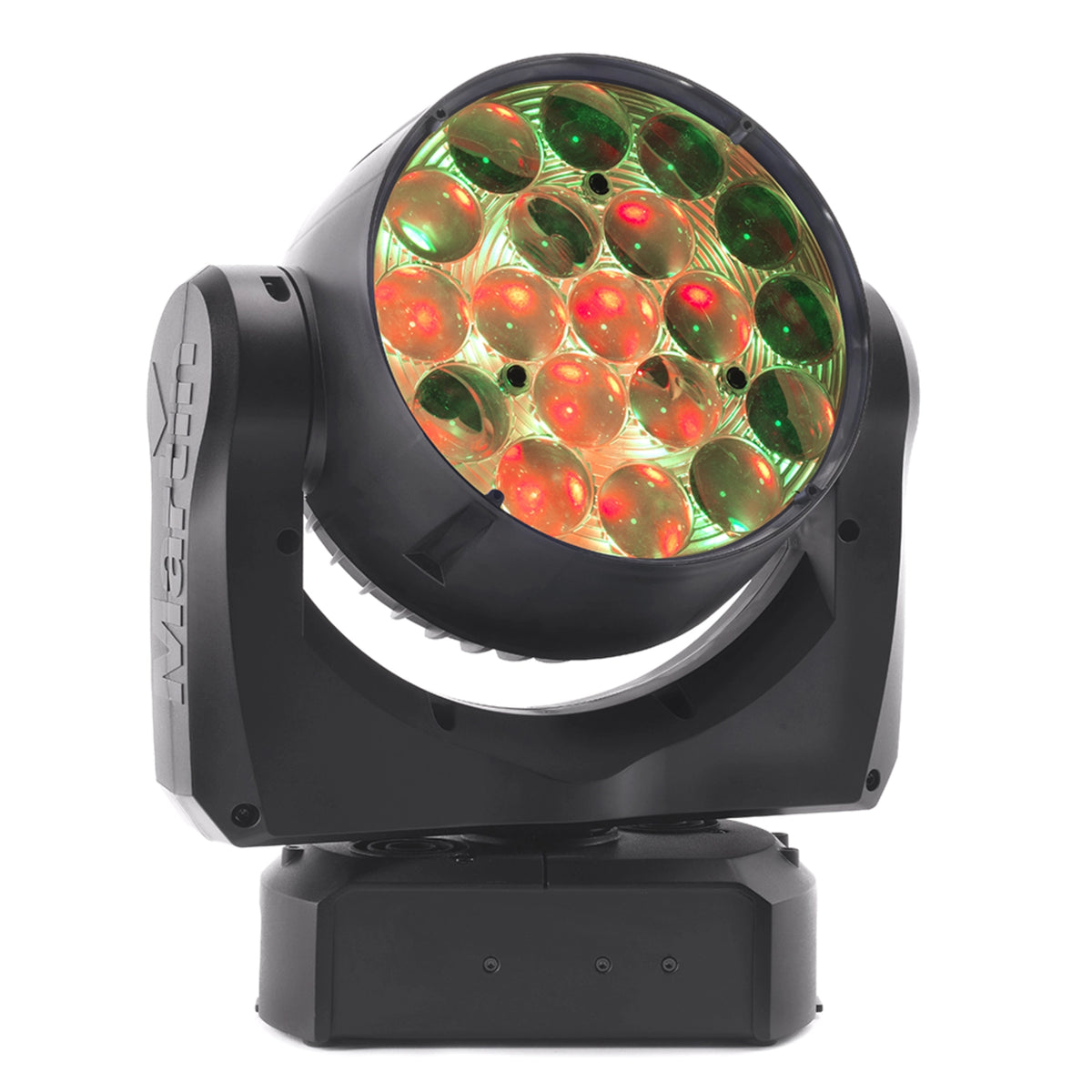

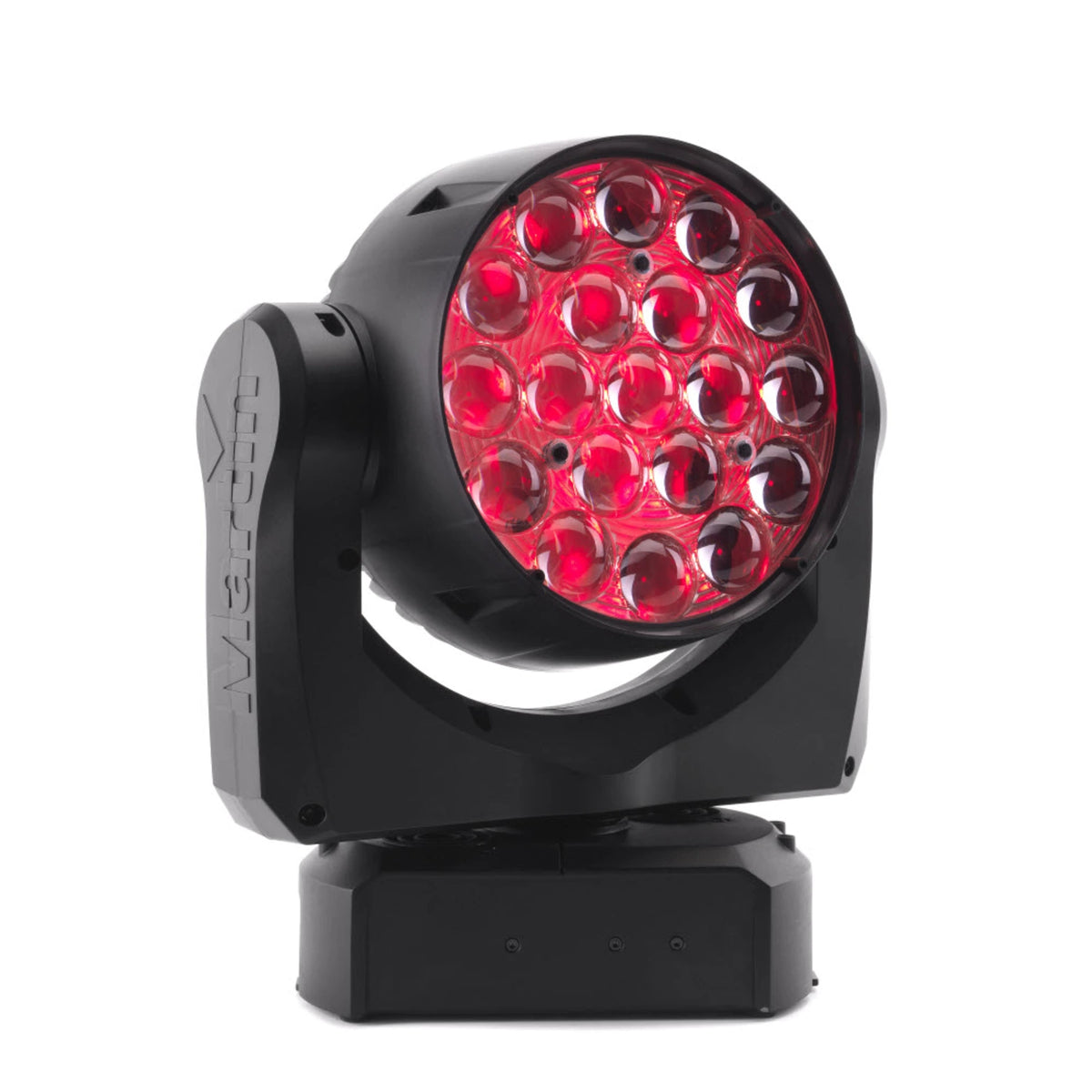

The MAC Aura XB builds on the hugely popular MAC Aura platform with higher output and a refined feature set. Its 19 x 15W RGBW beam produces 6,000 lumens of bright, fully premixed wash, while a separate array of 30 x 0.3W RGB LEDs creates the distinctive Aura backlight halo behind the front lens. RGBW color mixing covers vivid saturated colors, soft pastels, and clean white tones, and Beam color temperature is adjustable from 2,500 K to 10,000 K. A precise, silent 9.0° to 59.1° zoom moves quickly between tight aerial beams and broad even washes. Full-gamut color calibration of both Beam and Aura ensures consistent color from fixture to fixture, which matters when deploying large quantities across a stage or installation. The compact 302 x 332 x 163 mm head weighs only 6.5 kg, making it easy to rig in tight positions and in volume, and low-noise pan, tilt, and effects operation suit quiet environments. Control is over DMX with RDM via a galvanic-isolated RS-485 transceiver in 14- or 25-channel modes, with firmware updates handled over DMX using Martin Companion for straightforward integration into commercial AV and lighting networks. This unit ships in a white finish to blend into light-colored trusses, ceilings, and architectural environments.

Key Features

• Dual-System Beam and Aura — A 19 x 15W RGBW beam plus a 30-LED RGB Aura backlight create both a punchy wash and the signature Aura halo effect.
• 6,000-Lumen RGBW Output — Bright, vibrant saturated colors plus soft pastels and white tones from a compact head.
• 9°–59° Silent Fast Zoom — Precise, quiet zoom covers tight beams through wide washes.
• Full-Gamut Color Calibration — Calibrated Beam and Aura deliver consistent color fixture-to-fixture.
• Variable Color Temperature — Beam CTC from 2,500 K to 10,000 K for accurate white matching.
• Compact, Low-Weight Head — At 6.5 kg the fixture rigs easily in tight positions and high quantities.
• DMX / RDM Control — 14- and 25-channel modes with RDM over a galvanic-isolated transceiver.

Typical Applications

• Conference and Meeting Rooms — Compact, quiet wash and eye-candy for corporate AV spaces.
• House of Worship — Bright wash with accurate color for worship production.
• Theater and Auditorium — Silent operation and smooth color for performing-arts venues.
• Broadcast Studio — Calibrated RGBW color for on-camera lighting.
• Touring and Rental — Lightweight, durable wash light for fast-turnaround inventories.

Technical Specifications

Specifications sourced from Martin (Harman Professional).

Frequently Asked Questions

What makes the MAC Aura XB different from a standard wash?
It combines a bright 19 x 15W RGBW beam with a separate 30-LED RGB Aura backlight, producing the signature Aura halo effect in addition to a fully premixed single-lens wash.

How bright is it?
Up to 6,000 lumens in wide zoom and about 4,300 lumens at narrow zoom.

What control protocols does it use?
DMX with RDM over a galvanic-isolated RS-485 transceiver, in 14- or 25-channel modes; firmware updates via Martin Companion over DMX.

Is it suitable for quiet venues?
Yes. Pan, tilt, and effects operate at low noise, suiting theaters, houses of worship, and broadcast.

How is it rigged?
At 6.5 kg it mounts on a standard omega clamp bracket; always use a rated safety cable.

What warranty and support are available?
Martin fixtures carry the manufacturer's limited warranty, and Creation Networks supports integrators with specification and volume procurement.
