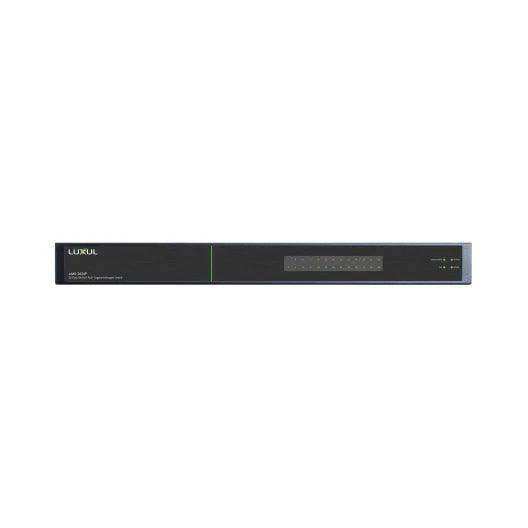

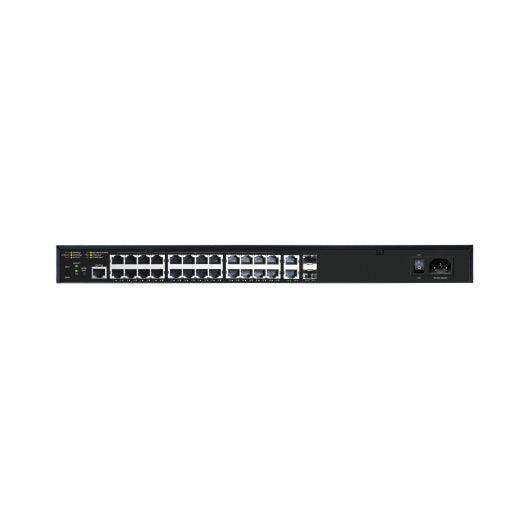

Luxul AV Series 26-port/24 PoE+ Gigabit Managed Switch with US Power Cord - AMS-2624P

Product Overview

The Luxul AMS-2624P is a 26-port Gigabit managed switch engineered for commercial AV installations that demand reliable Power over Ethernet delivery and simplified network management. With 24 PoE+ ports and a 250-watt power budget, this AV Series managed PoE+ switch is purpose-built for deployments that include IP cameras, VoIP phones, wireless access points, and AV endpoints across boardrooms, conference rooms, and enterprise meeting spaces. The AMS-2624P features Luxul's proprietary PoE Self-Healing technology, which automatically detects and recovers unresponsive PoE devices without manual intervention—a critical capability for commercial AV systems running 24/7. Intuitive management tools make this switch accessible to AV integrators and IT/facilities managers who need configuration depth without enterprise-grade complexity.

Product Description

The Luxul AMS-2624P 24-port PoE+ Gigabit managed switch delivers a 52Gbps non-blocking, full-duplex switching fabric that ensures consistent throughput across all ports—essential in AV environments where simultaneous HD video streams, audio distribution, and control traffic share the same network. All 24 RJ45 ports support IEEE 802.3af/at PoE+, providing up to 30W per port within a 250W total power budget, sufficient to drive high-power access points, PTZ cameras, and display controllers without external power supplies. Two dedicated Gigabit RJ45 uplink ports with shared SFP combo ports provide flexible upstream connectivity, supporting either copper or fiber connections depending on the infrastructure. 802.1Q VLAN with trunking support allows AV integrators to segment AV traffic from corporate data networks—a standard requirement in enterprise and government AV deployments. QoS prioritization ensures latency-sensitive AV traffic, such as control signals and video streams, receives appropriate handling on converged networks. Port-based authentication adds a layer of access control aligned with IT security policies, making the AMS-2624P suitable for regulated environments including government spaces and healthcare facilities. The variable-speed fan design minimizes acoustic output, which matters in conference rooms and boardrooms where noise floors are critical. User-selectable green or blue front-facing LEDs allow integrators to match the switch appearance to rack aesthetics or client preferences. RJ45 surge protection rated at 6KV (ENG1000-4-5) protects ports against electrical transients—important in installations where long cable runs are common. The standard 19-inch rack-mount form factor integrates cleanly into AV equipment racks and IT infrastructure closets alike. PoE power scheduling enables pre-configured power cycling of connected devices, useful for managing digital signage players, VoIP phones, and other endpoints that benefit from scheduled restarts. Luxul's PoE Self-Healing monitors connected devices and automatically reboots unresponsive PoE endpoints, reducing truck rolls and on-site service calls for AV system integrators.

Key Features

• PoE Self-Healing — Automatically detects unresponsive PoE devices and cycles power to restore operation without manual intervention, reducing service calls in commercial AV deployments.
• 24 PoE+ Gigabit Ports (802.3af/at) — Delivers up to 30W per port across all 24 RJ45 ports, supporting IP cameras, wireless APs, VoIP phones, and AV endpoints from a single switch.
• 250-Watt PoE Power Budget — Provides sufficient total power for mixed-device deployments typical in conference rooms and enterprise meeting spaces.
• 2 Gigabit Uplink Ports with Combo SFP — Supports both copper and fiber upstream connections for flexible integration into existing network infrastructure.
• 52Gbps Non-Blocking Switching Capacity — Full-duplex, wire-speed performance across all ports eliminates bottlenecks in high-density AV network environments.
• 802.1Q VLAN with Trunking — Enables AV/IT network segmentation for security, traffic prioritization, and compliance in enterprise and government installations.
• QoS Support — Prioritizes latency-sensitive AV traffic to maintain reliable performance on converged networks shared with data and voice.
• Port-Based Authentication — Restricts network access at the port level to satisfy IT security requirements in commercial and government facilities.
• Variable-Speed Fans — Adjusts fan speed based on thermal load to minimize acoustic noise in noise-sensitive environments such as boardrooms and conference rooms.
• RJ45 Surge Protection (6KV) — Protects all access ports against electrical transients, extending device lifespan in installations with extended cable runs.
• PoE Power Scheduling — Allows pre-programmed power cycling of connected PoE devices for maintenance automation and energy management.
• User-Selectable LED Color — Front-facing LEDs switchable between green and blue to match rack or facility aesthetic requirements.

Typical Applications

• Boardroom
• Conference room
• Commercial meeting space
• Government space
• Multi-purpose room
• All-hands room
• Training room
• House of worship
• Auditorium

Technical Specifications

Frequently Asked Questions

Q: Is the AMS-2624P compatible with third-party PoE devices, or is it limited to Luxul endpoints?
A: The AMS-2624P complies with IEEE 802.3af/at standards, making it compatible with any standards-compliant PoE device from any manufacturer, including IP cameras, wireless access points, VoIP phones, and AV control processors.

Q: What is PoE Self-Healing and how does it work in a commercial AV installation?
A: PoE Self-Healing is Luxul's proprietary monitoring feature that continuously checks the link state of connected PoE devices. When a device stops responding, the switch automatically cycles power to that port to recover the device—without administrator intervention. This is particularly useful in unattended AV installations such as digital signage or remote conference rooms.

Q: How should VLANs be configured to isolate AV traffic from corporate data traffic?
A: The AMS-2624P supports 802.1Q VLANs with trunking, allowing integrators to assign AV device ports to a dedicated VLAN and trunk that VLAN to the core network separately from corporate LAN traffic. QoS policies can then be applied to prioritize AV traffic within the network.

Q: Can the SFP combo ports be used simultaneously with the RJ45 uplink ports?
A: The uplink ports are combo ports—each pair shares one logical port, so either the RJ45 or the SFP can be active per combo pair at a given time. This provides flexibility to choose copper or fiber uplinks based on infrastructure requirements.

Q: Is the AMS-2624P suitable for installation in a finished conference room or boardroom?
A: Yes. The variable-speed fan design keeps acoustic output low during normal operation, and the standard 19-inch rack-mount form factor allows clean integration into a nearby AV or IT equipment rack. The switch is not designed for open-room surface mounting.

Q: Does the switch support network management via a GUI or CLI?
A: The AMS-2624P features Luxul's intuitive web-based management interface, designed to be accessible to AV integrators who may not have deep networking backgrounds. It supports standard managed switch configuration including VLAN, QoS, port mirroring, and PoE scheduling without requiring CLI expertise.

Q: What warranty coverage does the AMS-2624P carry?
A: The AMS-2624P is covered by Luxul's Three Year Limited Warranty, which covers defects in materials and workmanship under normal installation and use conditions.

Q: Is the 250W PoE budget sufficient for a fully loaded 24-port deployment?
A: The 250W budget supports a mix of 802.3af (15.4W) and 802.3at (30W) devices. For planning purposes, calculate the total wattage of all connected PoE devices. High-power deployments—such as 24 ports each running 30W devices—would exceed the budget, so power allocation planning is recommended during system design.
