Luxul AV Series 24-Port Gigabit Switch with US Power Cord - AGS-1024

Product Overview

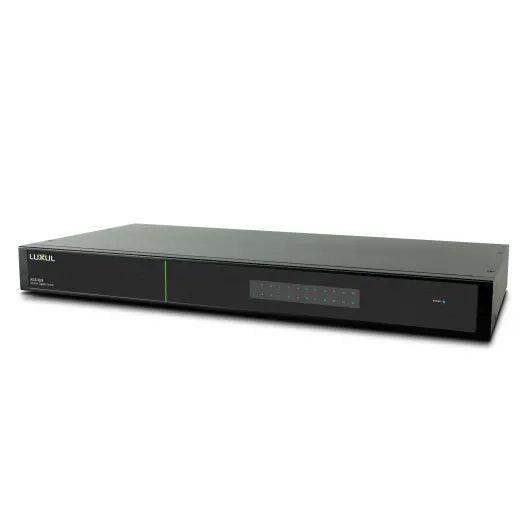

The Luxul AGS-1024 is a 24-port gigabit switch built specifically for commercial AV installations where clean rack integration and silent operation are non-negotiable. Designed for AV integrators and IT managers deploying structured network infrastructure in boardrooms, conference rooms, and multi-purpose facilities, the AGS-1024 delivers a full 48 Gbps non-blocking switching capacity across all 24 ports. As a plug-and-play unmanaged gigabit switch with rack-mount form factor, it eliminates configuration overhead while meeting the throughput demands of AV over IP distribution, unified communications, and high-density device networks. Its fanless design ensures zero acoustic interference in presentation and collaboration environments.

Product Description

The Luxul AGS-1024 AV Series 24-port gigabit switch is engineered to meet the practical demands of commercial AV deployments without the complexity of managed switching. With 24 Gigabit RJ45 ports and a full 48 Gbps switching fabric operating in non-blocking, full-duplex mode, this switch handles simultaneous high-bandwidth streams across all ports without bottlenecks — critical for AV over IP systems running 1Gbps video endpoints. Auto Uplink (MDI/MDI-X) on every port eliminates the need for crossover cables, simplifying field installation for AV integrators working in tight rack environments. The fanless architecture removes any risk of audible fan noise, making the AGS-1024 a reliable choice for conference rooms, boardrooms, and broadcast studios where background sound is unacceptable. Housed in a high-quality metal enclosure, the switch is built to withstand the physical demands of rack-mounted commercial deployments. Standard 19-inch rack-mount compatibility means it fits directly into existing AV and IT rack infrastructure without adapter plates. User-selectable green or blue front-facing LEDs allow integrators to match the visual aesthetic of the rack or client preference. The plug-and-play setup requires no software, no CLI, and no VLAN configuration — the switch powers on and passes traffic immediately, reducing on-site commissioning time. For AV system designers specifying a silent operation network switch for rack-mount installations, the AGS-1024 delivers a straightforward, dependable solution backed by Luxul's three-year limited warranty.

Key Features

• 24 Gigabit RJ45 Ports — Provides full gigabit connectivity to 24 AV endpoints, workstations, or IP devices simultaneously.
• 48 Gbps Non-Blocking Switching Capacity — Full-duplex, non-blocking fabric ensures no port contention under maximum load, critical for AV over IP distribution.
• Fanless Silent Operation — Completely silent with no moving parts, suitable for acoustically sensitive spaces including boardrooms and broadcast studios.
• Auto Uplink (MDI/MDI-X) — Automatic crossover detection on all ports eliminates cabling errors and speeds up field installation.
• Plug-and-Play Setup — No configuration required; the switch operates immediately upon power-up, reducing commissioning time on commercial AV projects.
• Standard 19-Inch Rack-Mount Form Factor — Fits directly into standard AV and IT equipment racks without additional hardware.
• High-Quality Metal Enclosure — Durable construction designed for long-term reliability in commercial rack environments.
• User-Selectable Green or Blue LEDs — Front-facing LED color can be set to match rack aesthetics or client specifications.
• Three-Year Limited Warranty — Backed by Luxul's standard commercial warranty for integrator and end-user confidence.

Typical Applications

• Boardroom
• Conference room
• Huddle room
• House of worship
• Government space
• Commercial meeting space
• Multi-purpose room
• All-hands room
• Training room
• Broadcast studio
• Auditorium

Technical Specifications

Frequently Asked Questions

Q: Does the AGS-1024 support VLAN configuration or network segmentation?
A: No. The AGS-1024 is an unmanaged switch and does not support VLANs, QoS, or any managed switching features. For installations requiring network segmentation or traffic prioritization, consider the Luxul AMS-series managed switches.

Q: Is the AGS-1024 compatible with AV over IP systems such as SDVoE or DANTE?
A: Yes. The switch provides full gigabit throughput across all 24 ports with a non-blocking 48 Gbps switching fabric, making it compatible with high-bandwidth AV over IP systems. Confirm multicast and IGMP requirements with your specific AV over IP platform, as those features require a managed switch.

Q: Will the fan noise interfere with audio in a conference room or boardroom installation?
A: The AGS-1024 is completely fanless and produces no audible noise during operation, making it appropriate for acoustically sensitive environments including boardrooms, conference rooms, and broadcast studios.

Q: What rack space does the AGS-1024 require?
A: The AGS-1024 mounts in a standard 19-inch equipment rack. Verify the unit's rack unit (U) height against your rack space allocation during system design.

Q: Does the switch support PoE for powering IP cameras, access points, or AV endpoints?
A: No. The AGS-1024 does not include Power over Ethernet. For PoE-powered AV endpoints or network devices, the Luxul AMS-1208P provides 8 PoE+ ports with a 130W power budget.

Q: What warranty coverage does the AGS-1024 carry?
A: Luxul provides a three-year limited warranty on the AGS-1024, covering manufacturing defects under normal commercial use conditions.

Q: Is any software or cloud management account required to operate the AGS-1024?
A: No. The AGS-1024 is a fully plug-and-play unmanaged switch. It requires no software installation, cloud account, or initial configuration to begin passing network traffic.
