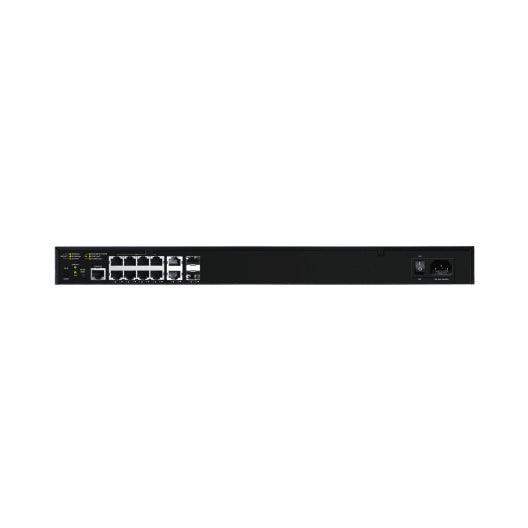

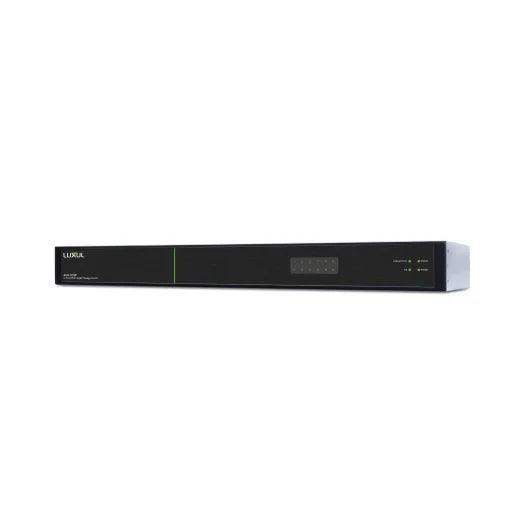

Luxul AV Series 12-Port/8 PoE+ Gigabit Managed Switch with US Power Cord - AMS-1208P

Product Overview

The Luxul AMS-1208P is a 12-port managed PoE+ gigabit switch designed for commercial AV installations that require both powered device connectivity and intelligent network management in a single rack-mount unit. With 8 ports of 802.3af/at PoE+ and a 130W power budget, it supports a full complement of IP cameras, wireless access points, VoIP phones, and AV endpoints without external power injectors. Layer 3 static routing, 802.1Q VLAN with trunking, and QoS support give AV integrators and IT managers the tools needed for proper AV network segmentation and traffic prioritization. The fanless enclosure and standard 19-inch rack-mount form factor make it a practical fit for boardrooms, conference rooms, and any commercial AV system where clean, quiet infrastructure is required.

Product Description

The Luxul AMS-1208P AV Series managed PoE+ switch combines intelligent Layer 3 switching with PoE+ power delivery in a compact 12-port form factor purpose-built for commercial AV deployments. The switch provides 10 Gigabit RJ45 ports plus 2 Gigabit SFP uplink ports, giving AV system designers flexible uplink options for fiber connections or high-speed backbone connectivity. Eight of the RJ45 ports deliver 802.3af/at PoE+ with a shared 130W power budget, sufficient to simultaneously power access points, IP cameras, PoE-enabled AV endpoints, and Dante-networked audio devices. 802.1Q VLAN with trunking support allows AV integrators to segment audio, video, control, and IT traffic onto separate logical networks — a best practice for AV over IP deployments and unified communications environments. QoS configuration ensures that latency-sensitive audio and video streams receive priority over general data traffic, maintaining stream integrity under network load. Layer 3 static routing enables inter-VLAN communication without a separate router, simplifying network architecture in smaller commercial installations. The PoE Self-Healing feature monitors connected PoE devices and automatically cycles power to unresponsive endpoints, reducing the need for on-site service calls to restart frozen cameras or AV devices. Power scheduling allows PoE delivery to be programmed by time of day, useful for managing energy consumption in after-hours facilities. Plug-and-play installation is supported alongside an intuitive management interface accessible via web browser, eliminating the need for CLI expertise during initial setup. RJ45 port surge protection rated at 6KV (ENG1000-4-5) provides added resilience against power events in commercial building environments. The fully fanless enclosure ensures silent operation, and the user-selectable green or blue LEDs allow visual customization to match rack standards or client preferences.

Key Features

• 10 Gigabit RJ45 + 2 Gigabit SFP Ports — Dual SFP uplinks provide fiber or high-speed backbone connectivity options for AV and IT infrastructure.
• 8-Port 802.3af/at PoE+ with 130W Budget — Powers IP cameras, wireless access points, VoIP phones, and PoE AV endpoints without external injectors.
• Layer 3 Static Routing — Enables inter-VLAN routing within the switch, reducing the need for a dedicated router in smaller commercial installations.
• 802.1Q VLAN with Trunking — Supports logical network segmentation for separating AV, control, voice, and data traffic per AV system design best practices.
• QoS Support — Prioritizes latency-sensitive AV and VoIP traffic to maintain stream quality under network load.
• PoE Self-Healing with Auto-Recovery — Automatically power-cycles unresponsive PoE devices, reducing on-site service calls for frozen endpoints.
• PoE Power Scheduling — Configurable PoE delivery by time of day for energy management in commercial facilities.
• RJ45 Port Surge Protection (6KV) — Protects connected devices from power surges in commercial building environments.
• Fanless Silent Operation — No fan noise, suitable for boardrooms, conference rooms, and acoustically sensitive AV spaces.
• Intuitive Web-Based Management — Browser-accessible management interface supports initial setup and ongoing configuration without CLI knowledge.
• Standard 19-Inch Rack-Mount — Fits directly into existing AV and IT equipment racks without adapter hardware.
• Three-Year Limited Warranty — Backed by Luxul's commercial warranty for integrator and end-user assurance.

Typical Applications

• Boardroom
• Conference room
• Huddle room
• House of worship
• Government space
• Commercial meeting space
• Multi-purpose room
• All-hands room
• Training room
• Broadcast studio
• Auditorium

Technical Specifications

Frequently Asked Questions

Q: Can the AMS-1208P support AV over IP systems that require IGMP snooping or multicast management?
A: Yes. The AMS-1208P is a managed switch and supports IGMP snooping, which is essential for controlling multicast traffic in AV over IP deployments such as SDVoE, Dante, and similar protocols. Confirm specific feature support in the Luxul management interface during system commissioning.

Q: How many PoE devices can the AMS-1208P power simultaneously, and what is the per-port power limit?
A: The switch provides 8 PoE+ ports with a shared 130W power budget. Individual ports support up to 30W under 802.3at. The total simultaneous power draw across all PoE ports cannot exceed 130W, so power budgeting during system design is recommended.

Q: What does PoE Self-Healing do and how does it benefit an AV installation?
A: PoE Self-Healing monitors connected PoE-powered devices and automatically power-cycles any endpoint that becomes unresponsive. In AV deployments, this means frozen IP cameras, access points, or AV endpoints can recover automatically without requiring an on-site technician to manually restart the device.

Q: Does the AMS-1208P require a dedicated router for inter-VLAN communication?
A: No. The AMS-1208P supports Layer 3 static routing, allowing traffic to route between VLANs directly on the switch. This simplifies network architecture in commercial installations where a full router is not otherwise required.

Q: How is the AMS-1208P managed — does it require command-line access or dedicated software?
A: The switch is managed via an intuitive web browser interface accessible over the network. No CLI experience or proprietary management software is required, making it accessible to AV integrators without deep networking backgrounds.

Q: What level of surge protection does the AMS-1208P provide on its RJ45 ports?
A: Each RJ45 port includes surge protection rated at 6KV per the ENG1000-4-5 standard, providing protection against electrical surges common in commercial building environments.

Q: Is the AMS-1208P compatible with third-party AV control systems such as Crestron or Extron?
A: Yes. The AMS-1208P functions as a standard managed Ethernet switch and is compatible with any IP-based AV control or distribution system. VLAN and QoS configuration can be applied to optimize performance for specific AV control traffic.

Q: What warranty does the AMS-1208P carry, and is support available for commercial integrators?
A: The AMS-1208P is covered by Luxul's three-year limited warranty. Commercial integrators can access product support through Luxul's standard support channels for installation and configuration assistance.
