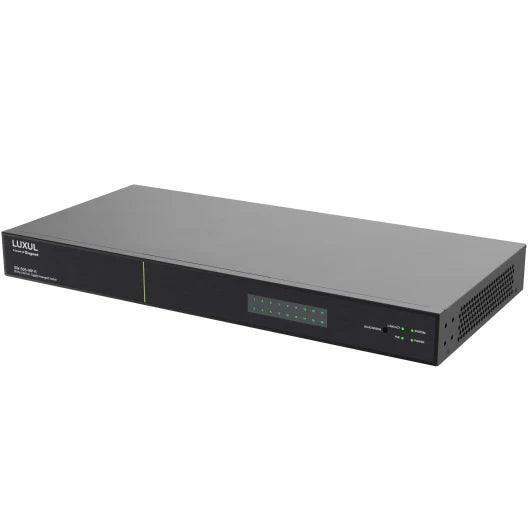

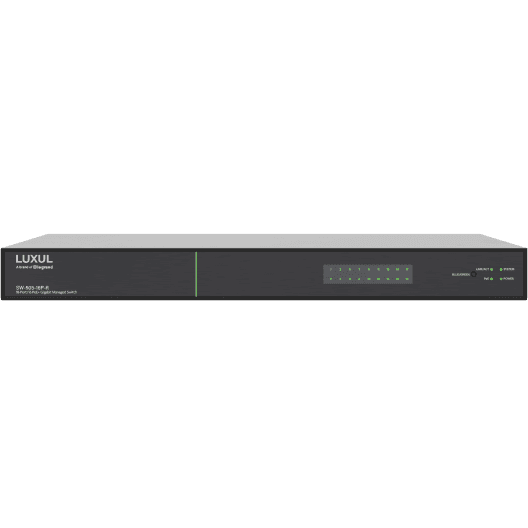

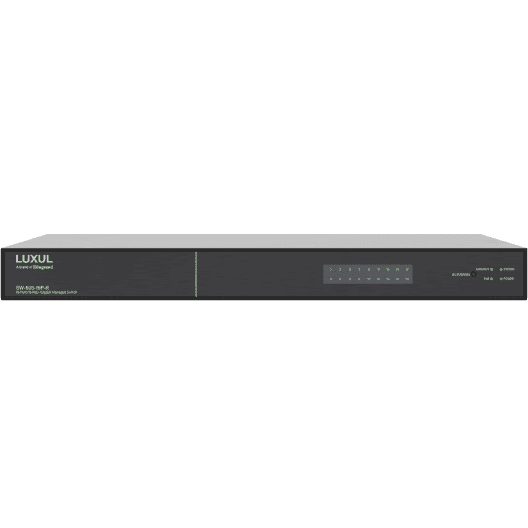

Luxul SW-505-16P-R 16 PoE+ | 2 Combo RJ45/SFP Ports - 1Gb L2/L3 Managed Switch, US Power Cord

Product Overview

The Luxul SW-505-16P-R is a 1Gb L2/L3 managed switch with 16 PoE+ ports and native Dante and AES67 audio networking support, making it a purpose-built choice for AV-over-IP deployments in commercial environments. This AV-over-IP managed switch provides the multicast handling, DSCP-based QoS, and IGMP snooping capabilities that Dante and AES67 audio networks require to function reliably alongside video and control traffic on a converged infrastructure. With 185W of total PoE budget, 36Gbps switching capacity, and rear-facing ports for clean rack integration, the SW-505-16P-R is designed for the rigors of permanent AV installations in conference rooms, auditoriums, broadcast studios, and houses of worship. L3 static routing capability and ProWatch compatibility extend its value in multi-VLAN AV/IT architectures where inter-VLAN audio and video routing is required.

Product Description

The SW-505-16P-R's Dante and AES67 compatibility is its most significant differentiator for AV integrators deploying audio-over-IP systems. Dante-based systems—used by manufacturers including Shure, Biamp, QSC, Yamaha, and Crown—require a switch that handles multicast traffic correctly and supports DSCP marking for time-sensitive audio packets. The SW-505-16P-R is purpose-configured for this: IGMP snooping and querying prevent multicast flooding that can degrade audio performance, per-port unregistered flooding control gives integrators precise command over how multicast streams propagate, and DSCP-based QoS ensures Dante audio packets receive priority over background traffic. For installations using AES67 as a bridge between different AV-over-IP ecosystems, the switch's standards-compliant multicast and QoS handling provides the same reliability. The 16 PoE+ access ports with a 185W total budget supply power to Dante-enabled endpoints including ceiling microphones, network amplifiers, and DSP processors. Dynamic PoE allocation adjusts power delivery based on actual device draw rather than reserving the maximum rated wattage, allowing more efficient use of the power budget across a fully loaded 16-port deployment. The 2 RJ45/SFP combo uplink ports support link aggregation up to 2Gbps, providing increased upstream bandwidth for installations where AV-over-IP streams and management traffic share the uplink. L2 and L3 capabilities include static routing, enabling the SW-505-16P-R to route traffic between VLANs locally without requiring a separate Layer 3 switch or router in smaller AV network architectures. 802.1Q VLAN support with up to 4094 VIDs accommodates complex segmentation schemes, and ACL ingress filtering provides granular traffic control at the port level. Spanning Tree Protocol support (STP, RSTP, MSTP) allows loop-protected redundant uplink configurations in facilities that require high-availability network topologies. The rear-facing port design routes cables out the back of the rack, keeping the front panel clear and reducing cable management complexity in equipment racks. Variable-speed fans maintain low acoustic output suitable for noise-sensitive spaces. The SW-505-16P-R carries NDAA and TAA compliance certifications, qualifying it for use in federal government and defense-adjacent AV installations. ProWatch compatibility integrates the switch into Legrand AV's ecosystem for unified AV system management and monitoring.

Key Features

• Dante and AES67 Compatibility — Natively supports Dante and AES67 audio-over-IP protocols with the multicast handling, DSCP QoS, and IGMP snooping required for reliable audio network performance in commercial AV installations.
• 16 PoE+ Ports with 185W Budget — Powers Dante-enabled ceiling microphones, network amplifiers, DSP units, and other AV-over-IP endpoints directly from the switch without external power supplies.
• Dynamic PoE Allocation — Distributes PoE power based on actual device consumption rather than rated maximums, maximizing the usable power budget across all 16 ports.
• L2/L3 Managed with Static Routing — Supports inter-VLAN routing without an external Layer 3 device, simplifying network architecture in AV deployments with multiple network segments.
• IGMP Snooping and Querying — Controls multicast stream distribution to prevent flooding that would degrade Dante, AES67, and video-over-IP performance on converged AV networks.
• DSCP-Based QoS — Prioritizes time-sensitive AV traffic including Dante audio, AES67 streams, and video control signals to maintain low latency and jitter.
• 2 RJ45/SFP Combo Uplink Ports (2Gbps Aggregable) — Provides fiber or copper upstream connectivity with optional link aggregation for increased bandwidth on AV-over-IP deployments.
• PoE Self-Healing — Monitors PoE device state and automatically recovers unresponsive endpoints, maintaining AV system uptime without manual intervention.
• ACL Ingress Filtering — Applies access control policies at the port level for security compliance in government and enterprise AV installations.

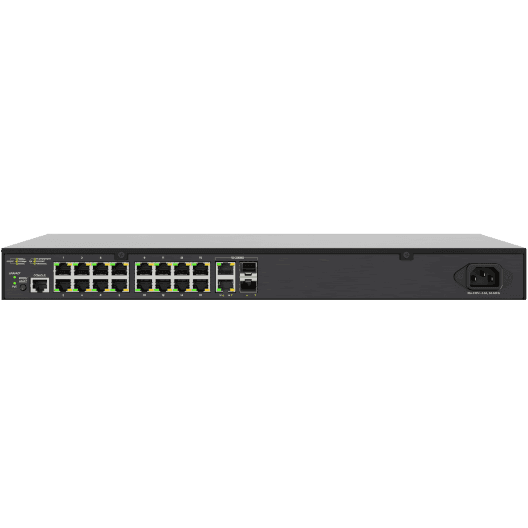

• Rear-Facing Ports — Routes all cabling out the back of the rack for cleaner front-panel presentation and simplified cable management.
• NDAA and TAA Compliant — Meets federal procurement requirements for use in government and defense-related AV installations.
• ProWatch Compatible — Integrates with Legrand AV's ProWatch platform for centralized monitoring and management of AV network infrastructure.
• Spanning Tree Support (STP/RSTP/MSTP) — Enables redundant uplink configurations with loop protection for high-availability AV network designs.
• Variable-Speed Fans — Thermally controlled fan speed reduces acoustic output during normal operation, appropriate for boardrooms, conference rooms, and auditoriums.

Typical Applications

• Boardroom
• Conference room
• House of worship
• Auditorium
• Broadcast studio
• Government space
• Commercial meeting space
• Multi-purpose room
• All-hands room
• Training room

Technical Specifications

Frequently Asked Questions

Q: Is the SW-505-16P-R officially certified for Dante networks, and what configuration is required?
A: The SW-505-16P-R is designed and marketed as Dante and AES67 compatible. For optimal Dante performance, Audinate recommends enabling IGMP snooping, configuring DSCP QoS to prioritize Dante traffic (typically EF/46 for audio, AF41 for PTP), and disabling spanning tree on Dante ports or enabling RSTP with edge port settings. The SW-505-16P-R supports all of these configurations.

Q: Can the SW-505-16P-R handle mixed Dante and AES67 devices on the same network?
A: Yes. Both Dante and AES67 use IP multicast and rely on similar QoS and IGMP requirements. The SW-505-16P-R's multicast management and DSCP QoS support both protocols simultaneously on a converged AV network.

Q: What does L3 static routing enable in an AV deployment?
A: Static routing allows the SW-505-16P-R to forward traffic between different IP subnets or VLANs internally, without requiring a separate router. In AV installations with separate VLANs for Dante audio, video-over-IP, and control traffic, this enables inter-VLAN communication—for example, allowing a control processor on the management VLAN to communicate with Dante endpoints on the audio VLAN.

Q: How does dynamic PoE allocation differ from static PoE allocation, and why does it matter?
A: Static PoE allocation reserves the maximum rated wattage for each connected device, even if the device draws less. Dynamic allocation tracks actual consumption, freeing up unused budget for other ports. On a 185W budget with 16 ports, dynamic allocation allows more devices to draw power simultaneously compared to a static allocation model.

Q: Are the uplink ports suitable for fiber connections to a core switch in a larger AV infrastructure?
A: Yes. The 2 combo uplink ports accept SFP modules for fiber connectivity, allowing the SW-505-16P-R to connect to a core switch over single-mode or multi-mode fiber. The ports support link aggregation up to 2Gbps combined when both uplinks are bonded.

Q: Does NDAA and TAA compliance affect the available feature set or firmware?
A: No. NDAA (National Defense Authorization Act) and TAA (Trade Agreements Act) compliance refers to the supply chain and country of origin requirements for federal procurement. The feature set and firmware are identical to the standard version.

Q: What is ProWatch and how does it integrate with the SW-505-16P-R?
A: ProWatch is Legrand AV's network monitoring and management platform. When integrated, it provides AV integrators and facilities managers with visibility into switch status, port activity, PoE consumption, and device connectivity from a centralized dashboard, simplifying ongoing management of AV network infrastructure.

Q: What warranty does the SW-505-16P-R carry, and is support available for commercial AV integrators?
A: The SW-505-16P-R is covered by Luxul's Three Year Limited Warranty. Luxul provides technical support resources targeted at AV integrators, including configuration guidance for Dante, AES67, and AV-over-IP deployments.
