ViewSonic LSD600W – 600-Inch Capable WUXGA Laser Projection System

Product Overview

The ViewSonic LSD600W is a 6,000 ANSI lumen WXGA laser installation projector designed for large-format commercial applications where consistent brightness and low maintenance matter. Third-generation laser phosphor technology delivers up to 30,000 hours of operation without lamp replacements, making it well-suited for corporate auditoriums, training centers, government spaces, and high-traffic commercial venues. The 0.65" DLP DMD chip produces WXGA (1280x800) imagery with a 3,000,000:1 dynamic contrast ratio across screens from 30 to 300 inches. At 32% more compact than previous generations, the LSD600W simplifies installation in space-constrained environments.

Product Description

At 6,000 ANSI lumens, the LSD600W maintains sharp, color-accurate images in fully lit rooms without forcing presenters to dim overhead lighting. Laser phosphor technology uses up to 62% less power than comparable lamp-based projectors and eliminates scheduled lamp replacement, reducing the total cost of ownership over the unit's operating life. The IP5X sealed optical engine prevents dust ingress, protecting image quality without requiring filter maintenance.

A 1.3x optical zoom with horizontal and vertical keystone correction and 4-corner adjustment gives installers the flexibility to handle non-standard room layouts cleanly. The projector supports 360° projection including portrait mode, allowing ceiling, floor, and wall installations without compromising image quality. HDMI 1.4 inputs accommodate standard commercial AV sources, and RS232 control enables integration with room automation systems. A built-in 15W speaker handles basic audio without additional equipment. The LSD600W powers on to full brightness instantly with no warm-up delay and shuts down immediately — a practical advantage in high-turnover venue schedules.

Key Features

• 6,000 ANSI Lumens — High-brightness output for expansive, well-lit commercial venues and large screens.
• 30,000-Hour Laser Light Source — Lamp-free operation; no scheduled replacements, significantly lower maintenance overhead.
• WXGA 1280x800 Resolution — 16:10 aspect ratio suits widescreen presentation content and standard commercial sources.
• 0.65" DLP DMD Chip — 3,000,000:1 dynamic contrast ratio for deep blacks and crisp text at any screen size.
• IP5X Sealed Engine — Dust-protected optical system with no filter to clean or replace.
• 360° Projection & Portrait Mode — Flexible installation for ceiling, floor, and portrait orientations.
• 1.3x Optical Zoom — Throw ratio 1.18–1.54; H/V keystone with 4-corner adjustment for geometry correction.

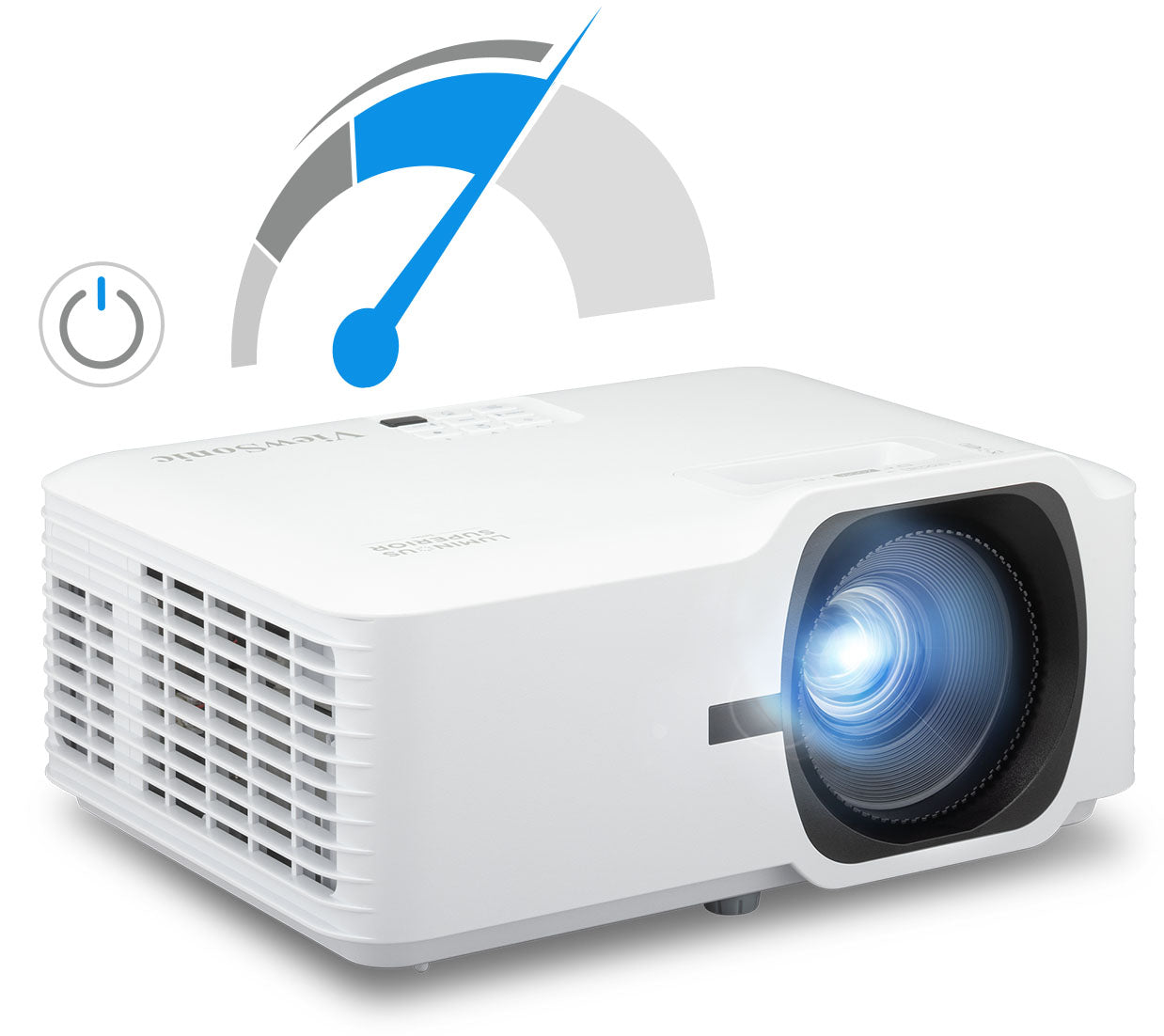

• Instant On/Off — No warm-up or cooldown; full brightness from the moment it powers on.
• RS232 Control — Serial control for room automation system integration.
• Built-In 15W Speaker — Integrated audio for venues without a dedicated sound system.

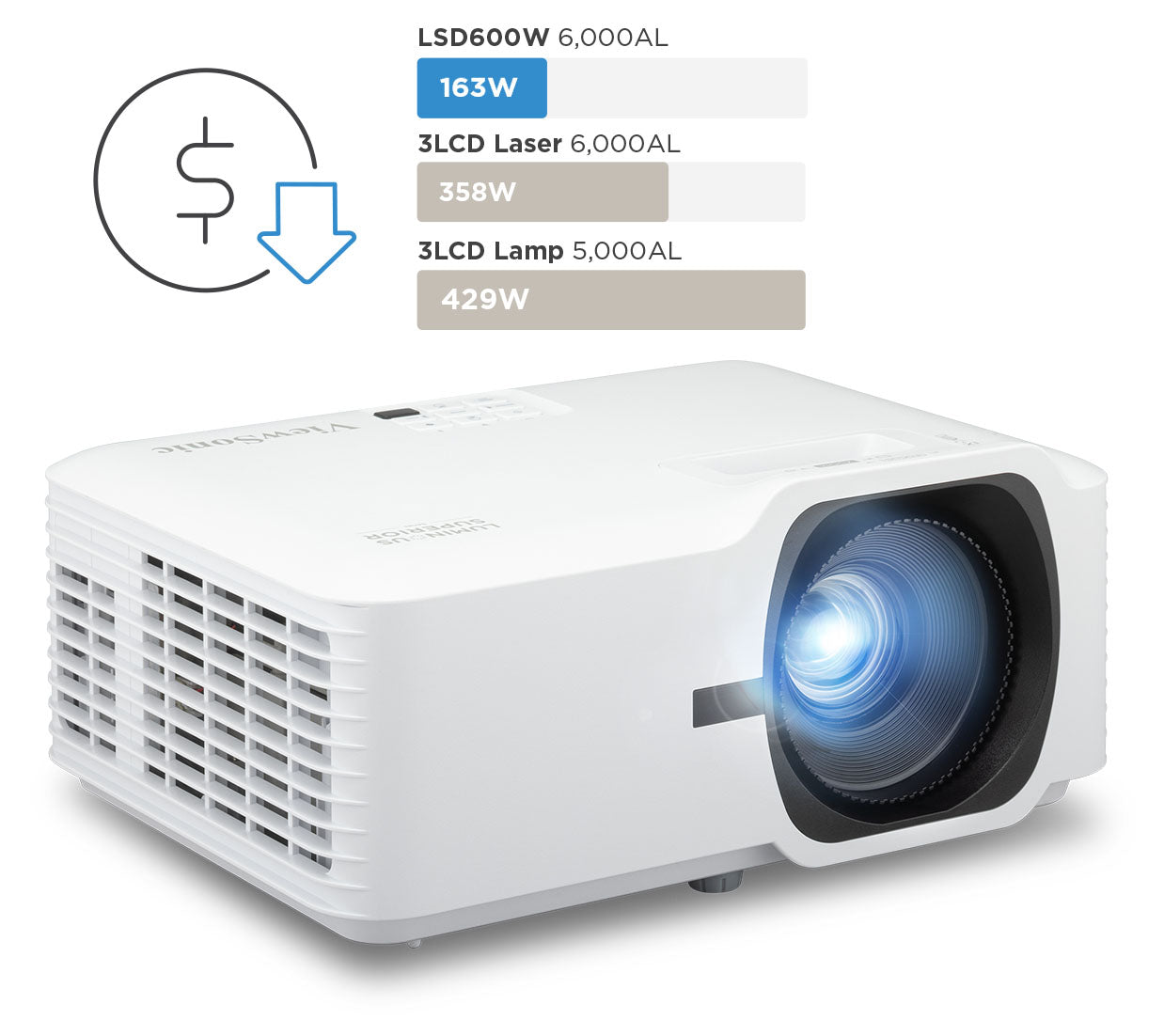

• 62% Energy Savings — Significantly lower power draw compared to equivalent lamp projectors.

Typical Applications

• Auditorium
• Corporate boardroom
• Conference room
• Training room
• Government space
• House of worship

Technical Specifications

Frequently Asked Questions

What is the difference between the LSD600W and LSD500HD?

The LSD600W outputs 6,000 ANSI lumens at WXGA (1280x800, 16:10) resolution, making it the higher-brightness option suited for larger or brighter venues. The LSD500HD outputs 5,500 lumens at Full HD (1920x1080, 16:9), offering higher resolution for content-intensive applications.

Does the LSD600W require lamp replacements?

No. The laser phosphor light source provides up to 30,000 hours of operation with no lamp replacements, eliminating recurring maintenance costs and disposal of mercury-containing lamps.

What control interfaces does the LSD600W support?

The LSD600W includes an RS232 serial port for room automation integration. It does not include LAN control — for networked management, the LSD500HD is the appropriate choice.

Can this projector be installed at any angle?

Yes. The LSD600W supports 360° projection including portrait mode, so it can be ceiling-mounted, floor-projected, or installed in portrait orientation without image quality degradation.

What is the throw ratio and zoom range?

The throw ratio is 1.18 to 1.54 with a 1.3x optical zoom. A 100-inch image is achieved at approximately 2.54 meters. H/V keystone and 4-corner adjustment accommodate non-standard placements.

Is there a built-in speaker?

Yes, a 15W mono speaker is built in for venues that don't require a separate sound system. Audio out via 3.5mm is available for routing to an external system.

How does the sealed engine benefit this projector?

The IP5X sealed optical engine prevents dust from entering and affecting the optics. Unlike traditional projectors with replaceable filters, the LSD600W requires no filter cleaning or replacement, lowering ongoing maintenance requirements.
