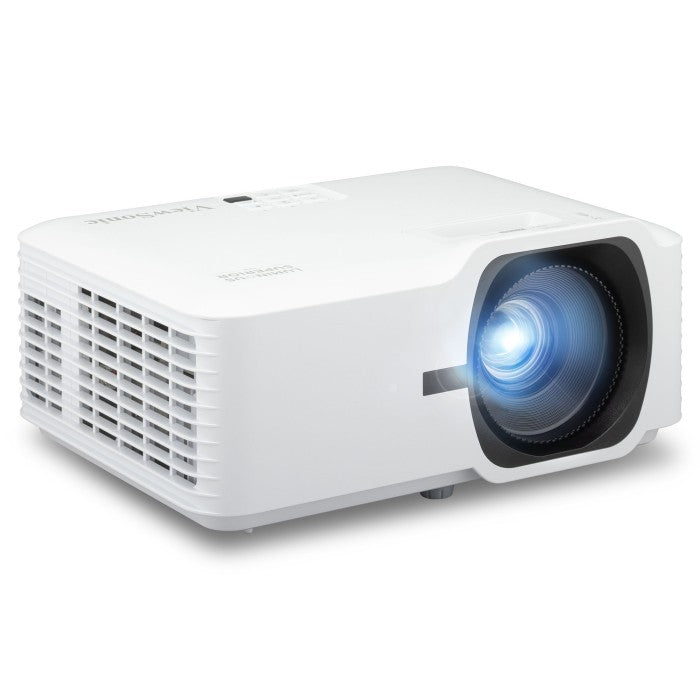

ViewSonic LSD500HD – 500-Inch Capable HD Laser Projection System

Product Overview

The ViewSonic LSD500HD is a 5,500 ANSI lumen Full HD laser installation projector built for commercial spaces where ambient light is a constant challenge. Based on third-generation laser phosphor technology, it delivers consistent brightness across up to 30,000 hours of operation without lamp replacements, making it a practical long-term choice for boardrooms, lecture halls, and large corporate venues. A 0.65" DMD chip produces high-contrast, crisp 1920x1080 imagery at any screen size from 30 to 300 inches. Certified for Crestron and Q-SYS control systems and compatible with AMX, PJ Link, and Extron, the LSD500HD integrates directly into existing commercial AV infrastructure.

Product Description

The LSD500HD holds its own in fully lit commercial rooms. At 5,500 ANSI lumens, presentations, data slides, and video content remain sharp and color-accurate without dimming the room. The laser phosphor light source uses up to 62% less power than traditional lamp-based projectors, and because there are no lamps to replace, facilities teams spend less time on maintenance over the product's lifespan. The 0.65" DLP chip achieves a dynamic contrast ratio of 3,000,000:1, keeping blacks deep and text legible on screens up to 300 inches.

HDMI 2.0 inputs with HDCP 2.2 support accept 4K UHD source signals at 60Hz with HDR10 and HLG, ensuring high-quality media plays back without signal compromise. The projector powers on instantly to full brightness with no warm-up delay and shuts down immediately — a practical advantage in back-to-back meeting environments. For installations requiring flexible orientation, 360° projection and portrait mode allow ceiling, floor, and wall configurations. A 1.3x optical zoom with full horizontal and vertical keystone correction accommodates varied room geometries. A built-in 15W speaker handles basic audio without additional equipment, reducing installation complexity. LAN control via RJ45 enables remote monitoring and management of multiple units across a facility.

Key Features

• 5,500 ANSI Lumens — Maintains clear, color-accurate images in fully lit commercial environments without washing out.
• 30,000-Hour Laser Light Source — Lamp-free operation reduces maintenance costs and eliminates lamp replacement downtime.
• Full HD 1920x1080 Resolution — Sharp text and vivid imagery at any screen size from 30 to 300 inches.
• 0.65" DLP DMD Chip — Delivers 3,000,000:1 dynamic contrast ratio for deep blacks and precise detail.
• HDMI 2.0 with HDR10 & HLG — Accepts 4K UHD source content at 60Hz; two HDMI 2.0 inputs included.

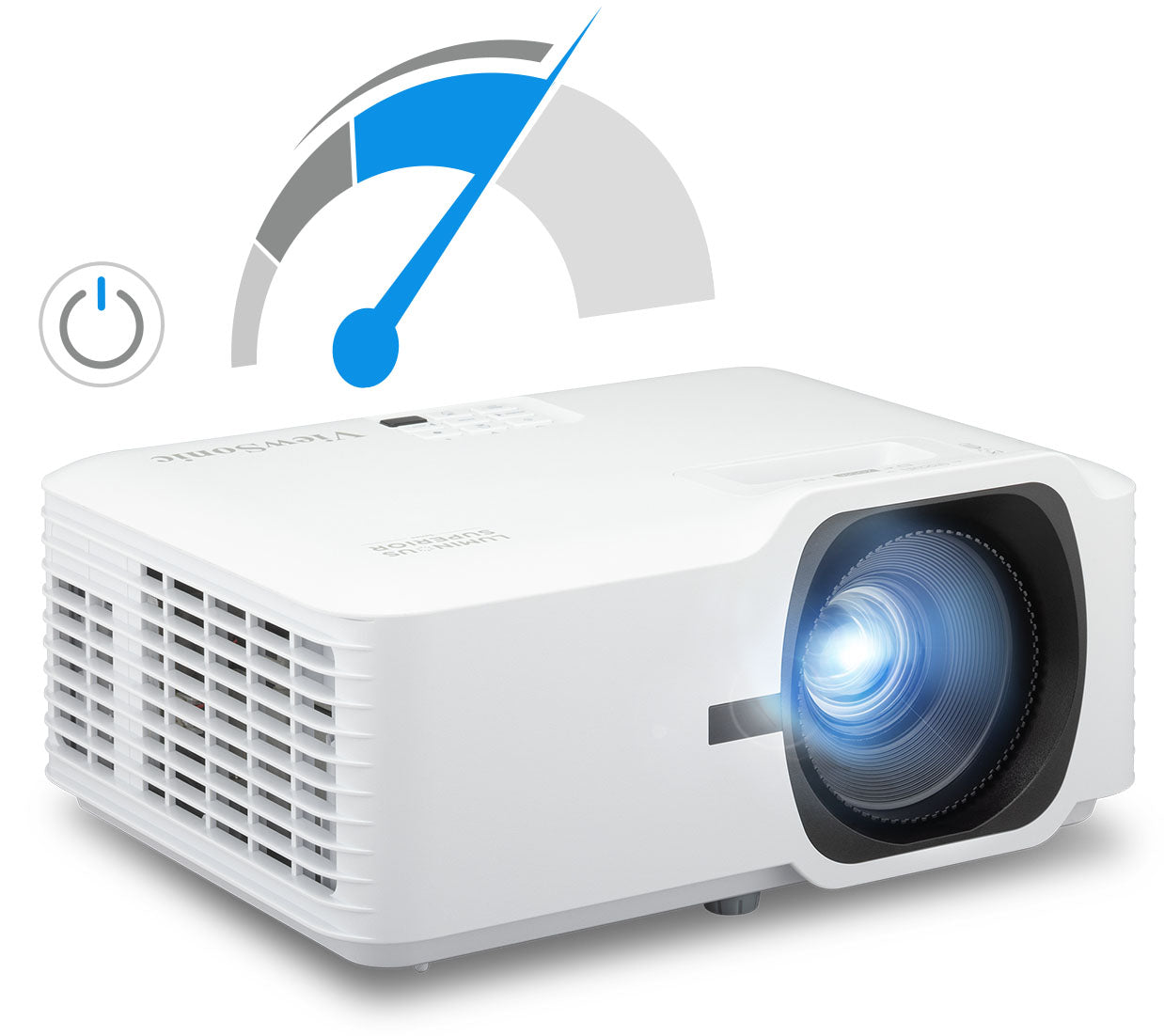

• Instant On/Off — No warm-up or cooldown period; powers to full brightness immediately.
• 360° Projection & Portrait Mode — Supports ceiling mount, floor, and portrait orientations for flexible installation.
• 1.3x Optical Zoom — Throw ratio 1.13–1.47 with H/V keystone and 4-corner adjustment for clean geometry.

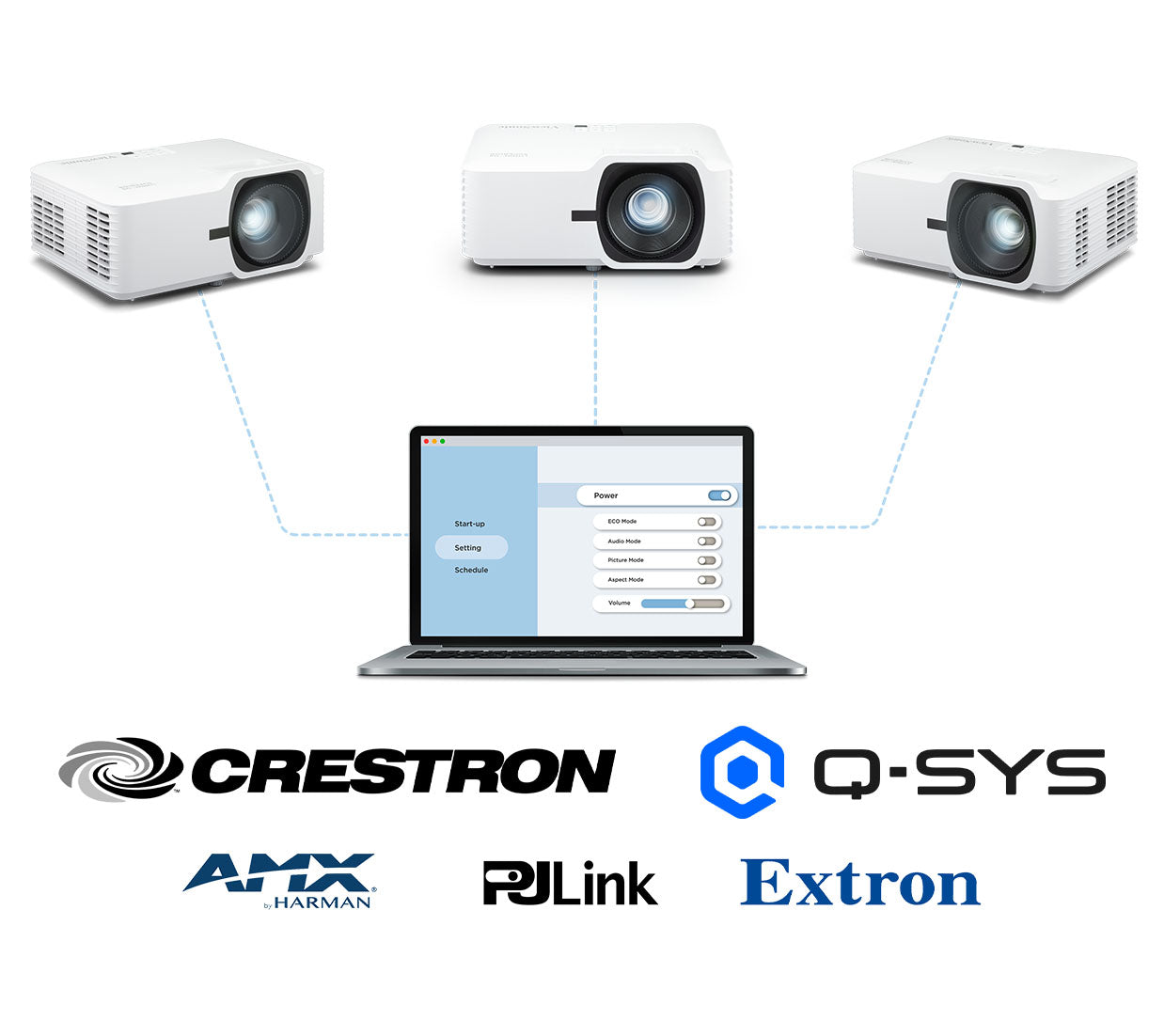

• LAN Control (RJ45) — Certified for Crestron and Q-SYS; compatible with AMX, PJ Link, and Extron.
• Built-In 15W Speaker — Covers basic audio needs without a separate sound system.

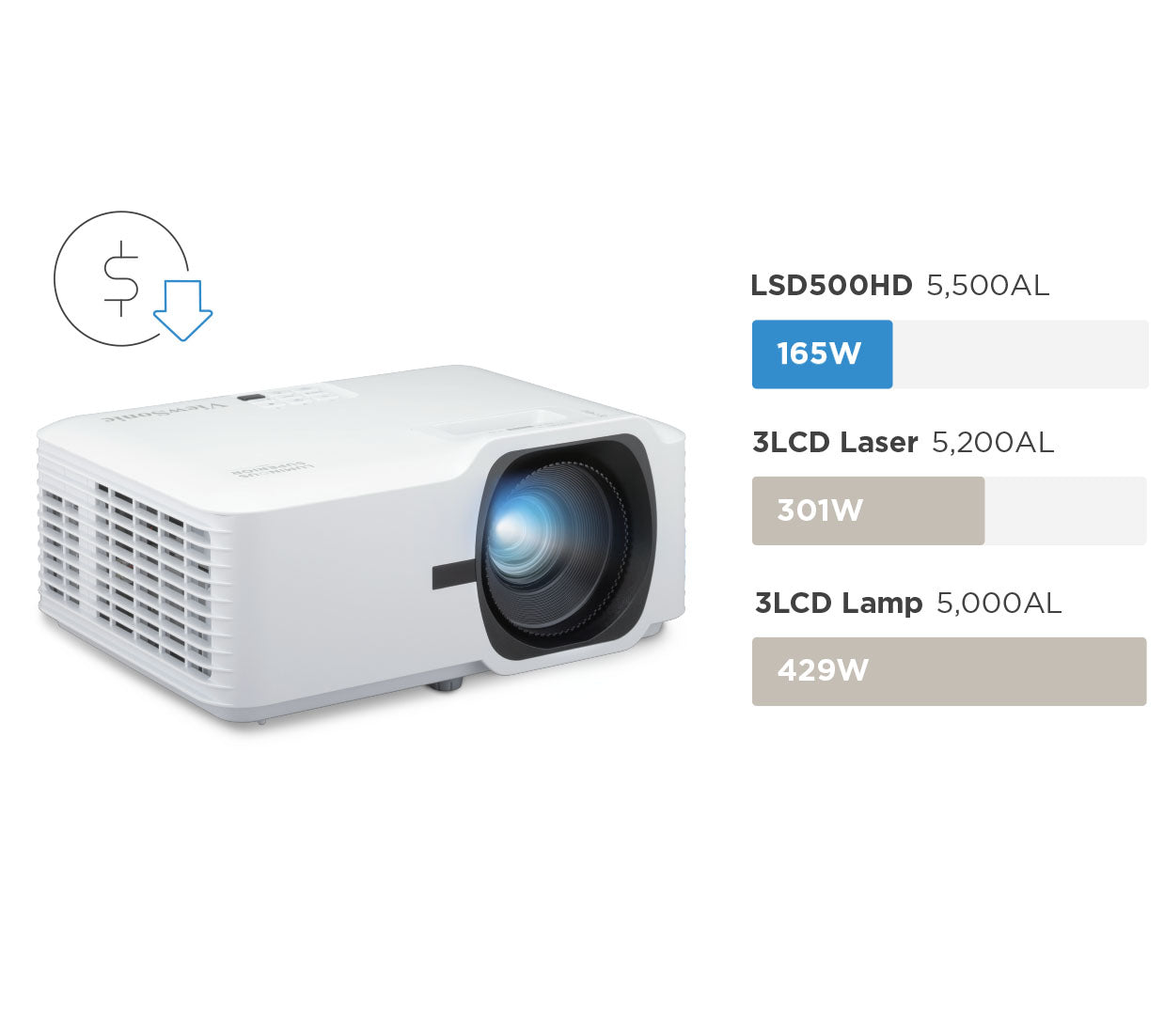

• 62% Less Power — Laser phosphor technology significantly reduces energy consumption versus lamp projectors.

Typical Applications

• Conference room
• Boardroom
• Auditorium
• Training room
• Large venue / house of worship

Technical Specifications

Frequently Asked Questions

What control systems is the LSD500HD certified to work with?

The LSD500HD is certified for Crestron and Q-SYS and is also compatible with AMX, PJ Link, and Extron control systems via LAN (RJ45) or RS232.

Does this projector require lamp replacements?

No. The laser phosphor light source runs up to 30,000 hours with no lamp replacements required, eliminating recurring maintenance costs.

Can the LSD500HD be installed in portrait orientation or floor-projected?

Yes. The projector supports 360° projection including portrait mode, ceiling mount, and floor projection without loss of image quality.

What is the maximum screen size this projector can fill?

The LSD500HD can project onto screens from 30 to 300 inches, with a 100-inch image achieved at approximately 2.50 meters throw distance.

Does the LSD500HD have a built-in speaker?

Yes, a built-in 15W mono speaker is included for basic audio. For larger venues, connection to an external sound system via the 3.5mm audio out is recommended.

What resolution does this projector support from the source?

The native display resolution is Full HD (1920x1080). HDMI 2.0 inputs accept source signals up to 4K UHD (3840x2160) at 60Hz, including HDR10 and HLG formats.

How does the laser projector compare to a lamp projector in energy usage?

The LSD500HD uses up to 62% less power than a comparable lamp-based projector at 165W typical consumption, resulting in meaningful energy savings over the unit's operating life.
