ViewSonic LSD400W – 400-Inch Capable WUXGA Laser Projection System

Product Overview

The ViewSonic LSD400W is a 4,000 ANSI lumen WXGA DLP laser projector built for classrooms and conference rooms where reliable daily operation and low maintenance are the primary requirements. Laser phosphor technology eliminates lamp replacements and uses up to 49% less power than traditional lamp projectors, reducing both maintenance and energy costs over the unit's 30,000-hour lifespan. A 0.65" DLP chip and IP6X-rated sealed engine deliver consistent image quality with no filter to clean or replace. At 32% smaller than previous models, the LSD400W installs more easily in space-constrained rooms.

Product Description

The LSD400W is a straightforward commercial laser projector for rooms that need reliable performance day after day. At 4,000 ANSI lumens, it maintains readable images in well-lit classrooms and meeting rooms without requiring the lights to be fully dimmed. The 0.65" DLP chip and WXGA (1280x800) resolution produce crisp text and clear images at screen sizes from 30 to 300 inches, with a 3,000,000:1 dynamic contrast ratio keeping content sharp regardless of the content type.

The IP6X-rated sealed engine blocks dust without requiring a filter, eliminating one of the most common maintenance tasks for installation projectors in high-use environments. Firmware updates can be applied via USB without a service call, minimizing downtime. The projector supports 360° projection and portrait mode for ceiling, floor, and angled installations, and a 1.1x optical zoom with H/V keystone and 4-corner adjustment handles rooms where placement is less than ideal. With instant on/off and no warm-up period, the LSD400W is ready the moment a session starts. HDMI 1.4 inputs and RS232 control cover standard commercial AV connectivity needs. A built-in 3W speaker provides basic audio capability.

Key Features

• 4,000 ANSI Lumens — Holds up in ambient-light classrooms and conference rooms without requiring full blackout.

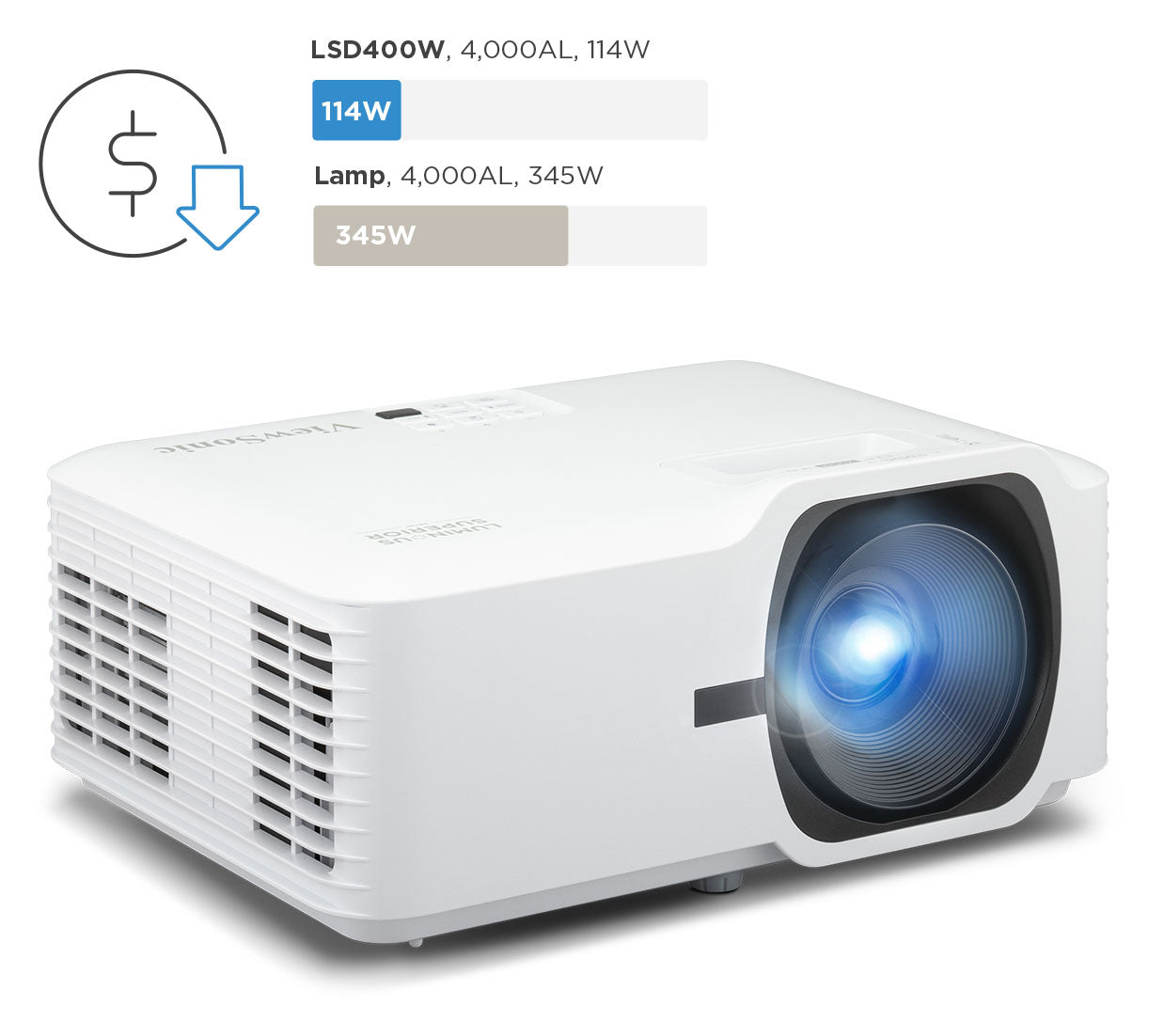

• 30,000-Hour Laser Light Source — No lamp replacements; up to 49% less power consumption versus lamp projectors.
• WXGA 1280x800 Resolution — Crisp text and clear images at any screen size from 30 to 300 inches.

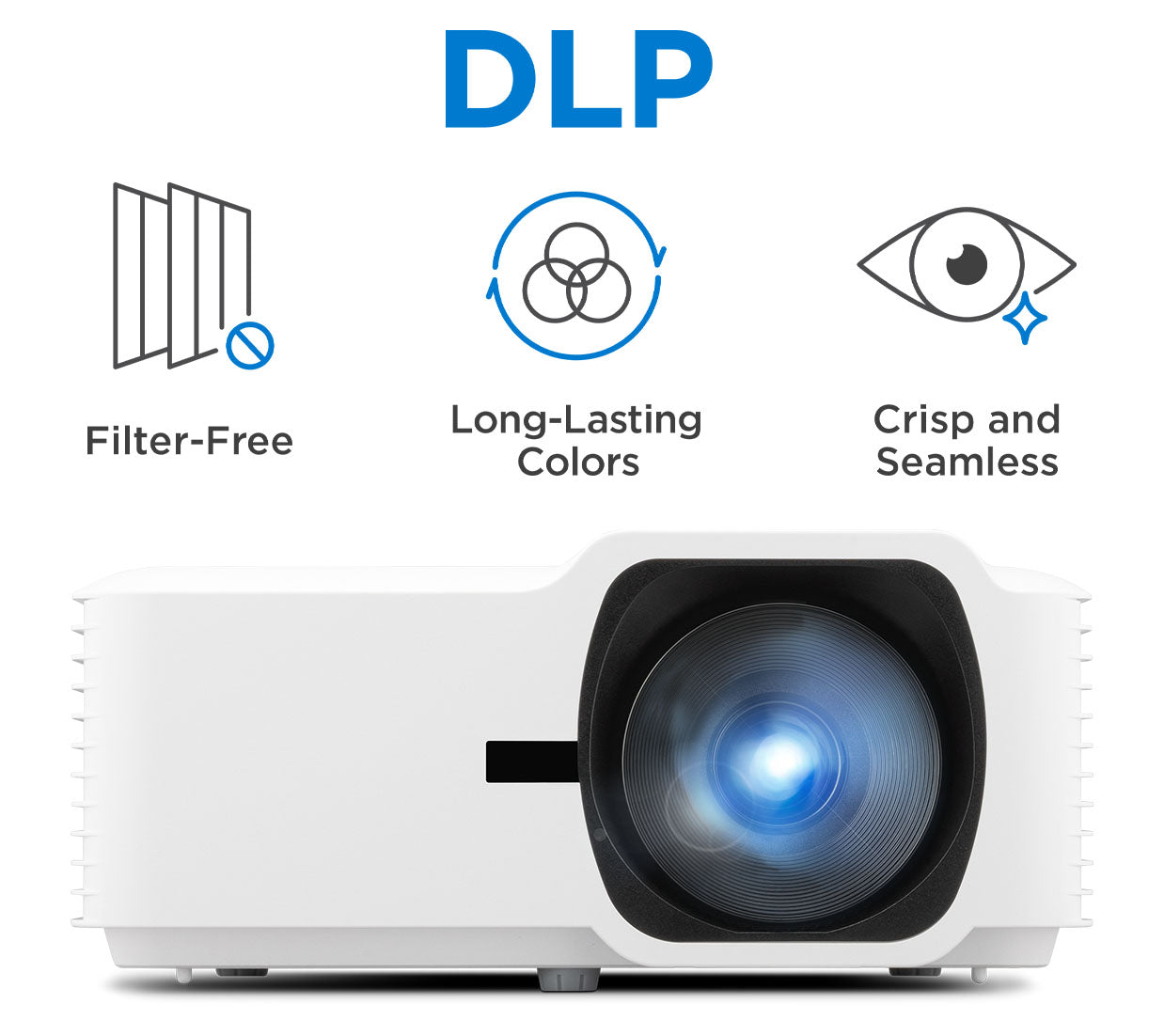

• IP6X Sealed Engine — Fully dust-sealed optics with no filter to clean or replace.
• 0.65" DLP DMD Chip — 3,000,000:1 dynamic contrast for deep blacks and readable content.

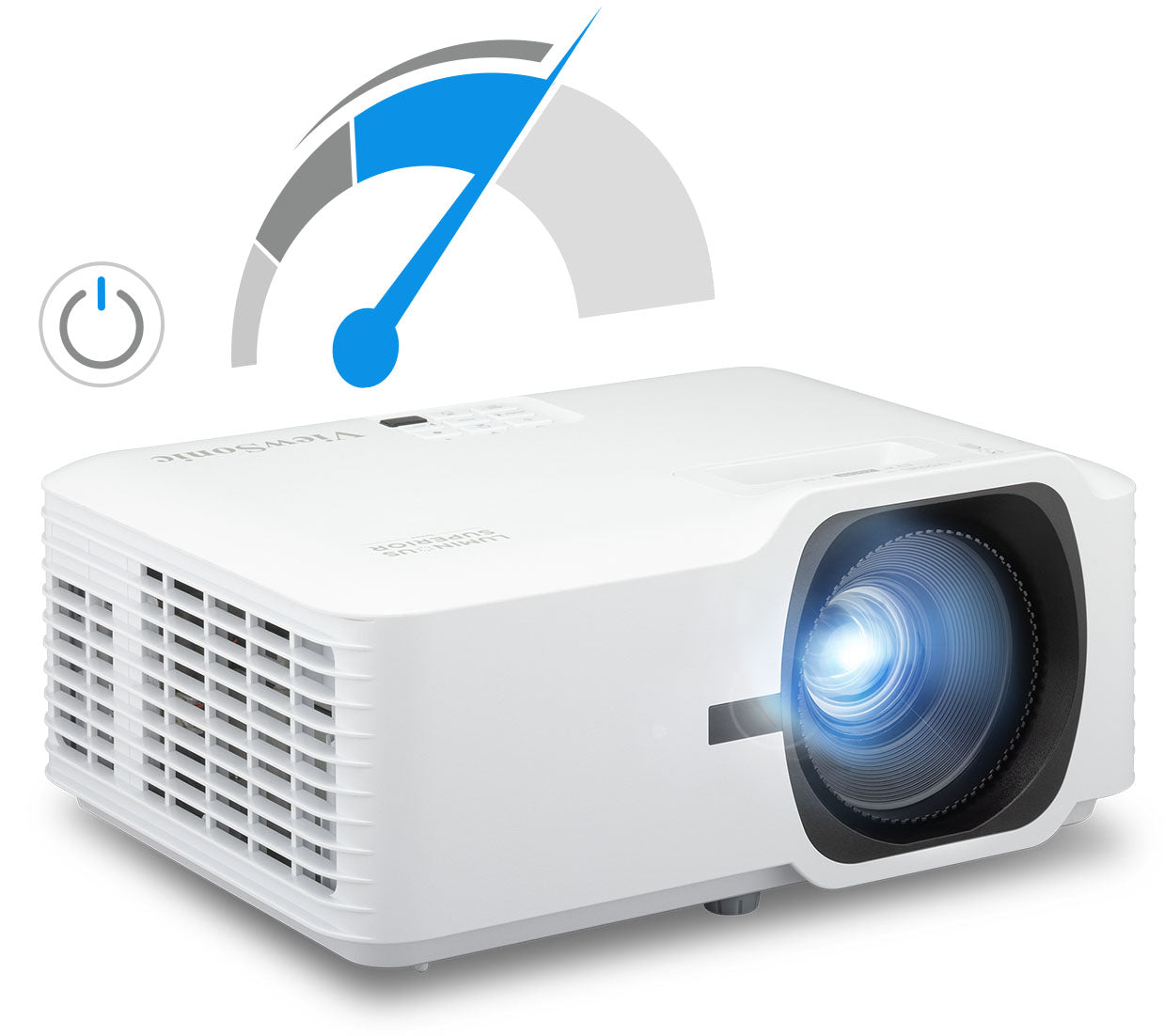

• Instant On/Off — Full brightness immediately on startup; no warm-up or cooldown delay.
• 360° Projection & Portrait Mode — Ceiling, floor, and portrait installations without image quality loss.
• 1.1x Optical Zoom — Throw ratio 1.544–1.72 with H/V keystone and 4-corner adjustment.
• USB Firmware Updates — Field updates via USB without requiring a service visit.
• Compact Form Factor — 32% smaller than previous-generation models; easier to handle and install.
• RS232 & HDMI 1.4 — Standard AV connectivity for room automation and source connections.

Typical Applications

• Classroom
• Conference room
• Training room
• Boardroom

Technical Specifications

Frequently Asked Questions

Is the LSD400W suitable for a standard-size classroom?

Yes. At 4,000 ANSI lumens, the LSD400W maintains readable images in a well-lit classroom with overhead lighting on. For very large or bright spaces, consider the LSD600W at 6,000 lumens.

Does this projector have a filter to clean?

No. The IP6X-rated sealed optical engine is fully dust-protected without a filter, so there is no filter cleaning or replacement required throughout the projector's operating life.

How are firmware updates applied?

Firmware updates are applied via USB using a laptop, with no service visit required. This keeps the projector current with minimal disruption to daily use.

What is the throw ratio, and will it work in a standard classroom?

The throw ratio is 1.544 to 1.72. To project a 100-inch image, the projector needs to be placed approximately 3.33 meters from the screen. This is a standard-throw ratio suited for typical classroom and conference room ceiling mounts.

Does the LSD400W support network control?

The LSD400W includes RS232 serial control. It does not include an Ethernet/LAN port. For LAN-based remote management, the LSD500HD would be the appropriate model.

What resolution does the LSD400W produce?

The native resolution is WXGA (1280x800) at a 16:10 aspect ratio. This matches the native format of most commercial presentation sources and widescreen classroom content.

How does the laser light source reduce total cost of ownership?

The laser light source runs up to 30,000 hours with no lamp replacements and uses up to 49% less power than lamp projectors. Over the unit's lifespan, this reduces both maintenance labor costs and energy expenses significantly.
