Logitech Tap Scheduler 952-000094 Room Scheduling Panel (White, Glass)

Product Overview

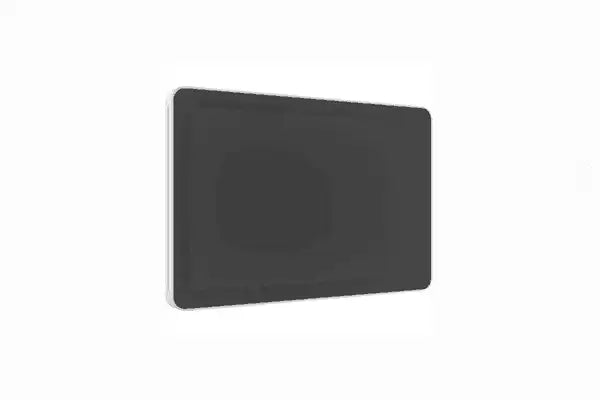

The Logitech Tap Scheduler 952-000094 is a 10.1-inch PoE room scheduling panel in White, designed to mount outside a meeting room so workers can check availability and reserve space at a glance. As a network-connected scheduling display, Tap Scheduler runs on a single Power over Ethernet connection and integrates with Microsoft Teams Panel, Zoom Rooms Scheduling Display, and other leading room scheduling solutions. Green and red availability lighting indicates whether a room is free or busy from a distance, while a spacious touchscreen lets users view meeting details and book ad hoc or scheduled meetings up close. The White finish suits lighter corridors and modern interiors while delivering identical functionality to the Graphite model.

Product Description

Tap Scheduler is a purpose-built scheduling panel for the area just outside a meeting room. Its 10.1-inch IPS touchscreen runs at 1280 x 800 with 400 nits brightness, 1000:1 contrast, an 85-degree viewing angle, and an oleophobic anti-fingerprint coating, mounted flat against the wall at a 0-degree position angle for easy reading from a range of heights. Green or red status LEDs indicate room availability at a distance without distracting from the surroundings. A single PoE connection (IEEE 802.3af Type 1, Class 3) provides power and data, requiring a PoE-enabled network or PoE injector and an Ethernet cable. The panel ships with multi-surface (glass and drywall), corner, and mullion mounts plus mounting hardware, and multiple cable routing options keep the install clean. Tap Scheduler is managed through Logitech Sync, Microsoft Teams Admin Center, or Zoom Device Management, and includes AES-128 full disk encryption, device attestation, and Arm TrustZone key protection. This unit is the White finish; a Graphite variant (952-000091) is also available.

Key Features

• Single PoE Connection — Operates over one Power over Ethernet cable (IEEE 802.3af Type 1, Class 3) for power and data; requires a PoE network or injector and Ethernet cable.

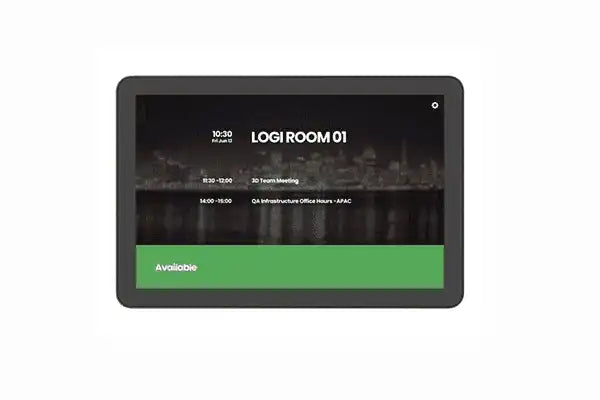

• 10.1-Inch Touchscreen — A spacious 1280 x 800 IPS display with 400 nits brightness, 1000:1 contrast, and 10-point multi-touch shows meeting details and lets users book rooms up close.
• Availability Lighting — Green and red status LEDs indicate room availability from a distance without distracting from the surroundings.
• Flat-Mount Readability — Mounted flush at a 0-degree angle for easy reading from a variety of heights, with an optional Angle Mount adding a 14-degree tilt.
• Included Mounts — Ships with multi-surface (glass/drywall), corner, and mullion mounts plus hardware for fast installation outside any room.
• Clean Cable Routing — Multiple horizontal, vertical, and center cable exits hide cabling for a tidy, professional install.
• Scheduling Platform Support — Certified or compatible with Microsoft Teams Panel, Zoom Rooms Scheduling Display, Robin, Appspace, Ricoh Spaces, Envoy Rooms, Korbyt, Comeen, and Logitech Room Booking.
• White Finish — A White enclosure suits lighter corridors and interiors with the same functionality as the Graphite model.
• Hardware Security — AES-128 full disk encryption, device attestation, and Arm TrustZone key protection.

Typical Applications

• Conference room scheduling panel mounted outside the room entrance
• Huddle room scheduling and ad hoc booking
• Boardroom availability display with at-a-distance status lighting
• Multi-purpose room and training room reservation outside the door
• Commercial meeting space scheduling in lighter interiors matching a White finish
• Government and enterprise spaces requiring centrally managed room booking

Technical Specifications

Specifications sourced from the Logitech Tap Scheduler datasheet.

Competitor Comparison

Tap Scheduler stands out among scheduling panels such as the Poly TC8 and Yealink RoomPanel with a larger 10.1-inch display, broad third-party scheduling platform support, and a White finish option for lighter corridors.

Frequently Asked Questions

Where is Tap Scheduler installed?
Tap Scheduler is a scheduling panel mounted outside the meeting room, typically on the wall, glass, or mullion beside the door, so workers can see availability and book the room before entering.

Does it need a separate power supply?
No. It uses a single PoE connection (IEEE 802.3af Type 1, Class 3) and requires a PoE-enabled network or PoE injector and an Ethernet cable, which are not included.

Is the White model functionally different from the Graphite model?
No. The White 952-000094 and Graphite 952-000091 are identical except for enclosure color.

Which scheduling platforms are supported?
Tap Scheduler works with Microsoft Teams Panel, Zoom Rooms Scheduling Display, Robin, Appspace, Ricoh Spaces, Envoy Rooms, Korbyt, Comeen, and Logitech Room Booking. Confirm current compatibility at logitech.com/support/tapscheduler-compatibility.

What mounts are included?
The panel ships with multi-surface (glass/drywall), corner, and mullion mounts plus hardware. An optional Angle Mount adds a 14-degree tilt for lower placements.

What warranty is included?
A 2-year limited hardware warranty is included, with optional 1-year and 3-year extended warranties available at purchase. Contact Creation Networks for availability.
