Logitech Swytch - 952-000009

Overview

With a single USB connection, Logitech Swytch links a laptop to the room's display, camera, and audio devices. Now, people can use meeting rooms with any video conferencing software, webinar platform, or streaming service. JOIN ANY MEETING FROM EVERY ROOM Logitech Swytch is a BYOM (bring your own meeting) laptop link for video conferencing in meeting rooms, linking a Windows® 10 laptop, MacBook®, or Chromebook to the room's AV equipment with a single USB Type A or C connection.Swytch works in rooms with a dedicated computer - including Microsoft Teams Rooms and Zoom Rooms - and in BYOM rooms equipped with a only conference camera and display. Simply connect Swytch to the laptop via USB and launch the desired application to enjoy broadcast-quality video and content sharing at up to 4K resolution.With a one-cable laptop link to a meeting room's AV devices, Logitech Swytch makes every room ready for any meeting.

Compatibility

Conference Cameras: Logitech Rally, MeetUp, and GROUP Microsoft Teams RoomsZoom Rooms

Ports And Interfaces

Swytch Hub - Power

• HDMI 2.0 to Display
• HDMI 2.0 to Meeting Room Computer
• USB 3.0 Type A to Conference Camera
• USB 3.0 Type C to Meeting Room Computer
• USB 3.0 Type C to Swytch Extender

Swytch Extender - Power

• USB 3.0 Type A to Swytch Hub
• USB 3.0 Type C to Swytch Connector
• USB 3.0 Micro B to Swytch Connector

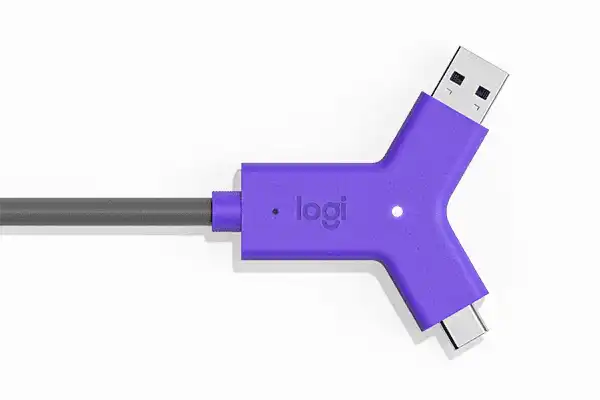

Swytch Connector

• USB 3.0 Type A to laptops with Type A ports
• USB 3.0 Type C to laptops with Type C ports

Mounts

• Swytch Hub: Compatible with Logitech PC Mount (not included)
• Swytch Extender: Mount through a 1 in (25 mm) grommet hole or attach below the table with included hardware
• Swytch Connector: Magnetic dock included

General

• Number of Meeting Room Displays: 1
• Maximum Resolution and Frame Rate, Display: 4K/60 fps
• Maximum Resolution and Frame Rate, Camera: 4K/30 fps
• Laptop Audio for Local Sharing: Yes
• Laptop Audio for Online Meetings: Yes (with services that support content sharing with system audio)
• Device Management: Remote monitoring and management via Logitech Sync

Compatibility

• Conference Cameras - Works with conference cameras that connect via USB, including Logitech Rally, MeetUp, and GROUP
• Room Solutions - Microsoft Teams Rooms, Zoom Rooms
• Also compatible with other room solutions that use USB-connected conference cameras and an HDMI-connected display.

System Requirements

Meeting Room Equipment

• Display with HDMI input
• USB conference cameras with speakerphone

Laptop Computers

• USB 3.0 Port (Type A or Type C)
• USB Power Delivery (Up to 60 watts) for compatible laptops that charge via USB Type C
• Operating Systems with DisplayLink Plug and Display™ Drivers, including Windows 10, macOS® 10.15 and later, and Chrome OS™ 75 or later.

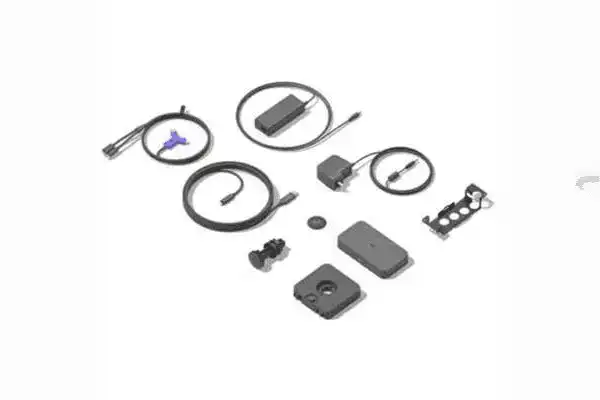

In the Box

• Swytch Hub
• Swytch Extender
• Swytch Connector with 4.9 ft / 1.5 m USB Cable
• 100-240v Swytch Hub Power Supply
• 100-240v Swytch Extender Power Supply
• 16.4ft/ 5 m USB 3.0 Cable
• 7.2 ft /2.2 m USB 3.0 Cable
• 6.5 ft / 2.0 m HDMI 2.0 Cable
• Mounting accessories
• Documentation
