Logitech 960-001217 Rally UHD 4K Conference Camera System with Speaker and Mic Pod Set

Logitech SKU: 960-001217
No reviews

Price:
Sale price$2,099.00

Description

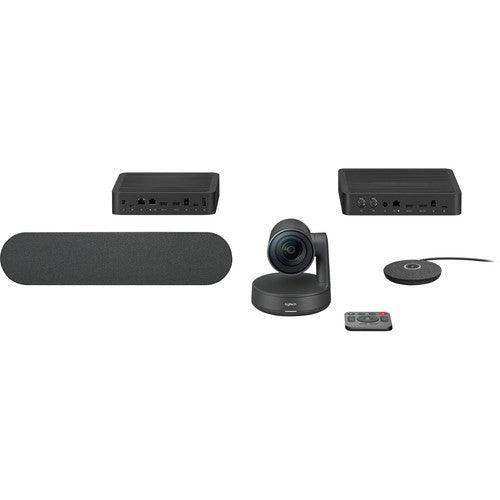

The Rally UHD 4K Conference Camera System with Speaker and Mic Pod Set from Logitech delivers up to UHD 4K30 resolution for lifelike HD video calls to create the experience of sitting together in the same room. The set includes the Rally camera, a speaker, a Display Hub, a Mic Pod, a remote control, and multiple cables to connect and power all the components. The Rally delivers professional HD video with sharp image resolution, enhanced color reproduction with its wide dynamic range, and a 15x HD zoom.

The Rally cameras autofocus function and enhanced pan/tilt/zoom capability enable smooth transitions between the three location presets. The camera's 90° angle of view makes it suitable for small- to medium-size conference rooms of up to ten seats, or in similar professional environments where clear, high-resolution video is needed.

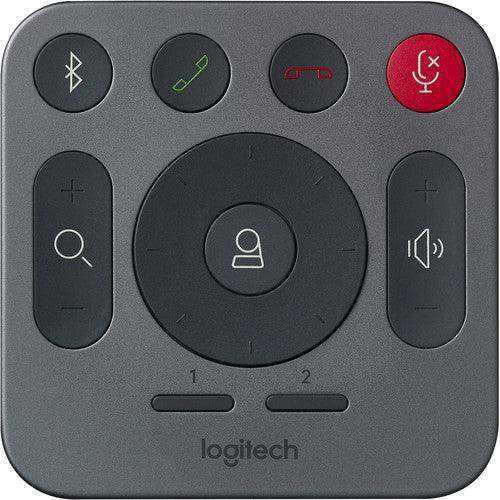

The Rally is compatible with most cloud-based, USB-ready video conferencing applications such as Skype, Cisco, Zoom, BroadSoft, GoToMeeting, Vidyo, and more. The camera system is compatible with Mac, Windows, or Chrome systems via the included USB 3.0 Type-C cable, and it is controlled by the included RF remote control. Also included with the camera is a mounting bracket with hardware. The camera can be mounted in any configuration and will auto-flip an inverted image to the proper orientation.

Automatic Camera Control

Logitech RightSight camera control technology automatically moves and adjusts the lens to comfortably frame meeting participants in rooms of all shapes and sizes. Enjoy hands-free convenience or take manual control; participants are always in view and optimally pictured on-screen.

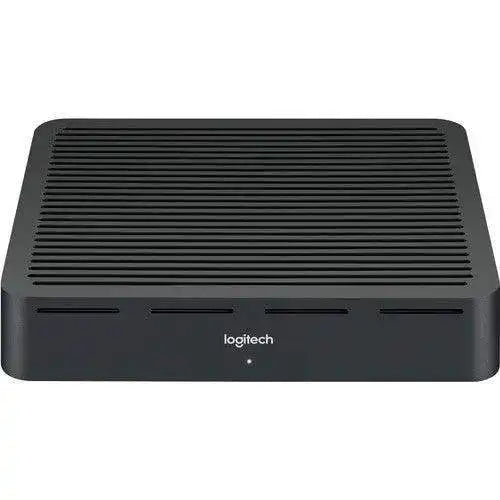

Display Hub and Speaker System

The Rally Display Hub powers up to two speakers (one is included), providing rich sound even in larger rooms. A patent-pending suspension system virtually eliminates vibrations that travel through walls, stands, and tables. This improves echo cancellation while keeping video shake-free, even at high volume levels and when zoomed in. The Display Hub connects via HDMI to the display, to the network, and to the source computer.

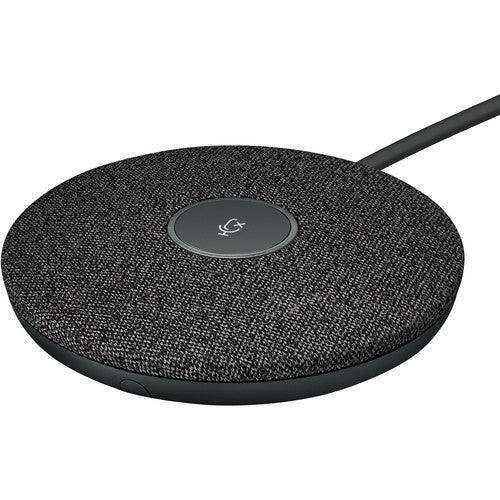

Mic Pod and Table Hub

One Mic Pod is included with the bundle and connects to the system via the Table Hub. For rooms with more than 10 participants, add Rally Mic Pods to expand audio coverage and provide convenient access to mute controls. Each pod adds coverage for six more participants, so you can deploy Rally in large meeting spaces and boardrooms with up to 46 people.

4K Recording and Streaming

The Rally packs a 13MP image sensor that captures up to 4K video at up to 30 frames per second, suitable for Ultra HD recording and streaming. The advanced 4K imaging system delivers quality imaging at all HD and Ultra HD resolutions with sharp video, accurate color reproduction, and optical accuracy.

Light and Color Optimization

Logitech RightLight technology with Wide Dynamic Range (WDR) prioritizes faces over objects and surfaces, optimizes light balance, and fine-tunes color and saturation for natural results across all skin tones. The result is a balanced image that renders participants in flattering light with reduced glare and softer shadows, even in dim or backlit conditions.

Adaptive Pan, Tilt, and Zoom

A quiet mechanical PTZ motor adjusts pan and tilt speed with the amount of zoom, resulting in faster camera movement when zoomed out for quick framing and slower camera movement when zoomed in for more control.

Plug-and-Play

Connect the Rally to power and to Windows, Mac, and Chrome devices via the included USB 3.0 Type-C cable. The Rally is UVC/plug-and-play compatible with virtually any video conferencing, recording, and broadcasting application that supports USB cameras.

System Requirements

Operating Systems:
Windows 7, Windows 8.1 or Windows 10
Mac OS X 10.10 or higher
Chrome OS

For Resolutions Higher than 1080p:
Windows 8.1 or higher or Mac OS 10.10 or higher
USB 3.0 port and Type C cable
Compatible software
Data Sheet
  • PTZ Camera with up to UHD 4K Resolution
  • For Small- to Medium-Size Rooms
  • 90° Field of View, 15x HD Zoom
  • Speaker Set, Mic Pod, Display Hub
  • USB 3.0 Connectivity, RF Remote Control
  • Multiple Mounting Options
  • Compatible with Mac, Windows, and Chrome
  • Kensington Security Slot

Logitech Rally Specs

Camera
Sensor Resolution 13 MP
Digital Zoom Max: 15x
Flip/Mirror Mirror (Vertical)
Field of View Horizontal: 90°
Focus Control Autofocus
Broadcast System Compatibility NTSC
Output Formats USB: 3840 x 2160p at 30 fps
2560 x 1440p at 30 fps
1920 x 1080p at 30, 60 fps
1600 x 900p at 30 fps
1280 x 720p at 30, 60 fps
640 x 480i at 30 fps
Presets 3 via IR
Range Control Pan: 90°
Tilt: 50° (-90 to 50°)
Tally Light Yes
Control Protocols IR
Power Connectors 1 x Proprietary
Tripod Mounting Thread 1 x 1/4"-20 Female
Security Lock Support Kensington Lock Slot
Dimensions 7.2 x 5.9 x 5.9" / 18.29 x 14.99 x 14.99 cm (Camera)
0.84 x 3.2 x 2.4" / 2.13 x 8.13 x 6.1 cm (Power Splitter)
3.47 x 4.3 x 6.7" / 8.81 x 10.92 x 17.02 cm (Mounting Bracket)
Cable Length 7.2' / 2.19 m (USB Cable)
9.8' / 2.99 m (Power Cable)

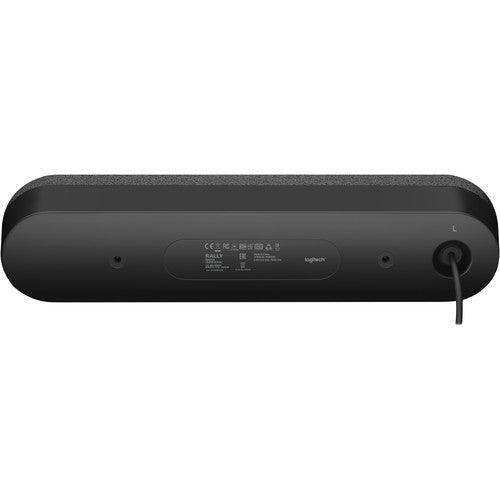

Speaker
Driver 3" / 76 mm
Connector 1 x Mini-XLR
Volume Capacity 95 dB SPL at 1 W, +/-2 dB at 0.5 m
100 dB SPL at 7.5 W, +/-2 dB at 0.5 m
Sensitivity 95+ / -2 dB SPL at 0.5 m
Distortion 200 to 300 Hz <2.5%
300 Hz to 10 kHz <1% at 7.5 W
Sample Rate 48 kHz
Dimensions 17.67 x 4.05 x 3.15" / 449 x 103 x 80 mm
Microphone
Pickup Range 15' / 4.5 m Diameter
Microphone Technology AEC (Acoustic Echo Cancellation)
VAD (Voice Activity Detector)
Background Noise Suppression
Mute with LED Status Indicator
Frequency Response 90 Hz to 16 kHz
Sensitivity >-27 dB +/- -1 dB at 1 Pa
Data Rate 48 kHz
Dimensions Mic Pod: 4.01 x 4.01 x 0.83" / 21 x 102 x 102 mm
System
Connectors Table Hub:
1 x RJ45 (Ethernet)
1 x 12-Pin (Mic Pod)
2 x HDMI Type A
1 x USB Type-C
1 x USB Type-A

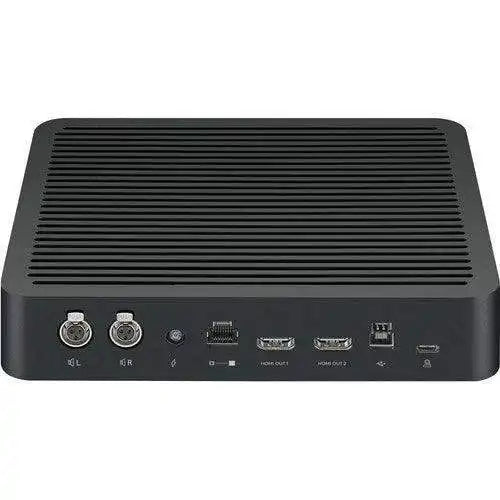

Display Hub:
2 x HDMI Type A
1 x USB Type-C
1 x USB Type-B
1 x RJ45 (Ethernet)
2 x Mini-XLR
Dimensions Display Hub: 8.11 x 7.05 x 1.57 / 206 x 179 x 40 mm
Table Hub: 6.93 x 5.43 x 1.57" / 176 x 138 x 40 mm
Packaging Info
Package Weight 22.435 lb
Box Dimensions (LxWxH) 28.6 x 13.5 x 9.3"
