Logitech Extend Single-cable BYOD connection

Product Overview

Logitech Extend is a single-cable BYOD connection that lets a user run a meeting from their own laptop or mobile device in a room equipped with a Logitech conference camera. Using one USB-C cable to the table, Extend connects a personal device to the room's camera and display and supports the video platform of the user's choice. A two-box design with category cabling between them extends BYOD connectivity up to 100 meters to fit larger rooms, and the table-side box can deliver up to 100 watts of USB-C power. Extend works in BYOD mode with the Rally Bar family, MeetUp, MeetUp 2, and other Logitech conference cameras.

Product Description

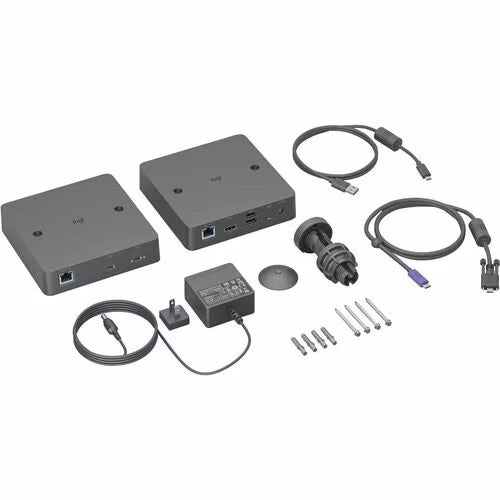

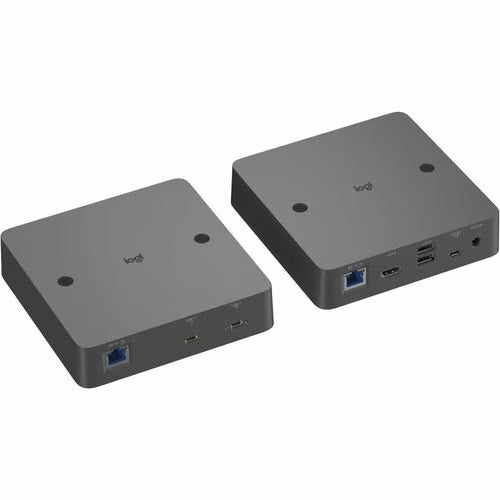

Extend addresses two use cases with one solution: BYOD passthrough in Android-based rooms (such as Rally Bar family devices configured for Microsoft Teams Rooms on Android, Zoom Rooms appliances, or Google Meet on Android), and BYOD extension in rooms running Logitech conference cameras in BYOD mode. In both cases, the meeting host plugs in a single USB-C cable and runs the meeting from their own device using their preferred video provider, with no additional drivers to install. The system uses a Display Side (RX) box near the screen and a Table Side (TX) box at the table, connected by standard category cabling that supports BYOD links up to 100 meters with Cat6a. The Table Side box can optionally deliver up to 100 watts of power to a laptop or mobile device when a USB-C power adapter is connected, and a magnetic dock keeps the USB-C cable tidy on the table. Extend is managed through Logitech Sync and can also receive updates through Rally Bar family CollabOS updates.

Key Features

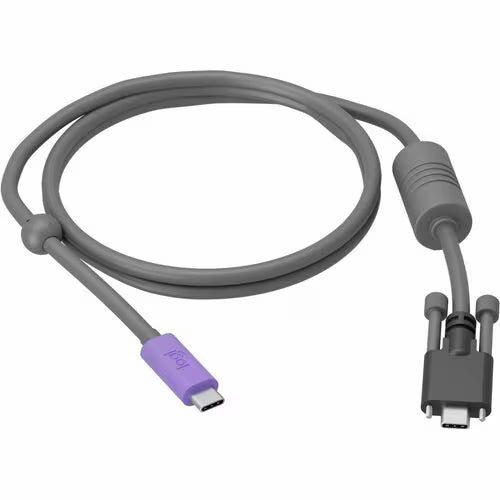

• Single USB-C cable connection — Plug in one cable to run a meeting from a laptop or mobile device with no additional drivers.
• Extended reach to 100 m — Standard category cabling between the two boxes extends BYOD connectivity up to 100 meters with Cat6a.
• Two use cases — Supports BYOD passthrough in Android-based rooms and BYOD extension in rooms with cameras in BYOD mode.
• Up to 100W power delivery — The Table Side box can deliver up to 100 watts to a device when a USB-C power adapter is connected.
• 4K HDMI output — The Display Side box provides HDMI 2.0 at 4K60 4:4:4 to the room display.
• Wide camera compatibility — Verified with Rally Bar, Rally Bar Mini, Rally Bar Huddle, MeetUp, MeetUp 2, and more.
• Sync managed — Managed and updated through Logitech Sync, with updates also via Rally Bar family CollabOS.

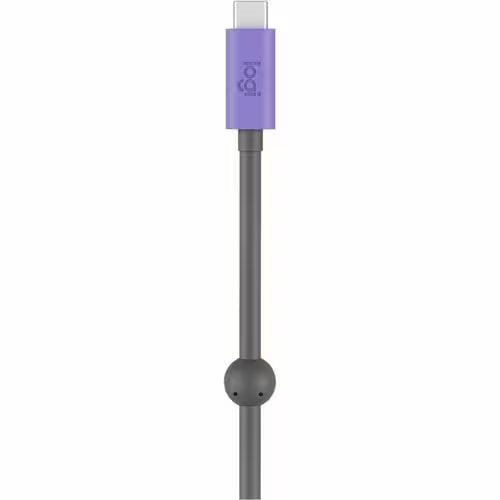

• Clean tabletop — An included magnetic dock holds the USB-C cable when not in use.
• Flexible mounting — VESA 100 x 100 mm and through-hole mounting for wall or table installation.
• Sustainable build — Made with a minimum of 40 percent post-consumer recycled plastic and FSC-certified paper packaging.

Typical Applications

• Conference room — Lets hosts run meetings from their own device using the room camera and display.
• Huddle room — A single-cable connection suits compact BYOD spaces.
• Multi-purpose room — Bridges Android-based room appliances and bring-your-own-device meetings.
• Training room — Extended cabling reach supports larger instructor-led rooms.

Technical Specifications

Specifications sourced from the Logitech Extend datasheet.

Competitor Comparison

Extend differentiates itself with a wired single USB-C connection, up to 100 meters of category-cable reach, and up to 100W USB-C charging for larger BYOD rooms.

Frequently Asked Questions

How is Extend different from Logitech Swytch?
Extend is intended for rooms with a Logitech conference camera in Android or BYOD mode, including Rally Bar family appliances configured for Teams Rooms on Android, Zoom Rooms, or Google Meet. For PC-based room systems with a Logitech conference camera, Logitech recommends Swytch instead.

Which cameras work with Extend?
Extend is verified with the Rally Bar family (Rally Bar, Rally Bar Mini, Rally Bar Huddle), MeetUp, MeetUp 2, and more. For the latest verified list, refer to Logitech's Extend compatibility resources.

How far apart can the two boxes be installed?
The Display Side and Table Side boxes connect over standard category cabling and support BYOD connectivity up to 100 meters, using Cat6a cable to reach the maximum distance.

Can Extend charge a laptop?
Yes. By connecting a standard USB-C power adapter to the Table Side box, Extend can deliver up to 100 watts of power to a connected laptop or mobile device.

What warranty and support are included?
Extend includes a 2-year limited hardware warranty, with optional 1-year and 3-year extended warranties available. For procurement and AV integration support, contact Creation Networks.
