Logitech 993-001951 Rally Display Hub - 1 x Network (RJ-45) - 2 x HDMI Out - USB - Ethernet
Logitech 993-001951 Rally Display Hub - 1 x Network (RJ-45) - 2 x HDMI Out - USB - Ethernet is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Logitech 993-001951 Rally Display Hub - 1 x Network (RJ-45) - 2 x H...
Product Overview
The Logitech Rally Display Hub (993-001951) is the display-side connection point and audio power source for the Logitech Rally and Rally Plus video conferencing systems. It connects the Rally Camera, the meeting room computer, and up to two displays, and powers one or two Rally Speakers through built-in amplifiers. The Display Hub links to the Rally Table Hub over an RJ45 connection, keeping cabling at the front of the room organized and out of sight.
Product Description

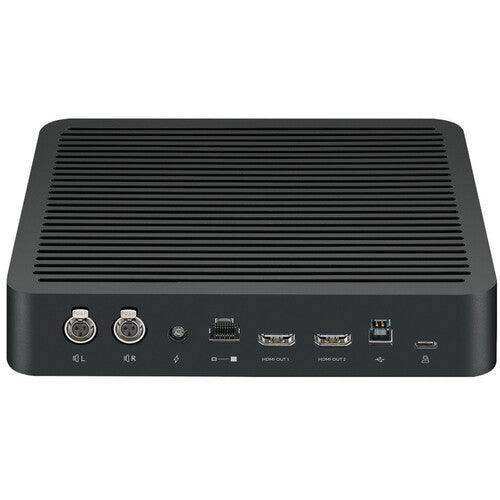

The Rally Display Hub anchors the front-of-room side of a Rally system, distributing video to displays and powering the room's audio. Two HDMI Type A outputs connect to displays, while a USB Type C port connects to the Rally Camera and a USB Type B port connects to the meeting room computer. An RJ45 port links the Display Hub to the Rally Table Hub, minimizing cross-room cabling so the meeting computer and Rally components remain securely out of sight. Two Mini-XLR outputs connect to Rally Speakers, and the hub's built-in amplifiers can power one or two speakers for rich sound even in larger rooms. Together with the Table Hub, the Display Hub forms the cabling backbone of the modular Rally system.
Key Features
- Dual HDMI display outputs — Two HDMI Type A outputs connect to room displays.
- Camera and computer connectivity — A USB Type C port connects the Rally Camera and a USB Type B port connects the meeting room computer.
- Table Hub link — An RJ45 connection links to the Rally Table Hub to minimize cross-room cabling.
- Built-in speaker amplifiers — Powers one or two Rally Speakers for rich sound in larger rooms.
- Dual Mini-XLR outputs — Two Mini-XLR connections carry both signal and power to Rally Speakers.
- Clean cable management — Keeps the meeting computer and Rally components out of sight at the front of the room.
Typical Applications
- Medium and large conference rooms built on Logitech Rally or Rally Plus
- Rooms using one or two displays for video and content
- Spaces requiring front-of-room speaker power without external amplification
- Boardrooms needing organized, concealed cabling between components
Technical Specifications
| Part Number | 993-001951 |
| HDMI | HDMI Type A (x2) for connecting displays |
| USB | USB Type C (connects to Rally Camera); USB Type B (connects to meeting room computer) |
| Network | RJ45 (connects to Rally Table Hub) |
| Speaker Outputs | Mini-XLR (x2); powers one or two Rally Speakers |
| Power | Power input |
| Dimensions | 1.57 in x 8.11 in x 7.05 in (40mm x 206mm x 179mm) |
| Compatibility | Logitech Rally and Rally Plus systems |
| Warranty | 2-year limited hardware warranty |
Specifications sourced from Logitech.
Frequently Asked Questions
What does the Rally Display Hub connect to?
It connects the Rally Camera, the meeting room computer, up to two displays, and up to two Rally Speakers, and links to the Rally Table Hub via RJ45.
How many displays can it drive?
The Display Hub provides two HDMI Type A outputs for connecting room displays.
Does it power the Rally Speakers?
Yes. Built-in amplifiers can power one or two Rally Speakers through the two Mini-XLR outputs, which carry both signal and power.
How does it connect to the Table Hub?
The Display Hub connects to the Rally Table Hub over an RJ45 (CAT6A) link to minimize cross-room cabling.
Is this hub a standalone device?
No. It is a component of the Logitech Rally and Rally Plus systems and works together with the Rally Table Hub.
