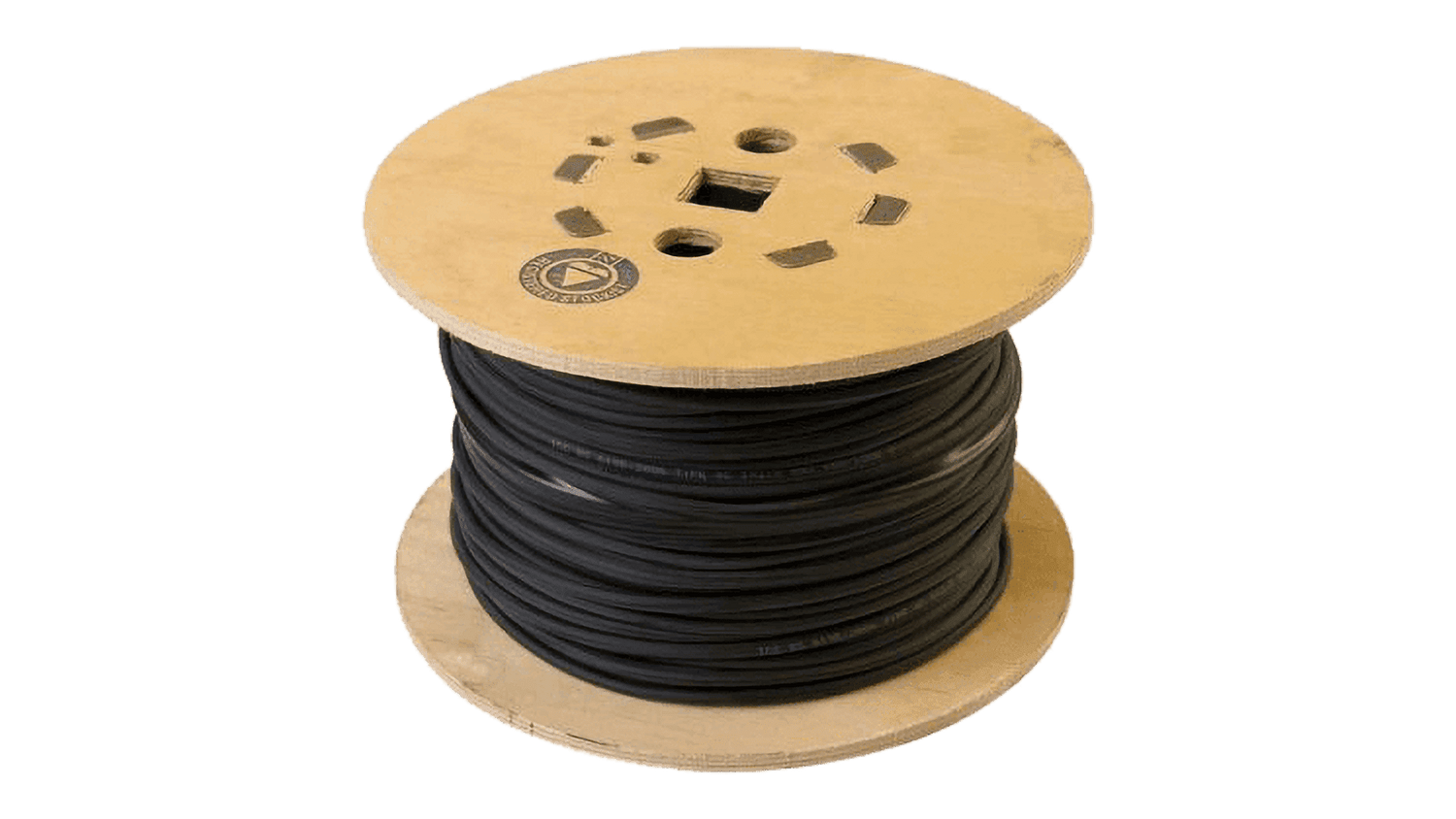

Listen Technologies ACDB25100 – Direct Burial Hearing Loop Cable, 100m Reel

Product Overview

The Listen Technologies ACDB25100 is a 100m reel of 2.5mm² direct burial cable for hearing loop runs installed below grade or set into screed. Standard loop cable is not rated for permanent burial, and a loop conductor cast into a floor slab is not something anyone will replace. Direct burial construction is what makes that installation method viable over the life of the building.

Product Description

Hearing loop conductors are often installed during construction rather than fit-out, run in screed or beneath a floor finish where they are permanently inaccessible.

That places a durability requirement on the cable that ordinary loop conductor does not meet. Direct burial construction resists moisture ingress and the mechanical stress of being cast into a floor. At 2.5mm² the conductor also carries the current a perimeter loop driver delivers without excessive resistance over a long run.

Order by the reel against the calculated run length, allowing for the drop back to the driver position. Where the loop transitions from buried to surface-run, protect the exposed section with PVC protective extrusion. Commissioning still requires field strength measurement against IEC 60118-4 using a field strength meter — burial does not change the certification requirement, and it does make remedial work expensive, so the loop design should be confirmed before pour.

Key Features

• 2.5mm² conductor — Carries perimeter loop driver current without excessive resistance over long runs.
• Direct burial rated — Withstands moisture and mechanical stress when cast into screed or installed below grade.
• 100m reel — Supplied by the reel and ordered against calculated run length.
• Permanent installation — Suited to loops installed during construction where the conductor becomes inaccessible.

Typical Applications

• Auditorium
• House of worship
• Conference room
• Boardroom
• Government space
• Training room
• Multi-purpose room
• Commercial meeting space

Technical Specifications

Specifications sourced from the Listen Technologies product listing.

Frequently Asked Questions

Why not use standard loop cable in screed?
Standard loop conductor is not rated for permanent burial. Once cast into a slab the cable cannot be replaced, so moisture and mechanical durability become critical.

How much cable is required?
Calculate from the loop design rather than the room perimeter, allowing for the drop back to the driver position and any deviation around structural elements.

Does burial affect the certification requirement?
No. The installed system still has to be measured against IEC 60118-4 with a field strength meter. Confirm the loop design before the pour, because remedial work on a buried loop is expensive.

Can it be joined to surface-run cable?
Yes, with the transition protected. Use PVC protective extrusion where the loop runs on the surface.

When is this specified rather than foil tape?
Where the loop is installed during construction in screed or below grade. Copper foil tape is used where a flat profile is needed under a floor covering during fit-out.

What warranty and support apply?
Contact Creation Networks for supply terms and hearing loop design support on cable schedules.
