Listen Tech- LS-71-216 Listen iDSP Advanced Level IV Stationary RF System (216 MHz)

Product Overview

The Listen Technologies LS-71-216 is an iDSP Advanced Level IV stationary RF assistive listening system on the 216 MHz band, built for permanent, high-capacity installations. It offers coverage up to 1,500 ft. (457.2 m) for venues handling as many as 100 visitors, pairing the LT-800 Stationary RF Transmitter with four advanced LR-5200-216 Advanced iDSP RF Receivers for cleaner audio and easier management.

Product Description

The LS-71-216 is a complete, permanent-install RF package. It includes the LT-800 stationary RF transmitter and four high-performance LR-5200 advanced iDSP receivers, whose DSP SQ noise reduction is rated by the manufacturer at 20 dB less noise and hiss than conventional listening devices. The system ships with the LA-381 Intelligent 12-Unit Charging Tray as a drop-in charging and dispensing station for up to twelve receivers, supporting expansion as venue demand grows. Integrated neck loop/lanyards with a DSP loop driver improve audio for T-coil users, and a notification signage kit, cable management unit, log book, and RCA cable complete a turnkey solution. It is backed by a Limited Lifetime Warranty.

Key Features

• Coverage up to 1,500 ft. (457.2 m) — Sized for venues of up to 100 visitors on the 216 MHz band.
• Advanced LR-5200 iDSP receivers — DSP SQ noise reduction rated at 20 dB less hiss than conventional devices.
• Drop-in charging/dispensing tray — LA-381 manages up to twelve receivers and supports expansion.
• Integrated neck loop / lanyard — DSP loop driver improves audio for T-coil hearing-aid users.
• Compact, easy-to-manage receivers — Simple to dispense, store, and maintain.
• Green rechargeable battery technology — Reduces cost of ownership and battery waste.
• Limited Lifetime Warranty — Backed by manufacturer support.

Typical Applications

• Auditorium — Permanent RF coverage for audiences up to 100.
• House of worship — Reliable assistive listening across the room.
• Government space — ADA-supporting fixed installation.
• Training room — High-capacity coverage with easy receiver management.
• Commercial meeting space — Turnkey, rack-ready deployment.

Technical Specifications

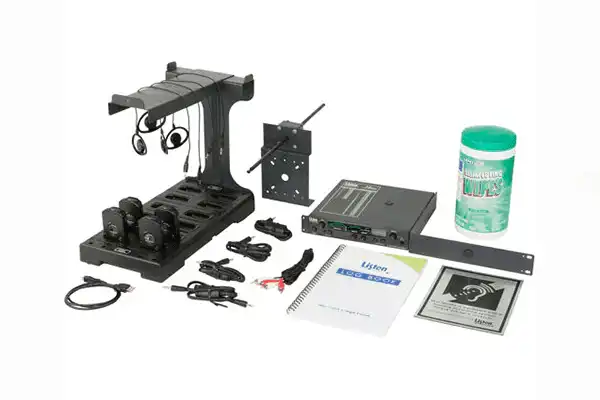

What's in the Box

• 1 × LT-800 Stationary RF Transmitter (216 MHz)
• 1 × LA-326 Universal Rack Mounting Kit
• 1 × LA-122 Universal Antenna Kit (72 MHz and 216 MHz)
• 4 × LR-5200 Advanced Intelligent DSP RF Receiver (216 MHz)
• 4 × LA-430 Intelligent Earphone/Neck Loop Lanyard
• 4 × LA-401 Universal Ear Speaker
• 1 × LA-381-01 Intelligent 12-Unit Charging Tray
• 1 × LA-382 Intelligent Cable Management Unit
• 1 × LA-422 USB to Micro USB Cable
• 1 × LA-904 Listen Dispensing Log Book
• 1 × LA-304 Assistive Listening Notification Signage Kit
• 1 × LPT-A107-B Dual RCA to Dual RCA Cable, 6.6 ft. (2 m)

Frequently Asked Questions

How does the LS-71 differ from the LS-70?
The LS-71 Advanced Level IV system includes advanced LR-5200 receivers and is rated for coverage up to 1,500 ft. (457.2 m) for up to 100 visitors, while the LS-70 Prime Level IV system uses LR-4200 receivers with coverage up to 3,000 ft.

Can the system be expanded?
Yes. The included LA-381 drop-in tray charges and dispenses up to twelve receivers, so you can add receivers beyond the four supplied.

Is it suitable for permanent rack installation?
Yes. It ships with the LA-326 rack mounting kit and LA-122 universal antenna kit for fixed installs.

Is it hearing-aid compatible?
Yes. The integrated neck loop/lanyard with DSP loop driver supports telecoil hearing aids.
