Listen Tech LS-53-072 Listen iDSP Premiere Level I Stationary RF System (72 MHz)

Product Overview

The Listen Technologies LS-53-072 is a single-channel iDSP Level I stationary RF assistive listening system on the 72 MHz band, packaged for fast deployment in commercial venues. It pairs the LT-800 Stationary RF Transmitter (72 MHz) with four LR-4200-072 iDSP RF Receivers and the accessories needed to begin offering RF assistive listening immediately. Advanced iDSP signal processing delivers cleaner audio than conventional RF, making it a practical compliance solution for permanent installations.

Product Description

The LS-53-072 is built around Listen's iDSP (Intelligent Digital Signal Processing) receiver platform, which the manufacturer rates at 20 dB less hiss than other RF receivers for noticeably clearer assistive listening. Each LR-4200-072 receiver uses a field-replaceable, non-proprietary rechargeable lithium-ion battery rated at roughly eight hours of use with a 2.5-hour charge, removing the cost and waste of disposable batteries. Integrated neck loops improve the experience for listeners with telecoil-equipped hearing aids and cochlear implants. The included LA-106 telescoping antenna provides transmitter range for the room, and the LA-304 notification signage kit supports ADA compliance. Universal ear speakers, neck-loop lanyards, a four-port USB charger, and an RCA cable round out a single-channel RF system ready to install in conference rooms, training rooms, and similar commercial meeting spaces.

Key Features

• iDSP RF receivers — Advanced DSP SQ noise reduction for 20 dB less noise and hiss than conventional listening devices.
• Single-channel 72 MHz RF — Straightforward assistive listening for a single audio source.
• Complete starter package — Transmitter, four receivers, antenna, charger, and signage ship together.
• Integrated neck loop / lanyard — DSP loop driver improves audio for T-coil hearing aid and cochlear implant users.
• Green rechargeable battery — Field-replaceable lithium-ion cells (about 8 hr use, 2.5 hr charge) reduce battery waste and cost.
• Compact receiver design — Small form factor is easy to wear, dispense, store, and maintain.
• ADA compliance signage included — LA-304 notification signage kit supports legislative requirements.
• Limited Lifetime Warranty — Backed by manufacturer support.

Typical Applications

• Conference room — Single-channel RF coverage for meetings and presentations.
• Training room — Clear assistive audio for instruction.
• Commercial meeting space — Quick-to-deploy compliance solution.
• House of worship — RF coverage without line-of-sight constraints.
• Government space — ADA-compliant assistive listening for public-facing rooms.

Technical Specifications

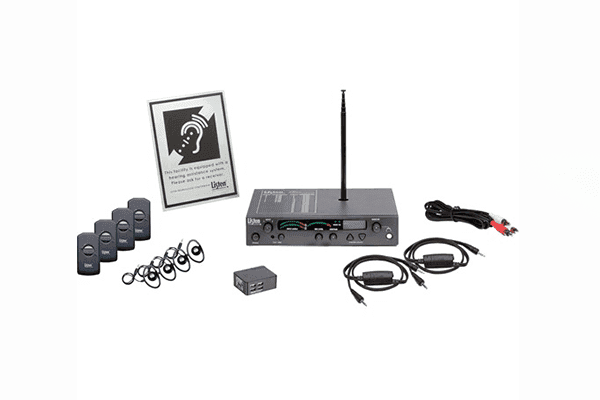

What's in the Box

• 1 × LT-800-072-01 Stationary RF Transmitter (72 MHz)
• 1 × LA-106 Telescoping Top Mounted Antenna (72 MHz)
• 4 × LR-4200-072 Intelligent DSP RF Receiver (72 MHz)
• 4 × LA-401 Universal Ear Speaker
• 2 × LA-430 Intelligent Earphone/Neck Loop Lanyard
• 1 × LA-423 4-Port USB Charger
• 1 × LPT-A107-B Dual RCA to Dual RCA Cable, 6.6 ft. (2 m)
• 1 × LA-304 Assistive Listening Notification Signage Kit

Frequently Asked Questions

What band does this system use, and does it matter?
It operates on 72 MHz. The 72 MHz and 216 MHz bands differ in available channels and regional considerations; 72 MHz is widely used for single-channel assistive listening in the US.

How many listeners does it support?
It ships with four receivers and additional LR-4200-072 receivers can be added as needed for larger audiences.

Is it hearing-aid compatible?
Yes. The integrated neck loop/lanyard works with telecoil-equipped hearing aids and cochlear implants.

How is the audio source connected?
Through the included RCA cable into the LT-800-072 transmitter, typically fed from the room's mixer or DSP output.

Does it help meet ADA requirements?
It includes the LA-304 notification signage kit and provides assistive listening intended to support ADA compliance; confirm requirements for your specific venue.
