Listen Tech LS-100-01-WH-D ListenIR iDSP Standard System (Dante)

Product Overview

The Listen Technologies LS-100-01-WH-D is a pre-configured ListenIR iDSP Standard infrared assistive listening system (white radiator) for mid- to large-size venues of up to 100 seats. Dante-compatible via the LA-465 adapter, it pairs the LT-82 IR Transmitter and an LA-140 IR radiator with LR-4200-IR iDSP IR Receivers for gap-free infrared coverage of up to 40,000 ft² (3,716 m²).

Product Description

The LS-100-01-WH-D ships complete with transmitter, radiator, receivers, and accessories for immediate installation. The LT-82 stationary IR transmitter and LA-140 stationary IR radiator form the core of the system, delivering effective coverage of up to 40,000 ft² (3,716 m²) without gaps. The system includes LR-4200-IR Intelligent DSP IR receivers and the LA-381 Intelligent 12-Unit Charging Tray, so capacity can grow with venue demand. Dante compatibility through the LA-465 adapter lets the system receive networked AV audio, and integrated neck loops/lanyards support T-coil hearing aids. Designed for single-channel applications, it is a simple, effective way to add infrared assistive listening to legislative chambers, performing arts centers, classrooms and lecture halls, convention centers, courtrooms, and similar spaces.

Key Features

• Pre-configured ListenIR Standard system — Ships with transmitter, radiator, receivers, and accessories.
• Dante adapter enabled — Integrates with networked AV audio via the LA-465 adapter.
• Coverage up to 40,000 ft² (3,716 m²) — Gap-free infrared for mid- to large venues up to 100 seats.
• LT-82 transmitter + LA-140 radiator — High-power infrared core of the system (white radiator).
• iDSP IR receivers included — LR-4200-IR receivers for clear audio.
• 12-unit charging tray — LA-381 supports charging, storage, and expansion.
• T-coil compatibility — Integrated neck loops/lanyards for hearing-aid users.
• Single-channel design — Straightforward operation for single-source venues.

Typical Applications

• Government space — Legislative chambers and courtrooms needing contained audio.
• Auditorium — Performing arts centers and large rooms up to 100 seats.
• Training room — Classrooms and lecture halls.
• Conference room — Convention center meeting spaces.
• Multi-purpose room — Flexible infrared coverage for mixed use.

Technical Specifications

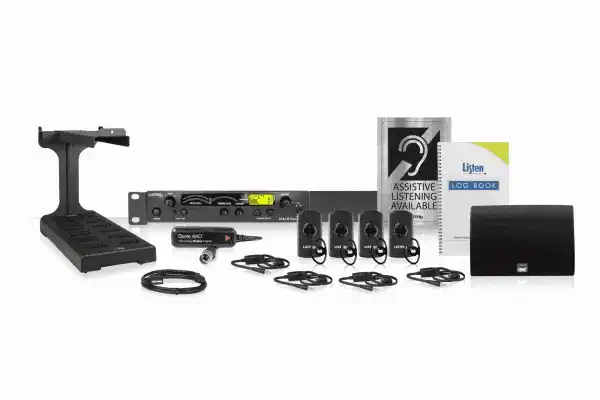

What's in the Box

• 1 × LT-82-01 Stationary IR Transmitter
• 1 × LA-465 Dante 1-Channel Output XLR Adapter (PoE required)
• 1 × LA-326 Universal Rack Mounting Kit
• 1 × LA-140 Stationary IR Radiator (White)
• 4 × LR-4200-IR Intelligent DSP IR Receiver
• 4 × LA-430 Intelligent Ear Phone/Neck Loop Lanyard
• 4 × LA-401 Universal Ear Speaker
• 1 × LA-304 Assistive Listening Notification Signage Kit
• 1 × LA-422 USB to Micro USB Cable
• 1 × LA-381-01 Intelligent 12-Unit Charging Tray
• 1 × LA-382 Intelligent Cable Management Unit
• 1 × LA-904 Listen Dispensing Log Book

Frequently Asked Questions

How large an area does it cover?
Up to 40,000 ft² (3,716 m²) without gaps, for mid- to large venues of up to 100 seats. Coverage depends on radiator placement and room geometry.

How does Dante integration work?
The system is Dante-compatible through the LA-465 adapter, allowing it to receive networked AV audio.

Why infrared for these venues?
Infrared keeps audio within the room, which is important for legislative chambers and courtrooms where confidentiality matters.

Can capacity be expanded?
Yes. The included LA-381 12-unit charging tray supports adding and managing more receivers.

Is it hearing-aid compatible?
Yes. Integrated neck loops/lanyards support T-coil hearing aids.
