Listen Tech C-Series Multiloop Driver 14A 120v/230 w/Dante - C14-2D

Product Overview

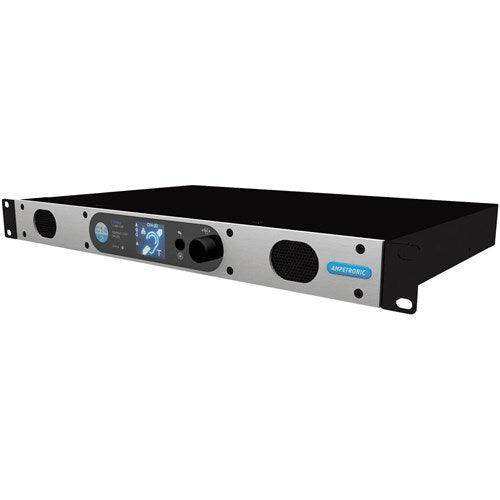

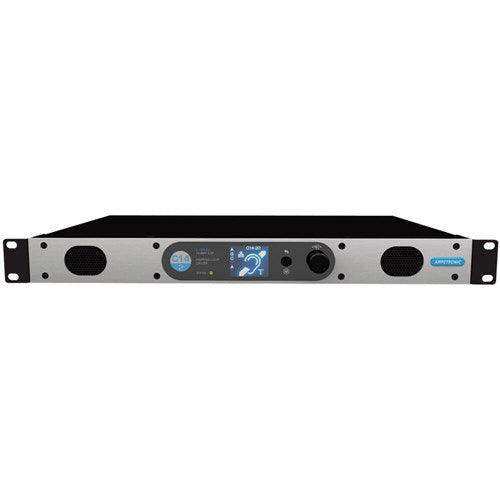

The Listen Technologies C14-2D is a C-Series multiloop hearing loop driver delivering 14 A RMS / 48 V RMS — the most potent hearing loop driver in the C-Series — with a Dante audio input. The higher output voltage drives more current, making it suited to areas of high metal loss and to large-venue installations where the driver sits far from the loop. As a 1U networked loop driver, it is designed for permanent commercial assistive-listening loop systems.

Product Description

The C14-2D combines high output with precise control for demanding induction-loop installations. A simple digital interface allows accurate adjustment, and the unit operates as a networked or stand-alone device. Networking adds a browser interface for remote reporting, adjustment, active status monitoring, and fault reporting via email or Telnet, which helps integrators manage loops across multiple rooms or sites. Dual outputs provide an accurate, stable 90° phase shift for multiloop array designs, and built-in test tones plus clear diagnostics speed commissioning. The driver is optimized for speech intelligibility while remaining capable of high-quality musical reproduction, and its data output is compliant with the IEC 62489-1 standard. A compact 1U rack-mount chassis with an internal power supply, industry-standard Phoenix connectors, and a Dante input make it straightforward to integrate into a commercial AV rack.

Key Features

• 14 A RMS / 48 V RMS output — High current and voltage for high-metal-loss areas and large venues.
• Dante audio input — Networked audio routing into the loop driver.
• Network and stand-alone operation — Deploy locally or manage over the network.
• Browser-based remote management — Remote reporting, adjustment, status monitoring, and fault alerts via email or Telnet.
• Dual outputs with 90° phase shift — Accurate, stable phase shift for multiloop array designs.
• Built-in test tones and diagnostics — Clear indicators speed setup and troubleshooting.
• Loopworks Measure LoopLink compatible — Direct, automated driver control during measurement.
• IEC 62489-1 compliant — Meets the international induction-loop performance standard.
• Compact 1U rack-mount — Internal power supply and Phoenix connectors for clean rack integration.
• Optimized for speech, capable with music — High intelligibility plus quality musical reproduction.

Typical Applications

• Auditorium — High-output loop coverage for large seating areas.
• House of worship — Whole-room hearing loops with strong intelligibility.
• Government space — Networked monitoring and fault reporting for public buildings.
• Commercial meeting space / multi-purpose room — Multiloop designs for difficult or metal-rich structures.
• Broadcast studio — Precise control and IEC-compliant performance for critical audio.

Technical Specifications

Frequently Asked Questions

When should I choose the C14-2D over a lower-output C-Series driver?
Its 14 A RMS / 48 V RMS output is intended for areas of high metal loss and large venues, or where the driver must sit far from the loop and needs extra current to maintain field strength.

How does the Dante version differ?
The C14-2D adds a Dante audio input for networked audio routing, in addition to the 100 V line input, making it a fit for AV systems already running Dante.

Can the driver be monitored remotely?
Yes. When networked, a browser interface provides remote reporting, adjustment, active status monitoring, and fault reporting via email or Telnet.

Does it meet hearing-loop standards?
Its data is compliant with the IEC 62489-1 standard, the international performance standard for induction-loop systems.

Is it a single-loop or multiloop driver?
It is a multiloop driver with dual outputs and an accurate 90° phase shift, suited to phased-array loop designs that reduce spill and overspill.
