Description

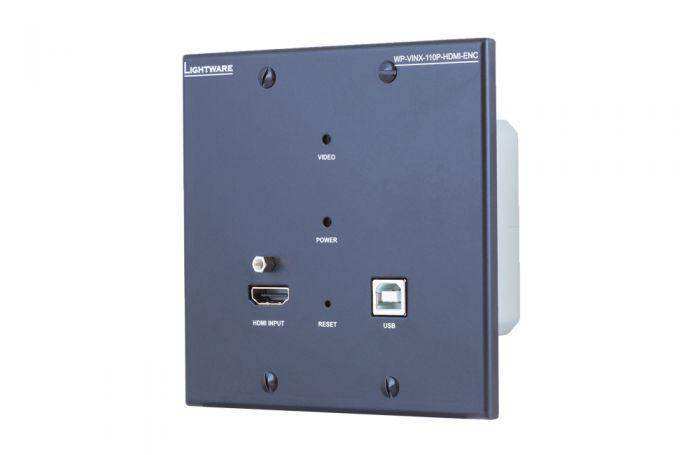

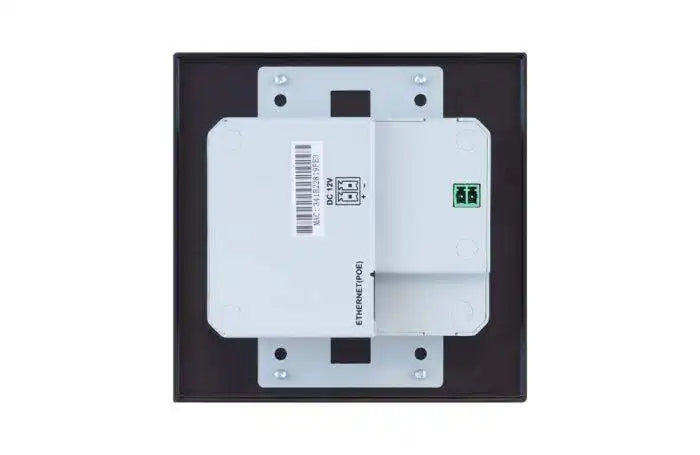

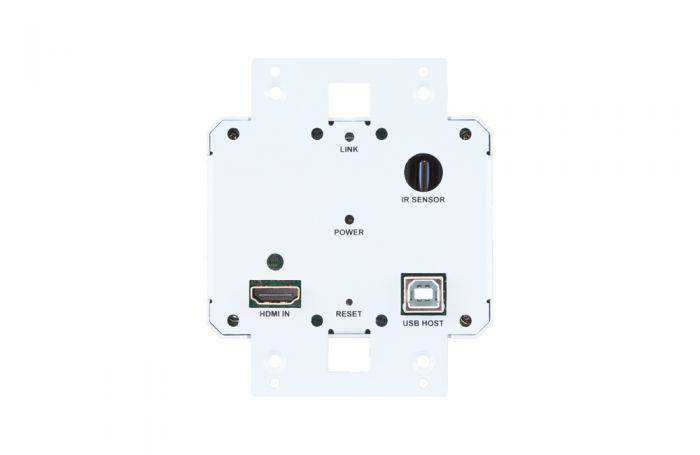

WP-VINX-110P-HDMI-ENC is a two-gang form factor LAN based encoder multimedia device to extend HDMI video from a local source to a remote sink. The VINX encoder and decoder devices connect either via a direct CATx cable connection or through a Gigabit Ethernet switch in-between.

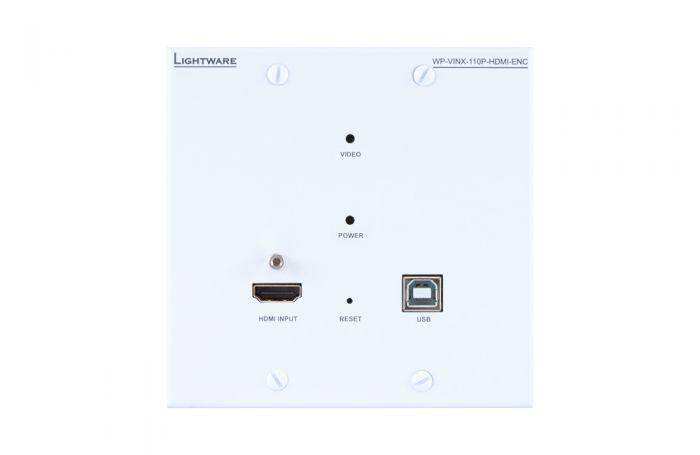

Availabile in Black or White.

  • Passive, noiseless cooling
  • Compact and silent design in 2-gang form factor suitable for wall, floorbox and lectern mounting
  • Fits in 2-gang form factor Carlon boxes suitable for wall, floorbox and lectern mounting
  • 1920x1080@120Hz/4:4:4, 4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
  • HDMI 1.4 and DVI 1.0 compliant
  • USB 1.1 K+M (HID) extension
  • USB 2.0 MSC (Mass Storage Class) extension
  • Advanced EDID Management
  • Intuitive control software for device configuration
  • Device control via Ethernet (TCP/IP)
  • Built-in website for device configuration
  • Firmware upgrade through Ethernet
  • HDCP 2.2 and HDCP 1.4 compliant
  • Status LED for video signal detection
  • Supports several embedded audio formats (including PCM, Dolby Digital and DTS)


  • Specifications
    Rack mountable No
    Enclosure material 1,5 mm steel
    Dimensions in mm* 116,3 W x 44 D x 115 H
    Dimensions in inch 4.58 W x 1.73 D x 4,53 H

    * with front panel attached

    Edid Management
    EDID emulation Yes, advanced EDID management
    EDID memory 80 factory presets, 5 programmable
    Supported standard EDID v1.3
    Networked AV output
    Power over Ethernet (PoE) Yes, (IEEE 802.3af)
    Compliance 1000Base-T (IEEE 802.3ab)
    HDCP compliance HDCP 1.4
    Transferred signals Video, Audio, RS-232, Infrared, Ethernet, USB
    Color space RGB, YCbCr
    Video delay 2,2 frames (end-to-end)
    Supported resolutions at 8 bits/color * up to 4096x2048@30Hz (4:4:4) or 4096x2048@60Hz (4:2:0)
    up to 3840x2160@30Hz (4:4:4) or 3840x2160@60Hz (4:2:0)
    1920x1080@60Hz (4:4:4) up to 12 bits/color
    Audio formats All HDMI2.0 audio formats

    * All standard VESA and CEA resolutions up to 300MHz (HDMI1.4) and other custom resolutions up to 300Mhz are supported.

    Ethernet port
    Connector type RJ45 female connector
    Ethernet data rate 10/100/1000Base-T, full duplex with autodetect
    Power over Ethernet (PoE) Supported
    USB port
    Connector type B-type receptacle
    USB compliance USB 2.0
    Device class HID / Mass storage

    COMPARISON TABLES OF AVAILABLE VINX MODELS

    Av Ports of Encoders
    VINX-120-HDMI-ENC VINX-120AP-HDMI-ENC VINX-120AP-HDMI-ENC-DNT VINX-210AP-HDMI-ENC WP-VINX-110P-HDMI-ENC
    HDMI input check check check check check
    VGA input cancel cancel cancel check cancel
    HDMI local output check check check cancel cancel
    Analog audio input cancel check check check cancel
    Dante / AES67 Audio output cancel cancel check cancel cancel
    Av Ports of Decoders
    VINX-110-HDMI-DEC VINX-110AP-HDMI-DEC
    HDMI output check check
    Analog audio output cancel check
    Ethernet and Control Ports
    VINX-120-HDMI-ENC VINX-120AP-HDMI-ENC VINX-120AP-HDMI-ENC-DNT VINX-210AP-HDMI-ENC WP-VINX-110P-HDMI-ENC VINX-110-HDMI-DEC VINX-110AP-HDMI-DEC
    RJ45 Ethernet check check check check check check check
    SFP Ethernet cancel check check check cancel cancel check
    RS-232 RJ12 9-pole D-sub 9-pole D-sub 9-pole D-sub cancel RJ12 9-pole D-sub
    USB Mini USB Type B USB Type B USB Type B USB Type B USB Type B 4x USB Type A 4x USB Type A
    Video Features
    VINX-120-HDMI-ENC VINX-120AP-HDMI-ENC VINX-120AP-HDMI-ENC-DNT VINX-210AP-HDMI-ENC WP-VINX-110P-HDMI-ENC VINX-110-HDMI-DEC VINX-110AP-HDMI-DEC
    Image resolution 3840 x 2160 @ 30Hz 3840 x 2160 @ 30Hz 3840 x 2160 @ 30Hz 3840 x 2160 @ 30Hz 3840 x 2160 @ 30Hz 3840 x 2160 @ 30Hz 3840 x 2160 @ 30Hz
    EDID Management Advanced Management Advanced Management Advanced Management Advanced Management Advanced Management Transparent Transparent
    HDCP HDCP 2.2 HDCP 2.2 HDCP 2.2 HDCP 2.2 HDCP 2.2 HDCP 2.2 HDCP 2.2
    Scaling cancel cancel cancel cancel check check check
    Powering and Mounting
    VINX-120-HDMI-ENC VINX-120AP-HDMI-ENC VINX-120AP-HDMI-ENC-DNT VINX-210AP-HDMI-ENC WP-VINX-110P-HDMI-ENC VINX-110-HDMI-DEC VINX-110AP-HDMI-DEC
    Local Power  DC 5V DC 12V DC 12V DC 12V DC 5V DC 5V DC 12V
    PoE Remote powering cancel check check check check cancel check
    RU Width for rack mounting 1/4 1/2 1/2 1/2 cancel 1/4 1/2
    Power Rack Tray compatibility check cancel cancel cancel cancel check

    •
