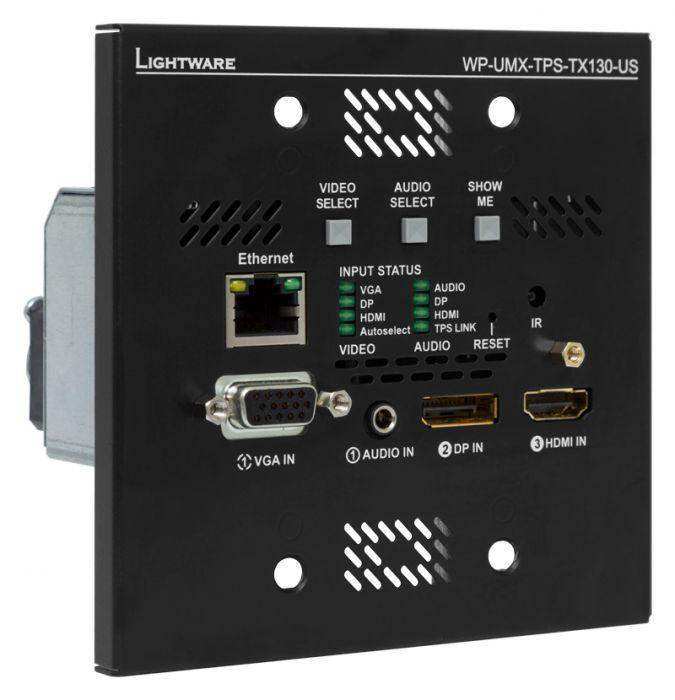

Lightware WP-UMX-TPS-TX130-Plus-US Black UMX Series TPS (HDBaseTTM) Wallplate for VGA and HDMI - 91540071

Product Overview

The Lightware WP-UMX-TPS-TX130-Plus-US Black is a UMX Series HDBaseT wallplate transmitter in a black finish, designed for US single-gang wall boxes in commercial AV installations. It provides two HDMI inputs and one VGA input, transmitting the selected source over a single CAT5e or CAT6 cable to a Lightware UMX matrix or compatible TPS receiver up to 100 meters away. The black finish is suited for dark furniture inserts, equipment consoles, and conference tables where a white faceplate would stand out. Part number 91540071.

Product Description

The WP-UMX-TPS-TX130-Plus-US Black delivers the same dual-HDMI plus VGA functionality as the white Plus model, with a black faceplate finish for installations where dark-colored furniture insets and table boxes are specified. Conference tables with black cable management inserts and AV console surfaces benefit from a matching black faceplate rather than a contrasting white one.

The Plus model supports two HDMI inputs alongside the VGA port, accommodating rooms where both a laptop and a permanently installed video conferencing codec or media player need local HDMI connection. Source selection and routing are managed by the connected Lightware UMX matrix or control system.

HDBaseT carries video, audio, RS-232, IR, and 100BaseT Ethernet on a single structured cable run, keeping conduit and termination costs low. Available from Creation Networks, an authorized Lightware reseller.

Key Features

• Dual HDMI + VGA Inputs (Plus Model) — Two HDMI ports and one VGA port for mixed-source conference and presentation rooms
• Black Faceplate Finish — Matches dark conference table inserts, equipment consoles, and black cable management hardware
• HDBaseT Transport — Single CAT5e or CAT6 cable run up to 100 meters carries video, audio, RS-232, IR, and Ethernet
• US Single-Gang Wall Box Compatible — Installs into standard North American electrical boxes without custom adapters
• Remote Power via HDBaseT — No local power outlet required; powered from the receiver or matrix
• UMX Matrix Integration — Native input to Lightware UMX matrix switchers for centralized routing and control
• HDCP 1.4 Support — Compliant with HDCP protected content sources
• RS-232 and IR Bidirectional Pass-Through — Extends control signals over the HDBaseT cable plant

Typical Applications

• Executive boardroom table with black furniture inserts
• Conference room with dark AV console
• Huddle room with black cable management infrastructure
• Training facility dual-source presentation points
• Courtroom evidence presentation input panels
• Broadcast studio floor input connections

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Is there a functional difference between the black and white TX130-Plus-US models?

No. The only difference is the faceplate color. The black model (91540071) and white model (91540072) are electrically identical. Select based on the furniture or installation environment's color scheme.

How does the Plus model differ from the base TX130 model?

The Plus model provides two HDMI inputs instead of one, allowing connection of a laptop and a second HDMI device such as a codec or Blu-ray player at the same wall point. The base TX130 has one HDMI and one VGA input only.

Does the wallplate require a local power supply?

No. The unit is remotely powered via the HDBaseT cable from the connected receiver or UMX matrix input module. No electrical outlet is needed at the wall.

What is the maximum cable run distance?

Up to 100 meters using CAT5e or CAT6. For runs near the 100 meter limit, use quality CAT6 cable with proper terminations to ensure reliable signal integrity.

Can this be used with a non-Lightware HDBaseT receiver?

Basic HDBaseT video and audio pass-through is compatible with other HDBaseT receivers. Native UMX matrix integration and full control features require Lightware receiving equipment.

What resolution does this wallplate support?

The unit supports up to 1920x1200 and 1080p60. For 4K source distribution, consider Lightware's TPX or SDVoE product lines.

Where can I purchase the black TX130-Plus-US?

Available from Creation Networks, an authorized Lightware reseller serving commercial AV integrators across North America.
