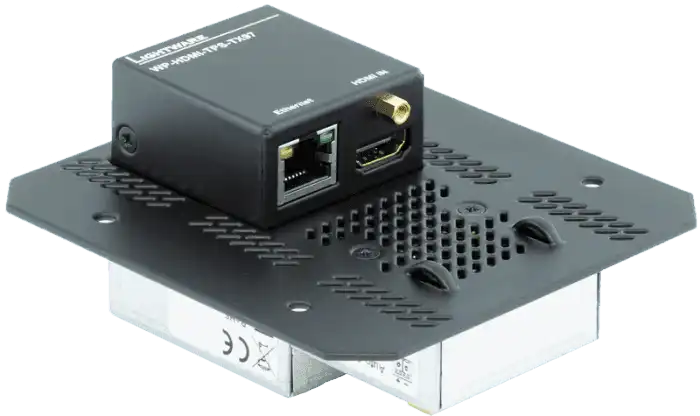

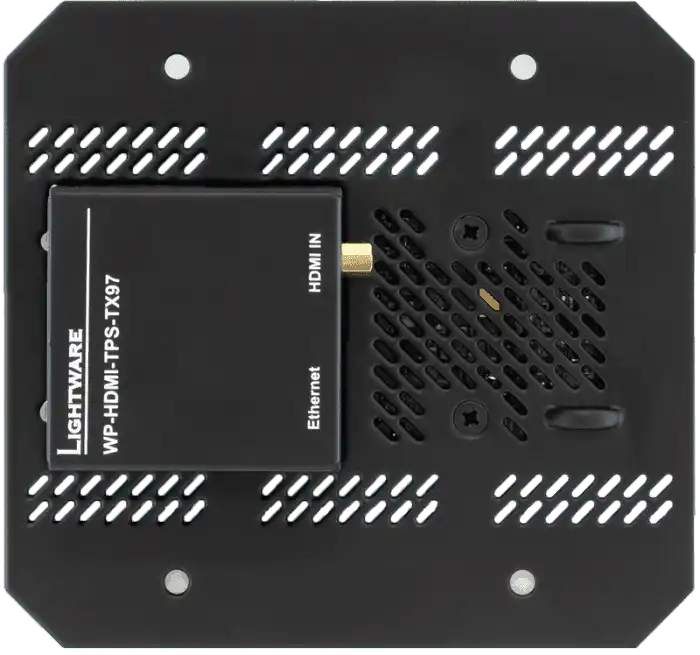

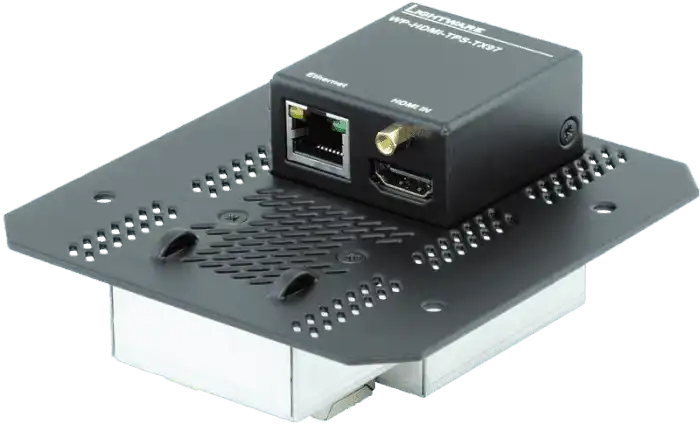

Lightware WP-HDMI-TPS-TX97-FP-8AT Wallplate (WP) TPS Extender for Single CATx Cable with PoE - 91540090

Availability: Call for Availability
Availability: Direct Ship
LightWare SKU: 91540090
No reviews
Price:
$790.00

Description

He WP-HDMI-TPS-TX97 series twisted pair HDBaseT™ compatible extenders provide extension of uncompressed 4K/UHD video with embedded audio (up to eight channel PCM or HBR audio) for long distances over a single CATx cable. The unit offers bi-directional RS-232, IR, and Ethernet pass-through on the same CATx cable that carries the video signal. The TPS extenders support full HDCP and EDID compliance and work on all standard AV resolutions up to 4K and 48-bit color depth, also handling all standard audio formats and as well as 120 Hz 3D signals. PoE 48V remote powering is available through a single CATx cable, but a local power supply can also be used.

The auto-operation mode allows the device to detect the far-end extender’s mode and adopt to it. If the far-end device is in Auto Mode or it is a third-party HDBaseT™ device the link will be set to HDBaseT™ mode. If the far device is in forced Long Reach Mode then the auto-operation will set the link to Long Reach Mode. The 'IR OUT' can operate in either Wired (unmodulated) or Emitter (modulated) mode.

The WP-HDMI-TPS-TX97 and WP-HDMI-TPS-RX97 are compatible with HDBaseT™ extenders and matrix switchers.

WP mounting kit not included, shall be ordered separately. Compatible with Legrand 8AT floor panel.

Transmitter and Front plate
model and Part Number

 Dimensions (mm)

Recommended outlet box type
for mounting
a b c1 c2

WP-HDMI-TPS EU plate

55450227



 80 150 24,5 33,4

European two gang panel
Part no.: 77190-D3

WP-HDMI-TPS UK plate

55450228

 80 140 24,5 33,4

Appleby galvanised steel
knockout boxes 2g 47mm

WP-HDMI-TPS US plate

55450229

 114.3 115.9 24,5 33,4 Carlon B225R

WP-HDMI-TPS FP-8AT plate

55450230

 104,5 111,5 24,5 33,4 Legrand 8AT floor panel

Applications

  • Post production studios
  • Control room
  • Digital Signage
  • Multiroom video
  • Conference rooms, collaborative telepresence
  • Can be remote powered through CATx cable (PoE PD)
  • Supports HDMI 3D signal formats (frame packing, side-by-side and top-bottom)
  • Supports deep color signals (24/30/36 bit RGB/YCbCr 4:4:4)
  • 1920x1080@120Hz/4:4:4, 4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
  • HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant
  • HDCP 2.2 compliant (transparent pass-through)
  • Uncompressed video up to 9 Gbps datarate (300 MHz pixel clock)
  • No signal latency, zero frame delay
  • Selectable operation mode (Auto or forced Long Reach mode)
  • Cross compatible with TPS series Lightware extenders and I/O boards (HDBaseT compatible)
  • Phoenix 2-pol DC power connector
  • Supports all embedded audio formats (including PCM, Dolby Digital and DTS high bitrate audio)
  • Extension distance up to 170 meters (with CAT7 S/FTP AWG23 cable, 1920x1080p60)
  • HDBaseT compatible
  • Ethernet extension (100 Mbps)
  • Selectable IR output mode for emitter or wired connectivity
  • Transparent EDID pass-through
  • CEC support (pass-through)
  • Supports HDMI 4K signal formats (4K UHD @30Hz RGB 4:4:4 or @60Hz YUV 4:2:0, up to 9 Gbps)
  • No video compression
  • Bi-directional RS-232 and IR extension (pass-through)
  • Compatible with several standard floor boxes
  • Low power mode (standby)
  • Extends DVI or HDMI 1.4 + Audio + Ethernet + RS-232 + IR over one CAT5/6/7 cable
  • Active fan cooling
Specifications
Data rate: 3.4 Gbps per color
Resolution: All HDMI 1.4a resolutions supported
Equalization: Adaptive, automatic
EDID support: Transparent
HDCP pass through: Yes
Ethernet pass-through: Yes
RS-232 pass through: Yes
IR pass through: Yes
Power: Universal power adaptor DC 48V OR PoE 48V
Overall signal delay: 10µs (including 100m CATx cable)
Power consumption (-RX): 5.3 W (typ) 6.1 W (max)
Enclosure: 1 mm metal
Dimensions: 100.4 W x 100.4 D x 26 H mm
Weight: 330 g / product
Compliance: CE
Warranty: 3 years



Connectors
TX input, RX output: HDMI connector
TX output, RX input: RJ45 (TPS interface)
Ethernet: RJ45
IR In, out: 3.5mm TRS connector (1/8’’ mini-jack)
Serial port: 3-pole PHOENIX
Power: 2-pole PHOENIX



Max cable lengths with the available firmware versions
 Resolution  Pixel clock rate Cable lengths (Auto / LR link mode)
CAT5e AWG24 CAT7 AWG26** CAT7 AWG23
1024x768@60Hz 65 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
1280x720p@60Hz 73,8 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
1920x1080p@60Hz / 24bpp 148,5 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
1920x1200@60Hz 152,9 MHz 100 m / NA 90 m / NA 120 m / NA
1600x1200@60Hz 162 MHz 100 m / NA 90 m / NA 120 m / NA
1920x1080@60Hz / 36bpp 223 MHz 70 m / NA 70 m / NA 100 m / NA
3840x2160@30Hz UHD 297 MHz 70 m / NA 70 m / NA 100 m / NA
4096x2160@30Hz 4K 297 MHz 70 m / NA 70 m / NA 100 m / NA
*with long reach firmware option. Long reach firmware supports pixel clock frequencies up to 148,5 MHz.
**Distances are 20% shorter if remote powering used. AWG 26 cables are not recommended with remote powering.



 Product variants
Wall panels WP-HDMI-TPS-RX97-EU
WP-HDMI-TPS-RX97-US
WP-HDMI-TPS-RX97-UK
WP-HDMI-TPS-TX97-EU
WP-HDMI-TPS-TX97-US
WP-HDMI-TPS-TX97-UK
Floor panels FP-HDMI-TPS-RX97-GB3
FP-HDMI-TPS-RX97-LEGRAND
FP-HDMI-TPS-TX97-GB3
FP-HDMI-TPS-TX97-LEGRAND
