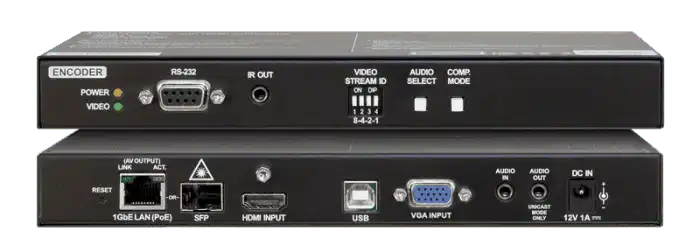

Lightware VINX-210AP-HDMI-ENC AV Over IP Scaling Multimedia Encoder with USB K+M, RS-232 and IR - 91810009
Lightware VINX-210AP-HDMI-ENC AV Over IP Scaling Multimedia Encoder with USB K+M, RS-232 and IR - 91810009
Lightware VINX-210AP-HDMI-ENC AV Over IP Scaling Multimedia Encoder with USB K+M, RS-232 and IR - 91810009
Roll over image to zoom in Click on image to zoom
Lightware VINX-210AP-HDMI-ENC AV Over IP Scaling Multimedia Encoder with USB K+M, RS-232 and IR - 91810009
Lightware VINX-210AP-HDMI-ENC AV Over IP Scaling Multimedia Encoder with USB K+M, RS-232 and IR - 91810009
Lightware VINX-210AP-HDMI-ENC AV Over IP Scaling Multimedia Encoder with USB K+M, RS-232 and IR - 91810009
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Lightware VINX-210AP-HDMI-ENC AV Over IP Scaling Multimedia Encoder with USB K+M, RS-232 and IR - 91810009

Availability: Call for Availability
Availability: Direct Ship
LightWare SKU: 91810009
No reviews
Price:
$1,090.00

Description

EXTENDER * VIRTUAL MATRIX * VIDEO WALL PROCESSOR * KVM EXTENDER

The operation of VINX-210AP-HDMI-ENC, VINX-120AP-HDMI-ENC and VINX-110AP-HDMI-DEC, can be expanded from a simple point-to-point application to unlimited endpoints for the ultimate in virtual matrix switching, digital signage and signal extension. The extenders include our Advanced EDID Management system and decoders are capable of scaling the video signal up to the maximum supported resolution of 4K UHD @ 30 Hz. RS-232 and IR control channels are supported. The built-in USB ports support KVM function and can also handle USB 2.0 mass storage. The units are HDCP compliant. These models feature options for fiber optical transmission in the form of an SFP port, audio embedding and de-embedding, and also return audio features. These VINX devices can be powered by PoE remote powering. Contrary to common belief, PoE systems, like VINX, can run on much less power than PoE+ devices, contributing to carbon footprint reduction and energy saving. Nevertheless, VINX devices can also receive power from PoE+ sources as well. While VINX-210AP-HDMI-ENC has a direct VGA input port, VINX-120AP-HDMI-ENC features a local HDMI output port for monitoring.

One of the most popular of unique features of VINX is the Video Wall setup, reducing the time needed to install a video wall to a fraction of the time needed with other systems. The feature options include gap and bezel adjustment, which can be performed in batch.
SILENT OPERATION

The efficient design of all VINX models allows passive, fanless cooling. Unlike other third party models in this product category, VINX have noiseless operation, fitting even the most silent application environments.
BUILT-IN CROSSPOINT VIEW

VINX series also features crosspoint view: available in both the free Lightware Device Controller (LDC) management software and the built-in web in the devices, the crosspoint view shows the available input and output ports of all connected encoder and decoder units, and allows switching the signals across them. The signal can also be switched to a video wall output assembled from several VINX units and acting as a single display sink. A special keyboard combination can be linked with various sources to switch signals.
SMART BANDWIDTH MANAGEMENT

The built-in, selectable Video and Graphic Modes optimize streaming and compression to match the transferred media. The Variable Bitrate feature provides an even more accurate adjustment option for smart bandwidth management, adjustable between 10 Mbps and 800 Mbps.

  • USB 1.1 K+M (HID) extension
  • USB 2.0 MSC (Mass Storage Class) extension
  • Compact and silent design
  • Audio embedding (or replace original audio)
  • Command injection on RS-232 ports
  • 1920x1080@120Hz/4:4:4, 4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
  • Advanced EDID Management
  • Intuitive control software for device configuration
  • Device control via Ethernet (TCP/IP)
  • Built-in website for device configuration
  • Bi-directional RS-232 extension (pass-through)
  • HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant
  • Firmware upgrade through Ethernet
  • HDCP 2.2 and HDCP 1.4 compliant
  • Status LED for video signal detection
  • Supports several embedded audio formats (including PCM, Dolby Digital and DTS)
  • External universal power adaptor
  • Can be remote powered through CATx cable (PoE PD)
  • Mounting options for rack, furniture or truss
Specifications
Component type Encoder (Transmitter)
Max. Image Resolution 3840 x 2160 @30Hz

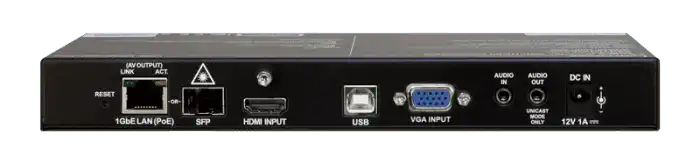

Video Interface HDMI Female (In), VGA Female (In)
Audio interface 3.5 mm stereo jack (In), 3.5 mm stereo jack (Out)
Scaling No
Video Wall Wizard Yes
Video delay: 1.1 frames (source to sink)
EDID emulation: Advanced EDID Management
EDID memory: 53 factory preset, 5 user programmable
HDCP  Yes, HDCP 2.2
USB Device USB Type B
Network Interface RJ45 Female, 1 Gbps SFP

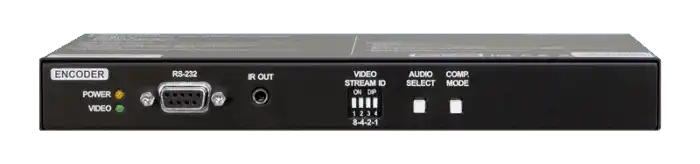

Switch 4 Position Dip Switch
IR 3.5 mm Jack Female (IR Out)
RS-232 9-pole D-sub
Local Power DC 12V
Power-over-Ethernet (PoE) Yes, PD (Powered Device)
PoE, PoE+, PoE++ and UPoE Yes
Acoustic Noise 0 dB
Operation Temperature 0-40°C
Storage Temperature -20-60°C
Humidity 0-90% RH, Non-condensing
Weight 675g
Housing Metal Enclosure
Dimensions (L x W xH) 218.5 x 104 x 25
Rack mountable: Yes (1/2 RU width)
Compatible with VINX Power Tray No
Safety/Emission CE, FCC
Warranty: 3 years
Video Resolution Quality level Max Frame Rate Average Network Bandwidth (Mbps)
3840x2160 (2160p30) Auto 30  218 (146~268)
1920x1080 (1080p) Auto 60  133 (80~210)
1280x720 (720p) Auto 60 147 (112~177)
1600x1200 (UXGA) Auto 60  81 (57~105)
1280x1024 (SXGA) Auto 60 113 (79~150)
1024x768 (XGA)  Auto 60 81 (72~120)
800x600 (SVGA) Auto 60 66 (49~82)
640x480 (VGA) Auto 60  43 (29~56)

COMPARISON TABLES OF AVAILABLE VINX MODELS

Av Ports of Encoders
VINX-120-HDMI-ENC VINX-120AP-HDMI-ENC VINX-120AP-HDMI-ENC-DNT VINX-210AP-HDMI-ENC WP-VINX-110P-HDMI-ENC
HDMI input check check check check check
VGA input cancel cancel cancel check cancel
HDMI local output check check check cancel cancel
Analog audio input cancel check check check cancel
Dante / AES67 Audio output cancel cancel check cancel cancel
Av Ports of Decoders
VINX-110-HDMI-DEC VINX-110AP-HDMI-DEC
HDMI output check check
Analog audio output cancel check
Ethernet and Control Ports
VINX-120-HDMI-ENC VINX-120AP-HDMI-ENC VINX-120AP-HDMI-ENC-DNT VINX-210AP-HDMI-ENC WP-VINX-110P-HDMI-ENC VINX-110-HDMI-DEC VINX-110AP-HDMI-DEC
RJ45 Ethernet check check check check check check check
SFP Ethernet cancel check check check cancel cancel check
RS-232 RJ12 9-pole D-sub 9-pole D-sub 9-pole D-sub cancel RJ12 9-pole D-sub
USB Mini USB Type B USB Type B USB Type B USB Type B USB Type B 4x USB Type A 4x USB Type A
Video Features
VINX-120-HDMI-ENC VINX-120AP-HDMI-ENC VINX-120AP-HDMI-ENC-DNT VINX-210AP-HDMI-ENC WP-VINX-110P-HDMI-ENC VINX-110-HDMI-DEC VINX-110AP-HDMI-DEC
Image resolution 3840 x 2160 @ 30Hz 3840 x 2160 @ 30Hz 3840 x 2160 @ 30Hz 3840 x 2160 @ 30Hz 3840 x 2160 @ 30Hz 3840 x 2160 @ 30Hz 3840 x 2160 @ 30Hz
EDID Management Advanced Management Advanced Management Advanced Management Advanced Management Advanced Management Transparent Transparent
HDCP HDCP 2.2 HDCP 2.2 HDCP 2.2 HDCP 2.2 HDCP 2.2 HDCP 2.2 HDCP 2.2
Scaling cancel cancel cancel cancel check check check
Powering and Mounting
VINX-120-HDMI-ENC VINX-120AP-HDMI-ENC VINX-120AP-HDMI-ENC-DNT VINX-210AP-HDMI-ENC WP-VINX-110P-HDMI-ENC VINX-110-HDMI-DEC VINX-110AP-HDMI-DEC
Local Power  DC 5V DC 12V DC 12V DC 12V DC 5V DC 5V DC 12V
PoE Remote powering cancel check check check check cancel check
RU Width for rack mounting 1/4 1/2 1/2 1/2 cancel 1/4 1/2
Power Rack Tray compatibility check cancel cancel cancel cancel chec
