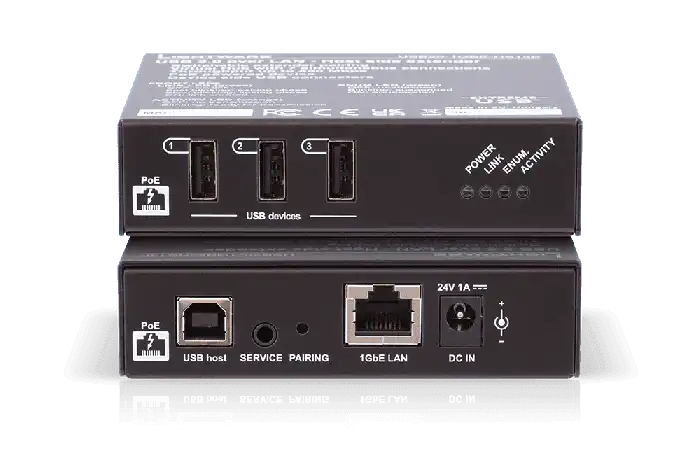

Lightware USB20-1GBE-HS13P PoE+ USB 2.0 over LAN host side extender - 91810033

Product Overview

The Lightware USB20-1GBE-HS13P is a USB 2.0 over LAN host-side extender with PoE+ output. It connects to a host computer's USB port and extends USB 2.0 device access to remote device-side extender units over a standard 1GbE Ethernet network, allowing USB peripherals such as cameras, microphones, HID devices, and USB audio interfaces to operate at distances far beyond the 5-meter limit of native USB 2.0. The integrated PoE+ output powers a compatible device-side extender unit over the same network cable, eliminating a separate power supply at the device end.

Order from Creation Networks with full Lightware support and warranty.

Product Description

The USB20-1GBE-HS13P is designed for meeting rooms, classrooms, and collaboration spaces where a room PC needs to access USB peripherals located at a conference table, lectern, or remote equipment position. The host unit connects to the PC via a USB Type-B connection and to the LAN via RJ-45. A device-side extender at the peripheral location connects to the same network and presents the USB devices to the host as if they were plugged in locally. The PoE+ output on the HS13P variant means the device-side extender can draw its power from the network cable connecting the two units, reducing cable counts in furniture and under-table installations.

The system is transparent to the operating system — USB devices appear as locally connected, with no additional drivers required for the extension itself. This makes it compatible with any USB 2.0 device the host OS supports natively.

Key Features

• Extends USB 2.0 over standard 1GbE Ethernet — up to 100 m per cable segment
• PoE+ output (IEEE 802.3at) powers a compatible device-side extender over the network cable
• Supports up to 13 USB devices via device-side extender hub (model-dependent)
• Transparent to the host OS — no special drivers for extension
• Compatible with USB cameras, microphones, HID devices, audio interfaces, and USB storage
• 1GbE RJ-45 LAN port for connection over existing network infrastructure
• USB 2.0 upstream port (Type-B) for host computer connection
• Compact form factor for desk or rack-mount use

Typical Applications

• Conference room USB peripheral extension (cameras, speakerphones, touch panels)
• Classroom document cameras and USB interactive displays connected to a room PC
• Medical exam room USB device extension where the PC must remain in a clean equipment cabinet
• Broadcasting and video production: remote camera and USB audio interface extension
• Government and secure facilities requiring remote USB device access without physical PC access
• Training rooms with shared USB devices accessed by a central instructor station

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Which device-side extender pairs with the USB20-1GBE-HS13P?

The host unit pairs with Lightware USB20-1GBE-DS series device-side extenders, including the USB20-1GBE-DS4P (4-port with PoE). Both units are available at Creation Networks. The DS model determines how many USB device ports are available at the remote location.

Does the PoE output power any device-side extender, or only specific models?

The PoE+ output powers Lightware USB20-1GBE-DS device-side extenders that support PoE input. Non-PoE device-side extenders require their own power supply. Confirm compatibility with the specific DS model before ordering.

Can the USB extension run over a shared office LAN?

The system is designed for direct 1GbE connections or over a managed switch. Running USB-over-LAN traffic on a shared office LAN is possible but may introduce latency or throughput variability. A dedicated switch port or VLAN for USB extension traffic is recommended for time-sensitive devices such as USB audio or cameras.

Is there a limit to how many USB devices can be connected at the device side?

The number of USB device ports depends on the device-side extender model. The DS13 variant supports up to 13 USB devices. Each device consumes USB bandwidth — simultaneous use of high-bandwidth devices such as cameras may reduce throughput for other devices on the same extender.

Does this work with USB webcams for video conferencing?

Yes. USB 2.0 cameras operating within the USB 2.0 High Speed (480 Mbps) bandwidth envelope are supported. For best performance with USB video class (UVC) cameras, ensure the network link between host and device extenders is a dedicated or low-contention connection.
