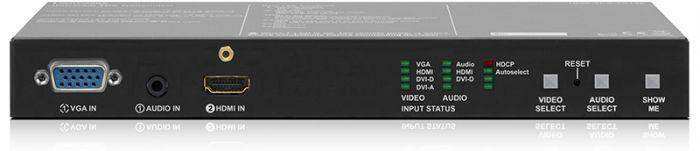

Lightware UMX-TPS-TX130 UMX Series TPS Transmitter - 91540013

Product Overview

The Lightware UMX-TPS-TX130 is a UMX Series TPS transmitter that accepts multiple input signals and transmits the selected source over a single CATx cable using Lightware's TPS HDBaseT-compatible protocol. It is designed as a compact, multi-input transmitter for conference rooms, training environments, and small meeting spaces where a local switcher-transmitter is needed at the presenter position before sending the signal to a remote display or matrix system. The UMX Series focuses on simplicity and reliability for everyday commercial AV deployment.

Product Description

The UMX-TPS-TX130 combines input selection and TPS transmission in a single compact unit, allowing AV integrators to provide a clean multi-source connection point at the presenter table or equipment location without a separate switcher. It accepts HDMI and other signal types, selects the active source, and transmits the output over a single Cat5e or Cat6 cable to a compatible TPS receiver at the display location.

The transmitter supports Power over Twisted Pair, delivering power to the connected TPS receiver so no local power supply is required at the display end. RS-232 and IR control signals pass through the TPS link, enabling display management from the transmitter location or a central control system. EDID management at the input ensures connected source devices receive a consistent and appropriate display capability profile. The unit integrates with Lightware's LW3 control protocol and is compatible with Crestron, AMX, Extron, and other third-party control systems, making it straightforward to incorporate into existing building automation and AV control infrastructure.

Key Features

• Multi-Input Selection — Accepts and switches between multiple source inputs at the presenter or equipment location
• TPS Transmission over CATx — Sends selected source over a single Cat5e or Cat6 cable to a remote TPS receiver
• Power over Twisted Pair — Powers the connected TPS receiver through the CATx link, eliminating the need for a remote power supply
• RS-232 and IR Extension — Passes control signals to the display via the TPS cable for remote device management
• EDID Management — Provides stable EDID emulation to source devices for reliable plug-and-display operation
• LW3 Protocol — Open IP control protocol compatible with all major third-party control systems
• Compact UMX Form Factor — Designed for rack shelf, furniture, or wall-box mounting at the presenter location
• HDBaseT Compatible Infrastructure — Leverages standard CATx cabling already installed in commercial buildings

Typical Applications

• Small to medium conference rooms requiring a local multi-source selection point
• Training rooms and classrooms with instructor-position switcher and display extension
• Huddle spaces and collaboration rooms where a compact transmitter-switcher is needed
• Boardrooms with presenter table source connectivity feeding room displays
• Reception areas displaying content from multiple media sources
• Hospitality AV installations with local source selection and long cable runs to displays

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Does the UMX-TPS-TX130 function as both a switcher and a transmitter?

Yes. The UMX-TPS-TX130 combines multi-input source selection with TPS transmission in a single unit. You connect multiple HDMI or supported sources, select the desired input, and the transmitter sends that signal over the CATx cable to the remote receiver and display.

What receiver is compatible with the UMX-TPS-TX130?

The UMX-TPS-TX130 is compatible with Lightware TPS receivers within the UMX and compatible product series. Refer to Lightware's compatibility matrix or consult Creation Networks to confirm the appropriate receiver pairing for your project.

Does the transmitter power the receiver?

Yes. The UMX-TPS-TX130 delivers Power over Twisted Pair to the connected TPS receiver, so no separate power supply is required at the display end of the installation.

How is source selection controlled?

Source selection can be controlled via front-panel controls on the unit, RS-232 serial commands, or IP control via the LW3 protocol, allowing integration with room control systems for automated or touch panel-based switching.

What cable category is required for the TPS link?

The TPS link operates over standard Cat5e or Cat6 CATx cable. Cat6 is recommended for longer runs and 4K content to maintain signal integrity.

Can the UMX-TPS-TX130 be used with a Crestron or AMX control system?

Yes. The LW3 protocol is open and documented, making it compatible with control systems from Crestron, AMX, Extron, Savant, and any platform that supports TCP/IP or RS-232 control commands.

Where can I purchase the UMX-TPS-TX130?

Available from Creation Networks, an authorized Lightware reseller providing commercial AV solutions and system integration support.
