Lightware UMX-HDMI-140-Plus UMX Series Switcher for VGA, DVI-I, HDMI and DisplayPort with Audio embedding - 91560003

LightWare SKU: 91560003
No reviews

Sale price$1,400.00

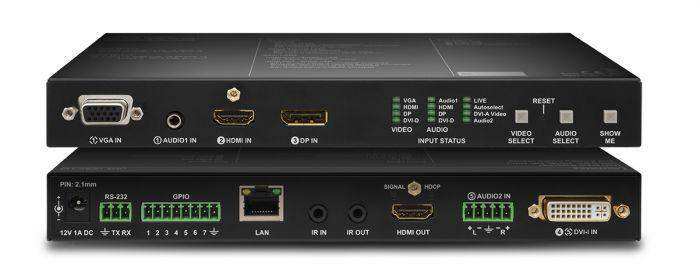

UMX-HDMI-140-Plus switches universal 4K video and audio to an HDMI output port. This device was designed for digital and analog video and audio signals: VGA, YPrPb, DVI, HDMI 1.4 and DP 1.1 with analog stereo audio from local inputs or embedded 7.1 HBR audio. The unit can also handle HDCP encryption. Analog signals (both audio and video) are converted into digital format. UMX-HDMI-140-Plus can be mounted on a rack shelf or used standalone. UMX-HDMI-140-Plus is compatible with HDMI extenders and matrix switchers.

Using the factory, custom or transparent EDID emulation the user can fix and lock EDID data on each input connector. Advanced EDID Management forces the required resolution from any video source and fixes the output format conforming the system requirements. With the built-in Event Manager control feature this device is the ultimate solution for huddle rooms and similar collaboration environments.

 Advanced Control Pack Features:

  • 100 available event slots in ’Plus’ extenders
  • Support RS-232 protocol for communication and control of third party devices like VC codecs. This allows the Cisco Room Kit login on RS-232–USB connection.
  • Support to receive CEC commands for control of displays and Lightware Event Manager to automate room actions.
  • Support to send CEC commands on HDMI ports for control of other devices.
  • Support true Infrared messages using HEX codes to control TVs, media players and other devices with IR emitters.
  • Cisco VC room integration compatibility
  • Advanced control feature pack for 3rd party video conference collaboration
  • Digitizes VGA, YUV analog input formats and converts to HDMI or DVI
  • 3,5mm audio jack input
  • 1920x1080@120Hz/4:4:4, 4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
  • Audio embedding (or replace original audio)
  • Adjustable analog audio settings (volume, gain, balance)
  • Frame Detector (analyze detailed video timings)
  • Compatible with Mac laptop and desktop computers with Thunderbolt port
  • 5-pole Phoenix balanced analog audio connectors
  • Mounting options for rack, furniture or truss
  • External universal power adaptor
  • Twist-and-lock DC power connector
  • Supports several embedded audio formats (including PCM, Dolby Digital and DTS)
  • DVI-I (Analog+Digital) input connection
  • HDCP enable/disable function on input
  • HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant
  • Multiple TCP/IP connections
  • Device control via Ethernet (TCP/IP) and RS-232
  • Advanced EDID Management
  • Intuitive control software for device configuration
  • GPIO control ports
  • Front panel buttons for crosspoint control
  • Supports HDMI 4K signal formats (4K UHD @30Hz RGB 4:4:4 or @60Hz YUV 4:2:0, up to 9 Gbps)
  • Command injection on RS-232 and IR ports
  • Autoselect modes to automatically switch video and audio (first detect, last detect, priority)
  • Built-in Event Manager control automation feature
  • Supports HDMI 3D signal formats (frame packing, side-by-side and top-bottom)
  • Pixel Accurate Reclocking
  • No video compression
  • Bi-directional RS-232 extension (pass-through)
  • HDCP 1.4 compliant
  • Uncompressed video up to 9 Gbps datarate (300 MHz pixel clock)
  • Cross compatible with TPS series Lightware extenders and I/O boards (HDBaseT compatible)
  • Firmware upgrade through Ethernet
  • Supports all embedded audio formats (including PCM, Dolby Digital and DTS high bitrate audio)
  • Built-in video test pattern generator
  • No signal latency, zero frame delay
Resolution: Up to 4K UHD 3840×2160@30Hz, 1600x1200@60Hz, FullHD 1920x1080@60Hz
Digital audio formats: Digital audio formats: Supports up to 8 channel
PCM, Dolby TrueHD and DTS-HD Master Audio
7.1 formats
Input cable equalization: Automatic max 20 m
EDID emulation: Advanced EDID Management
EDID memory: 119 factory preset, 15 user programmable
VGA to digital conversion: 0 microseconds delay
HDCP pass-through: Yes
RS-232 (control option): 9600, 19200, 38400, 57600, 115200 bps
(default: 57600)
Local power: Universal power adaptor
Power: Universal power adaptor, DC 12V 2A
Power consumption: 8W (max)
Enclosure: 1 mm metal
Dimensions: 221 W x 100.4 D x 26 H mm
Net weight: 607 g
Compliance: CE
Warranty: 3 years

*For UHD resolutions: maximum HDMI cable length on output varies from 5 meters to 20 meters depending on cable quality and connected UHD display’s equalization.

Digital video input: HDMI connector, DVI-I connector, DisplayPort
Analog video input: VGA connector
Audio input: Stereo jack, 5-pole Phoenix
Ethernet: RJ45
Control: 7 x GPIO, IR
Serial port: 3-pole Phoenix
Power: Locking DC connector (2.1 / 5.5 mm)


Analog audio input
Volume: -96 .. 0 dB
Balance: -100 .. 0 .. 100%
