Lightware UCX-4x3-TPN-TX20 – USB-C HDMI Matrix Transmitter for SDVoE AV over IP

Product Overview

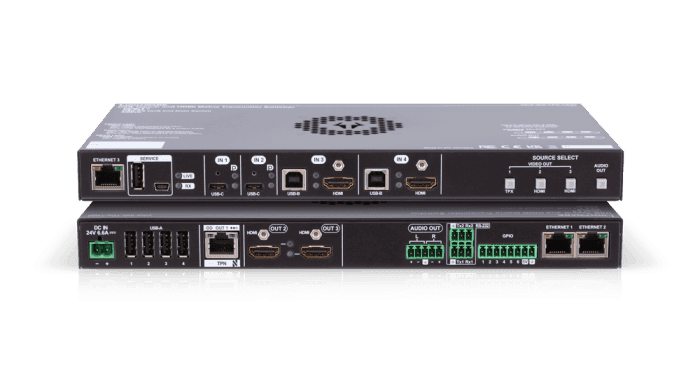

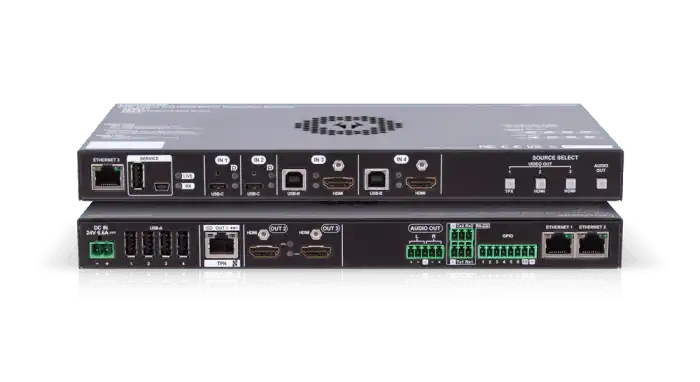

The Lightware UCX-4x3-TPN-TX20 is a USB Type-C and HDMI 2.0 matrix transmitter switcher that integrates the Taurus UCX BYOD collaboration feature set with SDVoE-based AV over IP distribution over 10G Ethernet. The device accepts 4 inputs (2x HDMI 2.0, 2x USB-C) and routes selected video, audio, USB, and control signals to one local HDMI 2.0 output and simultaneously to multiple TPN receivers across a 10G network, enabling a single source room to distribute to unlimited display endpoints without additional matrix hardware. Integrators specifying a Lightware UCX SDVoE transmitter for enterprise BYOD meeting rooms with AV over IP distribution will find the UCX-4x3-TPN-TX20 the most technically complete solution in its class. Purchase at Creation Networks.

Product Description

The UCX-4x3-TPN-TX20 combines the full Taurus UCX USB-C matrix switcher functionality with an integrated SDVoE transmitter, operating within Lightware's TPN AV over IP ecosystem. When managed by the TPN Matrix Management Unit (MMU), the UCX-4x3-TPN-TX20 functions as one input endpoint in a virtual matrix that can include HDMI-TPN, Taurus TPN, and other compatible SDVoE devices across a common 10G Ethernet network.

The two USB-C inputs each support 4K@60Hz 4:4:4 via DP 1.2a Alt Mode with 100W power delivery. Two HDMI 2.0 inputs handle stationary room sources. Video delay is 0 frames on all paths, with pixel-accurate reclocking ensuring signal integrity. HDCP 1.4 and 2.2 are supported on all inputs and outputs.

A separate USB 2.0 switching layer routes cameras, speakerphones, and other peripherals independently from video. Four USB-A device ports and USB-C/USB-B host ports allow multiple hosts to connect and share room peripherals. Analog audio de-embedding is available via 5-pole Phoenix output. Control is available via 10G Ethernet (TCP/IP), RS-232, GPIO, and OCS. Remote Syslog supports SIEM integration. Supports 5K (5120x2160) at 30Hz 4:4:4 or 60Hz 4:2:0 over HDMI 2.0 for ultrawide display deployments. A FIPS 140-2 certified variant (SKU 91360035) is available. Purchase the UCX-4x3-TPN-TX20 at Creation Networks.

Key Features

• Integrated SDVoE Transmitter — Transmits selected AV signals to TPN receivers over 10G Ethernet using SDVoE technology, enabling one-to-many distribution without a separate matrix frame.
• 4-Input USB-C and HDMI 2.0 Switching — Routes 2x USB-C and 2x HDMI 2.0 inputs to a local HDMI 2.0 output and the TPN network simultaneously.
• USB-C 100W Power Delivery — Each USB-C input charges connected laptops at up to 100W during active switching.
• 5K Resolution Support — Handles 5120x2160 at 30Hz 4:4:4 or 60Hz 4:2:0 for ultrawide display layouts including Microsoft Teams Front Row.
• Independent USB 2.0 Switching Layer — Routes USB peripherals independently from video, supporting multi-host camera and speakerphone sharing.
• Integrated SDVoE Control Server — Embedded control server simplifies TPN ecosystem configuration without external hardware.
• TPN Ecosystem Compatibility — Works with HDMI-TPN receivers, TPN-MMU management units, and other TPN/SDVoE endpoints in a unified AV over IP matrix.
• Remote Syslog Support — Forwards device events via TCP, UDP, or TLS to external SIEM platforms using RFC3164 or RFC5424.
• Pixel Accurate Reclocking — 0-frame video delay on all input paths with signal integrity reclocking.
• FIPS 140-2 Variant Available — The -LCC model includes NIST-certified cryptography for regulated deployments.

Typical Applications

• Boardroom
• Conference room
• All-hands room
• Training room
• Government space

Technical Specifications

Competitor Comparison

Frequently Asked Questions

How many display endpoints can the UCX-4x3-TPN-TX20 drive simultaneously?

Via the SDVoE/TPN network, the UCX-4x3-TPN-TX20 can feed an unlimited number of TPN-compatible receivers connected to the same 10G Ethernet switch, enabling one-to-many distribution without a dedicated matrix frame.

Does the device require a dedicated TPN management unit?

For large-scale virtual matrix operation, the TPN-MMU-X100-20 management unit is recommended to centralize routing control across all TPN endpoints. For simple point-to-point or smaller deployments, the device's integrated SDVoE control server can handle basic configuration.

Can this device be used in the same system as HDMI-TPN receivers?

Yes. The UCX-4x3-TPN-TX20 is compatible with HDMI-TPN-RX107, HDMI-TPN-RX107AU2K, HDMI-TPN-RX107A-SR, and other TPN receiver variants, as well as SDVoE-compliant third-party endpoints, within the same 10G network.

What is the difference between the UCX-4x3-TPN-TX20 and UCX-4x3-HCM40?

The UCX-4x3-HCM40 is a local dual-screen matrix switcher with 3 HDMI outputs for direct display connection. The UCX-4x3-TPN-TX20 replaces two of those outputs with a 10G Ethernet SDVoE output, enabling AV over IP distribution to many remote receivers rather than local direct-connected displays.

Is 5K ultrawide display support native?

Yes. The device natively supports 5120x2160 at 30Hz 4:4:4 or 60Hz 4:2:0 over HDMI 2.0 inputs, suitable for ultrawide display layouts such as Microsoft Teams Front Row configurations.

Where can I purchase the Lightware UCX-4x3-TPN-TX20?

The UCX-4x3-TPN-TX20 is available at Creation Networks, an authorized Lightware reseller for commercial AV integrators.
