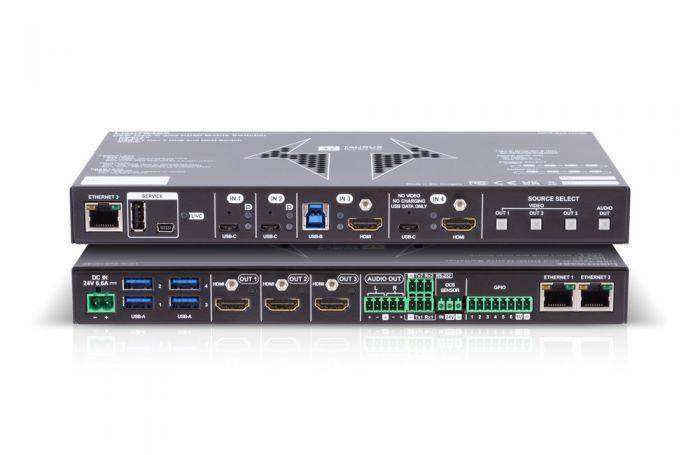

LightWare UCX-4x3-HC40 Universal Switcher with HDMI 2.0 and USB-C connectivity - 91310089

Product Overview

The Lightware UCX-4x3-HC40 is a 4-input, 3-output universal matrix switcher built for modern BYOD and BYOM conference environments that require simultaneous USB-C and HDMI 2.0 connectivity with integrated USB peripheral sharing. Certified for Google Meet, the unit functions as the central AV and USB hub in boardrooms, conference rooms, and training spaces hosting up to 12 participants across up to four connected host devices. Its fanless design and TEMPEST SDIP27 Level B certification also make it suitable for secure government and defense installations. Long-tail keywords: Lightware UCX-4x3-HC40 USB-C HDMI matrix switcher boardroom, 4K 60Hz BYOM conference room switcher triple display, Google Meet certified USB-C AV switcher commercial.

Product Description

The UCX-4x3-HC40 accepts two USB-C and two HDMI 2.0 inputs, routing any selected source to three independent HDMI 2.0 outputs — enabling dual or triple-display configurations for front-of-room and confidence-monitor layouts. Each USB-C port carries 4K video, USB 3.1 Gen1 data, and up to 100W of device charging over a single cable, removing the need for separate power adapters at the table. Four USB-A 3.1 Gen1 peripheral ports provide shared access to room cameras, speakerphones, touch displays, and other USB devices for any connected host. The switcher maintains three independent Ethernet layers — secure control, utility AV, and configurable user data — each physically separated to prevent cross-contamination of corporate and room-control traffic. Secure device management is handled via SSH, SSL, and HTTPS through the Lightware Device Controller (LDC) software or the LARA room automation platform. RS-232, GPIO, and occupancy sensor ports enable integration with room control processors and automated display management. Remote system logging via Syslog (RFC3164/RFC5424) allows integration with enterprise SIEM systems.

Key Features

• 4x Input, 3x Output Matrix — 2x USB-C (DP Alt Mode) and 2x HDMI 2.0 inputs routed to 3x HDMI 2.0 outputs for multi-display rooms.
• 4K UHD @60Hz 4:4:4 — Full 18 Gbps bandwidth with 600 MHz pixel clock supports 4K at full chroma on all ports.
• 5K Ultrawide Support — 5120×2160 via HDMI 2.0 at 30Hz 4:4:4 or 60Hz 4:2:0 for ultrawide collaboration displays.
• USB-C Charging up to 100W — Each USB-C input port charges connected laptops at up to 100W (120W combined), eliminating desk power adapters.
• USB 3.1 Gen1 Peripheral Sharing — Four USB-A ports give any active host access to cameras, speakerphones, and touch displays.
• Google Meet Certified — Recognized in the Google Admin Console for simplified BYOD/BYOM deployment and management.
• TEMPEST SDIP27 Level B — Certified for use in secure government and defense spaces requiring controlled electromagnetic emissions.
• Three Ethernet Layers — Secure control, utility AV, and configurable user-data networks kept physically isolated.
• Analog Audio De-embedding — LPCM audio de-embedded via 5-pole Phoenix connector for connection to room audio systems.
• Fanless Operation — Passive cooling supports quiet operation in meeting environments.
• Remote Syslog — Logs forwarded via TCP, UDP, or TLS to external SIEM systems (RFC3164 and RFC5424).
• LARA Room Automation — Built-in scripting engine for welcome screens, occupancy-triggered actions, and display control without an external processor.

Typical Applications

• Boardroom
• Conference room
• Training room
• Government space
• Huddle room

Technical Specifications

Competitor Comparison

Frequently Asked Questions

How many hosts can be connected simultaneously?

Up to four hosts: two via USB-C (carrying video, USB data, and power) and two via HDMI 2.0 combined with USB-B or USB-C data connections.

Does the USB-C port charge laptops while presenting?

Yes. Each USB-C input port delivers up to 100W of charging simultaneously with 4K video and USB 3.1 Gen1 data, with 120W total available across both ports.

What is TEMPEST SDIP27 Level B and why does it matter?

TEMPEST SDIP27 Level B is a NATO standard certifying that the device's electromagnetic emissions are controlled to a level that prevents signal interception. It is required for classified and sensitive compartmented government and defense installations.

Can the UCX-4x3-HC40 be managed remotely?

Yes. The device is managed via the Lightware Device Controller (LDC) over the secure Ethernet port. The LARA platform enables local scripting for room automation without an external control processor.

Is the device compatible with 5K ultrawide displays?

Yes. The UCX-4x3-HC40 supports 5120×2160 resolution via HDMI 2.0 at 30Hz 4:4:4 or 60Hz 4:2:0, suitable for 5K 21:9 displays used in Microsoft Teams Front Row layouts.

Does it support enterprise-grade security logging?

Yes. Remote Syslog is supported via TCP, UDP, or TLS using RFC3164 and RFC5424 formats, enabling integration with SIEM and log monitoring platforms.

Available from Creation Networks — your authorized Lightware reseller for commercial AV integration.
