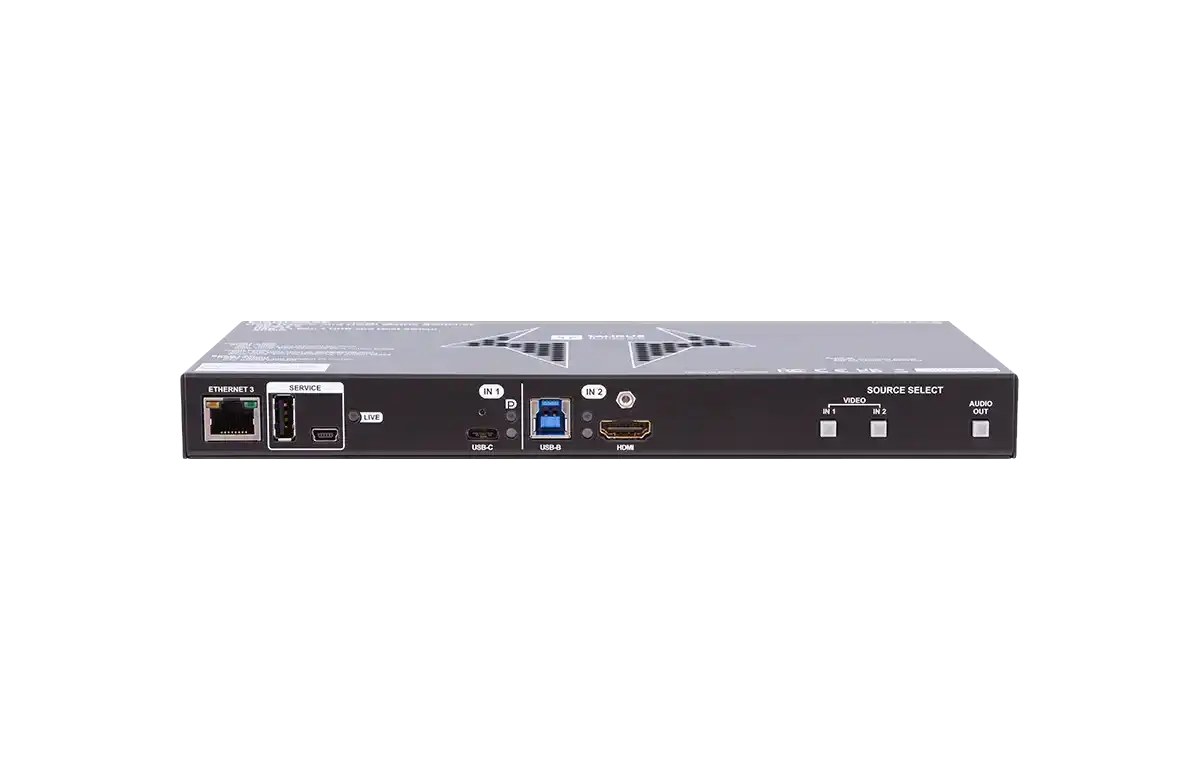

Lightware UCX-2x1-HC40 Universal Switcher with HDMI 2.0 and USB-C connectivity - 91560008

Product Overview

The Lightware UCX-2x1-HC40 is a 2x1 universal presentation switcher that combines HDMI 2.0 and USB-C inputs with integrated USB hub functionality, designed for modern meeting rooms where both legacy laptop connections and USB-C direct-connect workflows must coexist. It supports 4K UHD at 60 Hz with HDR pass-through and provides USB data routing so connected peripherals — cameras, speakerphones, and interactive displays — follow the active input automatically. The HC40 designation indicates a 40-watt USB-C power delivery capability, enabling the switcher to charge connected laptops while they present. It is a primary target for integrators specifying USB-C conference room switcher with power delivery or HDMI 2.0 and USB-C 2x1 switcher for huddle rooms.

Product Description

The UCX-2x1-HC40 addresses the practical reality of enterprise meeting rooms where presenters arrive with a mix of USB-C native laptops and legacy HDMI-only devices. Rather than requiring a separate adapter or USB hub, the switcher provides both connection types on a single compact unit with integrated power delivery. The active input's USB peripherals are automatically routed to the room's conference system, ensuring the camera and microphone connect to whichever laptop is presenting without manual cable changes.

Control is handled through Lightware's LW3 protocol over Ethernet, with additional RS-232 support for integration with Crestron, AMX, or Extron control processors. The unit also supports USB-C alternate mode for video signal transport, passing DisplayPort Alt Mode signals from compatible sources. Available from Creation Networks.

Key Features

• HDMI 2.0 and USB-C Inputs — provides both connection types on a single 2x1 switcher, covering legacy and modern laptop connectivity without adapters.
• 40W USB-C Power Delivery — charges connected laptops at up to 40W while they present, reducing cable count on the table.
• 4K UHD 60 Hz / HDR Support — passes 4K60 signals with HDR metadata intact for display on HDR-capable room displays.
• Integrated USB Hub — USB peripherals (camera, speakerphone, display) route automatically with the active video input, eliminating manual USB switching.
• USB-C Alternate Mode (DP Alt) — accepts DisplayPort Alt Mode signals over USB-C from compatible laptops, no separate video cable required.
• LW3 Control Protocol — Ethernet and RS-232 control via Lightware's LW3 for integration with all major control system platforms.
• Compact Form Factor — designed for under-table or credenza installation in huddle rooms and small conference rooms where rack space is not available.
• HDCP 2.2 Compliance — supports protected 4K content from corporate and consumer sources.

Typical Applications

• Conference room
• Huddle room
• Boardroom
• Training room

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What does the HC40 designation mean?

HC40 stands for HDMI + USB-C with 40W power delivery. The number indicates the wattage the USB-C port can deliver to a connected laptop while simultaneously carrying video and data signals.

Will the UCX-2x1-HC40 charge a MacBook Pro?

Yes, at up to 40W. This is sufficient for light use on most ultrabooks and MacBook models, though it may charge more slowly under heavy CPU load on higher-wattage laptops.

Does switching inputs automatically change which USB devices are connected?

Yes. The integrated USB hub routes peripheral devices to the newly active input automatically, so a room camera and speakerphone will reconnect to the new laptop within seconds of a source switch.

Can it be integrated with a Crestron or AMX control system?

Yes. The LW3 protocol over TCP/IP is supported by all major control system manufacturers. Lightware publishes driver modules for Crestron SIMPL and AMX NetLinx.

Does it support DisplayPort over USB-C?

Yes. The USB-C input supports DisplayPort Alternate Mode, so laptops that output video natively over USB-C (without needing a separate HDMI adapter) connect directly.

What is the maximum cable length for the HDMI input?

Standard passive HDMI cable performance applies. For reliable 4K60 signals, cables up to 3 meters are recommended. Active or fiber HDMI cables can extend this range.

Where can I buy the UCX-2x1-HC40?

It is available from Creation Networks, an authorized Lightware dealer with pre-sales technical support.
