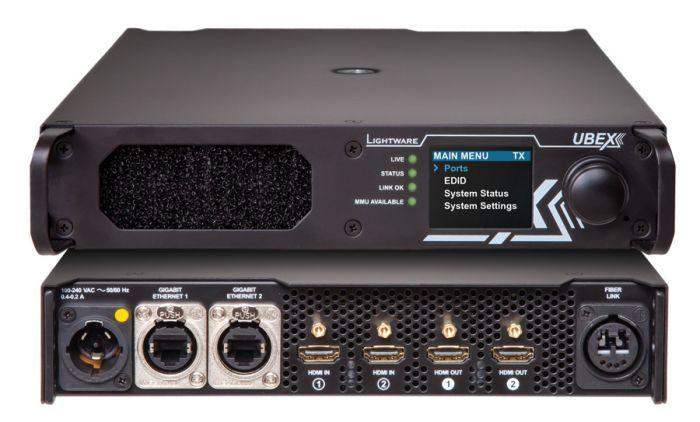

The Lightware UBEX-Pro20-HDMI-R100 2xSM-QUAD is an R-type (receiver) AV-over-IP node in the UBEX Pro20 HDMI series, shipping with two single-mode (SM) SFP+ transceivers in a QUAD fiber configuration. Combining the long-distance reach of single-mode fiber with a four-fiber QUAD port arrangement, this receiver is designed for high-availability, resilient AV-over-IP deployments across campus and multi-building environments. The QUAD configuration provides active fiber redundancy, making it the premium choice for mission-critical installations where a fiber link failure cannot be permitted to interrupt signal delivery. Keywords: Lightware UBEX Pro20 HDMI receiver single-mode QUAD fiber redundancy, 10G AV over IP receiver SM QUAD resilient, uncompressed 4K HDMI receiver high-availability fiber.

Product Description

The UBEX-Pro20-HDMI-R100 2xSM-QUAD receives uncompressed HDMI 2.0 IP streams from a 10GbE network and outputs native HDMI 2.0 to a local display or endpoint. Two single-mode SFP+ transceivers are included and configured in a QUAD arrangement — using four fiber strands — providing active link redundancy. If one fiber path is interrupted, the system continues operating on the remaining path, protecting signal continuity in high-stakes environments.

Signal integrity is maintained at full HDMI 2.0 specification — 4K/60Hz 4:4:4, HDR, HDCP 2.2, and 8-channel audio — with no compression. Lightware Device Controller (LDC) provides centralized routing and monitoring, and RS-232, TCP/IP, and USB control interfaces enable integration with Crestron, AMX, Extron, and Q-SYS.

Key Features

• Two single-mode SFP+ transceivers included — long-distance fiber capability, campus-scale reach
• QUAD fiber configuration (4-fiber) — active link redundancy for high-availability deployments
• Uncompressed HDMI 2.0 receiver — 4K/60Hz 4:4:4 output, no codec artifacts
• Sub-frame latency — zero-compression processing
• HDR and deep color support — HDR10 and Dolby Vision passthrough
• HDCP 2.2 and 1.4 compliant — protected content decoding
• 8-channel audio in HDMI output — PCM and HBR (Dolby TrueHD, DTS-HD MA)
• LDC software integration — Lightware Device Controller for system management
• Third-party control interfaces — RS-232, TCP/IP, USB
• Advanced EDID management — per-port EDID emulation and locking

Typical Applications

• Mission-critical AV distribution requiring fiber redundancy
• Campus and multi-building AV-over-IP on single-mode backbone
• Government and defense facility high-availability AV
• Broadcast-adjacent studio remote display endpoints
• Auditorium and large venue display infrastructure

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What does 2xSM-QUAD mean?

2xSM denotes two single-mode SFP+ transceivers included. QUAD describes the four-fiber port configuration — compared to DUO's two fibers — enabling active link redundancy where loss of one fiber path does not interrupt the signal.

Is the QUAD configuration actively redundant or do I need to configure failover?

The QUAD configuration supports active fiber redundancy at the physical layer. Consult Lightware's LDC documentation and UBEX Pro20 system design guide for specific failover configuration procedures.

When should I choose QUAD over DUO?

Choose QUAD when signal continuity must be maintained even in the event of a fiber strand failure — such as in government, mission-critical, or broadcast-adjacent facilities where AV downtime carries significant operational cost.

What fiber cable is required?

Single-mode OS2 fiber with LC connectors, meeting the specifications of the included SFP+ transceivers. Verify the transceiver datasheet for maximum distance on your installed fiber.

Can I mix QUAD and DUO receivers in the same system?

Yes. QUAD and DUO receivers are interoperable within the same UBEX Pro20 HDMI 10GbE system. The fiber configuration affects only the physical layer; IP routing and management are uniform across all node types.

Where can I purchase this product?

Available from Creation Networks, an authorized Lightware commercial AV reseller specializing in enterprise and government AV systems.
