Lightware UBEX-Pro20-HDMI-R100 2xSM-BiDi-DUO R-type Uncompressed AV-Over-IP Multimedia System for 10G Ethernet Networks - 91820305

Product Overview

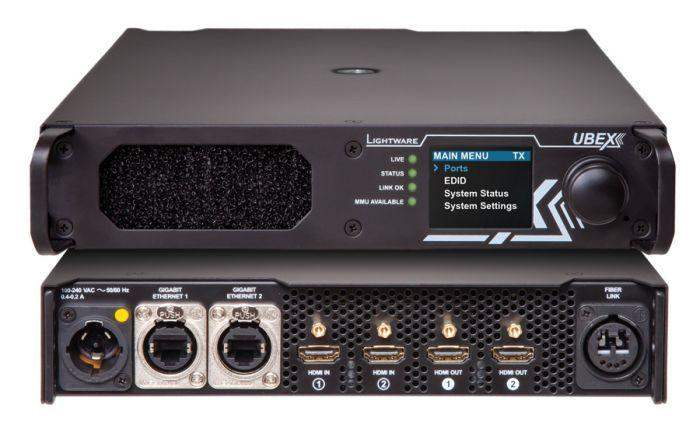

The Lightware UBEX-Pro20-HDMI-R100 2xSM-BiDi-DUO is an R-type uncompressed AV-over-IP multimedia system for 10G Ethernet networks, using bidirectional single-mode fiber with a DUO duplex configuration. Unlike standard UBEX transmitter/receiver pairs, the R-type architecture is designed for redundant or dual-stream applications where two independent video channels share a single fiber link using wavelength-division multiplexing (WDM) BiDi technology. This product is specified for high-availability broadcast, command-and-control, and enterprise environments where simultaneous bidirectional 4K video transport over a single-mode fiber pair is required.

Product Description

The UBEX-Pro20-HDMI-R100 2xSM-BiDi-DUO uses BiDi (bidirectional) single-mode SFP+ transceivers to simultaneously transmit and receive 10G signals over a single fiber strand rather than a fiber pair, doubling the effective capacity of an existing fiber plant. The DUO designation indicates two independent 10G channels per unit, enabling simultaneous bidirectional transport of uncompressed HDMI signals without separate fiber runs for each direction. HDMI 2.0 signals at up to 4K60 are transported uncompressed. Ethernet, RS-232, and audio are extended alongside video over the network link. The 2xSM-BiDi configuration provides the single-mode fiber distance capability (up to 10 km with appropriate BiDi SFP+) with the efficiency of BiDi transmission. This system requires compatible BiDi SFP+ transceivers and a 10G Ethernet switch infrastructure.

Key Features

• BiDi Single-Mode Fiber — Bidirectional transmission over a single fiber strand using WDM technology, doubling fiber plant efficiency.
• DUO Dual-Channel Architecture — Two independent 10G channels per unit for simultaneous bidirectional uncompressed HDMI transport.
• Uncompressed 4K60 HDMI — Full HDMI 2.0 bandwidth without compression or codec artifacts.
• Single-Mode Fiber Distance — Supports inter-building and campus distances up to 10 km with appropriate BiDi SFP+ modules.
• R-Type Redundant Architecture — Designed for high-availability systems requiring network redundancy or parallel signal paths.
• Ethernet and RS-232 Extension — Control and LAN connectivity extended over the AV-over-IP link.
• 10G Ethernet Network — Operates on standard 10G Ethernet infrastructure with BiDi-capable SFP+ ports on connected switches.

Typical Applications

• Broadcast studio requiring simultaneous bidirectional 4K feed over single-mode fiber
• Command-and-control facilities with high-availability redundant video infrastructure
• Campus inter-building AV distribution maximizing existing single-mode fiber capacity
• Government or military facilities requiring dual-channel fiber-efficient signal transport
• Enterprise data center to presentation space with bidirectional 4K over limited fiber plant

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What does BiDi mean in this context?

BiDi (bidirectional) refers to the use of WDM (wavelength-division multiplexing) SFP+ transceivers that transmit and receive on different wavelengths over a single fiber strand. This halves the number of fiber strands required for a full-duplex link compared to standard duplex fiber connections.

What does DUO mean?

DUO indicates that the unit handles two independent 10G bidirectional channels. This enables simultaneous transport of two separate HDMI signals over the same fiber link pair.

What SFP+ modules are required?

BiDi single-mode SFP+ transceivers are required. These are matched-pair devices — one transceiver at each end must transmit on the same wavelength the other receives, and vice versa. Contact Creation Networks for compatible SFP+ specifications.

Is this compatible with a standard 10G switch?

The switch must have SFP+ ports compatible with BiDi transceivers. Most enterprise-grade 10G switches with SFP+ ports support BiDi SFP+ modules, but confirm compatibility with the specific switch model in your network.

How does R-type architecture differ from standard UBEX encoder/decoder?

R-type units are designed for high-availability configurations with built-in redundancy or parallel channel support. Standard UBEX F-series units function as a single encoder or decoder. The R100 is specified when simultaneous bidirectional dual-channel transport or redundant path configuration is required.

Where can I purchase the UBEX-Pro20-HDMI-R100 2xSM-BiDi-DUO?

Available from Creation Networks at creationnetworks.net, an authorized Lightware reseller.
