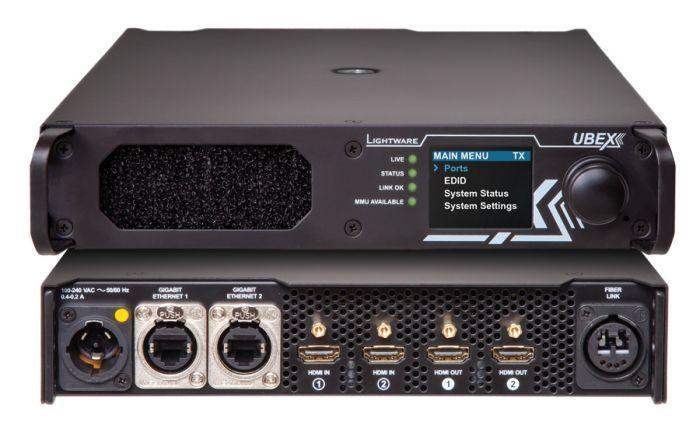

Lightware UBEX-Pro20-HDMI-R100 2xMM-QUAD R-type Uncompressed AV-Over-IP Multimedia System for 10G Ethernet Networks - 91820302

Product Overview

The Lightware UBEX-Pro20-HDMI-R100 2xMM-QUAD is an R-type (receiver) AV-over-IP node in the UBEX Pro20 HDMI series, shipping with two multimode (MM) SFP+ transceivers in a QUAD fiber port configuration. Designed for uncompressed 4K HDMI 2.0 reception over 10 Gigabit Ethernet, this receiver decodes IP streams from UBEX F-type transmitters and delivers a native HDMI 2.0 signal to a local display. The QUAD configuration provides four-fiber connectivity, supporting higher link redundancy or parallel signal paths compared to DUO variants. This unit is targeted at commercial AV integrators building resilient, high-availability AV-over-IP systems on multimode fiber infrastructure. Search terms: Lightware UBEX Pro20 HDMI receiver QUAD multimode, 10G AV over IP receiver 4-fiber MM, uncompressed 4K HDMI AV-over-IP QUAD receiver.

Product Description

The UBEX-Pro20-HDMI-R100 2xMM-QUAD receives an uncompressed HDMI 2.0 IP stream from a 10GbE switched network and converts it back to a local HDMI 2.0 output. The two included multimode SFP+ transceivers are configured in a QUAD arrangement — using four fiber strands — compared to the DUO variant's two-strand duplex configuration. This QUAD approach supports active link redundancy, making it appropriate for installations where fiber link failure must have no impact on signal continuity.

The signal path is fully uncompressed at up to 4K/60Hz 4:4:4, with zero-latency processing suitable for professional AV and broadcast-adjacent environments. Integration with Lightware Device Controller (LDC) enables centralized routing, monitoring, and EDID management. RS-232, TCP/IP, and USB control ports support Crestron, AMX, Extron, and Q-SYS processor integration.

Key Features

• Uncompressed HDMI 2.0 receiver — decodes 10GbE IP streams to native HDMI 2.0 at 4K/60Hz 4:4:4
• Two multimode SFP+ transceivers included — ready for MM fiber plant deployment
• QUAD fiber configuration — four-fiber connectivity for enhanced redundancy over DUO variants
• Sub-frame latency — uncompressed processing with no codec delay
• HDR and deep color support — HDR10 and Dolby Vision passthrough
• 8-channel audio support — PCM and HBR audio (Dolby TrueHD, DTS-HD MA) embedded in HDMI output
• HDCP 2.2 and 1.4 compliant — protected content decoding
• LDC software integration — Lightware Device Controller for centralized management
• Multi-interface control — RS-232, TCP/IP, USB
• Advanced EDID management — per-port emulation and locking at receiver

Typical Applications

• High-availability AV-over-IP systems requiring fiber redundancy
• Campus AV distribution on multimode fiber backbone
• Government and mission-critical AV infrastructure
• Auditorium and broadcast-adjacent display endpoints
• Conference room display endpoints on MM fiber

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What is the practical difference between QUAD and DUO fiber configurations?

The QUAD configuration uses four fiber strands versus two in the DUO. This allows for active link redundancy — if one fiber path fails, the second path maintains the signal without interruption. DUO provides a single duplex link without built-in fiber-level redundancy.

What multimode fiber type is required?

OM3 or OM4 multimode fiber with LC connectors is standard for 10GbE SFP+ multimode transceivers. Verify the included transceiver datasheet for maximum distance specifications on your specific fiber type.

Can this receiver support multiple simultaneous streams?

Each receiver outputs one HDMI signal from one IP stream. For multi-display endpoints, multiple receiver nodes are required — one per display.

How does this unit integrate with a control system?

RS-232, TCP/IP (Ethernet), and USB ports are available for direct control processor integration. Lightware also publishes an API and LDC software for system-level management of all UBEX nodes.

Where can I buy this product?

Available from Creation Networks, an authorized Lightware reseller for commercial AV equipment.
