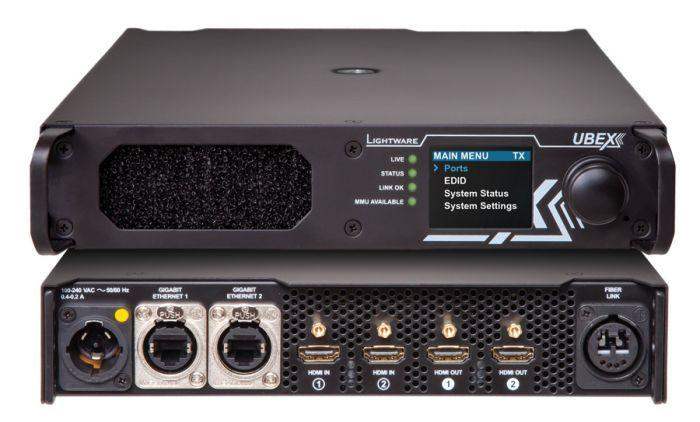

Lightware UBEX-Pro20-HDMI-R100 2xMM-2xDUO R-type Uncompressed AV-Over-IP Multimedia System for 10G Ethernet Networks - 91820301

Product Overview

The Lightware UBEX-Pro20-HDMI-R100 2xMM-2xDUO is an R-type (receiver) node in the UBEX Pro20 HDMI AV-over-IP series, shipping with two multimode (MM) SFP+ transceivers and configured for 2xDUO fiber port pairing. Designed for uncompressed 4K HDMI 2.0 distribution over 10 Gigabit Ethernet, the R100 receiver decodes IP streams transmitted from F-type transmitter nodes and delivers native HDMI output to displays or other endpoints. This receiver variant serves commercial AV deployments where multimode fiber is already installed and redundant or dual-stream fiber connections are needed at the display end. Relevant search terms: Lightware UBEX Pro20 HDMI receiver multimode fiber, 10G AV-over-IP HDMI receiver MM fiber, uncompressed 4K AV over IP receiver 2xDUO.

Product Description

The UBEX-Pro20-HDMI-R100 2xMM-2xDUO receives an uncompressed HDMI 2.0 IP stream from the 10GbE network and outputs it as a native HDMI 2.0 signal to a local display or endpoint. The two included multimode SFP+ transceivers enable dual fiber connections in a DUO configuration, supporting link redundancy or dual independent links depending on system design. The R100 chassis pairs with F-type transmitters in the same UBEX Pro20 HDMI family to form complete point-to-point or matrix AV-over-IP systems.

Signal processing is zero-latency and uncompressed at full HDMI 2.0 bandwidth including 4K/60Hz 4:4:4, HDR, and multi-channel audio. The unit integrates with Lightware Device Controller (LDC) for routing, monitoring, and EDID management, and supports RS-232, TCP/IP, and USB control interfaces for third-party control system integration with Crestron, AMX, Extron, and Q-SYS.

Key Features

• Uncompressed HDMI 2.0 receiver — decodes 10GbE IP streams to native HDMI 2.0 output at 4K/60Hz 4:4:4
• Two multimode SFP+ transceivers included — ready for deployment on existing MM fiber infrastructure
• 2xDUO fiber configuration — dual fiber connections for redundancy or dual-stream operation
• R100 chassis — R-type (receiver) unit that pairs with UBEX Pro20 F-type transmitters
• HDR and deep color passthrough — HDR10 and Dolby Vision preserved in the received stream
• Multi-channel audio output — up to 8-channel PCM and HBR audio embedded in HDMI output
• HDCP 2.2 and 1.4 compliant — protected content decoding support
• LDC software integration — centralized management via Lightware Device Controller
• Third-party control interfaces — RS-232, TCP/IP, USB for Crestron, AMX, Extron, Q-SYS
• Advanced EDID management — per-port EDID emulation and locking at receiver output

Typical Applications

• Multimode fiber AV-over-IP distribution systems
• Conference room and boardroom remote display endpoints
• Campus AV systems with existing MM fiber infrastructure
• Government facility secure HDMI distribution
• Auditorium and house of worship display endpoints

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What is the difference between the 2xDUO and 2xQUAD fiber configurations?

The 2xDUO configuration uses two duplex (DUO) fiber connections, with each fiber pair handling a full 10GbE link. The 2xQUAD configuration uses four fibers in a QUAD arrangement for higher redundancy or aggregate bandwidth applications. Consult your fiber plant design to select the appropriate variant.

What multimode fiber type is compatible?

Standard OM3 or OM4 multimode fiber with LC connectors is typical for 10GbE SFP+ multimode transceivers. Verify the transceiver specifications included with your unit for exact reach limitations.

Does the receiver require a matching UBEX transmitter?

Yes. The R-type receiver must pair with an F-type (transmitter) node from the UBEX Pro20 HDMI series on the same 10GbE network. Other IP streaming formats are not compatible.

Can multiple receivers connect to a single transmitter?

In a multicast configuration managed through a 10GbE switch with IGMP snooping, a single transmitter can distribute to multiple receivers simultaneously, forming a one-to-many distribution topology.

Where can I purchase this product?

The UBEX-Pro20-HDMI-R100 2xMM-2xDUO is available from Creation Networks, an authorized Lightware commercial AV reseller.
