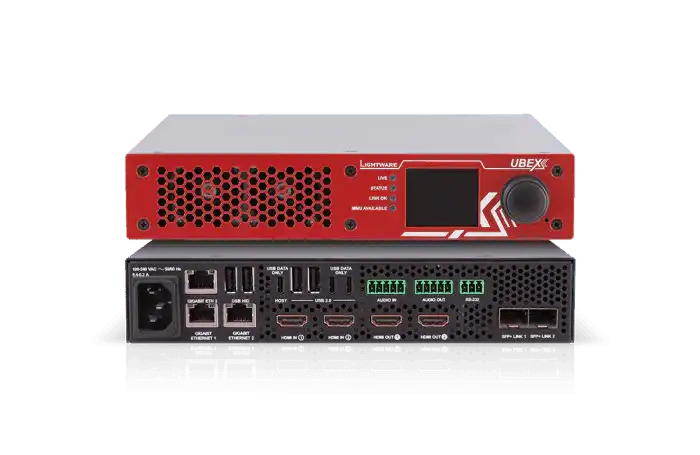

Lightware UBEX-Pro20-HDMI-F130 RED 2xMM Optical AV Over IP Video System for 10G Networks with Full USB 2.0 support - 91820403

Product Overview

The Lightware UBEX-Pro20-HDMI-F130 RED 2xMM is an uncompressed AV-over-IP encoder/decoder for 10 Gigabit Ethernet networks, transmitting 4K60 4:4:4 HDMI with full USB 2.0 extension via two multimode fiber SFP+ ports. It combines the F130's USB 2.0 capability — essential for unified communications deployments — with the intra-building reach of OM3/OM4 multimode fiber, covering distances up to approximately 300 m. This unit is the correct specification when a deployment requires both USB peripheral routing over IP and an existing multimode fiber network infrastructure.

Product Description

The UBEX-Pro20-HDMI-F130 RED 2xMM operates as either an encoder or decoder, configurable in software. It transmits uncompressed HDMI 2.0 at up to 4K60 4:4:4 HDR alongside USB 2.0 data at 480 Mbps over a 10G Ethernet network carried on two LC-terminated multimode fiber SFP+ ports. The two fiber ports support dual-switch redundancy or dual-network connectivity. Analog and embedded HDMI audio, RS-232, and Ethernet pass-through are also extended over the fiber link. The RED license activates UBEX Manager's advanced routing, user management, and API capabilities. SFP+ modules compatible with OM3/OM4 fiber at 10GBASE-SR are required for connection.

Key Features

• Uncompressed 4K60 4:4:4 HDR — Full HDMI 2.0 bandwidth over 10G fiber with no compression artifacts.
• Full USB 2.0 Extension — USB 2.0 at 480 Mbps extended over the fiber link for centralized USB camera and speakerphone routing.
• Dual Multimode Fiber SFP+ Ports (2xMM) — Two LC multimode fiber ports supporting intra-building runs up to ~300 m on OM4.
• Network Redundancy — Dual ports support dual-switch or redundant network connectivity.
• RED Advanced License — Advanced routing, user management, and API access included.
• Analog Audio I/O and Embedded HDMI Audio — Audio flexibility for installations with local analog audio infrastructure.
• Encoder/Decoder in One Unit — Configurable as transmitter or receiver from a single hardware SKU.

Typical Applications

• Enterprise conference rooms with USB camera and speakerphone over IP on intra-building fiber
• Unified communications deployments requiring centralized USB peripheral management over fiber
• University campus building-level AV-over-IP with existing OM4 fiber plant
• Corporate AV distribution where copper CAT cannot span required distances within a building

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What is the difference between the 2xMM and 2xSM fiber variants?

2xMM uses multimode fiber for intra-building distances up to ~300 m on OM4. 2xSM uses single-mode fiber for inter-building or campus distances of 10 km or more with appropriate SFP+.

Are SFP+ modules included?

SFP+ modules are typically not included and must be specified separately. Contact Creation Networks for compatible 10GBASE-SR SFP+ recommendations.

Does this model include USB extension?

Yes. All F130 models include full USB 2.0 extension at 480 Mbps. This distinguishes F130 from F120 and F110 models.

Can this unit be used on an existing OM3 fiber plant?

Yes. OM3 multimode fiber is supported, though maximum distance is approximately 82 m on OM3 with 10GBASE-SR versus 300 m on OM4.

Where can I purchase the UBEX-Pro20-HDMI-F130 RED 2xMM?

Available from Creation Networks at creationnetworks.net, an authorized Lightware reseller.
