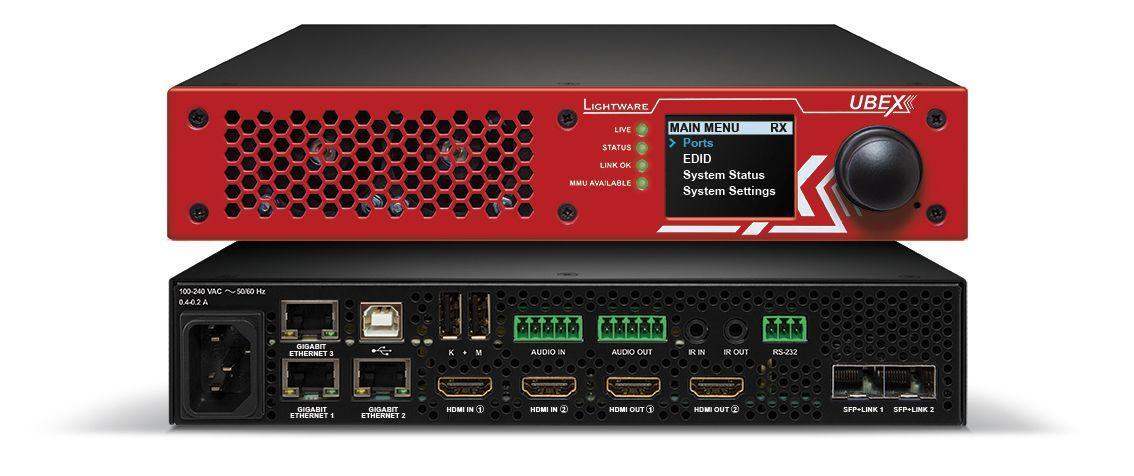

Lightware UBEX-Pro20-HDMI-F120 RED Optical AV Over IP Video System for 10G Networks - 91820201
Lightware UBEX-Pro20-HDMI-F120 RED Optical AV Over IP Video System for 10G Networks - 91820201 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Lightware UBEX-Pro20-HDMI-F120 RED Optical AV Over IP Video System ...
Product Overview
The Lightware UBEX-Pro20-HDMI-F120 RED is an F-type (transmitter) node in the UBEX Pro20 HDMI AV-over-IP series, designed for uncompressed 4K HDMI distribution over 10 Gigabit Ethernet with enhanced fiber connectivity. The F120 chassis ships as the base unit without SFP+ transceivers installed, providing two fiber ports for dual-link or redundant fiber configurations. This product addresses commercial AV integrators who require uncompressed 10G AV-over-IP with the flexibility to choose their own optical transceiver specification. Target applications include corporate campus systems, government AV infrastructure, and broadcast-adjacent facilities requiring uncompressed signal integrity. Long-tail keywords: Lightware UBEX Pro20 F120 10G AV over IP transmitter, uncompressed HDMI 2.0 fiber AV transmitter, dual SFP+ AV-over-IP encoder base unit.
Product Description
The UBEX-Pro20-HDMI-F120 RED (base) is a step up from the F100 chassis, offering an enhanced fiber port architecture within the same uncompressed 10GbE AV-over-IP platform. The transmitter accepts a single HDMI 2.0 source and outputs an uncompressed IP stream at full 4K/60Hz 4:4:4 bandwidth over two SFP+ ports. The base configuration allows the deploying organization to specify their exact optical transceiver type — choosing between single-mode and multimode — to match the installed fiber plant.
The unit operates within the Lightware UBEX Pro20 HDMI ecosystem, managed via Lightware Device Controller (LDC) software. Control interfaces include RS-232, Ethernet, and USB, supporting integration with Crestron, AMX, Extron, and Q-SYS. HDCP 2.2 and 1.4 are supported, and EDID management is handled per-port with full emulation and locking capabilities. The 1RU chassis mounts directly in standard equipment racks.
Key Features
- Uncompressed HDMI 2.0 over 10GbE — full 4K/60Hz 4:4:4 without compression losses
- Enhanced F120 chassis — upgraded fiber port architecture over the F100, base unit without transceivers
- Dual SFP+ ports — supports user-selectable single-mode or multimode transceivers
- HDR and deep color support — HDR10 and Dolby Vision passthrough within HDMI 2.0 specification
- HDCP 2.2 and 1.4 compliant — protected content distribution support
- Multi-channel audio — 8-channel PCM and HBR audio (Dolby TrueHD, DTS-HD MA)
- Advanced EDID management — per-port emulation and locking
- LDC software compatible — centralized system management via Lightware Device Controller
- Third-party control interfaces — RS-232, TCP/IP, USB
- 1RU rack-mountable — standard rack installation
Typical Applications
- Corporate campus fiber AV distribution
- Government and secure facility AV systems
- Broadcast-adjacent studio signal infrastructure
- University and education multi-building AV
- All-hands room and auditorium AV backbone
Technical Specifications
| Specification | Value |
|---|---|
| Model | UBEX-Pro20-HDMI-F120 RED (base) |
| SKU | 91820201 |
| Unit Type | F-type (Transmitter) |
| HDMI Input | 1x HDMI 2.0 |
| Optical Ports | 2x SFP+ (transceivers not included) |
| Network Standard | 10 Gigabit Ethernet |
| Video Resolution | Up to 4K UHD (3840x2160) @ 60Hz 4:4:4 |
| Signal Compression | None — uncompressed |
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
| Audio Support | Up to 8-channel PCM, HBR (Dolby TrueHD, DTS-HD MA) |
| Control Interfaces | RS-232, Ethernet (RJ45), USB |
| Power | IEC standard inlet, 100–240V AC |
| Form Factor | 1RU, rack-mountable |
Competitor Comparison
| Criteria | Lightware UBEX-Pro20-HDMI-F120 RED (base) | Crestron NVX-D80-IN | Extron NAV E 401 IN | ZeeVee ZyPer4K |
|---|---|---|---|---|
| Compression | Uncompressed | Visually lossless | Visually lossless | Near-lossless |
| Fiber Ports | Dual SFP+ (user-spec transceivers) | No native fiber | No native fiber | SFP+ optional |
| Network | 10GbE | 1GbE proprietary | 1GbE NAV | 10GbE |
| 4K/60Hz 4:4:4 | Yes — uncompressed | Yes — compressed | Yes — compressed | Yes — near-lossless |
| Transceiver Flexibility | Full SM/MM user selection | N/A | N/A | Limited |
| Control Integration | RS-232, TCP/IP, USB, LDC | Crestron only | Extron, RS-232 | REST API, RS-232 |
| Audio Formats | 8ch PCM, HBR, Dolby TrueHD, DTS-HD MA | 8ch PCM, HBR | 8ch PCM, HBR | 8ch PCM |
| Latency | Sub-frame | Low | Low | Low |
Frequently Asked Questions
- How does the F120 differ from the F100 and F110 chassis?
- The F100, F110, and F120 represent different chassis generations in the UBEX Pro20 HDMI F-type transmitter line, with the F120 offering an enhanced fiber port configuration. All are base units requiring separate SFP+ transceiver procurement. The specific port counts and redundancy options differ by chassis number.
- What SFP+ transceivers are compatible?
- The unit accepts standard 10GbE SFP+ transceivers. Single-mode (LC) modules are recommended for distances above 300m. Lightware or third-party 10G SFP+ modules meeting IEEE 802.3ae specifications are compatible.
- Is a 10GbE switch required?
- Yes. A 10GbE network switch with jumbo frame support (MTU 9000+) is required. For multi-node deployments, IGMP snooping is recommended for multicast stream management.
- Can UBEX nodes be mixed across F100, F110, and F120 chassis types?
- Yes. All UBEX Pro20 HDMI nodes operate on the same 10GbE IP platform and can be mixed within a single system managed by Lightware Device Controller.
- Is this unit suitable for broadcast environments?
- The uncompressed signal path and sub-frame latency make it suitable for broadcast-adjacent AV distribution. However, it is not an SDI-native product and is designed for HDMI 2.0 source environments.
- Where can I buy this product?
- The UBEX-Pro20-HDMI-F120 RED (base) is available from Creation Networks, an authorized Lightware commercial AV reseller.
